AZ961-1C-6DEA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ961-1C-6DEA

AZ961-1C-6DEA: DescriptionElectromechanical Relay, SPDT, Latched, 12.2VDC (Coil), 5A (Contact), 150VDC (Contact), Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size172KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/

Download Datasheet Parametric View All

AZ961-1C-6DEA Overview

Electromechanical Relay, SPDT, Latched, 12.2VDC (Coil), 5A (Contact), 150VDC (Contact), Random, AC/DC Output

AZ961-1C-6DEA Parametric

Parameter Name	Attribute value
Maker	AZETTLER
Reach Compliance Code	unknown
body width	10.5 mm
body height	20.5 mm
Body length or diameter	20.5 mm
Coil operating voltage (DC)	4.2 V
Coil resistance	100 Ω
Maximum coil voltage (DC)	12.2 V
Nominal coil voltage	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	1250VA@300VAC
Contact (AC) maximum rated R load	5A@300VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated power R load	150W@150VDC
Contact (DC) maximum rated R load	5A@150VDC
Maximum contact voltage (AC)	300 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	2000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cadmium Oxide
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	5
operating hours	10 ms
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	20.5mm x 10.5mm x 20.5mm
Guideline	UL
Relay action	LATCHED
Relay style	1 FORM C
Relay function	SPDT
release time	5 ms
seal	EPOXY
Terminal surface	Tin
Terminal length	0.0034 inch
Termination type	SOLDER
weight	8 g

Preview

Download Datasheet

View All

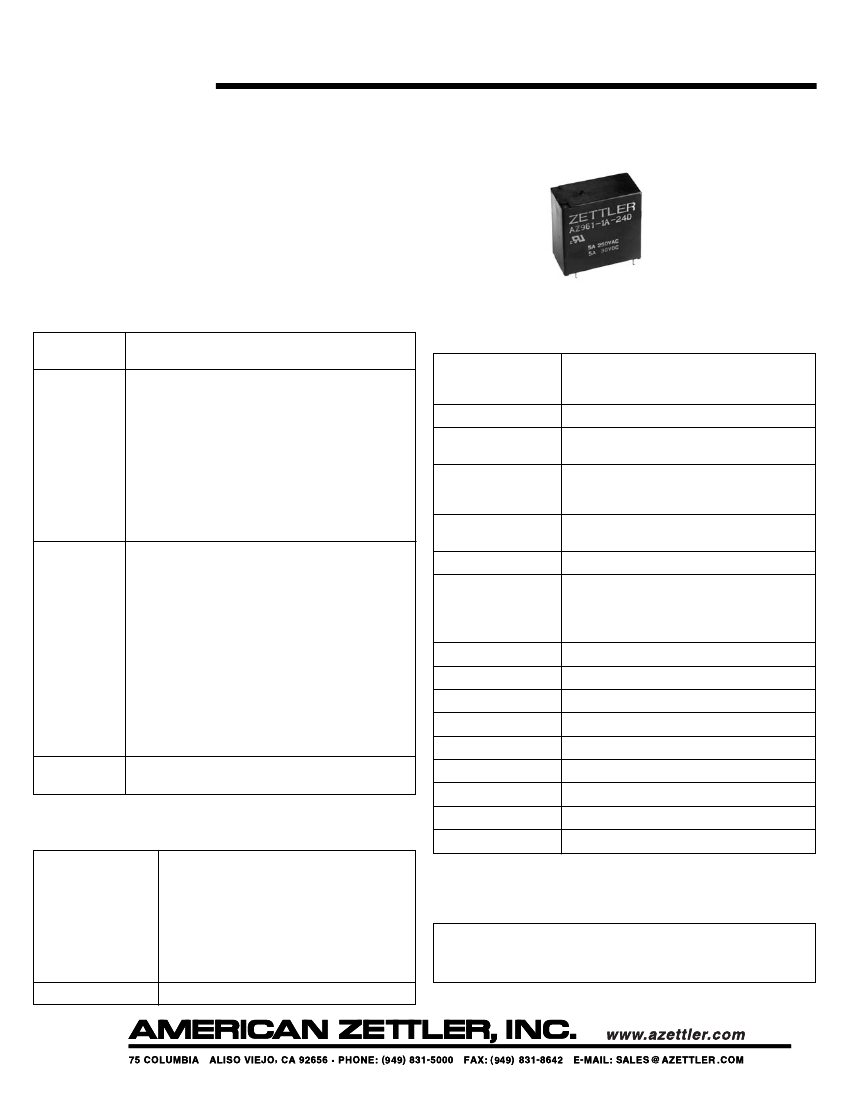

AZ961

MINIATURE

POWER RELAY

FEATURES

•

1 Form A or 1 Form C

Standard and sensitive coils

All plastics rated 94V-0

Epoxy sealed version available

Class B insulation system

UL, CUR file E43203

CONTACTS

Arrangement

Ratings

SPST NO (1 Form A)

SPDT

(1 Form C)

Resistive load:

1 Form A

Max. switched power: 150 W or 1250 VA

Max. switched current: 5 A

Max. switched voltage: 150 VDC* or 300 VAC

1 Form C

Max. switched power: 150 W N.O. or 1250 VA

Max. switched current: 5 A

Max. switched voltage: 150 VDC* or 300 VAC

*NOTE: If switching voltage is greater then 30 VDC, special precautions

must be taken. Please contact the factory.

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at 5 A 240 VAC Res. N.O.

10 ms at nominal coil voltage

5 ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

2000 Vrms coil to contact

(at sea level for 1 min.)

1000 Vrms between open contacts

4000 surge (2 x 10 us) coil to contact

Insulation Resistance

Dropout

1000 megohms min. at 500 VDC,

20°C, 50% RH

Greater than 5% of nominal coil voltage

UL, CUR

Form A

A at 250 VAC, General Use, 10k cycles [1]

A at 30 VDC, Resistive, 10k cycles [1]

A at 250 VAC, General Use, 100k cycles [2][3]

1 Form C

5 A at 250 VAC, General Use, 10k cycles [1] N.O.

3 A at 250 VAC, General Use, 10k cycles [1] N.C.

5 A at 30 VDC, Resistive, 10k cycles [1] N.O.

3 A at 30 VDC, Resistive, 10k cycles [1] N.C.

5 A at 250 VAC, General Use, 100k cycles [2][3] N.O.

5 A at 250 VAC, General Use, 100k cycles [2][3] N.C.

B300 Pilot Duty N.O. [1]

Silver cadmium oxide [1], silver tin oxide [2], silver nickel

[3]

Material

Silver cadmium oxide, silver tin oxide or silver nickel

Gold plating available

Ambient Temperature

Operating Standard:

40°C (-40°F) to 95°C (203°F)

Sensitive:

40°C (-40°F) to 100°C (212°F)

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

40°C (-40°F) to 130°C (266°F)

0.062" DA at 10–55 Hz

10 g

P.B.T. polyester

Tinned copper alloy, P.C.

250°C (482°F)

5 seconds

80°C (176°F)

30 seconds

8 grams

COIL

Power

At Pickup Voltage

(typical)

Max Continuous

Dissipation

Temperature Rise

Standard coil: 176 mW

Sensitive coil: 129 mW

1.5 W at 20°C (68°F)

At nominal coil voltage:

Standard coil: 27°C (49°F)

Sensitive coil: 20°C (36°F)

130°C (266°F)

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

Max. Temperature

9/26/05W
