IL-AG5-06PK-S3T2-A-LB datasheet, PDF

Datasheet> All Categories > The connector> The connector> IL-AG5-06PK-S3T2-A-LB

IL-AG5-06PK-S3T2-A-LB: DescriptionCombination Line Connector, 6 Contact(s), Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric View All

IL-AG5-06PK-S3T2-A-LB Overview

Combination Line Connector, 6 Contact(s), Male, Solder Terminal, Receptacle

IL-AG5-06PK-S3T2-A-LB Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
body width	0.433 inch
subject depth	0.78 inch
body length	0.72 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLUE-GREEN
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	IL-AG5
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYBUTYLENE TEREPHTHALATE
Terminal length	0.138 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

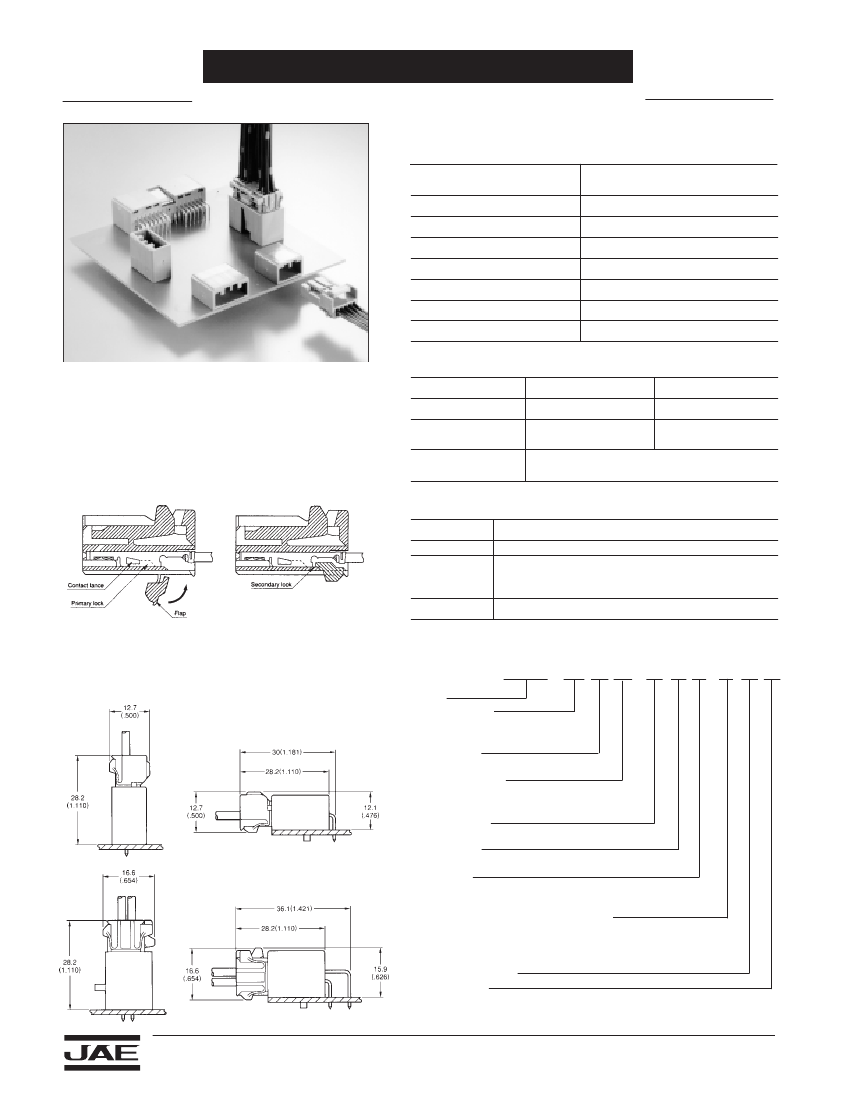

IL-AG5 SERIES AUTOMOTIVE CONNECTORS

025 Crimp Contacts, PCB-to-Cable/Cable-to-Cable Applications

• • • • • • • • • • • • • •

GENERAL SPECIFICATIONS

Number of Contacts

Contact Spacing

Current Rating

Dielectric Withstanding Voltage

Insulation Resistance

Contact Resistance

Applicable PCB Thickness

Operating Temperature

5, 6, 7, 10 (single row)

14, 16, 18, 22, 30 (double row)

2.5mm (.098")

3 Amps

1000 VAC r.m.s. (for one minute)

100 megohms min.

10 milliohms max.

1.6 to 2.4mm (.063" to .094")

-40°C to +85°C

APPLICABLE WIRE (Stranded)

FEATURES

• Designed for automotive instrument panel applications

• Mechanical lock assures positive mating

• Unique housing configuration helps prevent mismating

• Double locking mechanism prevents dislodging

of contacts

Connector Profile (Ref.)

Wire Type (JIS)

AWG No.

Conductor

Cross Section Area

Insulation Outer Dia.

AV, AVS, AVSS

#22 to #20

0.3 to 0.5mm

1.4 to 2.4mm

(.055 to .094")

AVS, AVSS

#18

0.85mm

MATERIALS AND FINISHES

Materials/Finishes

PBT, Yellow (Green or Light Blue for polarized version)

Brass/Tin Plating

Cable plug pin contact: Highly conductive

Copper alloy

Socket Contact Phosphor Bronze /Tin Plating

Description

Insulator

Pin Contact

• Polarized version is available

(Single row, 5 and 6 contacts only)

• Highly reliable socket contacts

• Simplified crimp-type termination

SINGLE ROW TYPE

Note: The standard finish of contacts is tin plating.

Gold plating is available as an option. Consult JAE for details.

ORDERING INFORMATION

IL-AG5 – **

* – *

* – * – **

DOUBLE ROW TYPE

Series

No. of Contacts

Single Row – 5, 6, 7, 10

Double Row – 14, 16, 18, 22, 30

Contact Type

P – Pin

S – Socket

Modification Code

K – Polarized version, 5 and 6 contacts only

Blank – Standard type

Contact Layout

S – Single Row D – Double Row

Contact Pitch

3 – 2.5mm (.098")

Termination

T – Straight Through Hole L – Right Angle Through Hole

C – Crimp

Applicable PCB Thickness (pin header)

2 – 1.6mm (.063")

Applicable Wire Size (Housing)

1 – AWG #18 to #22, Stranded

Modification Code A

Insulator Color

LB – Light Blue Blank – Green

Dimensions in mm (inches).

Dimensions and specifications subject to change without notice.
