6030 POWER INDUCTORS
High Reliability Power Inductors
ML512PYA
■
High temperature materials allow operation in ambient
temperatures up to 155°C
■
Passes vibration testing to 80 G and shock testing to 1000 G
■
Exceptionally low DCR – 1.59 mOhm
■
Soft saturation makes them ideal for VRM/VRD applications.
Terminations
Tin-silver (96.5/3.5) over copper.
Core material
Composite
Weight
0.6 – 0.7 g
Ambient temperature
–55°C to +105°C with
Irms
current, +105°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
400/7″reel
Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing,
3.12 mm pocket depth
Inductance
2
±20% (µH)
0.18
0.33
0.56
1.0
1.2
1.8
2.2
3.3
DCR (mOhms)
3
typ
max
1.59
1.75
2.30
2.53
3.01
3.31
5.62
6.18
6.82
7.50
9.57
10.52
12.70
13.97
19.92
20.81
SRF (MHz)
4
min
typ
113
141
71
89
49
61
40
50
34
43
27
34
24
30
21
26
Irms
(A)
6
20°C rise 40°C rise
18.0
24.0
15.0
18.8
12.0
16.5
9.8
13.5
9.0
12.0
7.6
10.5
5.3
7.5
4.5
6.0
Part
ML512PYA181MLZ
ML512PYA331MLZ
ML512PYA561MLZ
ML512PYA102MLZ
ML512PYA122MLZ
ML512PYA182MLZ
ML512PYA222MLZ
ML512PYA332MLZ
number
1
Isat
39
30
29
23
22
18.2
15.9
12.2
(A)
5
1. When ordering, please specify
testing
code:
ML512PYA332MLZ
Testing:
Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
N
= Screening per Coilcraft CP-SA-10004
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 4395A or equivalent.
5. Typical dc current at which the inductance drops 30% from its value without current.
6. Typical current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Irms
Testing
Irms
testing was performed on a
0.060″ thick pcb with 4 oz. copper
traces optimized to minimize ad-
ditional temperature rise.
Temperature rise is highly depen-
dent on many factors including
pcb land pattern, trace size, and
proximity to other components.
Therefore temperature rise
should be verified in application
conditions.
®
Document ML800-1 Revised 09/17/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012
6030 POWER INDUCTORS
ML512PYA Series

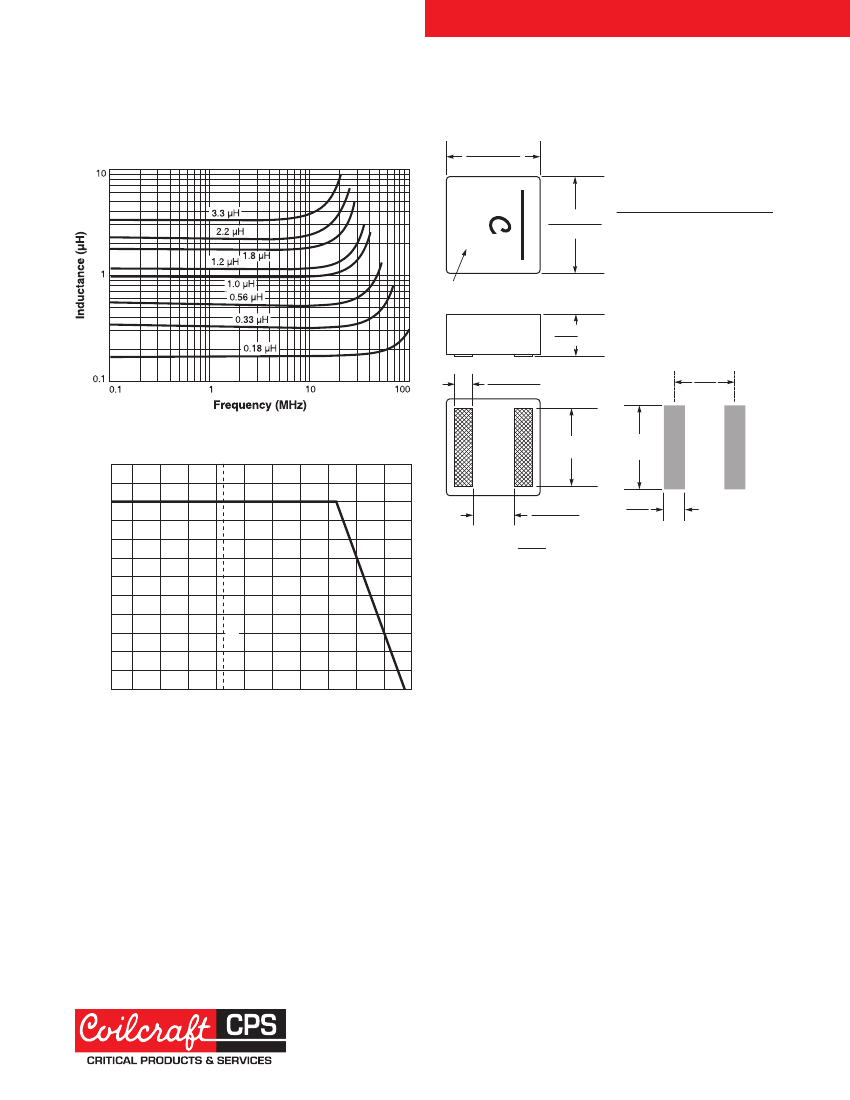

L vs Current
Inductance (µH)
0.20
0.15
0.10
0.05
0
0.18 µH
Inductance (µH)
0.30
0.25
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
1.2 µH
0
5
10
15
Current (A)
20
25
30
35
40
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30
Current (A)
Inductance (µH)
0.5
0.4
0.3
0.2
0.1
0
Inductance (µH)
0.6
2.4
2.0
1.6
1.2
0.8
0.4
0
0.33 µH
1.8 µH
0
5
10
15
Current (A)
20
25
30
35
40
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30
Current (A)
Inductance (µH)
0.6
Inductance (µH)
0.8
3.0
2.5
2.0
1.5
1.0
0.5
0
0.56 µH
0.4
0.2
0
0
5
10
15
20
25
30
35
40
2.2 µH
0
2
4
6
8
Current (A)
Current (A)
10
12
14
16
18
20
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
Inductance (µH)
Inductance (µH)
5
4
3
2
1
0
0
2
4
6
8
10
12
14
16
18
20
1.0 µH
3.3 µH
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30
Current (A)
Current (A)
®
Document ML800-2 Revised 09/17/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012
