2010 POWER INDUCTORS

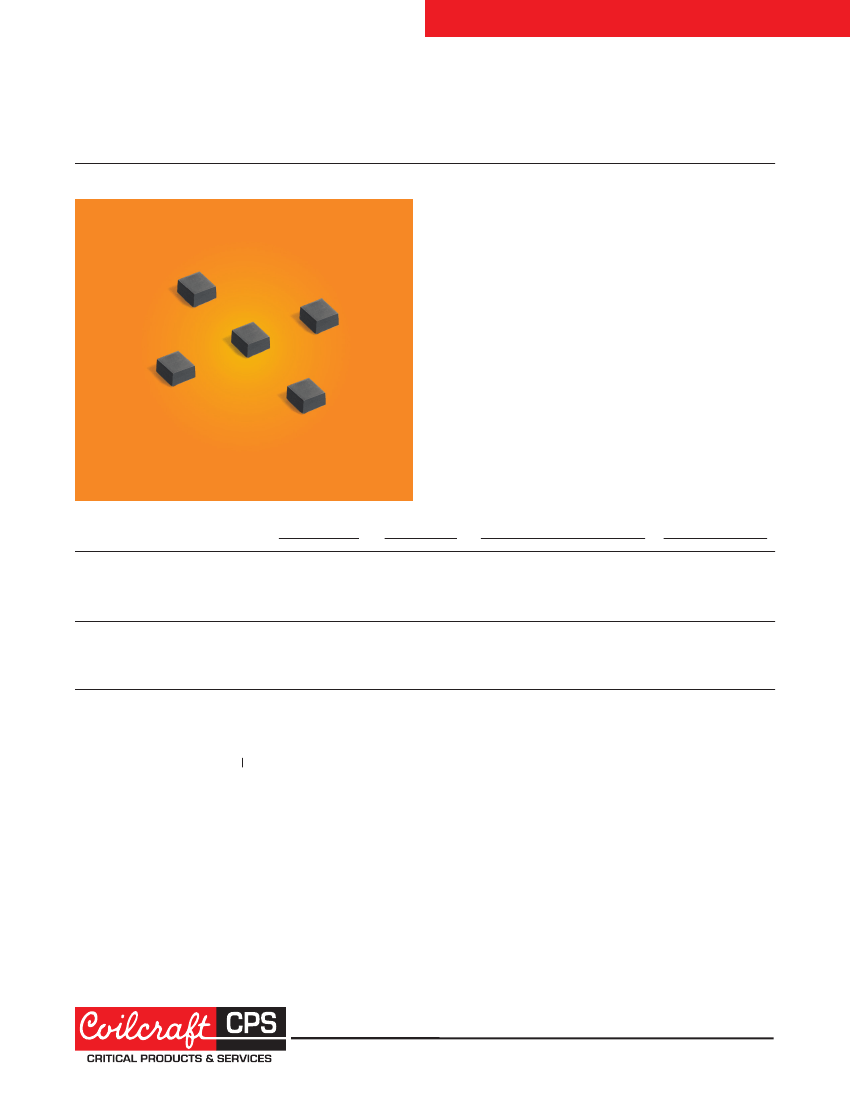

High Reliability Power Inductors
MS338PWA
■
High temperature materials allow operation in ambient
temperatures up to 155°C
■
Very low DCR and excellent current handling.
■
Soft saturation makes them ideal for VRM/VRD applications.
■
Tin-lead (Sn-Pb) termination for the best possible board
adhesion
■
Special construction allows it to pass vibration testing to
30 G and shock testing to 500 G.
Weight
20 mg
Terminations
Tin-lead (63/37) over tin over nickel over silver.
Ambient temperature
–55°C to +105°C with
Irms
current, +105°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
1000/7″reel
Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing,
1.19 mm pocket depth
Inductance
2
±20% (µH)
0.20
0.33
0.50
0.68
0.82
1.0
1.5
2.2
3.3
4.7
6.8
8.2
10
DCR (Ohms)
3
nom
max
0.024
0.027
0.031
0.035
0.040
0.045
0.057
0.063
0.068
0.075
0.081
0.089
0.105
0.116
0.156
0.173
0.207
0.228
0.336
0.370
0.421
0.463
0.457
0.503
0.555
0.611
SRF (MHz)
4
min
typ
286
408
216
309
153
218
106
152
93
132
82
117
56
80
53
75
39
55
28
40
23
33
21
30
20
28
2.
3.
4.
5.
Part number
1
MS338PWA201MSZ
MS338PWA331MSZ
MS338PWA501MSZ
MS338PWA681MSZ
MS338PWA821MSZ
MS338PWA102MSZ
MS338PWA152MSZ
MS338PWA222MSZ
MS338PWA332MSZ
MS338PWA472MSZ
MS338PWA682MSZ
MS338PWA822MSZ
MS338PWA103MSZ
10% drop
2.80
1.90
1.80
1.55
1.25
1.20
0.950
0.940
0.700
0.580
0.450
0.440
0.390
Isat
(A)
5
20% drop 30% drop
3.45
3.75
2.75
3.05
2.35
2.64
1.95
2.19
1.65
1.90
1.60
1.80
1.30
1.50
1.20
1.35
0.925
1.05
0.750
0.845
0.620
0.725
0.600
0.670
0.525
0.610
Irms
(A)
6
20°C rise 40°C rise
2.2
2.8
1.9
2.6
1.7
2.3
1.5
2.1
1.3
1.7
1.1
1.6
1.0
1.4
0.96
1.3
0.79
1.1
0.74
1.0
0.64
0.87
0.55
0.75
0.49
0.66
1. When ordering, please specify
testing
code:
MS338PWA224MSZ
Testing: Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
N
= Screening per Coilcraft CP-SA-10004
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
DCR measured on a micro-ohmmeter.
SRF measured using Agilent/HP 4395A or equivalent.
DC current at which the inductance drops the specified amount from its
value without current.
6. Current that causes the specified temperature rise fron 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
Specifications subject to change without notice.
Please check our website for latest information.
Document MS646-1
Revised 06/28/12
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2012
Phone 800-981-0363
Fax 847-639-1508
E-mail cps@coilcraft.com
Web www.coilcraft-cps.com
