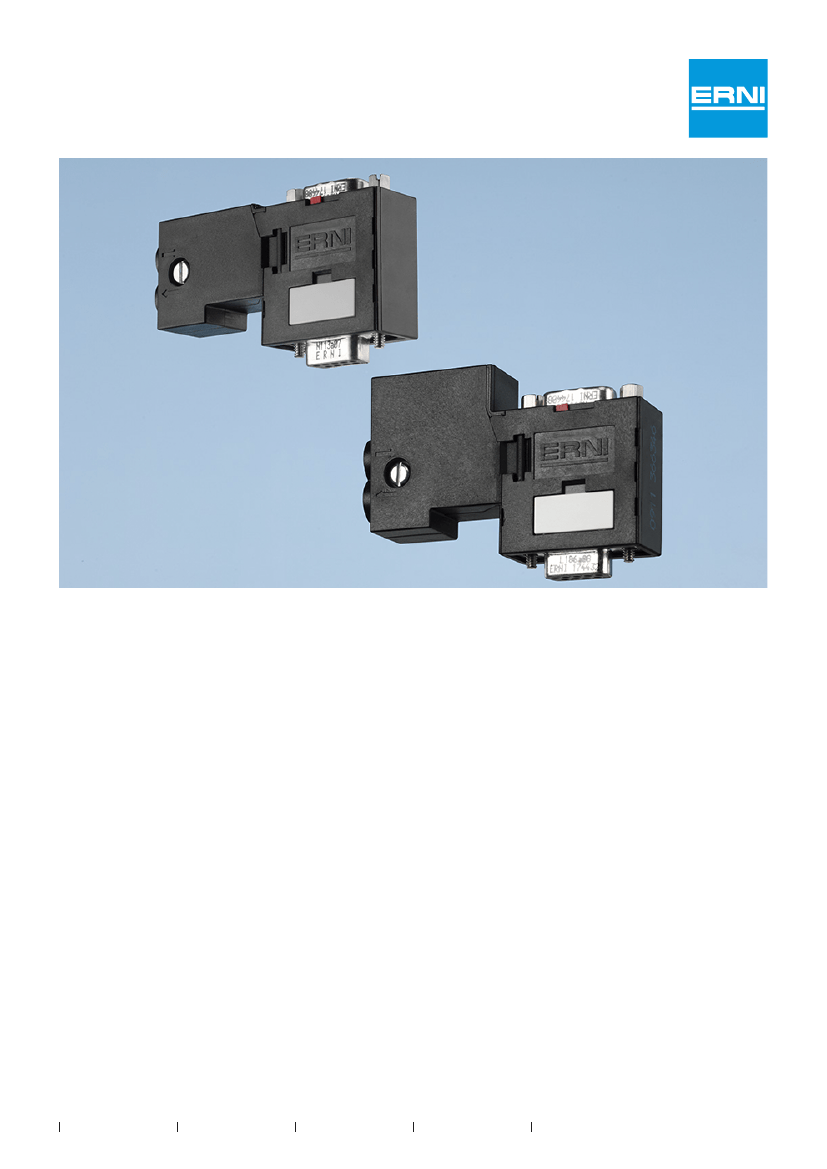

ERbic CANbus
Features
• All parts are pre-assembled, only 1 mounting screw
• Extremely flexible due to:
- Spring clamp terminal
- Changeable cable clamps for different cable diameters fom
6 to 9 mm (8 mm pre-assembled, 7 mm enclosed)
Best quality due to use of the new ERNI D-Sub connector ge-
neration
Externally connectable termination resistor
Optional diagnostic-interface
Extra metallic stamped shield connection for optimal shield
contact
Processible with only one tool (screwdriver)
Exchangeable ID plate for manuel or automatic labeling
Due to the red lever the switch setting is well visible
Compact design
Large area for customer-specific labeling, neutral version or
with custom company-logo
Technical Data
Interface connector:
PU connection:
Cable termination:
Cable diameter:
Cross section of
cage clamp:
Data transmission rate:
Temperature range:
Permissible humidity:
Protection class:
Housing material :
D-Sub screw 4/4 UNC:
UL approval:
CE marking:
D-Sub, female class 2
D-Sub, male class 2
2 x horizontal cable outlets
can be covered by blind plate
6 – 9 mm
0.08 – 0.5 mm2 (0.75 mm2)
max. 1 MBit/s (CAN-Spezification)
-20 °C – +70 °C
max. 75% at +25 °C, non-condensing
IP 20
Thermoplast UL94V-1
slottet head screw
in preparation
ERbic connectors are passive
components and do not need to be
identified with CE marking acc. to
EU directives.
•
•
•
•
•
•
•
•
•
Recommended Cables
LAPP cables (for standard cable clamp 8 mm):
UNITRONIC BUS CAN UL/CSA
2170266
UNITRONIC BUS FD P CAN UL/CSA 2170278
Helu cables (for cable clamp 7 mm):
CAN Bus cable
800571
CAN Bus cable, high flexible
802182
ø 7.5 mm
ø 8.0 mm
ø 7.0 mm
ø 6.9 mm
Catalog E XXXXXX
08/12
Edition 3
www.erni.com
1
ERbic CANbus
Version: only CAN-Signal

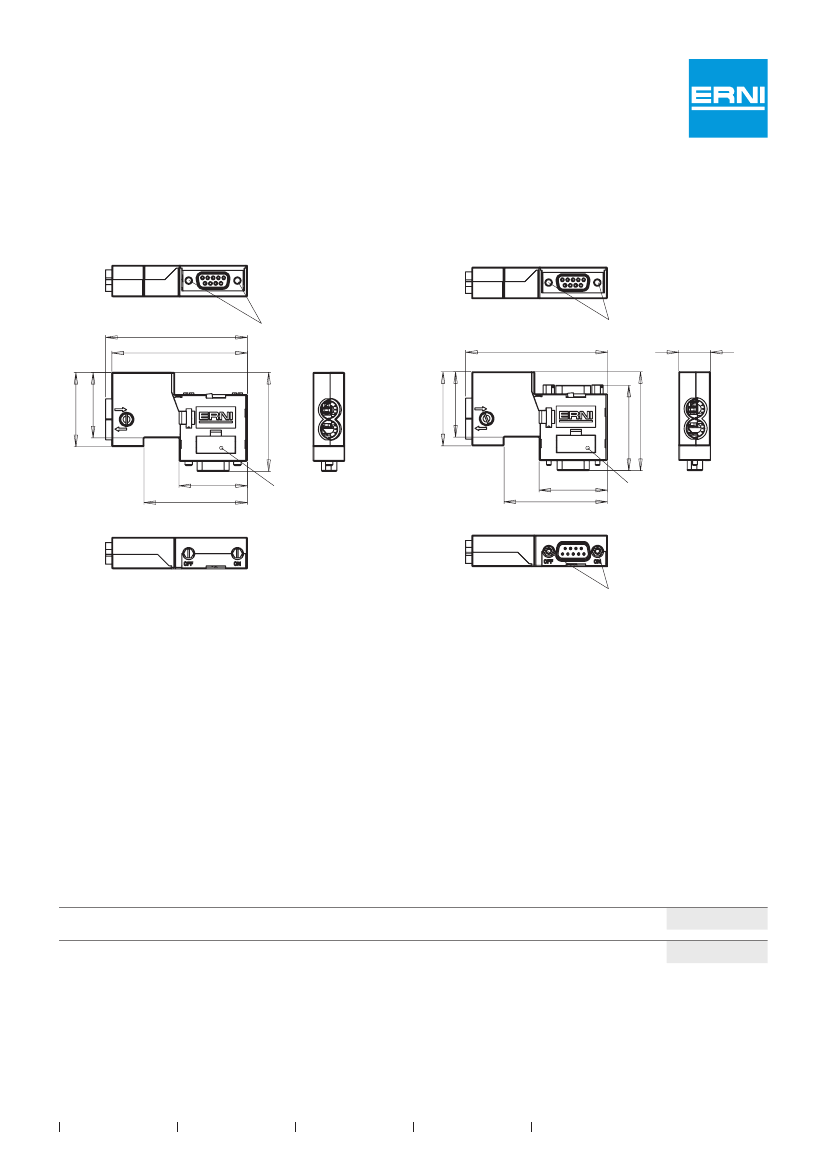

Dimensional Drawings
CANbus without PU connection
CANbus with PU connection
Pin Configuration
Terminal
GND
C-L
C-H
C-L
C-H
GND
D-Sub Pin
3
2
7
2
7
3
Wire color
shielding
white
brown
white
brown
shielding
Signal
CAN Ground
CAN-Low
CAN-High
CAN-Low
CAN-High
CAN Ground
Ordering Information
Configuration
CANbus without Service/PU connection
CANbus with Service/PU connection
D-Sub 9-pin
female
female and male
(PU connection)
Color
black
black
Termination
cage clamp
cage clamp
Part Number
366328
366331
Single box packaging:
- ERbic with pre-mounted cable clamp 8 mm
- Installation instructions
- additional cable clamp 7 mm
- blind plate for unused cable outlets
2
Catalog E XXXXXX
08/12
Edition 3
www.erni.com
ERbic CANbus
Version: CAN-Signal and Additional Voltage Feed

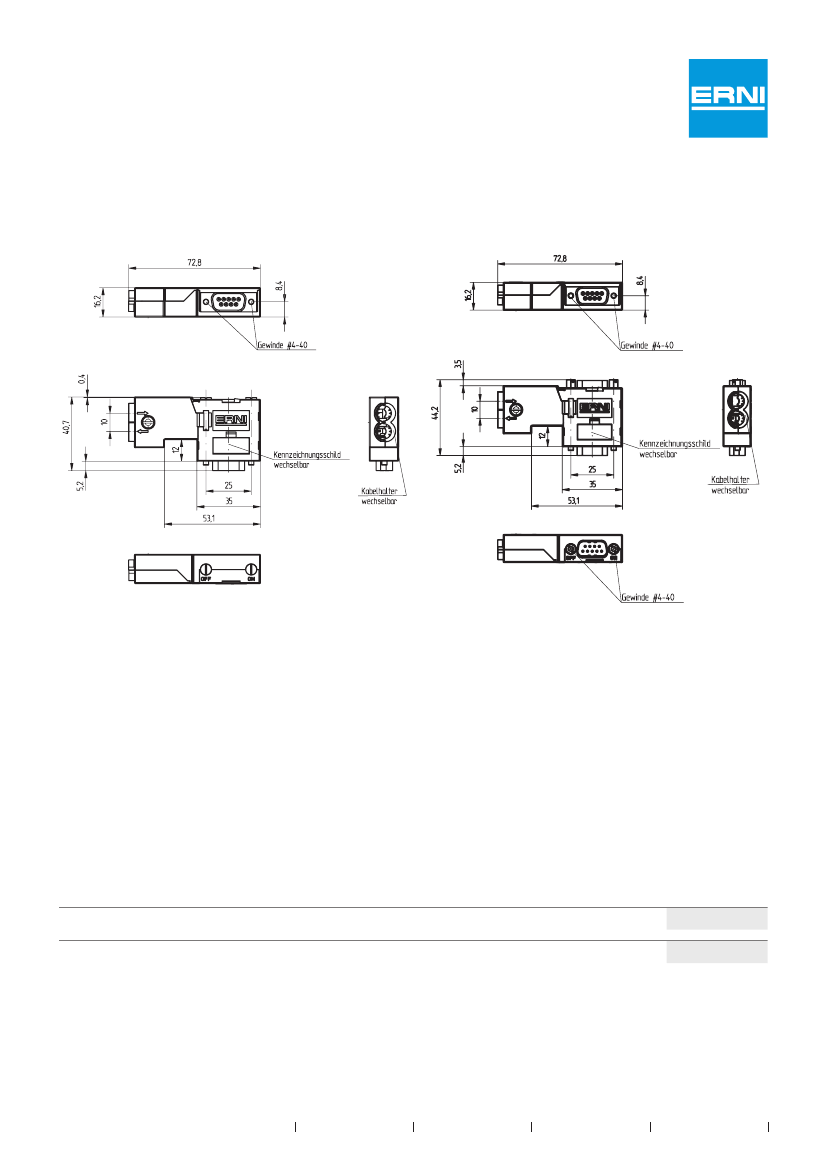

Dimensional Drawings
CANbus without PU connection
CANbus with PU connection
72,8
69,6
Gewinde #4-40
72,8
Gewinde #4-40
16,2
38,1
33,6
38,1
33,6
50,8
35,1
53,1
Kennzeichnungsschild
wechselbar
35,1
53,1
Gewinde #4-40
Pin Configuration
Terminal
V+
V-
GND
C-L
C-H
C-L
C-H
GND
V+
V-
D-Sub Pin
9
6
3
2
7
2
7
3
9
6
Wire color
Signal
V+
V-
CAN Ground
CAN-Low
CAN-High
CAN-Low
CAN-High
CAN Ground
V+
V-
shielding
white
brown
white
brown
shielding
Ordering Information
Configuration
CANbus without Service/PU connection
CANbus with Service/PU connection
D-Sub 9-pin
female
female and male
(PU connection)
Color
black
black
Termination
screw terminal
screw terminal
Part Number
366343
366346
Single box packaging:
- ERbic with pre-mounted cable clamp 8 mm
- Installation instructions
- additional cable clamp 7 mm
- blind plate for unused cable outlets
Catalog E XXXXXX
08/12
Edition 3
www.erni.com
43,8
Kennzeichnungsschild
wechselbar
50,8
3
