6067-X-93A0-D-2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 6067-X-93A0-D-2

6067-X-93A0-D-2: DescriptionMains Power Connector, 10/15A, 250VAC, Male, Screw/Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size385KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

6067-X-93A0-D-2 Overview

Mains Power Connector, 10/15A, 250VAC, Male, Screw/Solder Terminal, ROHS COMPLIANT

6067-X-93A0-D-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10/15A, 250VAC
Manufacturer's serial number	6067
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	PA6
Termination type	SCREW/SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

Connectors (Inlets/Outlets)

www.schurter.com/pg07

IEC Appliance Inlet C14, Screw-on Mounting, Front Side, Solder or Quick-connect, PCB or Screw Terminal

6067

C14

70° C

Description

- Panel Mount:

Screw-on mounting, Frontside

- Appliance Inlet, Pin temperature 70 °C, Protection class I

- Solder, quick-connect, screw, PCB

Approvals

- VDE Certificate Number: 40011871

- UL File Number: E96454

- CSA File Number: 27324

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Material: Housing

Dimensions

48 mm

ca. 24.8

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 3 kVAC between L-N

> 1.5 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

Solder, quick-connect, screw, PCB

PA6, black / grey / white, UL 94V-0

22.2

19.6

- 0

19.3

+0.2

15.7

- 0

+0.2

26.8

Length of the terminal please find at the order code configuration table

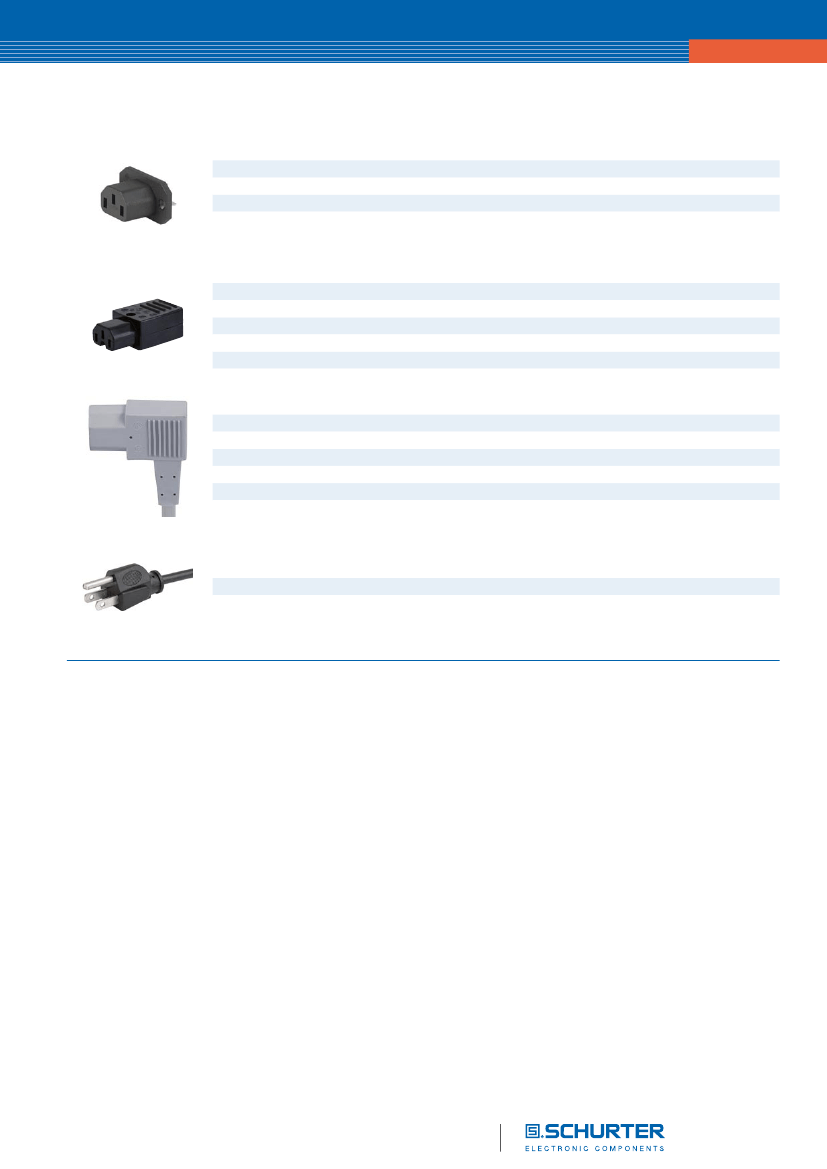

Connectors

-O

We recommend for new applications the type 6100-3

Last order possibility: 31.05.2011

References

Weblinks

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories, Detailed request for product

Appliance Inlet

C14 acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 1
