BL-HKB34C-AV-TRB
●
Features:
1. Emitted Color : Super Yellow
2. Lens Appearance: Water Clear.
3. Mono-color type.
4. 3.2x1.0x1.7mm (1204) standard package.
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
●

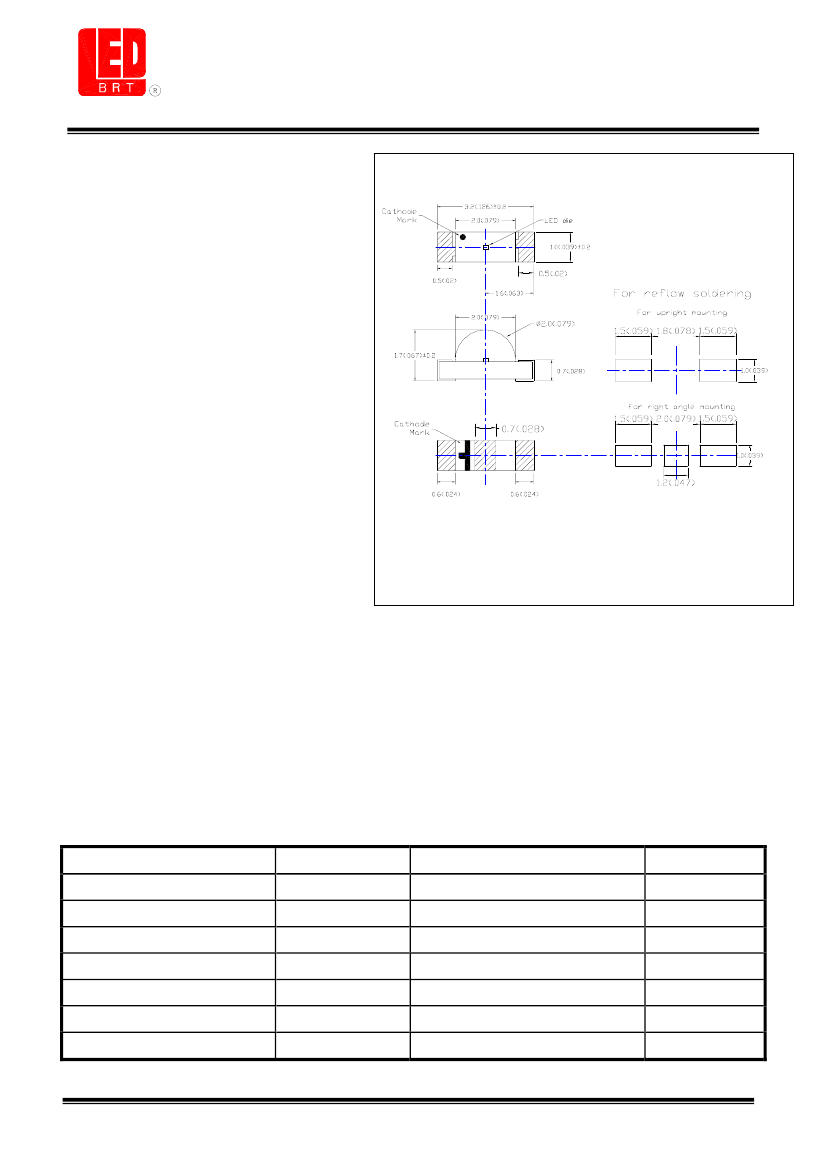

Package Dimensions:
●
Applications:
1.
Automotive: Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting: LCDs, Key pads advertising.
Status indicators: Comsumer & industrial
electronics.
NOTES:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.10mm (0.004”) unless otherwise specified.
3. Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
52
20
100
5
-40℃~85℃
-40℃~85℃
See Page6
Unit
mW
mA
mA
V
-
-
-
＊1
Condition for
I
FP
is pulse of 1/10 duty and 0.1msec width.
½鴻工業股½有限公司
http://www.brtled.com
Ver.1.0 Page 1 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB34C-AV-TRB
Max.
2.6
-
100
-
594
-
-
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Viewing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
42
-
-
582
-
-
Typ.
2.1
94
-
590
-
15
105
Unit
V
mcd
µA
nm
nm
nm
deg
●

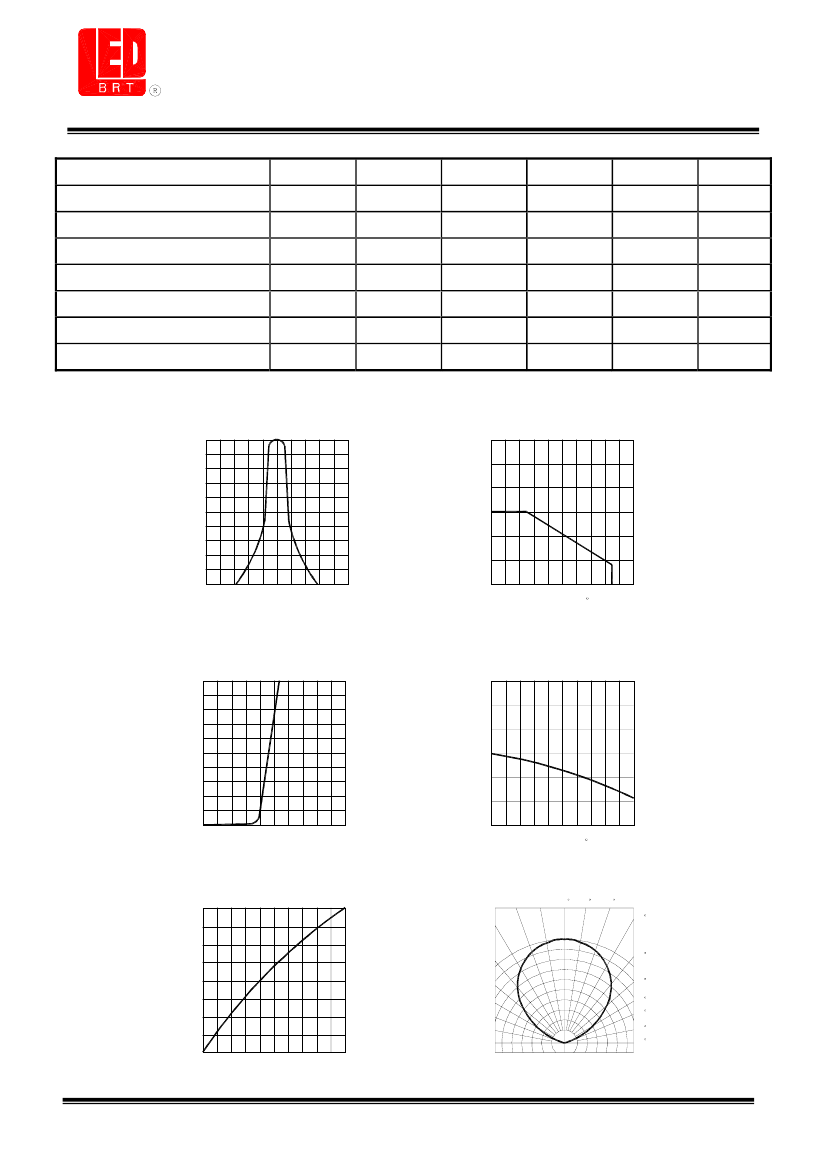

Typical Electro-Optical Characteristics Curves
Fig.2 Forward current derating curve
Fig.1 Relative intensity vs. wavelength
1.0
60
vs. ambient temperature
50
Relative radiant intensity
Forward current (mA)
40
0.5
30
20
10
0
540
590
640
0
20
40
60
80
100
Wavelength (nm)
Ambient temperature Ta( C)
Fig.3 Forward current vs. forward voltage
50
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
40
2.5
Forward current (mA)
Relative Luminous intensity
(Normalized @20mA)
5
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta( C)
A
Fig.5 Relative luminous intensity vs. forward current
2.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity (@20mA)
1.5
Relative radiant intensity
40
1.0
0.9
0.8
50
60
70
0.7
80
90
1.0
0.5
0
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.0 Page 2 of 7
½鴻工業股½有限公司
http://www.brtled.com
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB34C-AV-TRB
●

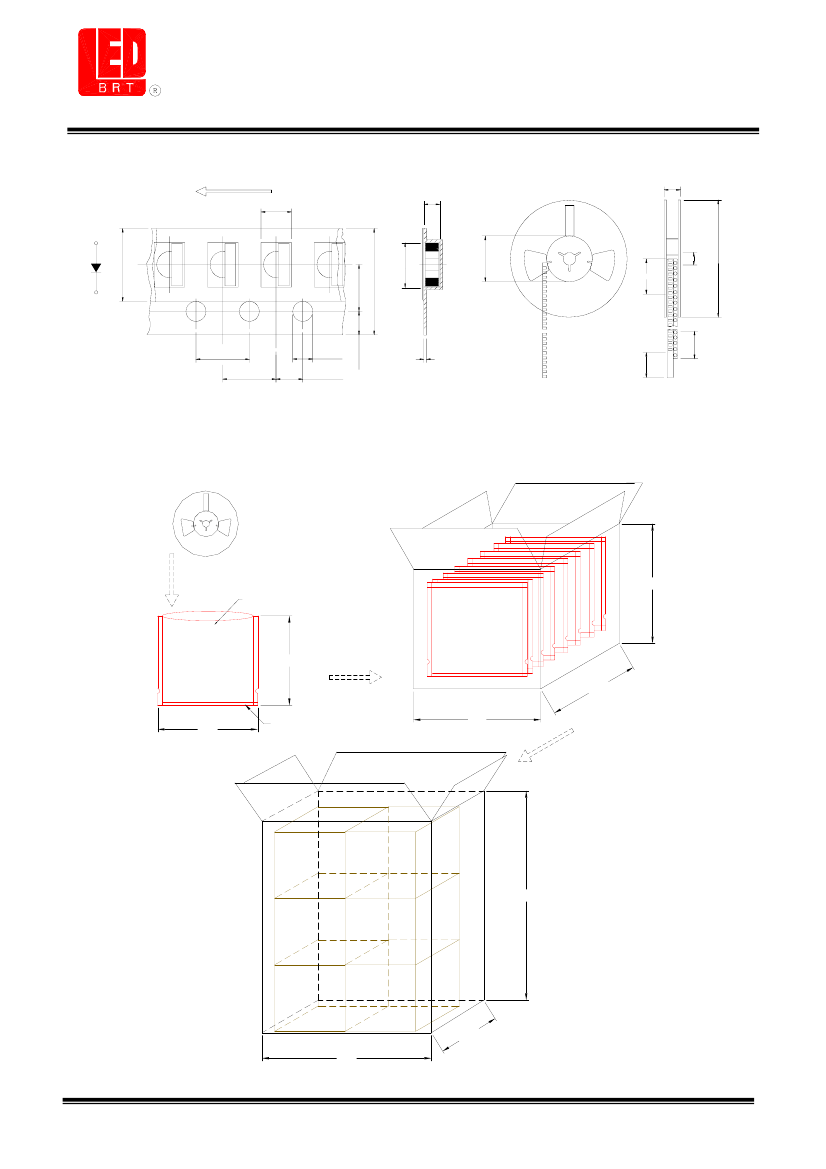

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
1.22± 0.1
1.88± 0.1
ANODE
START
END
17.2± 1.2
13.0 ± 0.5
TRAILER
LEADER
FIXING TAPE
71.0± 1
5.3 ± 0.05
CATHODE
4.0 ± 0.1
4.0 ± 0.1
1.5± 0.1
2.0± 0.05
1.75 ± 0.1
3.5 ± 0.05
8.0 ± 0.3
3.43± 0.1
0.3
NOTE: 3000 pcs PER REEL
●
Package Method:(unit:mm)Vacuum
12 bag/box
3000 pcs/reel
200
Bar Code Label
245
220
185
220
Aluminum Foil Bag
645
6 box/carton
210
470
Ver.1.0 Page 3 of 7
½鴻工業股½有限公司
http://www.brtled.com
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HKB34C-AV-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( A t 2 0 m A )
BIN CODE
Min. (mcd)
N
P
Q
R
42
63
94
140
Max. (mcd)
63
94
140
210
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 5 % .
C o l o r B i n L i m i ts ( A t 2 0 m A )
BIN CODE
2
3
4
5
6
7
Min. (nm)
582
584
586
588
590
592
Max. (nm)
584
586
588
590
592
594
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 n m .
V
F
B i n L i m i ts ( A t 2 0 m A )
BIN CODE
B
C
D
E
Min.(v)
1.8
2.0
2.2
2.4
Max.(v)
2.0
2.2
2.4
2.6
To l e r a n c e f o r e a c h B i n l i m i t i s ± 0 . 0 5 V.
●
B IN：
x
x
x
V
F
BIN CODE
Color BIN CODE
Intensity BIN CODE
