SF560DN: Description5A,600V,Super Fast Rectifiers, Diodes, Single, 600V, 5A, 1.5V, 5A, 60A; CategoryDiscrete semiconductor; File Size291KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

SF560DN Overview

5A,600V,Super Fast Rectifiers, Diodes, Single, 600V, 5A, 1.5V, 5A, 60A

SF560DN Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Reach Compliance Code	unknown
category
Configuration	Single
VRRM (V) max	600
IF (A) max	5
VF (V) max	1.5
Condition1_IF (A)	5
IFSM (A) max	60
IR (uA) max	10
Condition2_VR (V)	600
trr (ns) max	50
AEC Qualified	NO
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	3
Is it lead-free?	YES
Comply with Reach	YES
RoHS compliant	YES
ECCN code	EAR99
Package Outlines	TO-252

Preview

Download Datasheet

View All

Product specification

SUPER FAST RECTIFIERS

FEATURES



Low cost.

Low leakage.

Low forward voltage drop.

High currnt capability.

Easily cleaned with Alcohol,Isopropanol and similar solvents.

The plastic material carries U/L recognition 94V-0.

SF520DN-SF560DN

Lead-free

TO-252

Ordering Information

Part Number

SF520DN□

SF530DN□

SF540DN□

SF550DN□

SF560DN□

□:

none is for Lead Free package;

“G” is for Halogen Free package.

Package

TO-252

Shipping

80/Tube or2500/Tape Reel

Marking Code

SF520DN

SF530DN

SF540DN

SF550DN

SF560DN

MAXIMUM RATING

operating temperature range applies unless otherwise specified

Symbol

Parameter

Rcurrent Peak Reverse Voltage

RMS Voltage

DC Blocking Voltage

Average Forward Rectified Current

=100℃

Peak Forward SurgeCurrent 8.3ms Single

Half Sine-wave Superimosed on Rated Load

Operating Junction and StoragTemperature

Range

520DN

200

140

200

530DN

300

210

300

540DN

400

280

400

5.0

-55 to +150

550DN

500

350

500

560DN

600

420

600

Unit

RRM

RMS

F(AV)

FSM

stg

℃

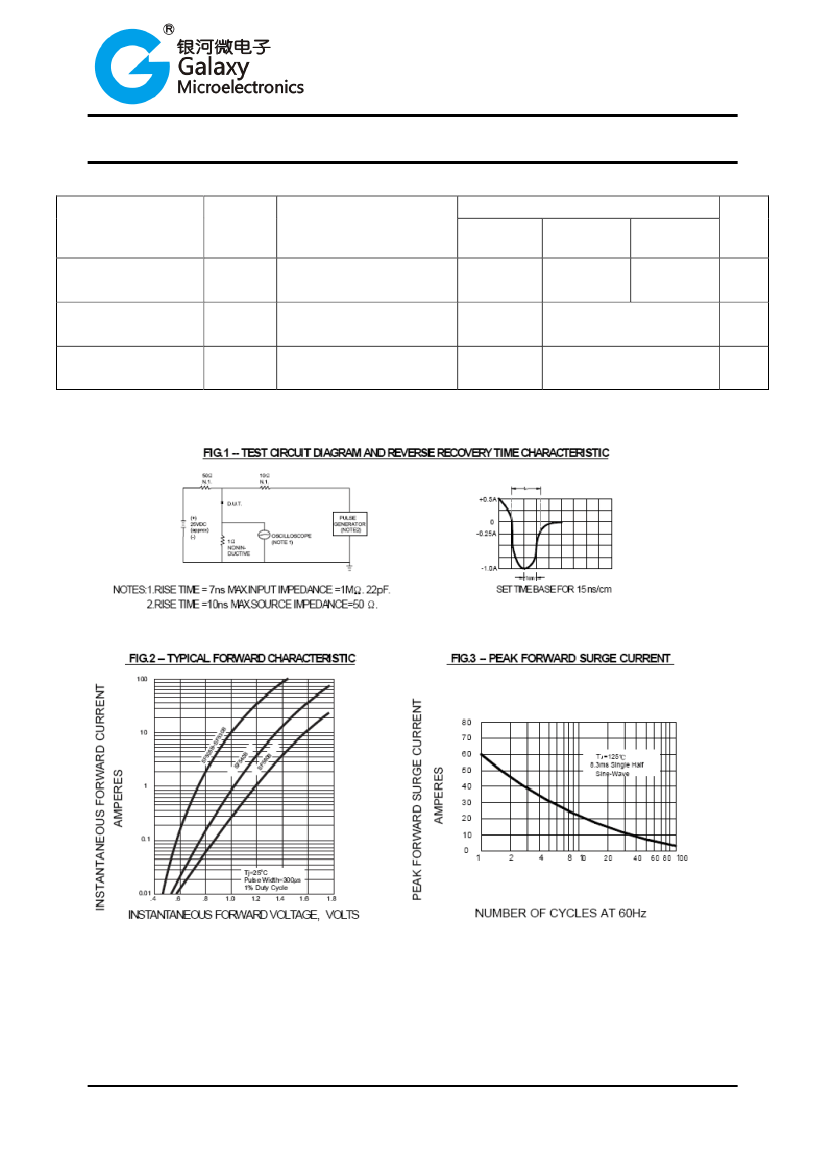

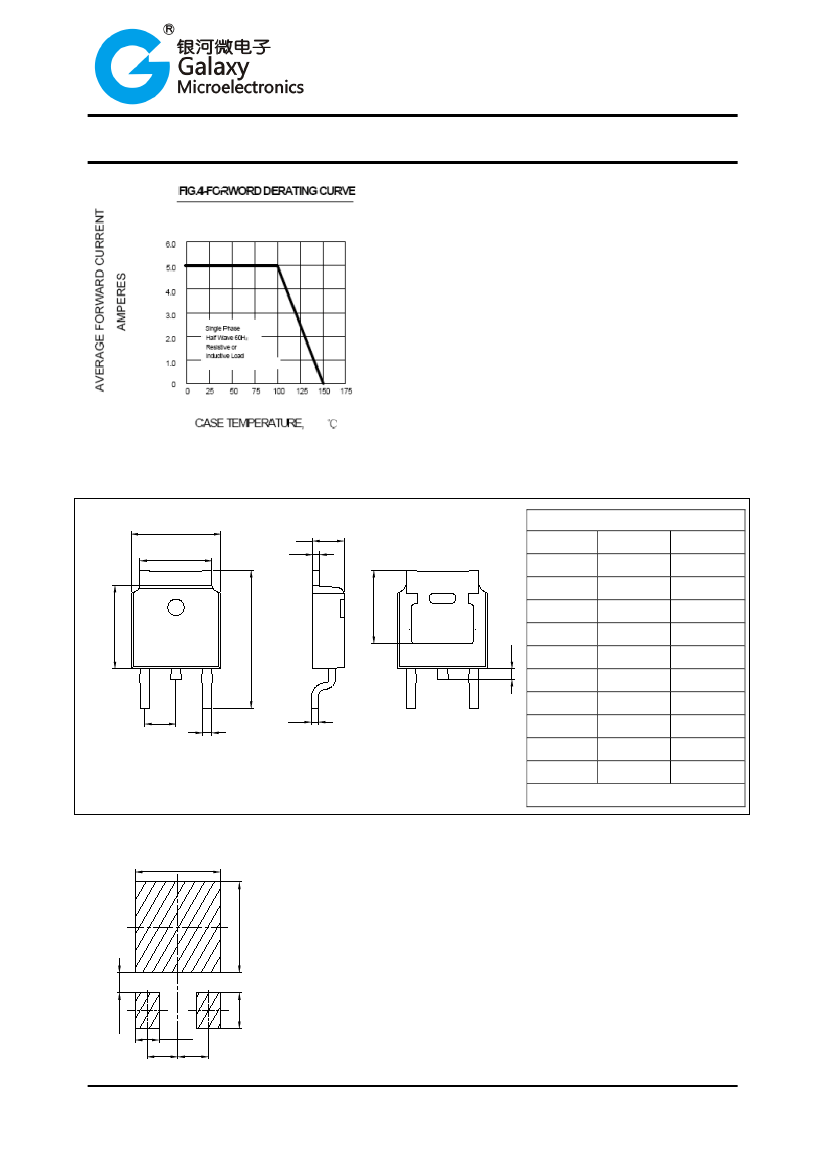

FRM0012A

www.gmesemi.com

SF560DN Related Products

	SF560DN	SF550DN	SF530DN	SF540DN	SF520DN
Description	5A,600V,Super Fast Rectifiers, Diodes, Single, 600V, 5A, 1.5V, 5A, 60A	5A,500V,Super Fast Rectifiers, Diodes, Single, 500V, 5A, 1.5V, 5A, 60A	5A,300V,Super Fast Rectifiers, Diodes, Single, 300V, 5A, 1.3V, 5A, 60A	5A,400V,Super Fast Rectifiers, Diodes, Single, 400V, 5A, 1.3V, 5A, 60A	5A,200V,Super Fast Rectifiers, Diodes, Single, 200V, 5A, 0.98V, 5A, 60A
Maker	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	Single	Single	Single	Single	Single
VRRM (V) max	600	500	300	400	200
IF (A) max	5	5	5	5	5
VF (V) max	1.5	1.5	1.3	1.3	0.98
Condition1_IF (A)	5	5	5	5	5
IFSM (A) max	60	60	60	60	60
IR (uA) max	10	10	10	10	5
Condition2_VR (V)	600	500	300	400	200
trr (ns) max	50	50	50	50	35
AEC Qualified	NO	NO	NO	NO	NO
Maximum operating temperature	150	150	150	150	150
Minimum operating temperature	-55	-55	-55	-55	-55
MSL level	3	3	3	3	3
Is it lead-free?	YES	YES	YES	YES	YES
Comply with Reach	YES	YES	YES	YES	YES
RoHS compliant	YES	YES	YES	YES	YES
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Package Outlines	TO-252	TO-252	TO-252	TO-252	TO-252
