SSI32R2200R-6CL datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> SSI32R2200R-6CL

SSI32R2200R-6CL: DescriptionDrive Electronics, 6 Channel, BICMOS, PDSO24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size347KB，11 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

SSI32R2200R-6CL Overview

Drive Electronics, 6 Channel, BICMOS, PDSO24

SSI32R2200R-6CL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Silicon Systems Inc.
package instruction	SOP, SOP24,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Number of channels	6
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

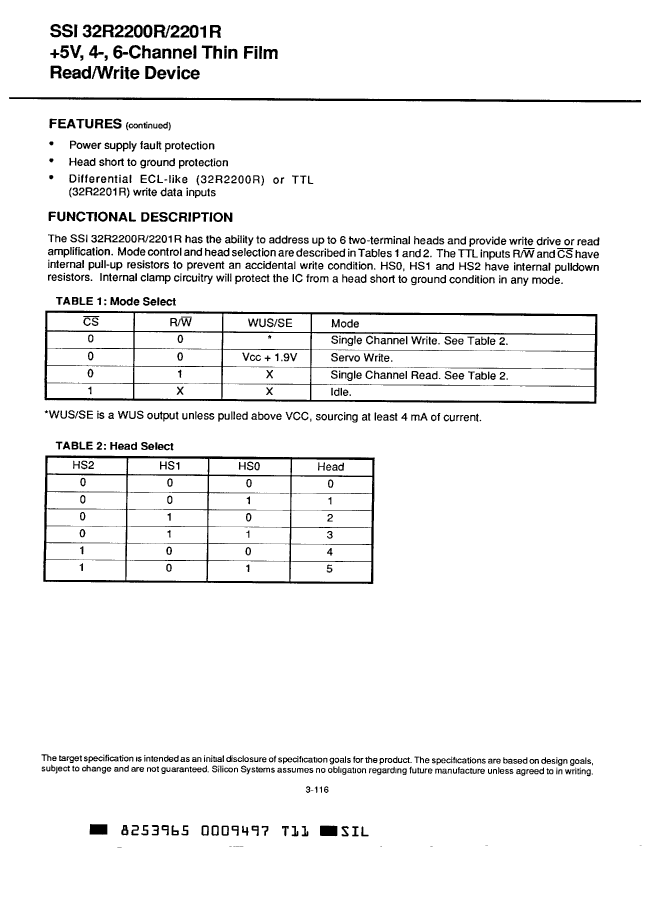

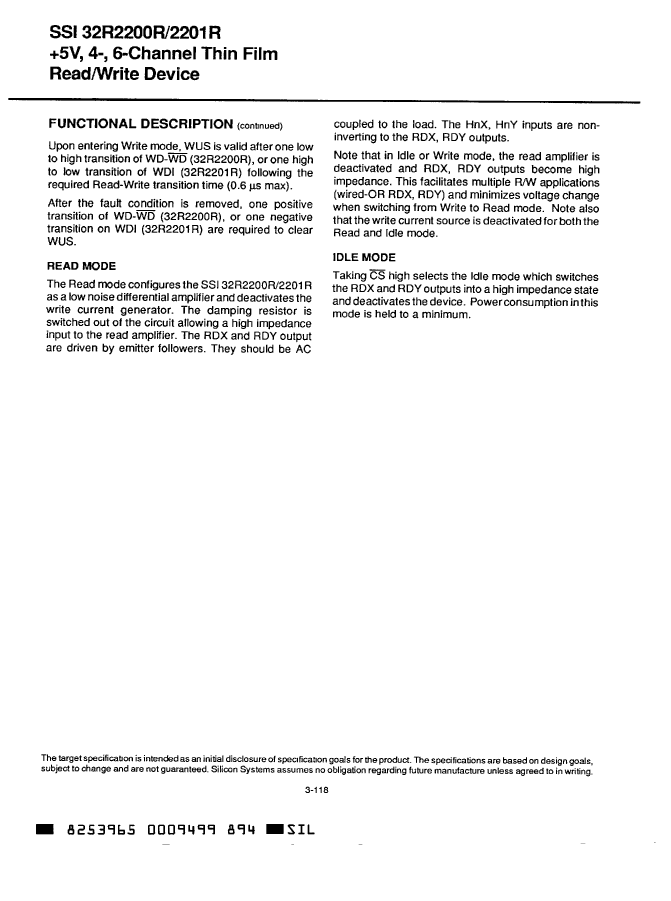

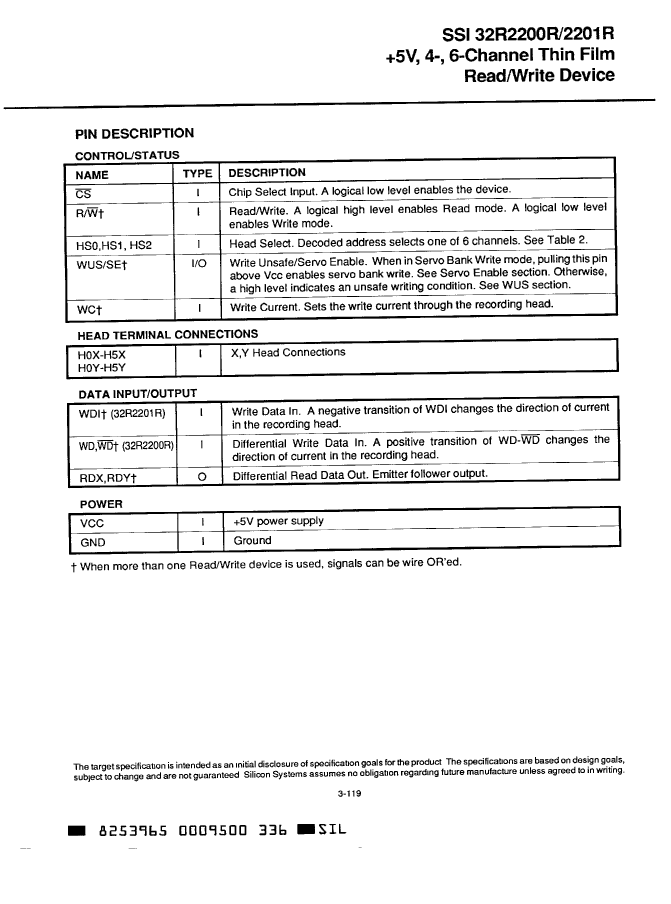

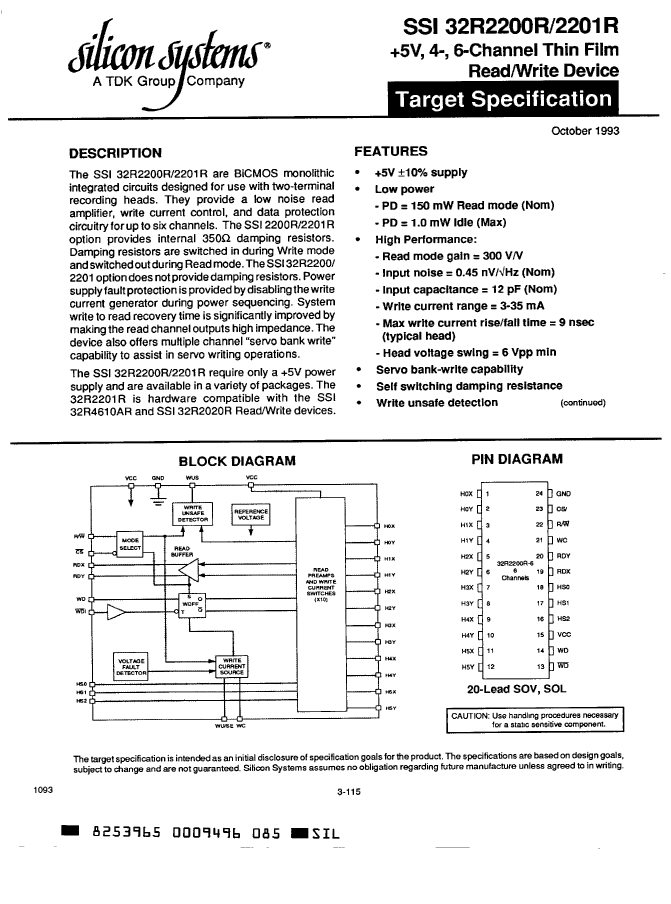

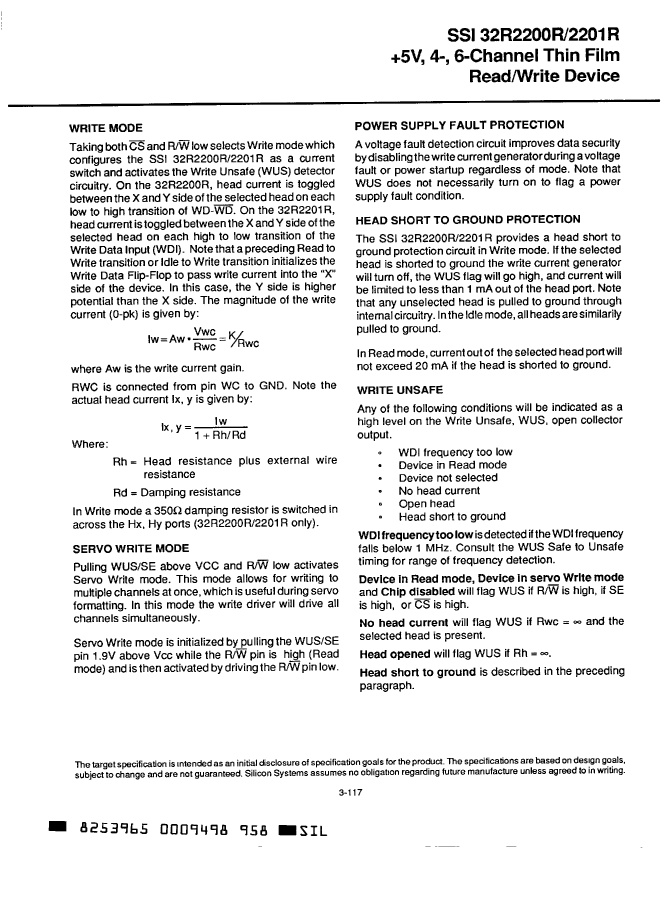

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

SSI32R2200R-6CL Related Products

	SSI32R2200R-6CL	SSI32R2200R-4CL	SSI32R2200R-6CV	SSI32R2201R-4CL	SSI32R2201R-4CV	SSI32R2201R-6CL	SSI32R2201R-6CV
Description	Drive Electronics, 6 Channel, BICMOS, PDSO24	Drive Electronics, 4 Channel, BICMOS, PDSO20	Drive Electronics, 6 Channel, BICMOS, PDSO24	Drive Electronics, 4 Channel, BICMOS, PDSO20	Drive Electronics, 4 Channel, BICMOS, PDSO20	Drive Electronics, 6 Channel, BICMOS, PDSO24	Drive Electronics, 6 Channel, BICMOS, PDSO24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Silicon Systems Inc.	Silicon Systems Inc.	Silicon Systems Inc.	Silicon Systems Inc.	Silicon Systems Inc.	Silicon Systems Inc.	Silicon Systems Inc.
package instruction	SOP, SOP24,.3	SOP, SOP20,.4	SSOP, SSOP24,.3	SOP, SOP20,.4	SSOP, SSOP20,.3	SOP, SOP24,.3	SSOP, SSOP24,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G24	R-PDSO-G20	R-PDSO-G24	R-PDSO-G20	R-PDSO-G20	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of channels	6	4	6	4	4	6	6
Number of terminals	24	20	24	20	20	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SSOP	SOP	SSOP	SOP	SSOP
Encapsulate equivalent code	SOP24,.3	SOP20,.4	SSOP24,.3	SOP20,.4	SSOP20,.3	SOP24,.3	SSOP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.635 mm	1.27 mm	0.635 mm	1.27 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
