B39389-G1986-M100 datasheet, PDF

B39389-G1986-M100: DescriptionSAW-Video/Sound Filter, 1 Function(s), 37.4MHz, 5 Pin(s), Plastic, PLASTIC, SIP-5; CategoryAnalog mixed-signal IC filter; File Size88KB，6 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B39389-G1986-M100 Overview

SAW-Video/Sound Filter, 1 Function(s), 37.4MHz, 5 Pin(s), Plastic, PLASTIC, SIP-5

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
package instruction	PLASTIC, SIP-5
Reach Compliance Code	unknown
Maximum attenuation frequency (+/- delta f)	1500 kHz
Attenuation at maximum frequency	6.2 dB
Center frequency or cutoff frequency (fo/fc)	37.4 MHz
filter type	SAW-VIDEO/SOUND FILTER
high	8.7 mm
input resistance	2100 OHM//10.4 pF
Maximum insertion loss	17.3 dB
JESD-609 code	e3
length	17.3 mm
Manufacturer's serial number	G1986M
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Number of terminals	5
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
Output impedance	2500 OHM//3.5 pF Ω
Packaging Materials	PLASTIC
physical size	L17.3XB3.9XH8.7 (mm)
Terminal surface	Matte Tin (Sn)
width	3.9 mm

SAW Components

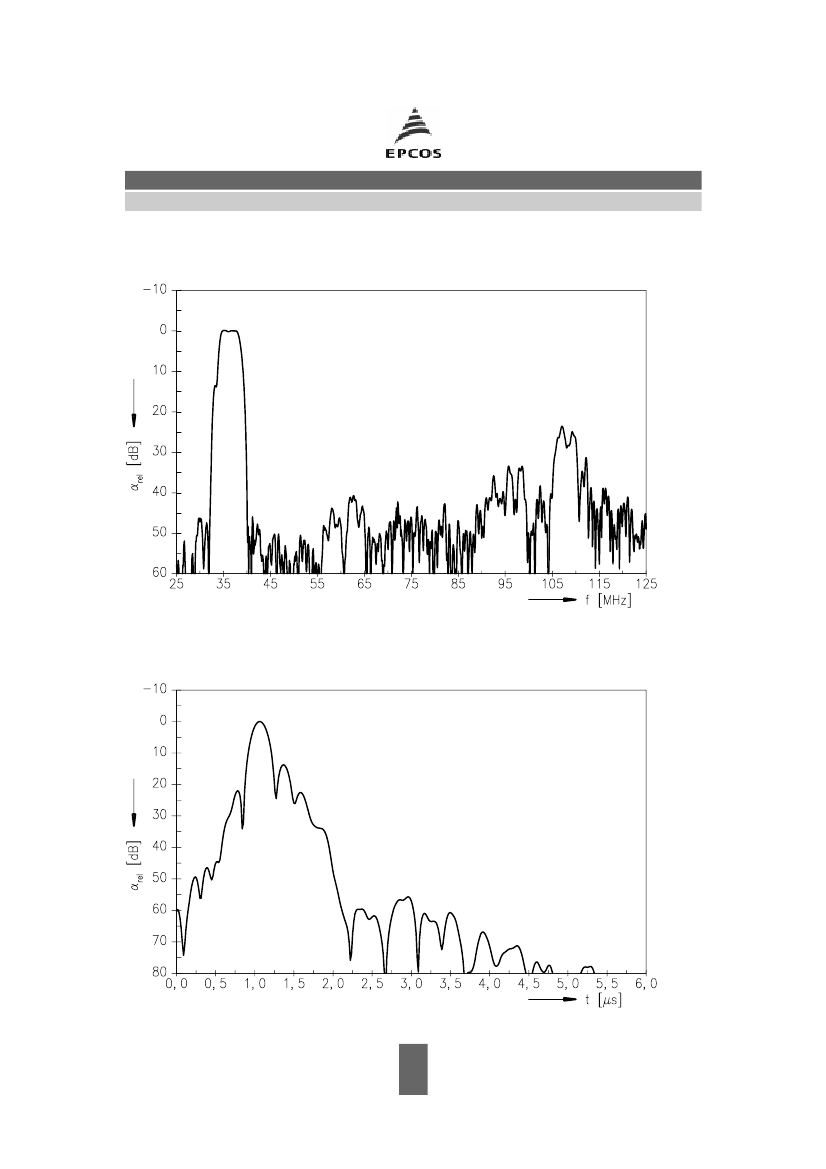

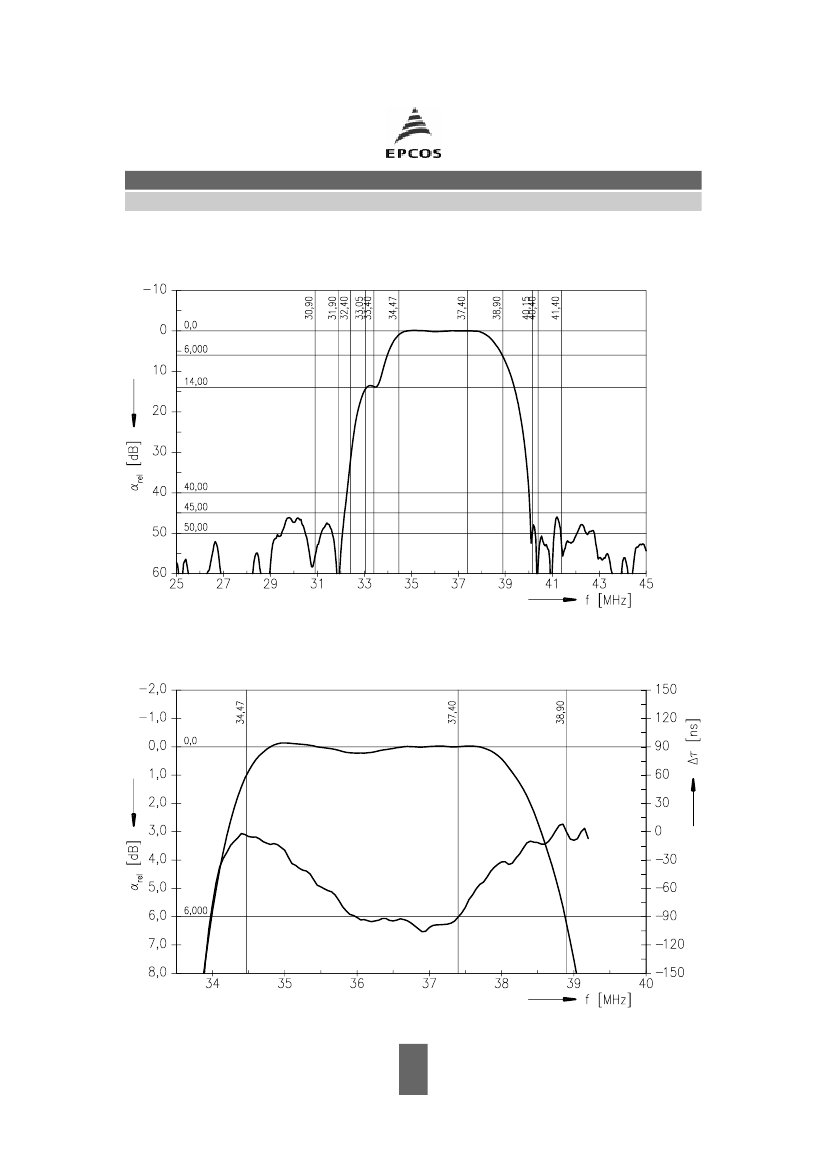

Data Sheet G 1986 M
