Z86C0912PSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C0912PSC

Z86C0912PSC: DescriptionMicrocontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP18, PLASTIC, DIP-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size897KB，44 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C0912PSC Overview

Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP18, PLASTIC, DIP-18

Z86C0912PSC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP,
Contacts	18
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
boundary scan	NO
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T18
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of I/O lines	14
Number of serial I/Os
Number of terminals	18
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	124
rom(word)	2000
ROM programmability	MROM
speed	12 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

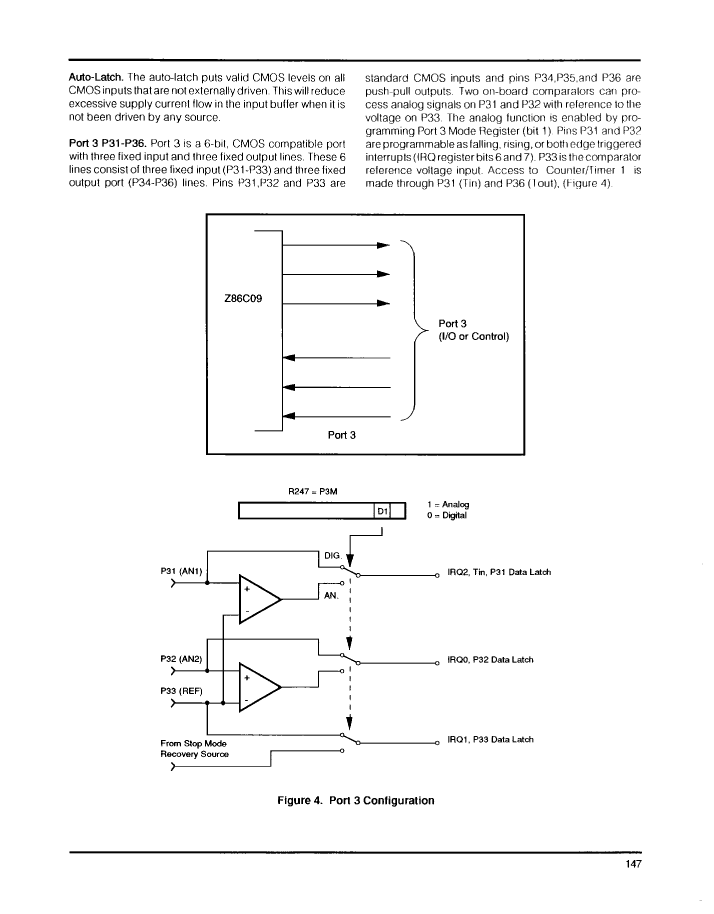

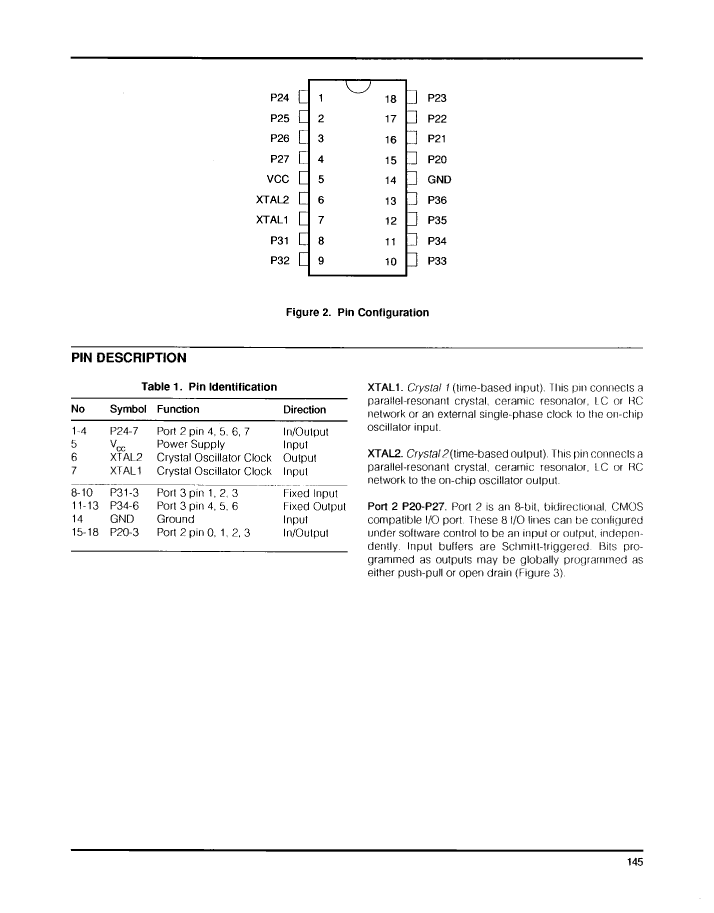

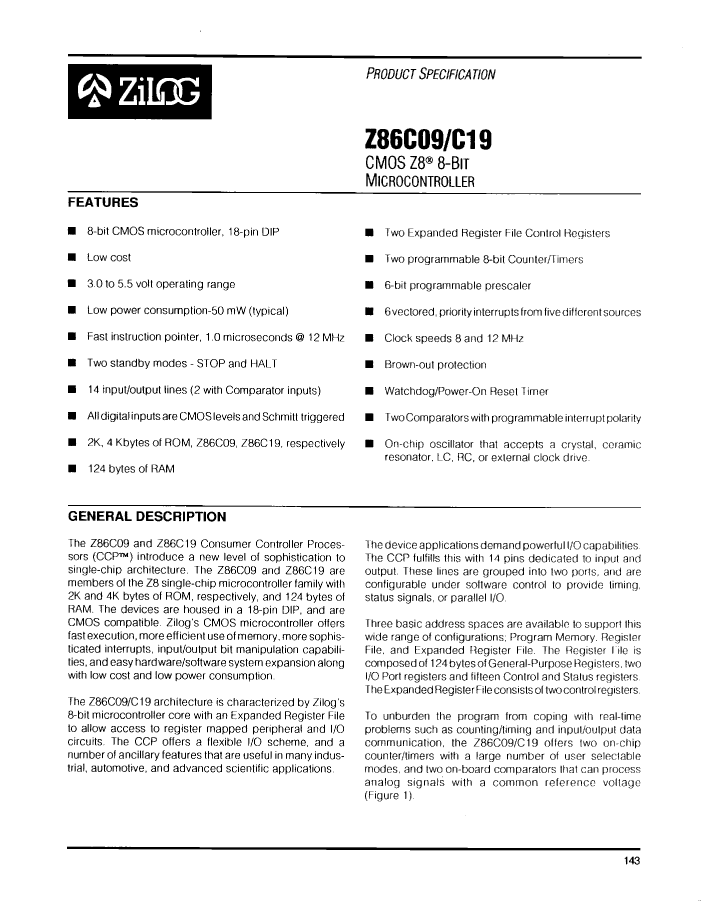

Preview

Download Datasheet

View All

Z86C0912PSC Related Products

	Z86C0912PSC	Z86C1908PSC	Z86C0912PEC
Description	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP18, PLASTIC, DIP-18	Microcontroller, 8-Bit, MROM, 8MHz, CMOS, PDIP18, PLASTIC, DIP-18	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP18, PLASTIC, DIP-18
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,
Contacts	18	18	18
Reach Compliance Code	unknown	unknown	unknown
Has ADC	NO	NO	NO
bit size	8	8	8
boundary scan	NO	NO	NO
maximum clock frequency	12 MHz	8 MHz	12 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
Format	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO
JESD-30 code	R-PDIP-T18	R-PDIP-T18	R-PDIP-T18
low power mode	YES	YES	YES
Number of external interrupt devices	3	3	3
Number of I/O lines	14	14	14
Number of terminals	18	18	18
Number of timers	2	2	2
On-chip data RAM width	8	8	8
On-chip program ROM width	8	8	8
Maximum operating temperature	70 °C	70 °C	105 °C
PWM channel	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	124	124	124
rom(word)	2000	4000	2000
ROM programmability	MROM	MROM	MROM
speed	12 MHz	8 MHz	12 MHz
Maximum slew rate	15 mA	11 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
