HGN-375
IEC 60320 INLET SOCKET WITH SWITCH, SINGLE AND DOUBLE FUSE HOLDER,
FLANGE MOUNT

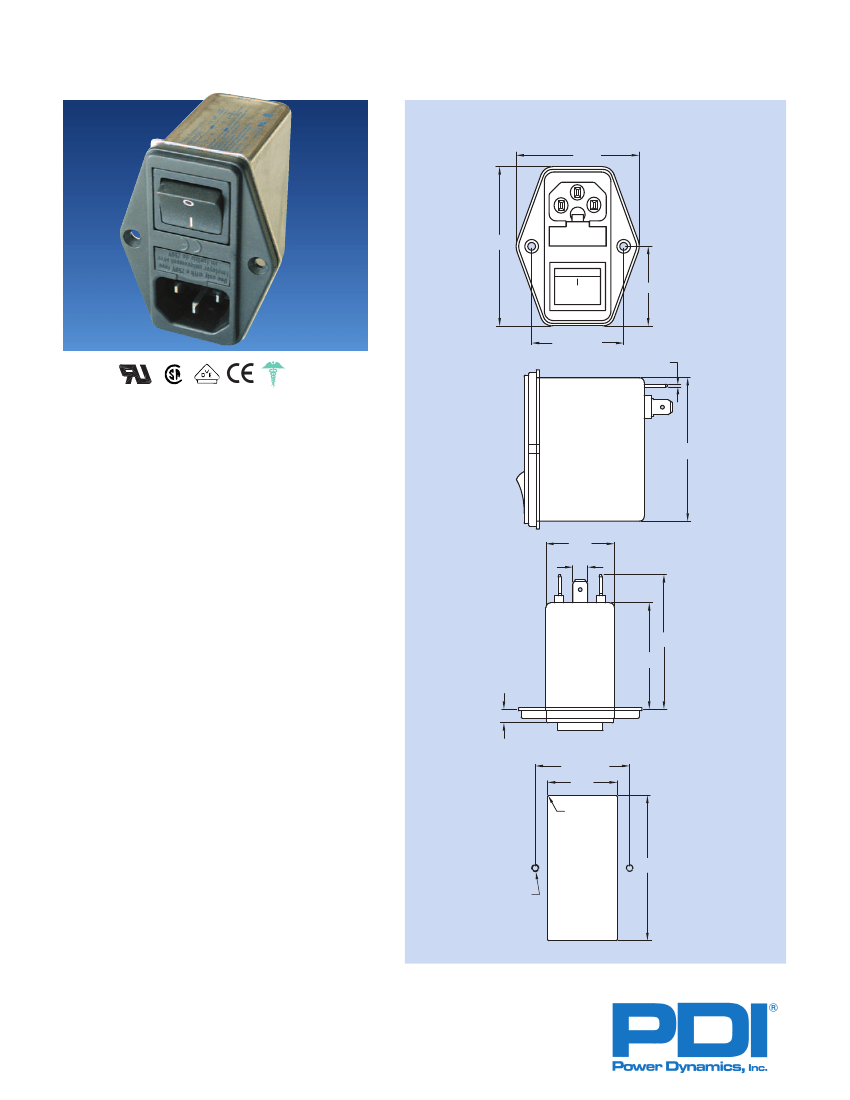

MECHANICAL DIMENSIONS
(Unit: mm)
52.0
67.0
Use only with a 250V Fuse
Employer uniqement avec
un fusible de 250V
O
33.5
-
40.0+ 0.2
0.8 TYP.
FEATURES
The HGN-375 protects electronic equipment from common
and differential mode line interference in the range of
10KHz up to 30MHz. This “combi-unit” is equipped with
IEC connector, fuse holder for one or two 5 x 20 mm fuses,
2 pole on/off switch and fully enclosed metal housing.
These filters are also available for Medical equipment
with low leakage current. HGN-375 series filters are high
performance filters and have been designed to bring various
medical equipments into compliance with EN55011 and
FCC Part 15J, Class B conducted emissions limits.
28.5
6.30 TYP.
60.5
APPLICATIONS
Computer & networking equipment, Measuring & control
equipment, Data processing equipment, laboratory instruments,
Switching power supplies, other electronic equipment.
57.5
45.0
TECHNICAL DATA
6.0
•
Rated Voltage: 125/250VAC
•
Rated Current: 1A, 2A, 4A, 6A, 10A
•
Power Line Frequency: 50/60Hz
•
Max. Leakage Current each
Line to Ground:
@ 250VAC 50Hz: 0.5mA, max
@ 250VAC 50Hz: 2
µ
A*, max
•
Hipot Rating (one minute)
Line to Ground: 2250VDC
Line to Line: 1450VDC
•
Temperature Range: -25C to +85C
* Medical application
-
40.0+ 0.2
29.5
4x R0.5
61.5
2x M3
Specifications subject to change without notice. Dimensions (mm). See Appendix A for
recommended power cord. See PDI full line catalog for detailed specifications on power cords.
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
79
HGN-375 Series Example & Ordering Code
HGN-375
- 1
CURRENT RATING (A):
M - F2
=
=
=
=
=
STANDARD TYPE
WITHOUT C(Y); C(X) ONLY
1
2
4
6
10
=
SCHEMATIC:
BLANK
=M
= F1
= F2
FUSE OPTION:
1 FUSE (5X20MM), 6.3/0.25 QUICK CONNECT
2 FUSE (5X20MM), 6.3/0.25 QUICK CONNECT
Attenuation Tables & Schematics
Non-Medical Applications
Insertion loss in dB (50 Ohm circuit)
0.068 F
0.033 F
1A
2A
4A
6A
10A
10.3mA
4.6mA
2.5mA
1.2mA
0.8mA
24
16
10
8
5
33
30
17
13
6
38
35
20
17
15
40
37
22
19
17
51
41
30
26
30
46 35
42 37
32 32
29 29
51 79
31
29
30
29
80
21
21
23
25
51
3 10 7 16 60 75
5 12 10 11 60 73
8 10 16 19 40 67
5 8 15 16 30 51
2 9 13 17 26 33
89
82
84
79
53
80
82
80
80
60
39
39
40
50
40
0.01 F
LINE
1M
E
P
E'
2200pF
P'
FUSE
L(mH)
Medical Applications
Insertion loss in dB (50 Ohm circuit)
0.068 F
0.033 F
1A
2A
3A
4A
6A
10.3mA
4.6mA
2.5mA
1.2mA
0.8mA
23
18
10
8
8
32
30
18
13
13
38
35
20
17
16
41
36
22
19
19
51
41
30
26
25
48 36
42 37
32 32
29 29
28 29
31
30
30
29
29
22
21
22
24
24
2 10 8 15 60 75
5 12 10 10 60 73
8 10 17 19 40 67
5 7 15 17 30 51
5 5 15 18 30 51
84
82
84
80
79
80
83
80
80
80
39
36
33
41
51
0.01 F
LINE
P
1M
E
E'
P'
FUSE
L(mH)
80
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
LOAD
Current
Rating
L
Value
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
.01 .05 .1 .15 .5 1 5 10 30 .01 .05 .1 .15 .5 1 5 10 30
N
FUSE
L(mH)
N'
LOAD
Current
L
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
Rating Value .01 .05 .1 .15 .5 1 5 10 30 .01 .05 .1 .15 .5 1 5 10 30
N
FUSE
L(mH)
2200pF
N'
