42R03-3254-250 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 42R03-3254-250

42R03-3254-250: Description15A, 250V, MALE, MAINS POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric View All

42R03-3254-250 Overview

15A, 250V, MALE, MAINS POWER CONNECTOR, SOLDER

42R03-3254-250 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC 60320/C14; CSA; UL 94V-0; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	Nickel (Ni)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	15A, 250V
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

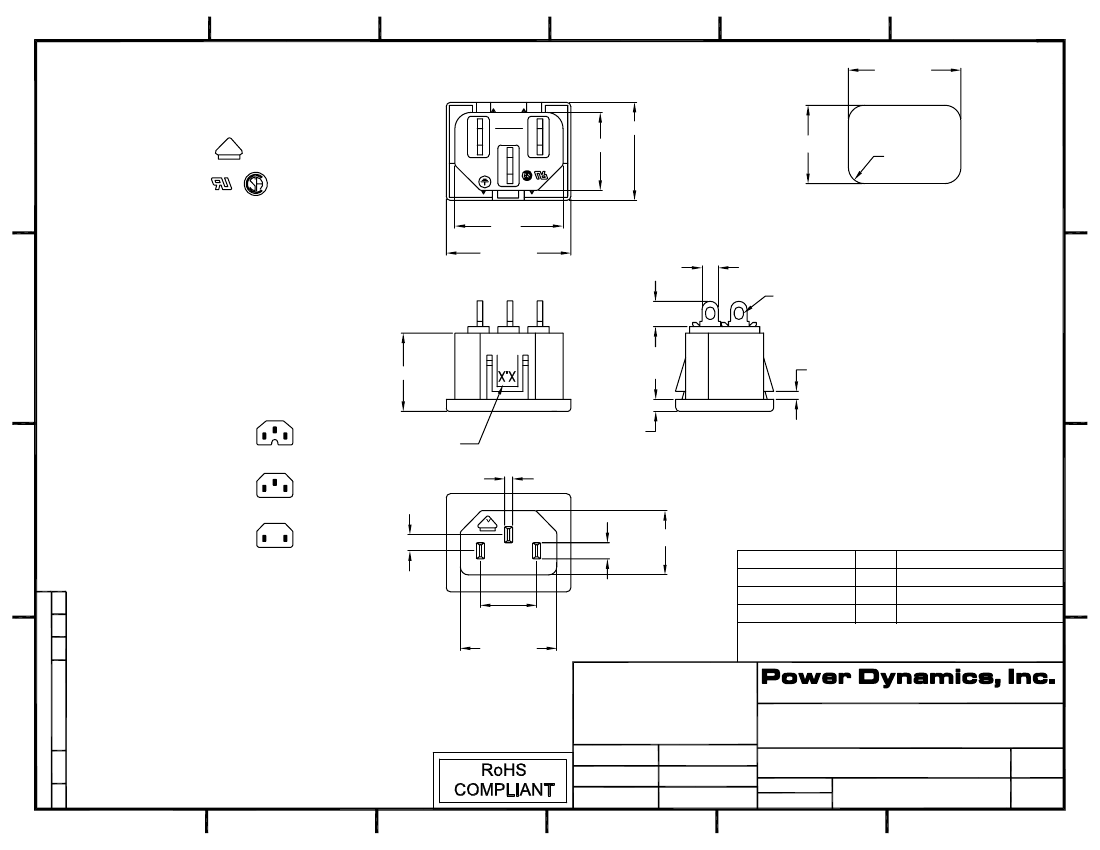

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Nickel plated

27.5+0.2

27.0

ORDERING CODE:

42R03-3 __ 5 __ - __ __ __

1) COLOR

1 = BLACK

2 = GRAY

2) ELECTRICAL CIRCUIT

CONFIGURATION

1 = 15A 250V 120°C

2+GROUND

2 = 15A 250V 70°C

2+GROUND

31.0±0.2

3X 4.0

3X 3.0x2.25

6.0±0.5

REPLACE WITH

CORRESPONDING

PANEL THICKNESS

2.00±0.05

4 = 15A 250V 70°C

2 POLE

3) PANEL THICKNESS

CHNG CHCK APPR

D E

4.00

14.0±0.2

24.0+0.5

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

REVISIONS

CHANGE

DATE

REV

PD-42

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A

D E

Voltage rating: 250 VAC

Current rating: 15 A

Voltage rating: 250 VAC

15A

250V

24.0

19.5

20.0+0.2

R4.0 TYP.

RECOMMENDED

PANEL CUTOUT

A+0.2

3.0

16.0+0.5

4.0±0.1

MAX. PANEL THICKNESS

P/N

1.5

42R03-3X5X-150 1.5

2.0

42R03-3X5X-200 2.0

2.5

42R03-3X5X-250 2.5

ADDITIONAL PANEL THICKNESS

AVAILABLE ON REQUEST

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: IEC 60320 C14 APPL. INLET; SOLDER

TERMINALS; SNAP-IN

PART #:

DRAWN

CHECK

APPR

DATE:

08/16/01

09/20/01

SIZE:

SCALE:

42R03-3X5X-XXX

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:
