42R01-6121: Description15A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

42R01-6121 Overview

15A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW

42R01-6121 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	Nickel (Ni)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	15A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SCREW
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

6

5

4

3

2

1

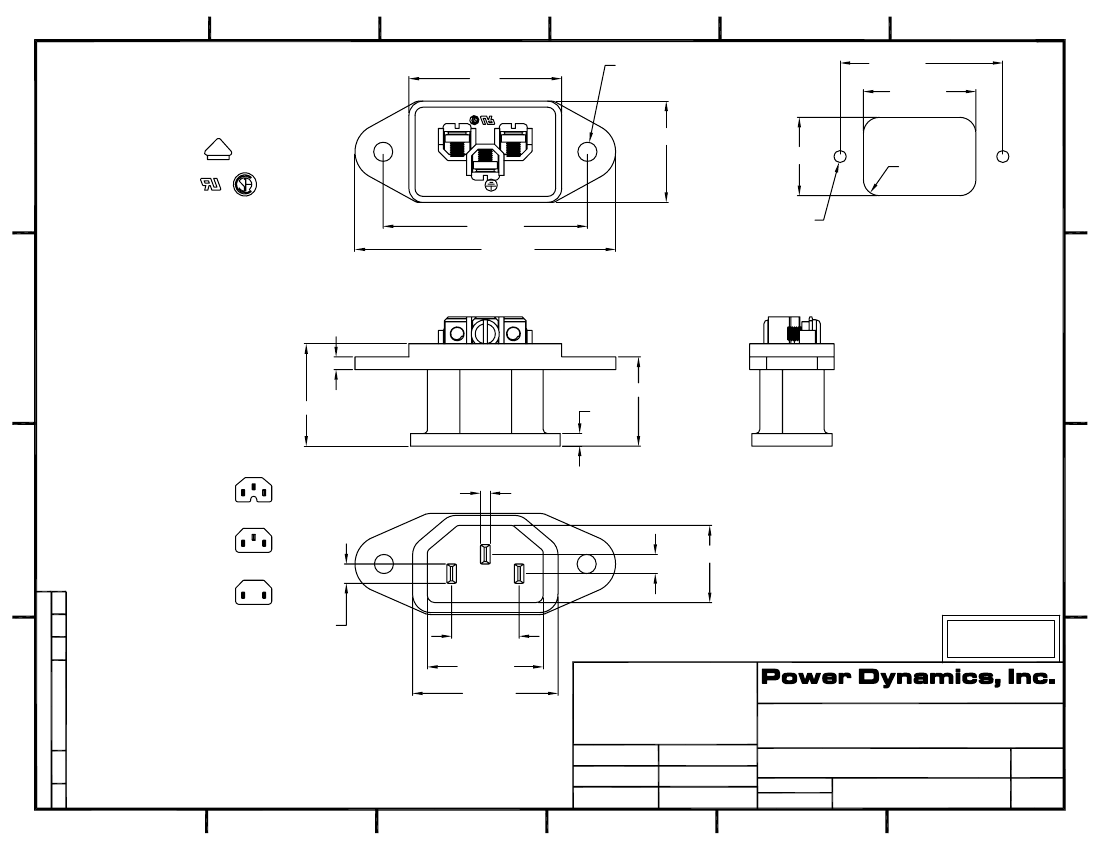

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Nickel plated

D

2X Ø3.2

+0.2

29.5

N

L

35.0±0.1

30.0+0.2

35.0±0.2

ORDERING CODE:

42R01-6 __ 2 __

1

3

C

45.0-0.5

1 = COLOR

1 = BLACK

2 = GRAY

3.0

2 = M3x6.0mm

SCREW TERMINALS

3 = ELECTRICAL CIRCUIT

CONFIGURATION

1 = 15A 250V 120°C

2+GROUND

2.00±0.05

19.5

21.5 ±0.3

3.0

B

2 = 15A 250V 70°C

2+GROUND

4.00

CHNG CHCK APPR

4 = 15A 250V 70°C

2 POLE

4.0±0.1

14.0±0.2

24.0+0.5

29.5-0.5

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

REVISIONS

CHANGE

A

DATE

REV

6

5

4

42R01

E

ELECTRICAL SPECIFICATIONS:

V

Current rating: 10 A

D E

Voltage rating: 250 VAC

Current rating: 15 A

Voltage rating: 250 VAC

22.5+0.3

D

22.5+0.2

R4.0 TYP.

2X M3 THREAD

OR Ø3.6 HOLE

RECOMMENDED

PANEL CUT-OUT

C

B

16.0+0.5

RoHS

COMPLIANT

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: IEC 60320 C14 APPL. INLET; SCREW

TERMINALS; BOTTOM FLANGE

PART #:

A

DRAWN

BY

CHECK

BY

APPR

BY

GQ

TD

PB

DATE:

08/09/01

08/14/01

SIZE:

SCALE:

42R01-6X2X

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

3

2

1

42R01-6121 Related Products

	42R01-6121	42R01-6122	42R01-6124	42R01-6221	42R01-6222	42R01-6224	42R01-6X2X
Description	15A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW	15A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW	15A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW	15A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW	15A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW	15A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW	15A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Reach Compliance Code	compli	compli	compli	compli	compli	compli	-
Other features	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE	-
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	-
Contact to complete cooperation	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	-
Contact completed and terminated	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	-
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	-
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	-
DIN compliance	NO	NO	NO	NO	NO	NO	-
IEC compliance	YES	YES	YES	YES	YES	YES	-
MIL compliance	NO	NO	NO	NO	NO	NO	-
Power Connector Ratings	15A, 250VAC	15A, 250VAC	15A, 250VAC	15A, 250VAC	15A, 250VAC	15A, 250VAC	-
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Shell material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	-
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	-
Total number of contacts	3	3	2	3	3	2	-
Base Number Matches	1	1	1	1	1	1	-
