42R02-2114: Description15A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric View All

42R02-2114 Overview

15A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER

42R02-2114 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE, QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	Nickel (Ni)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	15A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

6

5

4

3

2

1

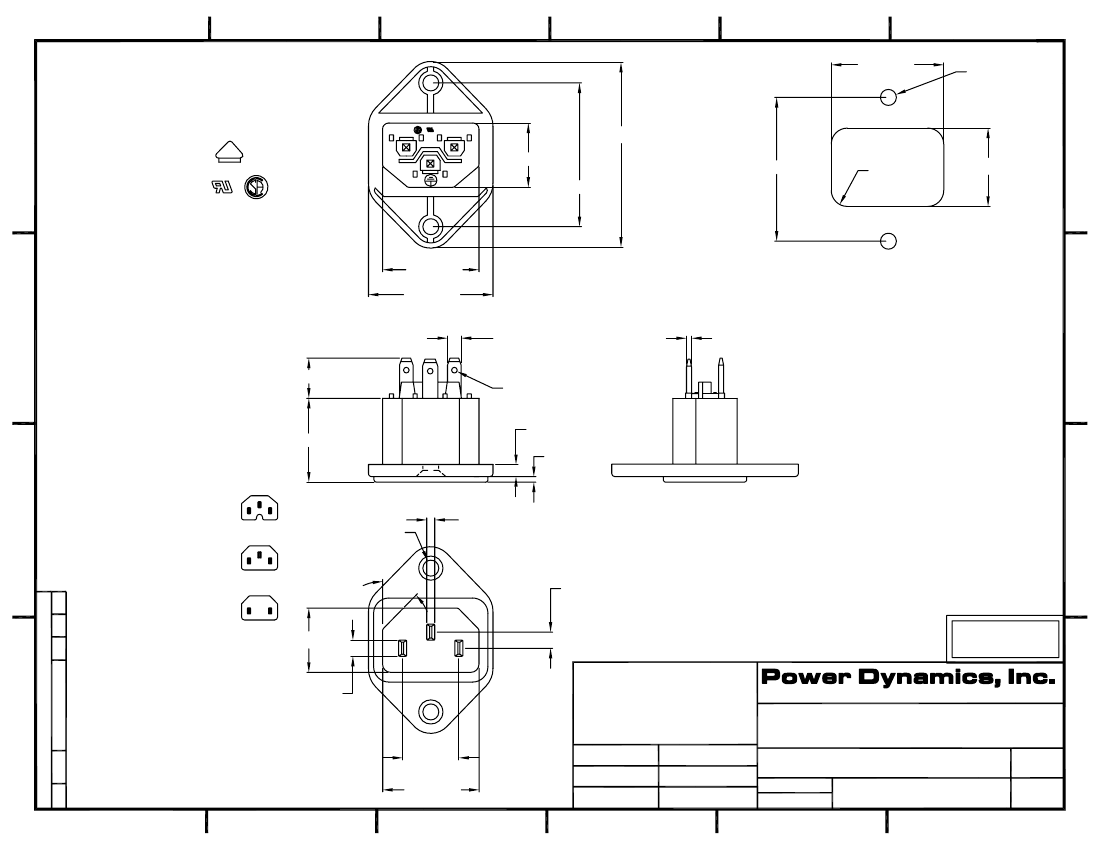

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Nickel plated

15A

27.5+0.2

2X Ø3.7

D

V

ORDERING CODE:

42R02-2 __ __ __

1 2 3

C

26.9±0.1

30.5+0.3

SEE

OPTION 1

10.0±0.5

Ø1.65

3.00

2.00

0.80

1 = TERMINAL OPTIONS

1 = .187(4.8)

2 = .250(6.3)

2 = COLOR

1 = BLACK

2 = GRAY

3 = ELECTRICAL CIRCUIT

CONFIGURATION

1 = 15A 250V 120°C

2+GROUND

2X Ø3.3x90° CSK

2 = 15A 250V 70°C

2+GROUND

45°

CHNG CHCK APPR

19

B

2.00±0.05

4 = 15A 250V 70°C

2 POLE

16.0+0.5

REVISIONS

CHANGE

4.0±0.1

A

DATE

14.0±0.2

24.0+0.5

6

5

4

REV

N

42R02

ONLY

E

L

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A

D E

Voltage rating: 250 VAC

Current rating: 15 A

Voltage rating: 250 VAC

42.0+0.5

19.5

32.0±0.2

32.0±0.1

R4.0 TYP.

20.0+0.2

D

RECOMMENDED

PANEL CUTOUT

C

B

4.00

RoHS

COMPLIANT

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: IEC 60320 C14 APPL. INLET; QUICK CONNECT

TERMINALS; CROSS FLANGE

A

DRAWN

BY

CHECK

BY

APPR

BY

GQ

TD

PB

DATE:

8/3/01

8/13/01

PART #:

42R02-2XXX

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

SIZE:

SCALE:

3

2

1
