42R02-7212

Description
15A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size29KB,1 Pages
ManufacturerPower Dynamics, Inc.
Websitehttp://www.powerdynamics.com/
Environmental Compliance
Download Datasheet Parametric View All

42R02-7212 Overview

15A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER

42R02-7212 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPower Dynamics, Inc.
package instructionROHS COMPLIANT
Reach Compliance Codecompli
Other featuresSTANDARDS: IEC 60320/C14; UL 94V-0; CSA; VDE, QUICK CONNECT
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNICKEL
Contact completed and terminatedNICKEL
Contact point genderMALE
Contact materialBRASS
Coupling typeSNAP
DIN complianceNO
IEC complianceYES
MIL complianceNO
Power Connector Ratings15A, 250VAC
Manufacturer's serial number42R02-7
Installation typePANEL
OptionsGENERAL PURPOSE
Shell materialPOLYCARBONATE
Termination typeSOLDER
Total number of contacts3
Base Number Matches1
6
5
4
3
2
1

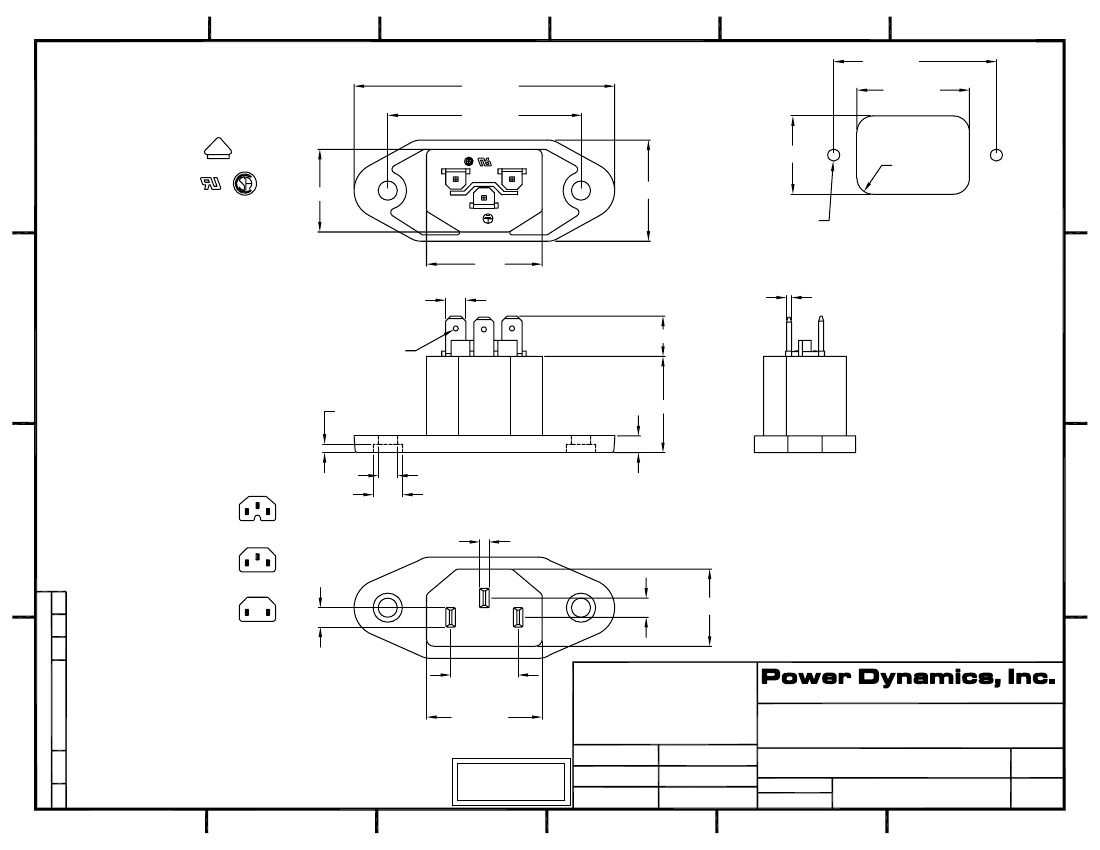

MATERIAL AND FINISH:
Insulator: Polycarbonate, UL-94V-0 rated
Contacts: Brass, Nickel plated
D
36.0±0.1
46.0+0.2
36.0±0.2
D
27.5+0.2
ORDERING CODE:
42R02-7 __ __ __
1 2 3
SEE OPTION 1
C
27.0
0.80
10.0±0.5
Ø1.65
C
1 = TERMINAL OPTIONS
1 = .187(4.8)
2 = .250(6.3)
2 = COLOR
1 = BLACK
2 = GRAY
3 = ELECTRICAL CIRCUIT
CONFIGURATION
1 = 15A 250V 120°C
2+GROUND
2 = 15A 250V 70°C
2+GROUND
CHNG CHCK APPR
2.0±0.2
4.0
Ø3.1±0.2
Ø6.0±0.1
B
4 = 15A 250V 70°C
2 POLE
4.0±0.1
REVISIONS
14.0±0.2
CHANGE
A
24.0+0.5
DATE
REV
RoHS
COMPLIANT
6
5
4
42R02
19.5
E
2.00±0.05
N
L
ELECTRICAL SPECIFICATIONS:
V
Current rating: 10 A
D E
Voltage rating: 250 VAC
Current rating: 15 A
Voltage rating: 250 VAC
20.0+0.2
24.0-0.2
2X M3 THREAD
OR Ø3.6 HOLE
R4.0 TYP.
RECOMMENDED
PANEL CUT-OUT
19
B
4.00
16.0+0.5
TOLERANCE
UNLESS OTHERWISE SPECIFIED
X ± 1
X.X ± 0.4
X.XX ± 0.20
Phone: 973 560-0019
Whippany, New Jersey
Fax: 973 560-0076
PART: IEC 60320 C14 APPL. INLET; QUICK CONNECT
TERMINALS; SIDE FLANGE
A
DRAWN
BY
CHECK
BY
APPR
BY
GQ
TD
PB
DATE:
DATE:
DATE:
08/07/01
8/14/01
8/14/01
PART #:
42R02-7XXX
A
NTS
ALL DIMENSIONS FOR REFERENCE ONLY
DIMENSIONS ARE IN MILLIMETERS
SHEET
1 of 1
REV:
SIZE:
SCALE:
3
2
1
