42R06-1114: Description20A, 250V, MALE, MAINS POWER CONNECTOR, SCREW; CategoryThe connector The connector; File Size36KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

42R06-1114 Overview

20A, 250V, MALE, MAINS POWER CONNECTOR, SCREW

42R06-1114 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC 60320; CSA; UL 94V-0; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	Nickel (Ni)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	20A, 250V
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SCREW
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

6

5

4

3

2

1

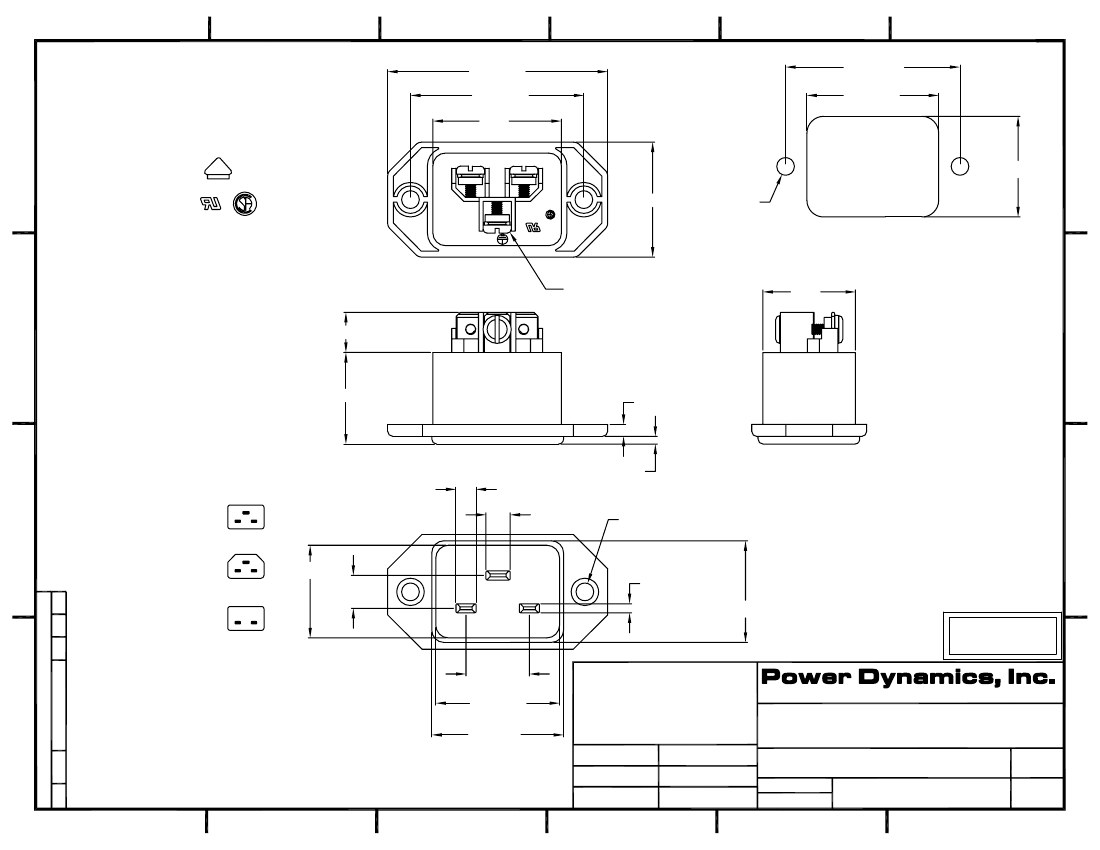

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0

rated

Contacts: Brass, Nickel plated

D

51.0±0.2

42.0±0.2

32.4

N

42R06

42.0 ±0.1

33.0+0.2

D

C

ORDERING CODE:

42R06-1 __ 1 __

1

2

1) COLOR

1 = BLACK

2 = GRAY

2) ELECTRICAL CIRCUIT

CONFIGURATION

10.0±0.5

21

B

1 = 20A 250V 70°C

2+GROUND

2 = 20A 250V 155°C

2+GROUND

CHNG CHCK APPR

21.0+0.5

8.0±0.2

4 = 20A 250V 70°C

2 POLE

TOLERANCE

REVISIONS

13.0±0.2

CHANGE

A

29.0+0.5

32.5-0.2

DATE

REV

6

5

4

E

L

ELECTRICAL SPECIFICATIONS:

Current rating: 16 A

V

D E

Voltage rating: 250 VAC

Current rating: 20 A

Voltage rating: 250 VAC

Insulation resistance: 100 Mohm min. at

500 VDC

Dielectric withstanding voltage: 2000

VAC for one minute

25.0+0.2

28.0±0.2

2X Ø3.6

RECOMMENDED

PANEL CUTOUT

M3x6.0mm

SCREW TERMINIALS

24.4

C

3.00

2.00

5.0±0.1

6.0±0.1

2X Ø3.3x90° CSK

B

3X 2.00±0.05

24.5-0.2

RoHS

COMPLIANT

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: 16/20A IEC 60320 APPL. INLET; SCREW

TERMINALS; SIDE FLANGE, PANEL MOUNT

PART #:

A

DRAWN

BY

CHECK

BY

APPR

BY

GQ

TD

PB

DATE:

08/21/01

08/28/01

SIZE:

SCALE:

42R06-1X1X

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

3

2

1

42R06-1114 Related Products

	42R06-1114	42R06-1111	42R06-1112	42R06-1211	42R06-1212	42R06-1214	42R06-1X1X
Description	20A, 250V, MALE, MAINS POWER CONNECTOR, SCREW	20A, 250V, MALE, MAINS POWER CONNECTOR, SCREW	20A, 250V, MALE, MAINS POWER CONNECTOR, SCREW	20A, 250V, MALE, MAINS POWER CONNECTOR, SCREW	20A, 250V, MALE, MAINS POWER CONNECTOR, SCREW	20A, 250V, MALE, MAINS POWER CONNECTOR, SCREW	20A, 250V, MALE, MAINS POWER CONNECTOR, SCREW
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-
Maker	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	-
Other features	STANDARDS: IEC 60320; CSA; UL 94V-0; VDE	STANDARDS: IEC 60320; CSA; UL 94V-0; VDE	STANDARDS: IEC 60320; CSA; UL 94V-0; VDE	STANDARDS: IEC 60320; CSA; UL 94V-0; VDE	STANDARDS: IEC 60320; CSA; UL 94V-0; VDE	STANDARDS: IEC 60320; CSA; UL 94V-0; VDE	-
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	-
Contact to complete cooperation	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	-
Contact completed and terminated	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	-
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	-
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	-
DIN compliance	NO	NO	NO	NO	NO	NO	-
IEC compliance	YES	YES	YES	YES	YES	YES	-
MIL compliance	NO	NO	NO	NO	NO	NO	-
Power Connector Ratings	20A, 250V	20A, 250V	20A, 250V	20A, 250V	20A, 250V	20A, 250V	-
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Shell material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	-
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	-
Total number of contacts	2	3	3	3	3	2	-
Base Number Matches	1	1	1	1	1	1	-
