42R07-1222: Description20A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

42R07-1222 Overview

20A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER

42R07-1222 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Power Dynamics, Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	1 GROUND CONTACT ALSO AVAILABLE, STANDARD: IEC 60320
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	Nickel (Ni)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	20A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

6

5

4

3

2

1

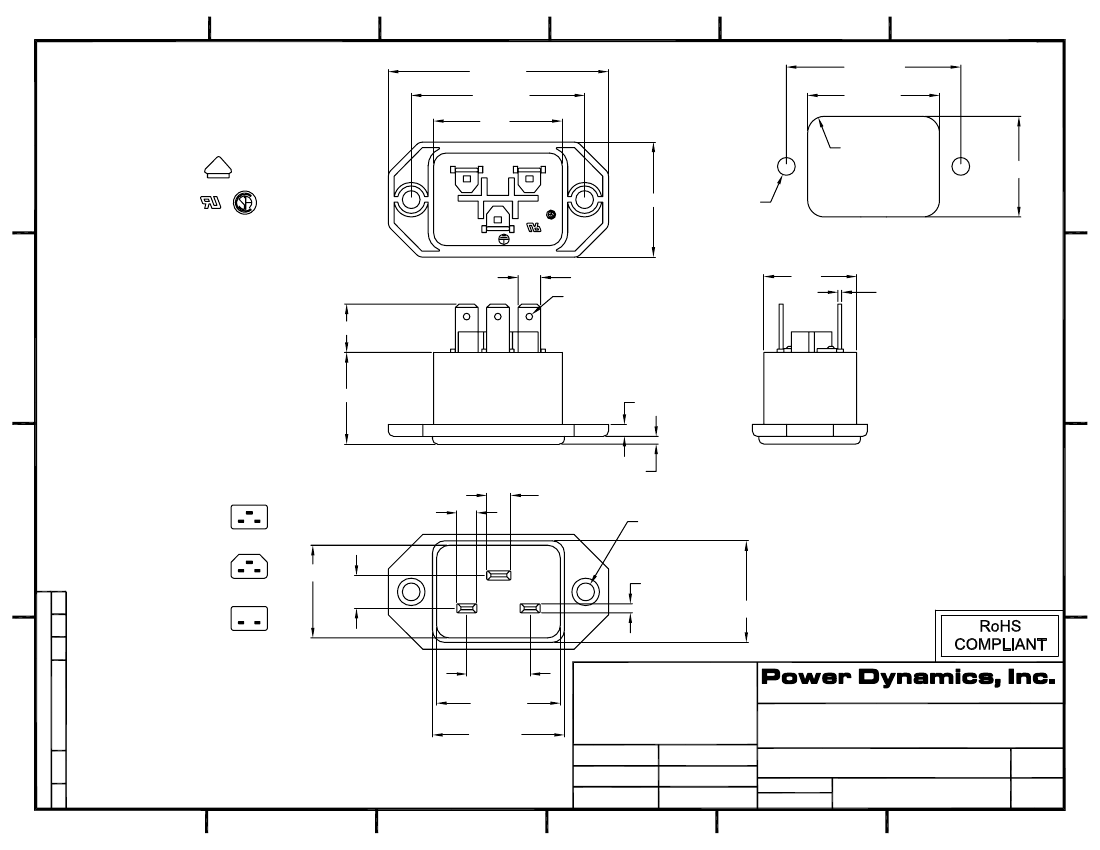

MATERIAL AND FINISH

51.0±0.2

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Nickel plated

D

42.0 ±0.1

33.0+0.2

R4.5+0.2 TYP.

25.0+0.2

28.0±0.2

2X Ø3.6

RECOMMENDED

PANEL CUTOUT

6.3

Ø1.65

24.4

0.80

C

D

42.0±0.2

32.4

N

42R07

C

ORDERING CODE:

42R07-1 __ 2 __

1

2

1) COLOR

1 = BLACK

2 = GRAY

2) ELECTRICAL CIRCUIT

CONFIGURATION

10.0±0.5

21

B

1 = 20A 250V 70°C

2+GROUND

2 = 20A 250V 155°C

2+GROUND

CHNG CHCK APPR

5.0±0.1

21.0+0.5

8.0±0.2

4 = 20A 250V 70°C

2 POLE

TOLERANCE

REVISIONS

13.0±0.2

CHANGE

A

29.0+0.5

32.5-0.2

DATE

REV

6

5

4

E

L

ELECTRICAL SPECIFICATIONS:

Current rating: 16 A

V

D E

Voltage rating: 250 VAC

Current rating: 20 A

Voltage rating: 250 VAC

Insulation resistance: 100 Mohm min. at

500 VDC

Dielectric withstanding voltage: 2000 VAC

for one minute

3.00

2.00

6.0±0.1

2X Ø3.3x90° CSK

B

3X 2.00±0.05

24.5-0.2

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: 16/20A IEC 60320 APPL. INLET; QC

TERMINALS; SIDE FLANGE, PANEL MOUNT

PART #:

A

DRAWN

BY

CHECK

BY

APPR

BY

GQ

TD

PB

DATE:

08/24/01

08/29/01

SIZE:

SCALE:

42R07-1X2X

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

3

2

1
