42R08-1X2X: Description20A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size31KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Compare View All

42R08-1X2X Overview

20A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER

Preview

Download Datasheet

View All

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Nickel plated

51.0±0.2

42.0±0.2

32.4

42.0 ±0.1

33.0+0.2

R4.5+0.2 TYP.

ORDERING CODE:

42R08-1 __ 2 __

1) COLOR

1 = BLACK

2 = GRAY

2) ELECTRICAL CIRCUIT

CONFIGURATION

9.3±0.5

1 = 20A 250V 70°C

2+GROUND

2 = 20A 250V 155°C

2+GROUND

CHNG CHCK APPR

5.0±0.1

21.0+0.5

8.0±0.2

4 = 20A 250V 70°C

2 POLE

REVISIONS

13.0±0.2

TERM. DIM.

CHANGE

29.0+0.5

32.5-0.2

1/8/10

DATE

REV

42R08

ELECTRICAL SPECIFICATIONS:

Current rating: 16 A

D E

Voltage rating: 250 VAC

Current rating: 20 A

Voltage rating: 250 VAC

Insulation resistance: 100 Mohm min. at

500 VDC

Dielectric withstanding voltage: 2000 VAC

for one minute

25.0+0.2

28.0±0.2

2X Ø3.6

RECOMMENDED

PANEL CUTOUT

3X 2.8±0.1

3X 3.0x1.7

24.4

0.80

3.00

2.00

6.0±0.1

2X Ø3.3x90° CSK

3X 2.00±0.05

24.5-0.2

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

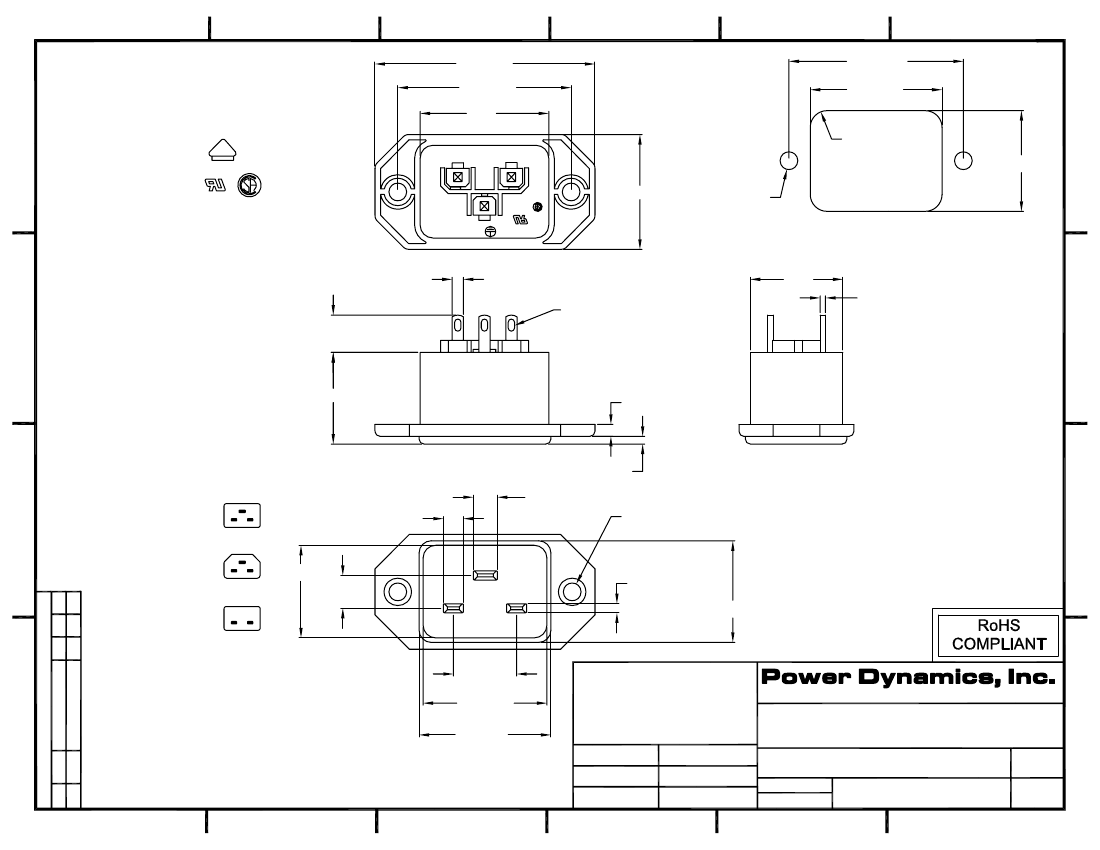

PART: 16/20A IEC 60320 APPL. INLET; SOLDER

TERMINALS; SIDE FLANGE, PANEL MOUNT

PART #:

DRAWN

CHECK

APPR

DATE:

08/24/01

08/29/01

SIZE:

SCALE:

42R08-1X2X

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

42R08-1X2X Related Products

	42R08-1X2X	42R08-1121	42R08-1122	RT	42R08-1221	42R08-1222	130094-0298
Description	20A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER	20A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER	20A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER	Wide CV value range	20A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER	20A, 250V AC, MALE, MAINS POWER CONNECTOR, SOLDER	Standard Duty Support Grip, Double Eye, Split Lace, Single Weave, Cable Diameter
Is it lead-free?	-	Lead free	Lead free	-	Lead free	Lead free	-
Is it Rohs certified?	-	conform to	conform to	-	conform to	conform to	-
Maker	-	Power Dynamics, Inc.	Power Dynamics, Inc.	-	Power Dynamics, Inc.	Power Dynamics, Inc.	-
Reach Compliance Code	-	compliant	compliant	-	compli	compliant	-
ECCN code	-	EAR99	EAR99	-	EAR99	EAR99	-
Other features	-	STANDARD: IEC 60320	STANDARD: IEC 60320	-	STANDARD: IEC 60320	STANDARD: IEC 60320	-
Connector type	-	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	-	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	-
Contact to complete cooperation	-	NICKEL	NICKEL	-	NICKEL	NICKEL	-
Contact completed and terminated	-	NICKEL	Nickel (Ni)	-	Nickel (Ni)	Nickel (Ni)	-
Contact point gender	-	MALE	MALE	-	MALE	MALE	-
Contact material	-	BRASS	BRASS	-	BRASS	BRASS	-
Coupling type	-	SNAP	SNAP	-	SNAP	SNAP	-
DIN compliance	-	NO	NO	-	NO	NO	-
IEC compliance	-	YES	YES	-	YES	YES	-
MIL compliance	-	NO	NO	-	NO	NO	-
Power Connector Ratings	-	20A, 250VAC	20A, 250VAC	-	20A, 250VAC	20A, 250VAC	-
Installation type	-	PANEL	PANEL	-	PANEL	PANEL	-
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-
Shell material	-	POLYCARBONATE	POLYCARBONATE	-	POLYCARBONATE	POLYCARBONATE	-
Termination type	-	SOLDER	SOLDER	-	SOLDER	SOLDER	-
Total number of contacts	-	3	3	-	3	3	-
Base Number Matches	-	1	1	-	1	1	-
