42R32-1122: Description10A, 250VAC, MALE, MAINS POWER CONNECTOR, QUICK CONNECT; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric View All

42R32-1122 Overview

10A, 250VAC, MALE, MAINS POWER CONNECTOR, QUICK CONNECT

42R32-1122 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	STANDARDS: IEC 60320; UL 94V-0; CSA; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	Nickel (Ni)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	QUICK CONNECT
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

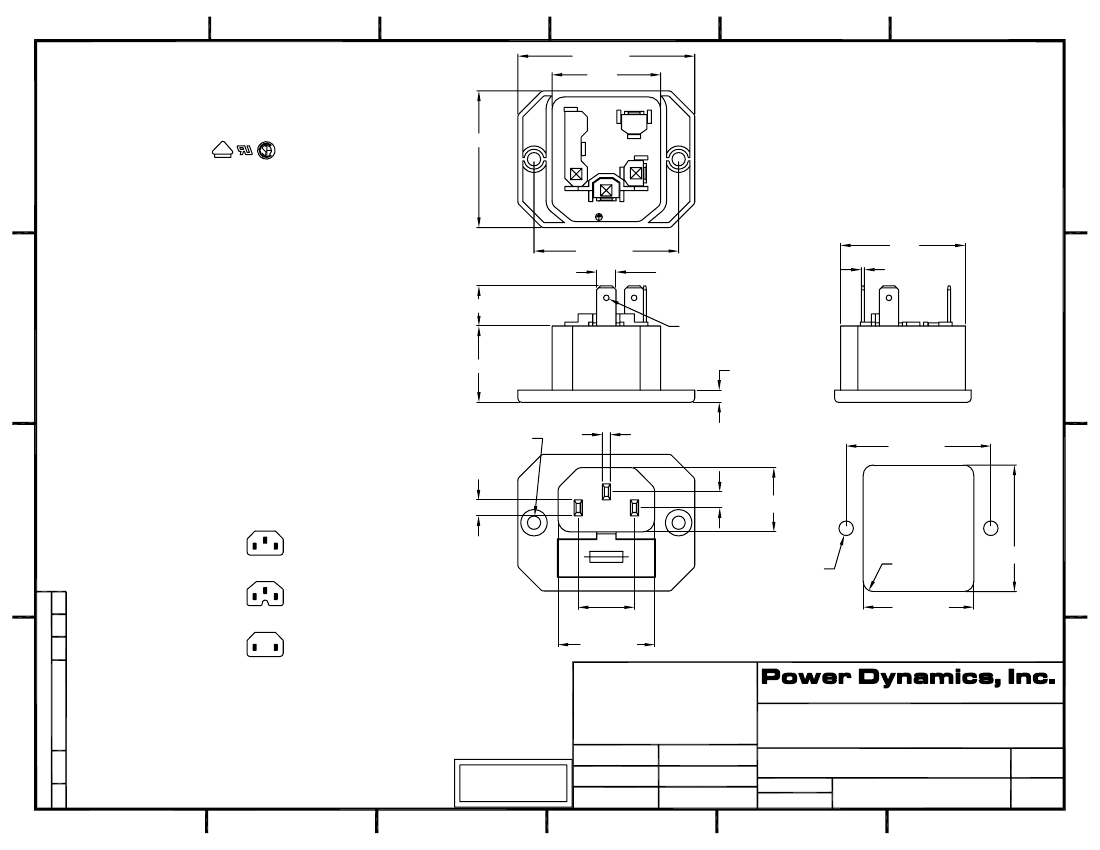

36.0±0.2

ORDERING CODE:

42R32-1 __ __ __

1 2 3

1) COLOR

1 = BLACK

2 = GRAY

2) TERMINAL OPTIONS

1 = .187(4.8)

2 = .250(6.3)

3) ELECTRICAL CIRCUIT

CONFIGURATION

10.0±0.5

Ø1.65 TYP.

3.00

2X Ø3.3x90° CSK

3X 2.00±0.05

3X 4.0±0.1

1 = 10A 250V 70°C

2+GROUND

2X Ø3.6

CHNG CHCK APPR

2 = 10A 250V 120°C

2+GROUND

14.0±0.2

4 = 10A 250V 70°C

2 POLE

24.0+0.5

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

REVISIONS

CHANGE

REV

RoHS

COMPLIANT

DRAWN

CHECK

APPR

DATE

42R32

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A

Voltage rating: 250 VAC

Insulation resistance: 100 Mohm min. at

500 VDC

Dielectric withstanding voltage: 2000 VAC

for one minute

D E

34.0±0.2

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Nickel plated

44.0±0.2

27.0

31.0

SEE OPTION 2

0.80 TYP.

36.0±0.1

4.00 16.0+0.5

31.5+0.2

4X R2.5

27.5+0.2

RECOMMENDED

PANEL CUTOUT

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: IEC 60320 SINGLE FUSE HOLDER APPL. INLET;

QUICK CONNECT TERMINALS; SIDE FLANGE

PART #:

DATE:

09/09/01

09/11/01

SIZE:

SCALE:

42R32-1XXX

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:
