D8284A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> D8284A

D8284A: DescriptionProcessor Specific Clock Generator, 24MHz, Bipolar, CDIP18, CERDIP-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size252KB，10 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

D8284A Overview

Processor Specific Clock Generator, 24MHz, Bipolar, CDIP18, CERDIP-18

D8284A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
length	22.86 mm
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	24 MHz
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Master clock/crystal nominal frequency	24 MHz
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	162 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC

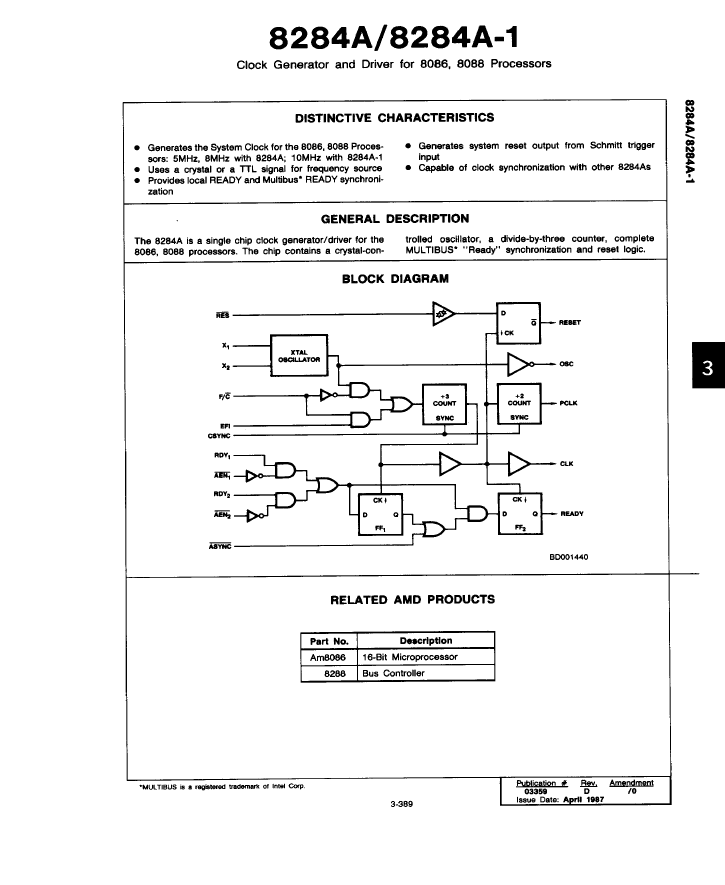

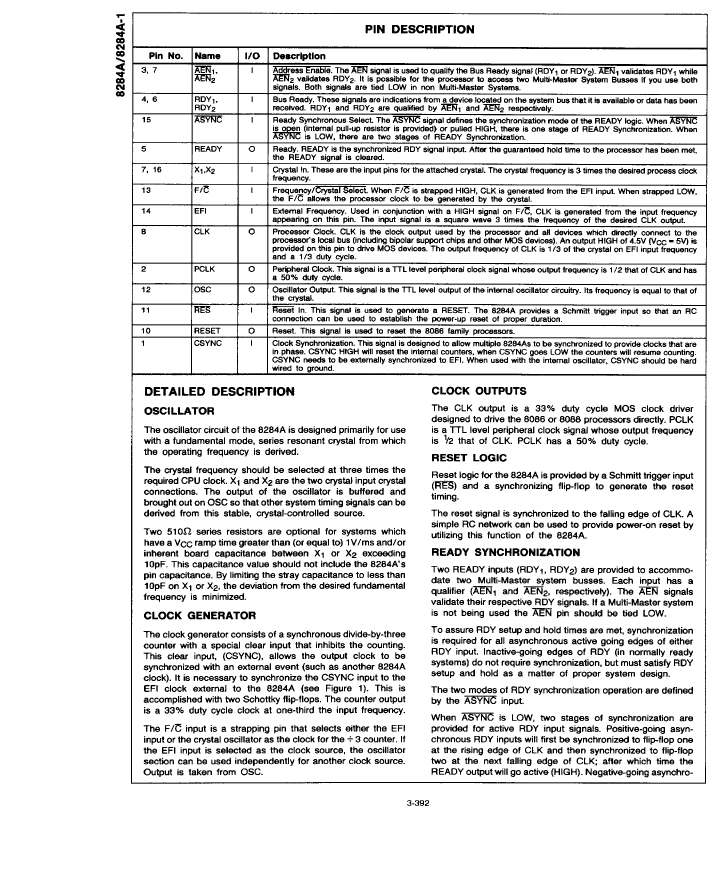

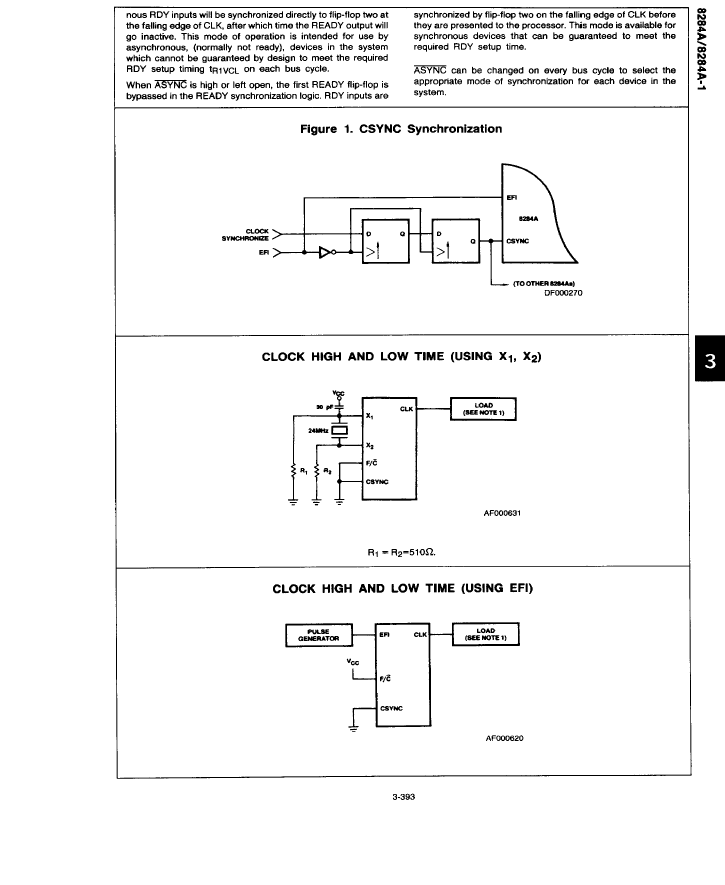

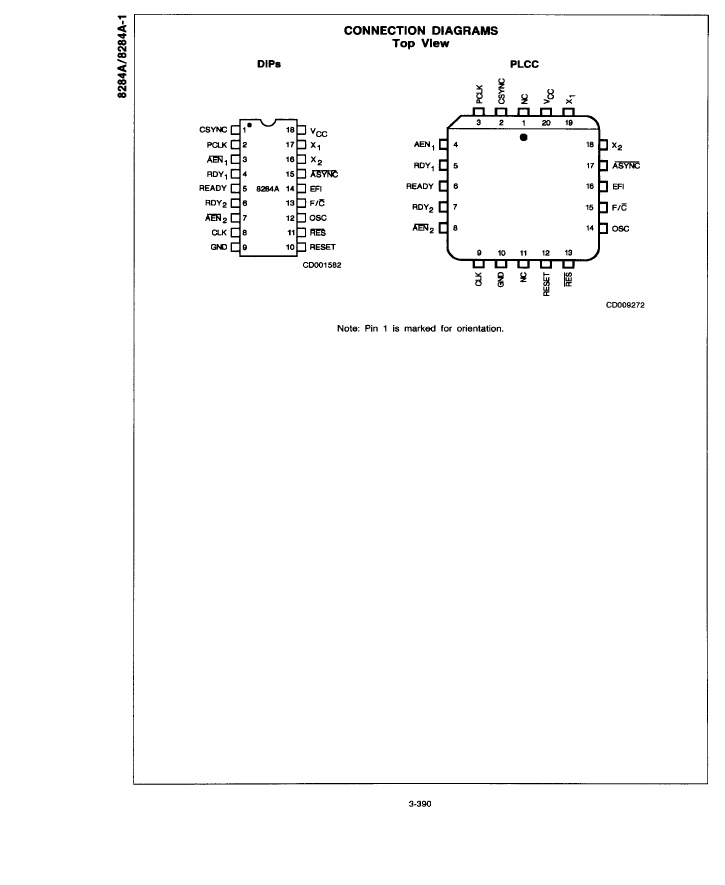

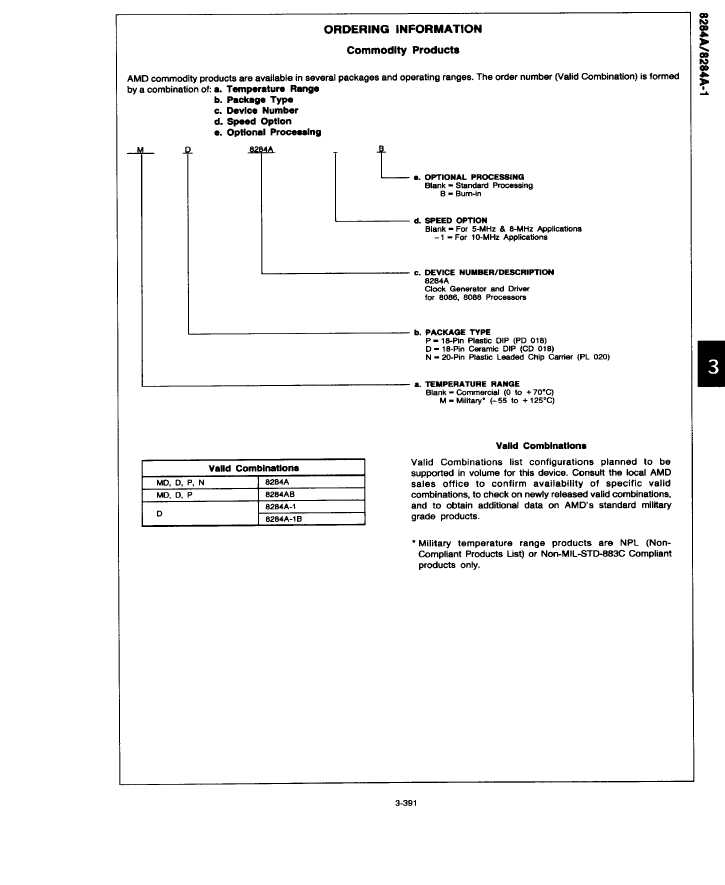

Preview

Download Datasheet

View All

D8284A Related Products

	D8284A	D8284A-1	P8284AB	57-12D-1500-5	MD8284AB	N8284A
Description	Processor Specific Clock Generator, 24MHz, Bipolar, CDIP18, CERDIP-18	Processor Specific Clock Generator, 30MHz, Bipolar, CDIP18, CERDIP-18	Clock Generator, Bipolar, PDIP18	12V AC-DC Switching Regulated Power Supply	Processor Specific Clock Generator, 24MHz, Bipolar, CDIP18, CERDIP-18	Binary Counter, Synchronous, Bidirectional, TTL, CDIP14
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible
Maker	AMD	AMD	-	-	AMD	AMD
package instruction	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	-	DIP, DIP18,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	-	unknown	unknown
JESD-30 code	R-GDIP-T18	R-GDIP-T18	R-PDIP-T18	-	R-GDIP-T18	R-XDIP-T14
JESD-609 code	e0	e0	e0	-	e0	e0
Number of terminals	18	18	18	-	18	14
Maximum operating temperature	70 °C	70 °C	70 °C	-	125 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	-	CERAMIC, GLASS-SEALED	CERAMIC
encapsulated code	DIP	DIP	DIP	-	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	-	DIP18,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	-	5 V	5 V
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified
Maximum slew rate	162 mA	162 mA	162 mA	-	162 mA	-
Nominal supply voltage	5 V	5 V	5 V	-	5 V	-
surface mount	NO	NO	NO	-	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	-	BIPOLAR	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL
