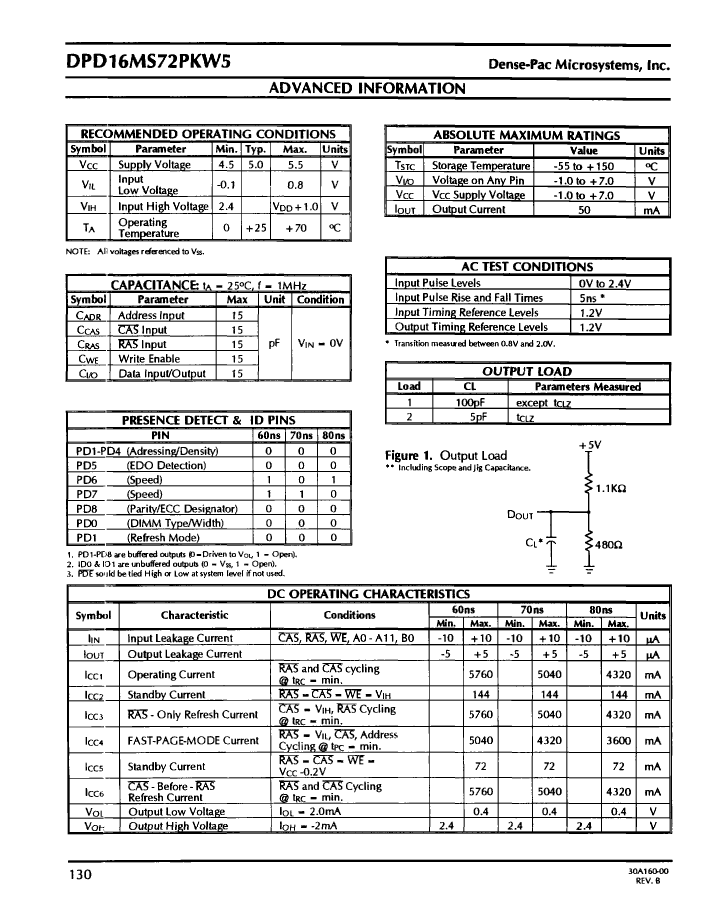

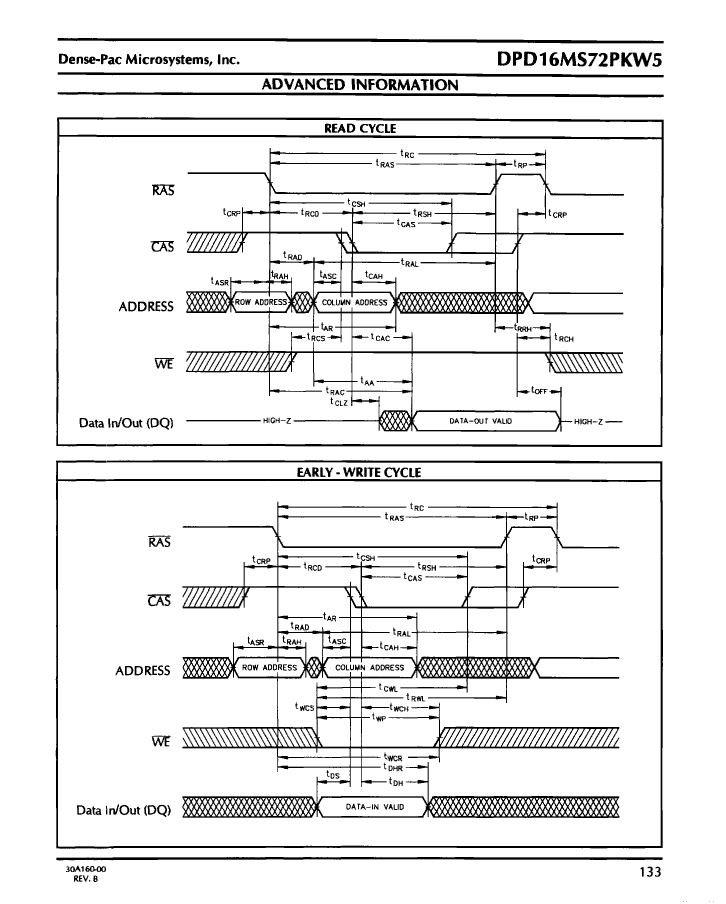

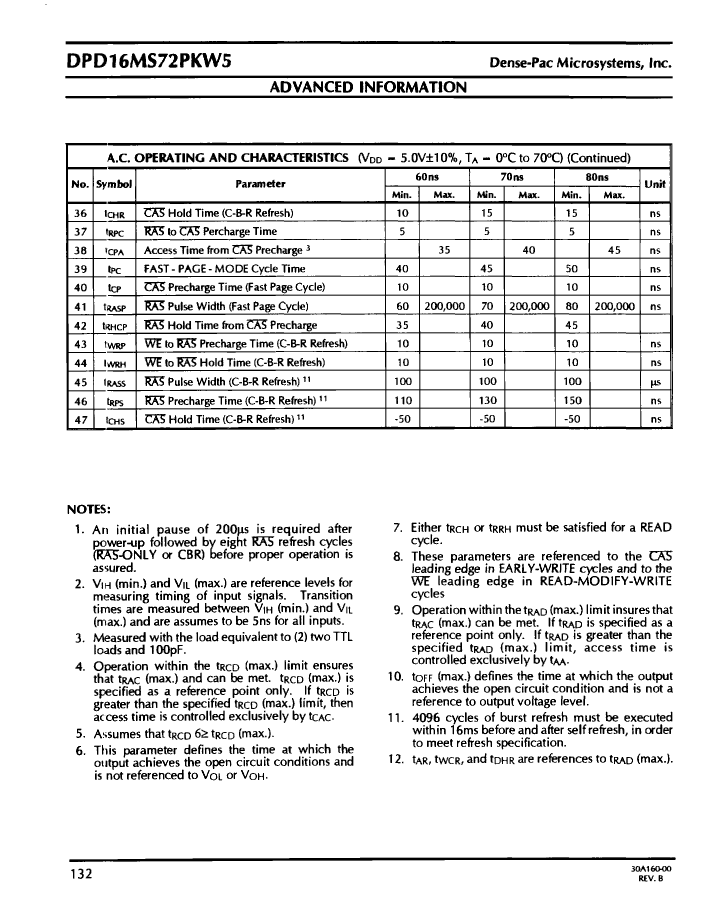

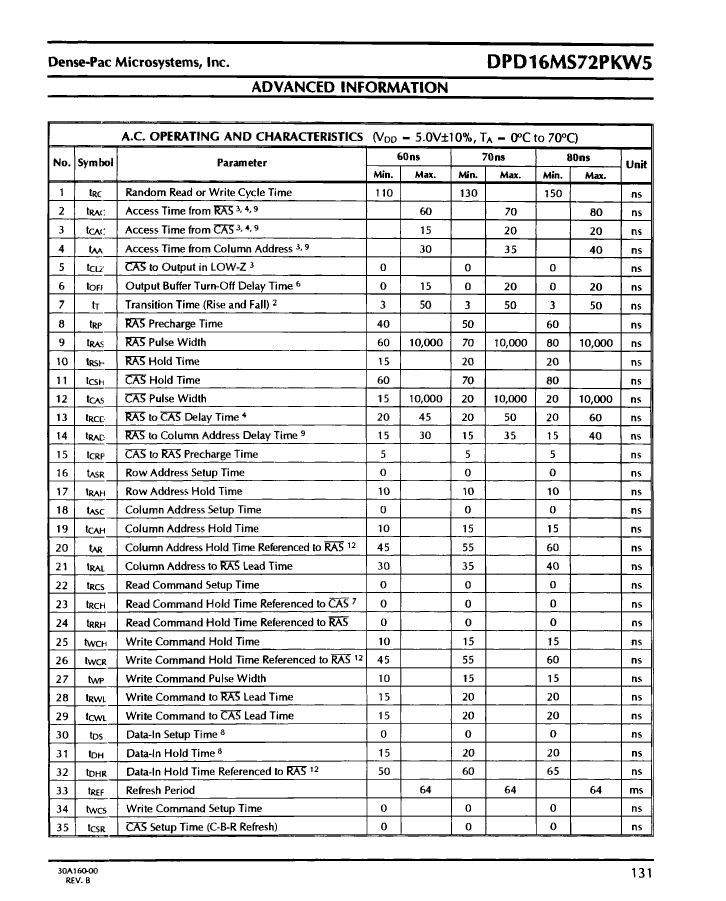

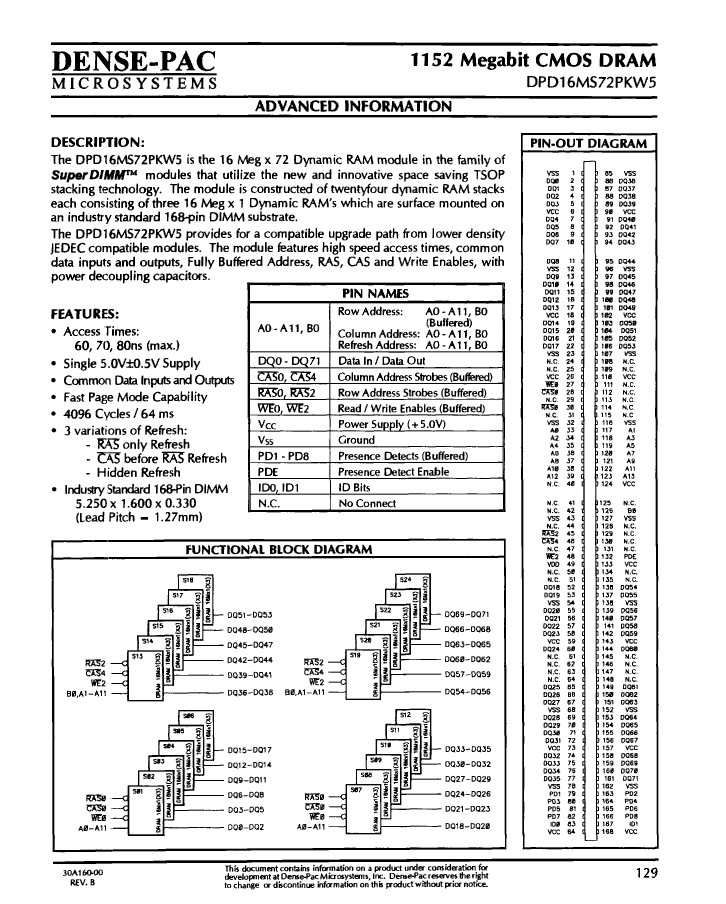

Fast Page DRAM Module, 16MX72, 60ns, CMOS, DIMM-168
| Parameter Name | Attribute value |
| Maker | B&B Electronics Manufacturing Company |
| Parts packaging code | DIMM |
| package instruction | , |
| Contacts | 168 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| access mode | FAST PAGE |
| Maximum access time | 60 ns |
| Other features | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH |
| Spare memory width | 36 |
| JESD-30 code | R-XDMA-N168 |
| memory density | 1207959552 bit |
| Memory IC Type | FAST PAGE DRAM MODULE |
| memory width | 72 |
| Number of functions | 1 |
| Number of ports | 1 |
| Number of terminals | 168 |
| word count | 16777216 words |
| character code | 16000000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 16MX72 |
| Output characteristics | 3-STATE |
| Package body material | UNSPECIFIED |
| Package shape | RECTANGULAR |
| Package form | MICROELECTRONIC ASSEMBLY |
| Certification status | Not Qualified |
| refresh cycle | 4096 |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | NO LEAD |
| Terminal location | DUAL |
| DPD16MS72PKW5-60C | DPD16MS72PKW5-80C | DPD16MS72PKW5-80CT | DPD16MS72PKW5-60CT | DPD16MS72PKW5-70C | DPD16MS72PKW5-70CT | |
|---|---|---|---|---|---|---|
| Description | Fast Page DRAM Module, 16MX72, 60ns, CMOS, DIMM-168 | Fast Page DRAM Module, 16MX72, 80ns, CMOS, DIMM-168 | Fast Page DRAM Module, 16MX72, 80ns, CMOS, DIMM-168 | Fast Page DRAM Module, 16MX72, 60ns, CMOS, DIMM-168 | Fast Page DRAM Module, 16MX72, 70ns, CMOS, DIMM-168 | Fast Page DRAM Module, 16MX72, 70ns, CMOS, DIMM-168 |
| Maker | B&B Electronics Manufacturing Company | B&B Electronics Manufacturing Company | B&B Electronics Manufacturing Company | B&B Electronics Manufacturing Company | B&B Electronics Manufacturing Company | B&B Electronics Manufacturing Company |
| Parts packaging code | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM |
| Contacts | 168 | 168 | 168 | 168 | 168 | 168 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| access mode | FAST PAGE | FAST PAGE | FAST PAGE | FAST PAGE | FAST PAGE | FAST PAGE |
| Maximum access time | 60 ns | 80 ns | 80 ns | 60 ns | 70 ns | 70 ns |
| Other features | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH |
| Spare memory width | 36 | 36 | 36 | 36 | 36 | 36 |
| JESD-30 code | R-XDMA-N168 | R-XDMA-N168 | R-XDMA-N168 | R-XDMA-N168 | R-XDMA-N168 | R-XDMA-N168 |
| memory density | 1207959552 bit | 1207959552 bit | 1207959552 bit | 1207959552 bit | 1207959552 bit | 1207959552 bit |
| Memory IC Type | FAST PAGE DRAM MODULE | FAST PAGE DRAM MODULE | FAST PAGE DRAM MODULE | FAST PAGE DRAM MODULE | FAST PAGE DRAM MODULE | FAST PAGE DRAM MODULE |
| memory width | 72 | 72 | 72 | 72 | 72 | 72 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 168 | 168 | 168 | 168 | 168 | 168 |
| word count | 16777216 words | 16777216 words | 16777216 words | 16777216 words | 16777216 words | 16777216 words |
| character code | 16000000 | 16000000 | 16000000 | 16000000 | 16000000 | 16000000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| organize | 16MX72 | 16MX72 | 16MX72 | 16MX72 | 16MX72 | 16MX72 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY | MICROELECTRONIC ASSEMBLY |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| refresh cycle | 4096 | 4096 | 4096 | 4096 | 4096 | 4096 |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | NO LEAD | NO LEAD | NO LEAD | NO LEAD | NO LEAD | NO LEAD |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
