BZX84-C2V7E9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZX84-C2V7E9

BZX84-C2V7E9: DescriptionDIODE 2.7 V, 0.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, TO-236AB, PLASTIC, TO-236AB, 3 PIN, Voltage Regulator Diode; CategoryDiscrete semiconductor diode; File Size401KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

BZX84-C2V7E9 Overview

DIODE 2.7 V, 0.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, TO-236AB, PLASTIC, TO-236AB, 3 PIN, Voltage Regulator Diode

BZX84-C2V7E9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	100 Ω
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.3 W
Certification status	Not Qualified
Nominal reference voltage	2.7 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Maximum voltage tolerance	5%
Working test current	5 mA

Preview

Download Datasheet

View All

BZX84

Series

Zener Diodes

Vz Range

2.4 to 75V

Power Dissipation

300mW

TO-236AB (SOT-23)

.122 (3.1)

.110 (2.8)

.016 (0.4)

.056 (1.43

)

.052 (1.33

)

Top View

Mounting Pad Layout

0.031 (0.8)

Dimensions in inches

and (millimeters)

0.035 (0.9)

0.079 (2.0)

max. .004 (0.1)

.007 (0.175)

.005 (0.125)

.037(0.95) .037(0.95)

.045 (1.15)

.037 (0.95)

0.037 (0.95)

.016 (0.4)

.102 (2.6)

.094 (2.4)

Features

• Silicon Planar Power Zener Diodes

• The Zener voltages are graded according to the

international E 24 standard. Standard Zener voltage

tolerance is ±5%. Replace “C” with “B” for ±2%

tolerance. Other voltage tolerances and other

Zener voltages are available upon request.

• These diodes are also available in other case

styles and other configurations including: the

SOD-123 case with type designation BZT52 series,

the dual zener diode common anode configuration

in the SOT-23 case with type designation AZ23

series and the dual zener diode common cathode

configuration in the SOT-23 case with type

designation DZ23 series.

Top View

Mechanical Data

Case:

SOT-23 Plastic Package

Weight:

Approx. 0.008g

Packaging Codes/Options:

E8/10K per 13” reel (8mm tape), 30K box

E9/3K per 7” reel (8mm tape), 30K box

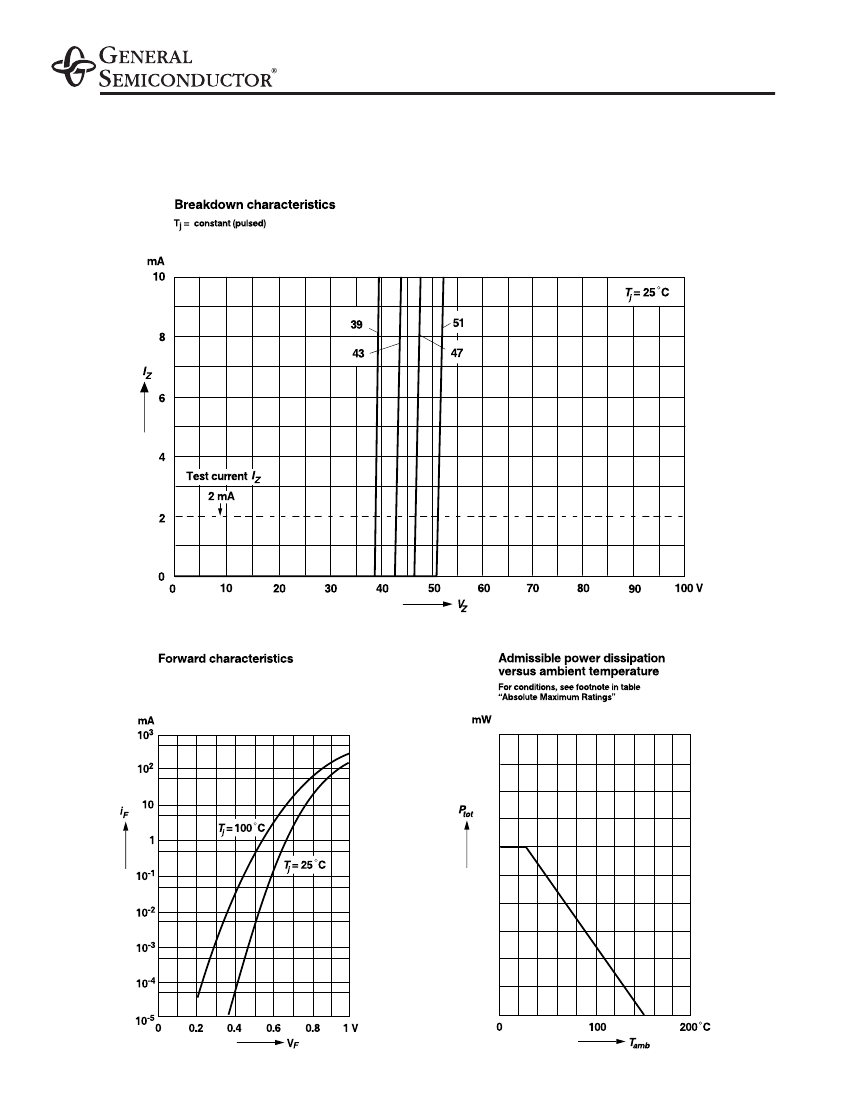

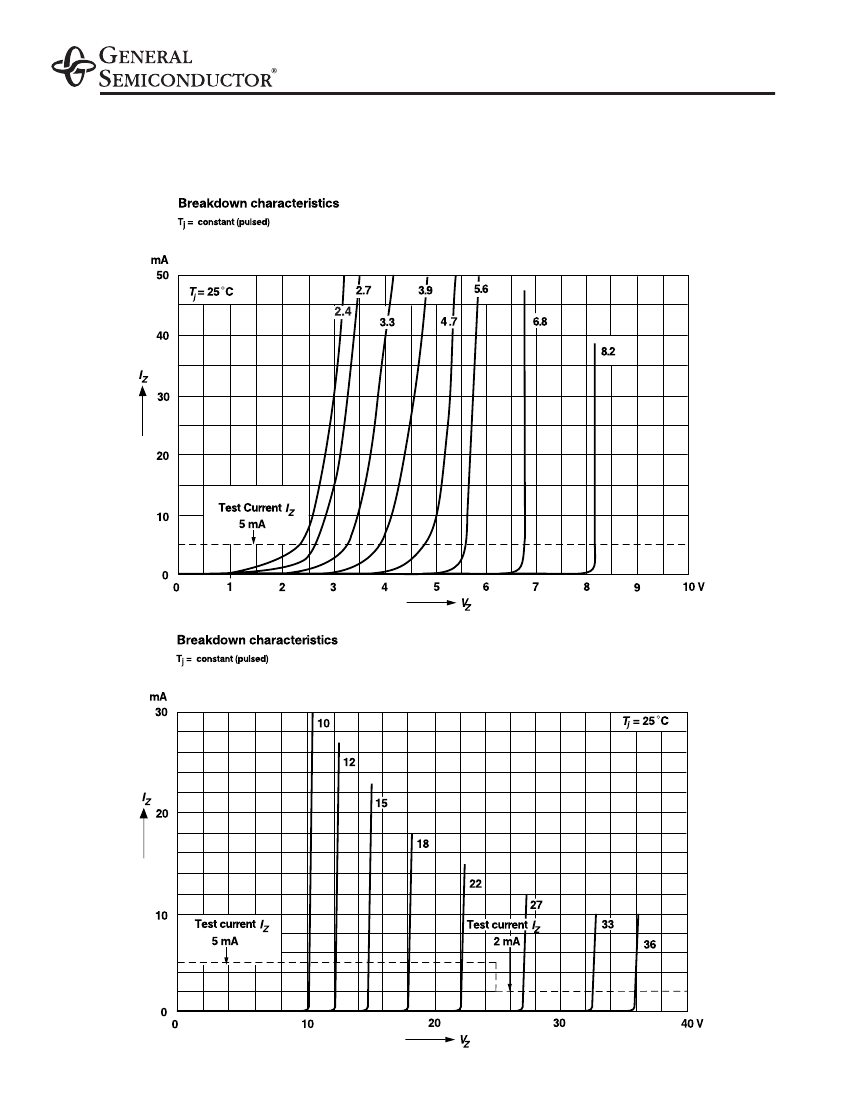

Maximum Ratings and Thermal Characteristics

Parameter

Zener Current

Power Dissipation at T

amb

= 25°C

Thermal Resistance Junction to Ambient Air

Junction Temperature

Storage Temperature Range

Notes:

(1) Device on fiberglass substrate, see layout.

= 25°C unless otherwise noted)

Symbol

tot

ΘJA

Value

250

300

(1)

420

(1)

150

–65 to +150

Unit

°C/W

°C

6/5/01
