5,08R09 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5,08R09

5,08R09: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket; CategoryThe connector The connector; File Size284KB，1 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric View All

5,08R09 Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket

5,08R09 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5,08R
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

Dieses Bauteil wird für ein Design-in bei Neuprojekten nicht mehr empfohlen. Sprechen Sie uns an, wir beraten Sie gerne zu Alternativen.

This component is no longer recommended for design-in of new projects. Please contact us, we will be pleased to provide alternatives.

Ce composant n’est plus recommandé pour de nouvelles implantations. Nous restons à votre disposition pour vous proposer des solutions alternatives. 02/2013

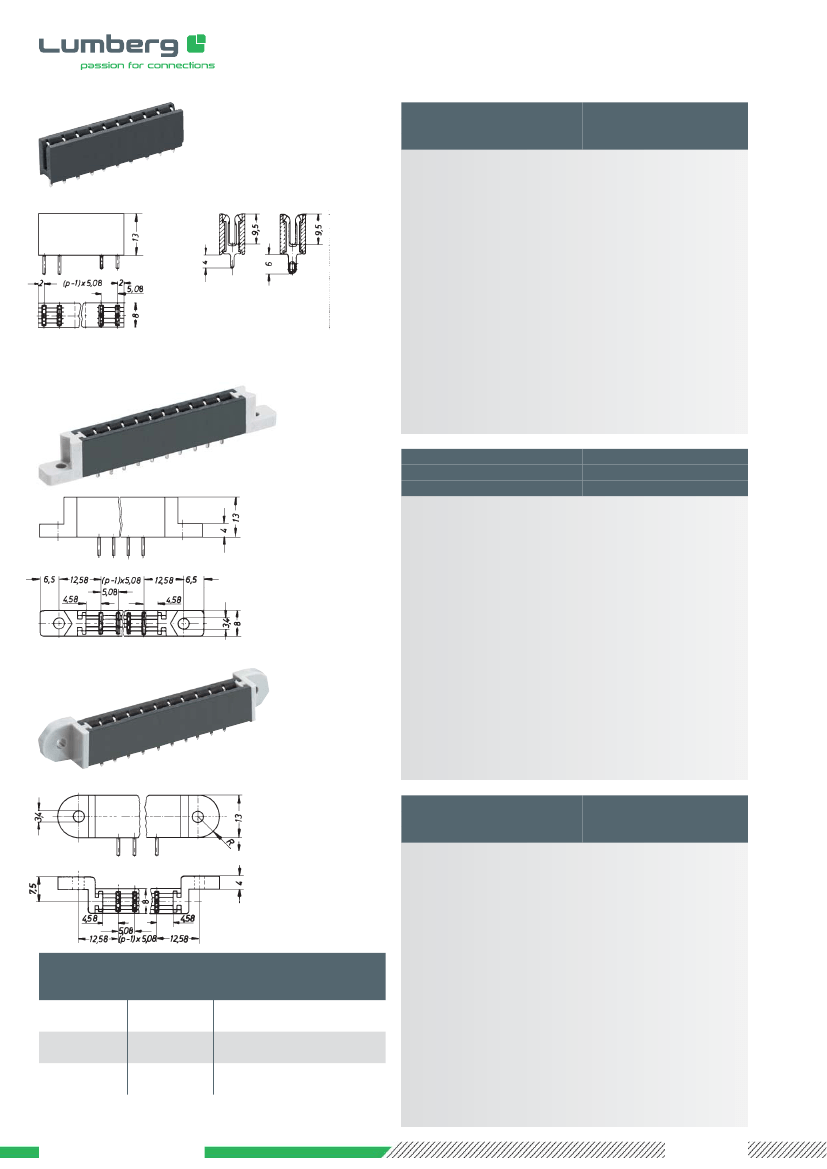

5,08 R

5,08 RF

5,08 RFL

5,08 U

5,08 UF

5,08 UFL

5,08 R

5,08 U

Buchsenleiste für direktes Stecken, mit und ohne vormon-

tiertem Flanschpaar F/FL

5,08 R(...): mit Lötstiften

5,08 U(...): mit Lötösen

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Flansch

Kontaktfeder

3. Mechanische Daten

Kontaktierung mit

4. Elektrische Daten

Durchgangswiderstand

Bemessungsstrom

Bemessungsspannung

Prüfspannung

nach DIN EN 60664/IEC 60664

≤

3 mΩ

250 V AC

≥

1,5 kV eff.

Leiterplatte 1,5 ± 0,14 mm

-25 °C/+100 °C

PPO

CuSn, vernickelt und verzinnt

5,08 RF

5,08 R

5,08 RF

5,08 RFL

5,08 U

5,08 UF

5,08 UFL

Socket board for direct mating, with and without mount-

ed pair of flanges F/FL

5,08 R(...): with solder pins

5,08 U(...): with solder eyes

1. Temperature range

2. Materials

Insulating body

Flange

Contact spring

3. Mechanical data

-25 °C/+100 °C

PPO

CuSn, nickeled and tinned

5,08 RFL

Mating with

4. Electrical data

printed circuit board 1.5 ± 0.14 mm

Contact resistance

≤

3 mΩ

Rated current

250 V AC

Rated voltage

Test voltage

≥

1.5 kV eff.

according to DIN EN 60664/IEC 60664

5,08 R

5,08 RF

5,08 RFL

5,08 U

5,08 UF

5,08 UFL

Réglette à prises femelles pour enfichage direct, avec et

sans collets F/FL attachés

5,08 R(...): avec plots à souder

5,08 U(...): avec cosses à souder

1. Température d’utilisation

Bestellbezeichnung

Designation

Désignation

Polzahl

poles

pôles

Verpackungseinheit

Package unit

Unité d’emballage

2. Matériaux

Corps isolant

Collet

Ressort de contact

3. Caractéristiques mécaniques

Raccordement avec

4. Caractéristiques électriques

Résistance de contact

Courant assigné

Tension assignée

Tension d’essai

suivant DIN EN 60664/CEI 60664

≤

3 mΩ

250 V AC

≥

1,5 kV eff.

carte imprimée 1,5 ± 0,14 mm

-25 °C/+100 °C

PPO

CuSn, nickelé et étamé

5,08

RFL

UFL

3–33

3–31

200

Verpackung: lose im Karton

Packaging: in bulk, in a cardboard box

Emballage: en vrac, dans un carton

www.lumberg.com

11/2012
