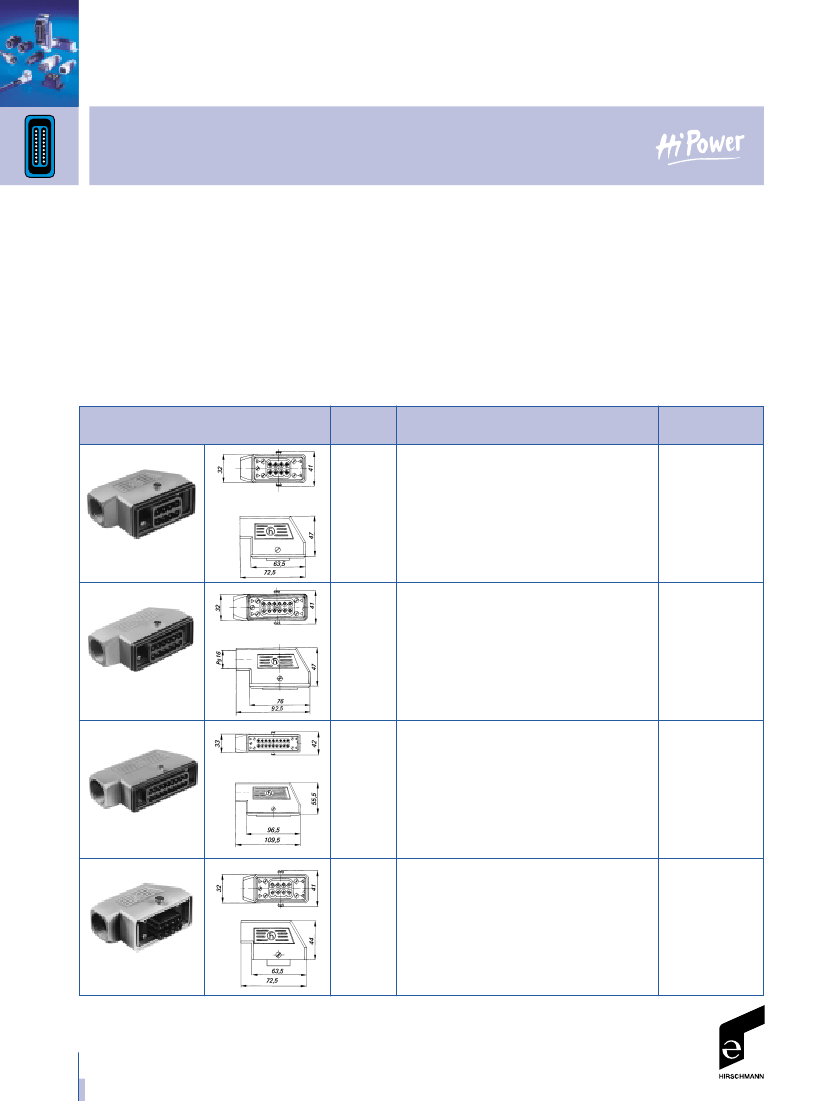

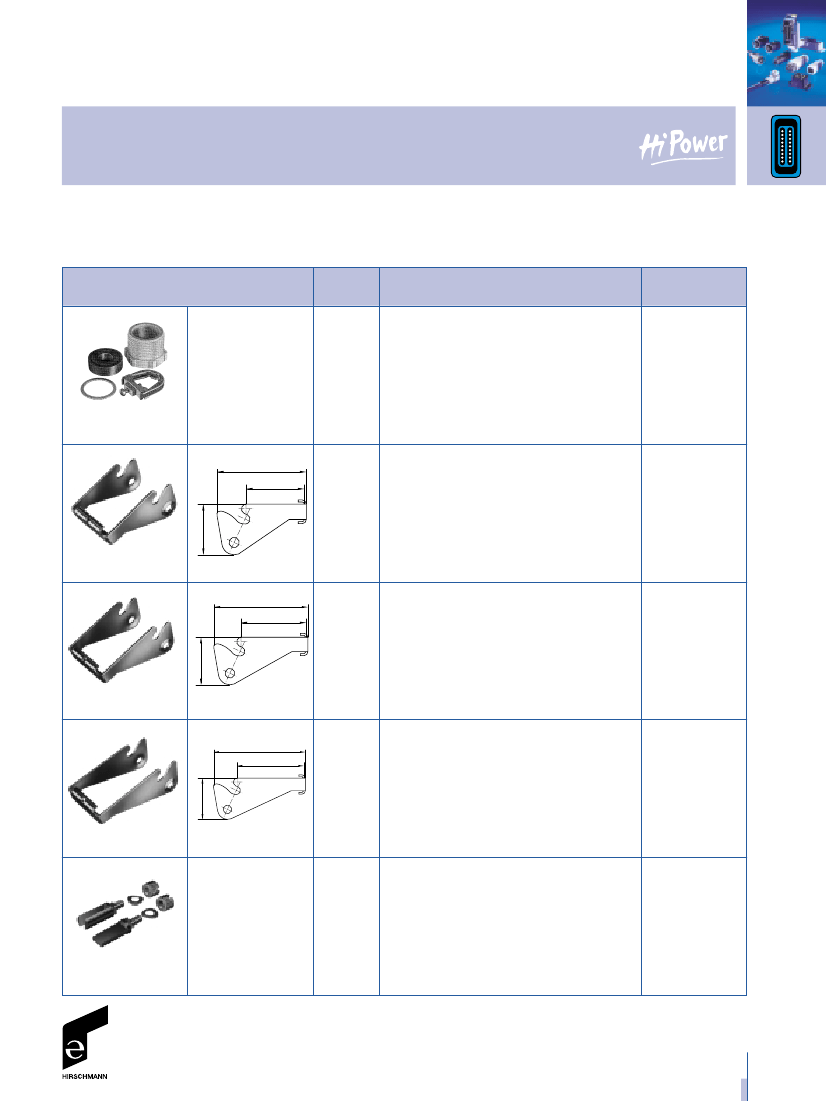

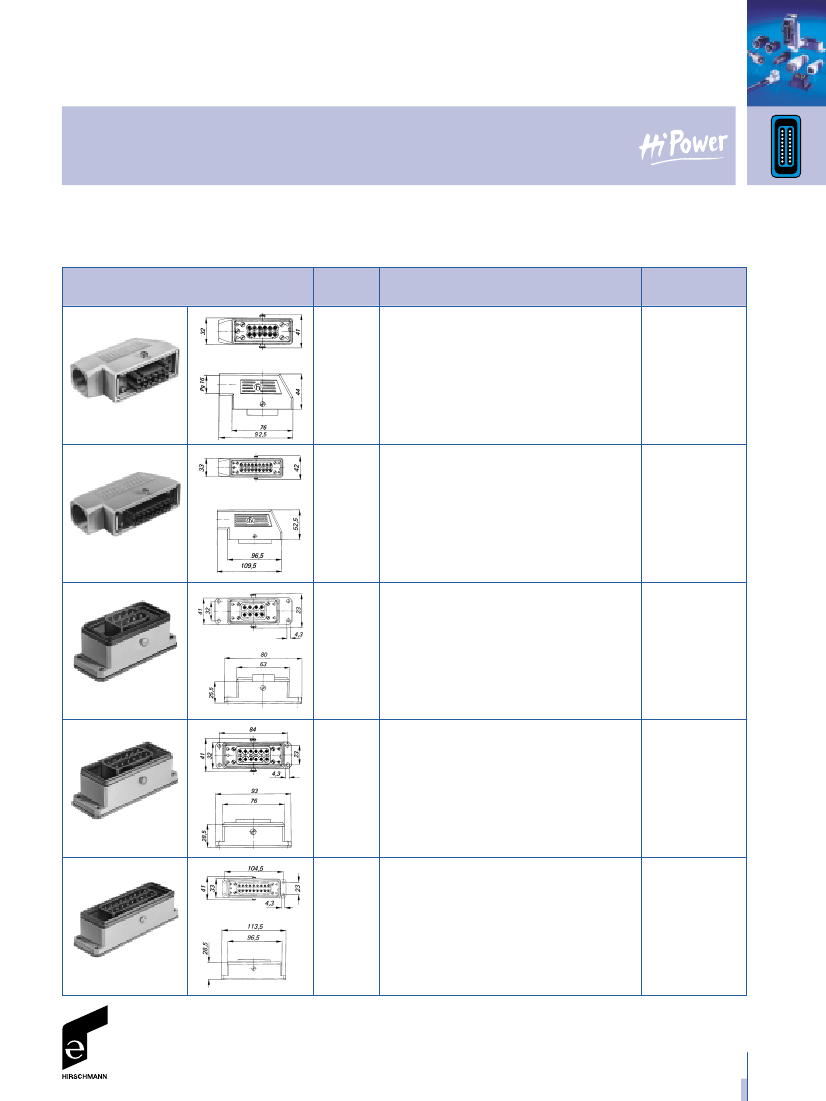

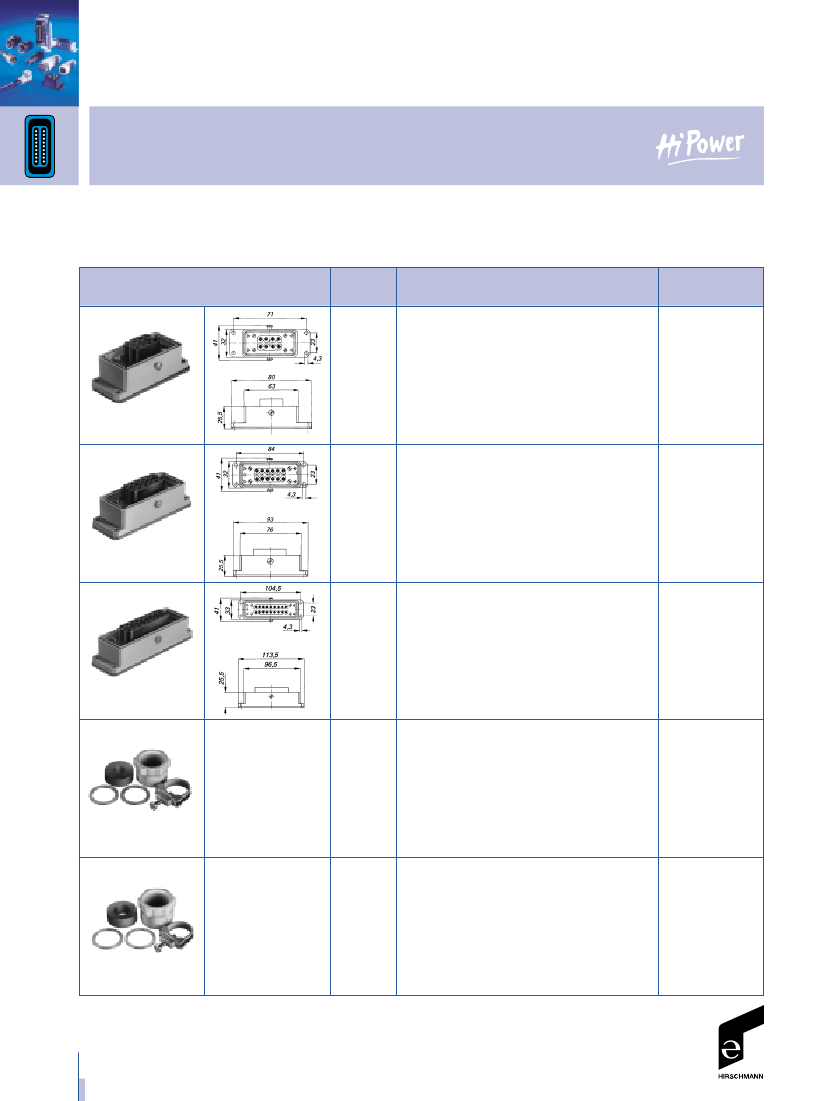

Connectors for mains connection
N-series
Product description
Robust connectors 6-, 10-, and 16-
pole, narrow plastic housing, angled,
for industrial application.
• Housing made of glass-fibre-rein-
forced, impact-resistant and un-
breakable plastic
• Suitable for the use in machinery
engineering in general, control
engineering and in the chemical
industry
• Protection against dust and splashes
• Safety bracket for vibration-proof
plug connection, the connection is
broken by unlocking
• Coding:
Comprising 4 pins and 4 sockets
per plug connection, offset at 120°
each
• VDE-expertise with process
inspection
IEC 60947-5-2
Basic data
Operating voltage:
400 V AC / 250 V DC
Operating current: 10 A AC/DC
Protection class: IP 54
Outer cable diameter: 10mm - 13mm
Type of connection: screw
Colour of product: grey
Type
Number
of poles
6 + PE
Description
Order no.
Cable connector
Cable gland must be ordered separately
Operating current: 10A/250 V DC,
10A/400 V AC
932 293-106
NS 6
10 + PE
Cable connector
Cable gland must be ordered separately
Operating current: 10A/250 V DC,
10A/400 V AC
NS 10
16 + PE
Cable connector
Cable gland must be ordered separately
Operating current: 10A/250 V DC,
10A/400 V AC
NS 16
6 + PE
Cable socket
Cable gland must be ordered separately
Operating current: 10A/250 V DC,
10A/400 V AC
NK 6
932 290-106
932 295-106
932 294-106
28
Industrial connectors
Connectors for mains connection
N-series
Type
Number
of poles
10 + PE
Description
Order no.
Cable socket
Cable gland must be ordered separately
Operating current: 10A/250 V DC,
10A/400 V AC
932 291-106
NK 10
16 + PE
Cable socket
Cable gland must be ordered separately
Operating current: 10A/250 V DC,
10A/400 V AC
NK 16
6 + PE
Panel-mounted connector
Operating current: 10A/250 V DC,
10A/400 V AC
932 299-106
932 292-106
NSE 6
10 + PE
Panel-mounted connector
Operating current: 10A/250 V DC,
10A/400 V AC
932 300-106
NSE 10
16 + PE
Panel-mounted connector
Operating current: 10A/250 V DC,
10A/400 V AC
932 301-106
NSE 16
Industrial connectors
29
Connectors for mains connection
N-series
IEC 60947-5-2
Type
Number
of poles
6 + PE
Description
Order no.
Panel-mounted socket
Operating current: 10A/250 V DC,
10A/400 V AC
932 296-106
NKE 6
10 + PE
Panel-mounted socket
Operating current: 10A/250 V DC,
10A/400 V AC
932 297-106
NKE 10
16 + PE
Panel-mounted socket
Operating current: 10A/250 V DC,
10A/400 V AC
932 298-106
NKE 16
–
Cable gland
Gland Pg 13,5
with strain relief bracket
for cable diameter 10 - 13 mm
NVZ 6 B
–
Cable gland
Gland Pg 16
with strain relief bracket
for cable diameter 10,5 - 15 mm
NVZ 10 B
831 492-001
831 491-001
30
Industrial connectors
Connectors for mains connection
N-series
Type
Number
of poles
–
Description
Order no.
Cable gland
Gland Pg 21
with strain relief bracket
for cable diameter 14 - 18,5 mm
831 493-001
NVZ 16 B
56
37
–
Accessories
Safety bracket steel, galvanized
731 307-000
NSI 6-1
63
44
32
–
Accessories
Safety bracket steel, galvanized
731 051-000
NSI 10-1
71
52
32
–
Accessories
Safety bracket steel, galvanized
731 343-000
NSI 16-1
–
Accessories
Coding consisting of 4 coding pins
and 4 coding sockets
930 626-000
NC 10
32
Industrial connectors
31
