Commercial
Miniature Transfer DC-18GHz
Latching
CCS-37

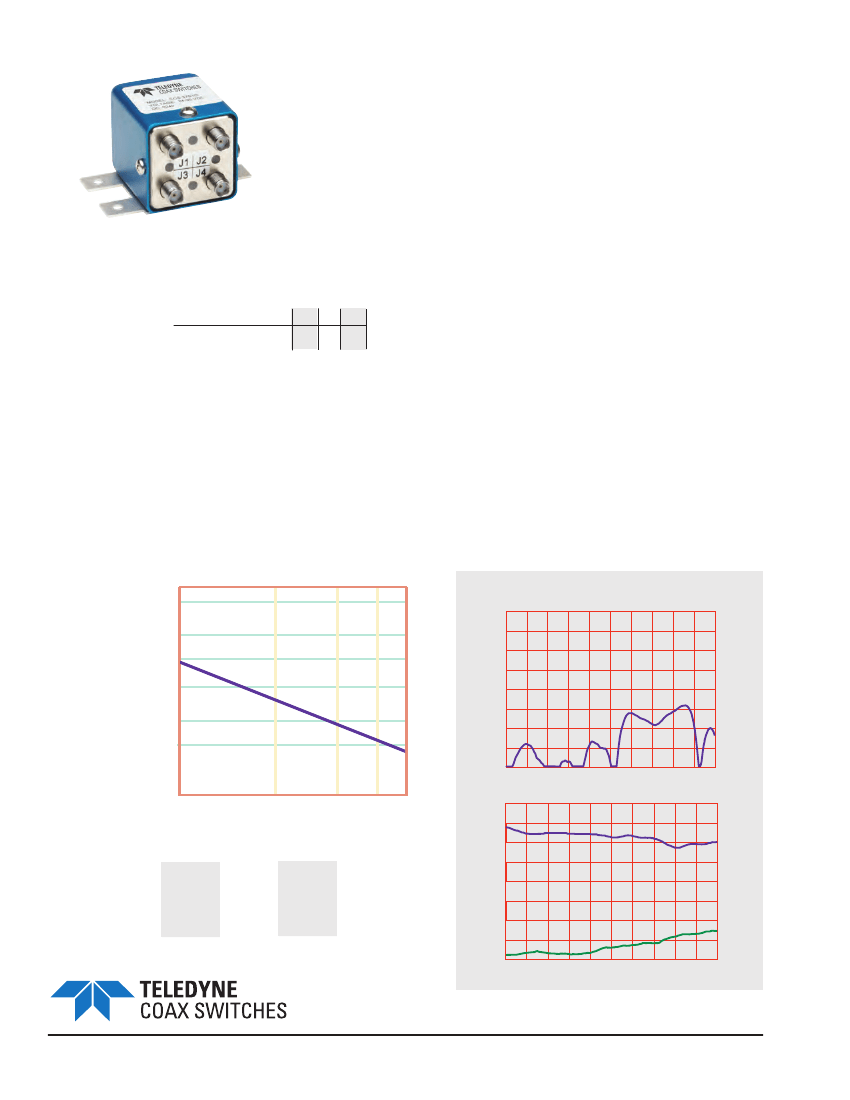

The CCS-37 Latching Switch is a long-life high performance transfer switch designed
for use in 50 Ohms coaxial transmission lines operating over frequencies ranging from
DC to 18 GHz. The switch is designed for minimum size compatible with SMA connector
spacing.
This switch is provided with a magnetic latching actuator which is
particularly desirable in applications where actuator power
consumption must be kept to an absolute minimum. The latching
type actuator requires less switching current than the failsafe type.
In the self-cutoff version, power is applied only for the very short
duration (approximately 50 msec. max.) of the actuator transfer
from one position of the other. This makes this type of actuator
especially suitable for portable battery operated systems.
Specifications
RF Contacts:
Actuator
Switching Time:
Connectors:
Weight:
Temperature Range:
Shock:
Vibration:
Humidity:
MTBF:
RF Power Handling:
Break before make
Voltage (VDC) 20
O
C
Current (mA)
15 msec max
SMA (f)
2.50 oz. max
-40
O
C to +65
O
C (Operating)
12
15
28
160 130 60
MIL-STD-202 Method 213, Condition D (500G Non Operating)
MIL-STD-202 Method 214, Condition D (10G RMS Non Operating)
Moisture Seal Available
6.8 Million Hours ( MIL-HDBK-217F Fixed, 25
O
C, <1 Cycle per hour)
3000
Typical Performance
Return Loss
nne
cto
rs
800
400
Sta
Power CW (Watts)
nda
rd S
MA
200
Co
15
80
40
25
0.01
10
0.1
1.0
4.0
Frequency GHz
10
18
Frequency GHz
18.0
Specifications
VSWR (max)
Insertion Loss (min)
Isolation (max)
DC-6 GHz 6-12 GHz 12-18 GHz
1.25:1
0.20 dB
70.0 dB
1.40:1
0.40 dB
60.0 dB
1.50:1
0.50 dB
60.0 dB
0.4
IL dB
0.01
Frequency GHz
18.0
Specifications subject to change without notice.
www.teledynecoax.com
email: coax@teledyne.com
Tel: (800) 351-7368
10/2007
Isolation dB
60
70
80
90
0.0
Commercial
Miniature Transfer DC-18GHz
Latching
CCS-37
TTL
Analog
H = 1.50 STD Model
H = 2.00 TTL Model
Indicators

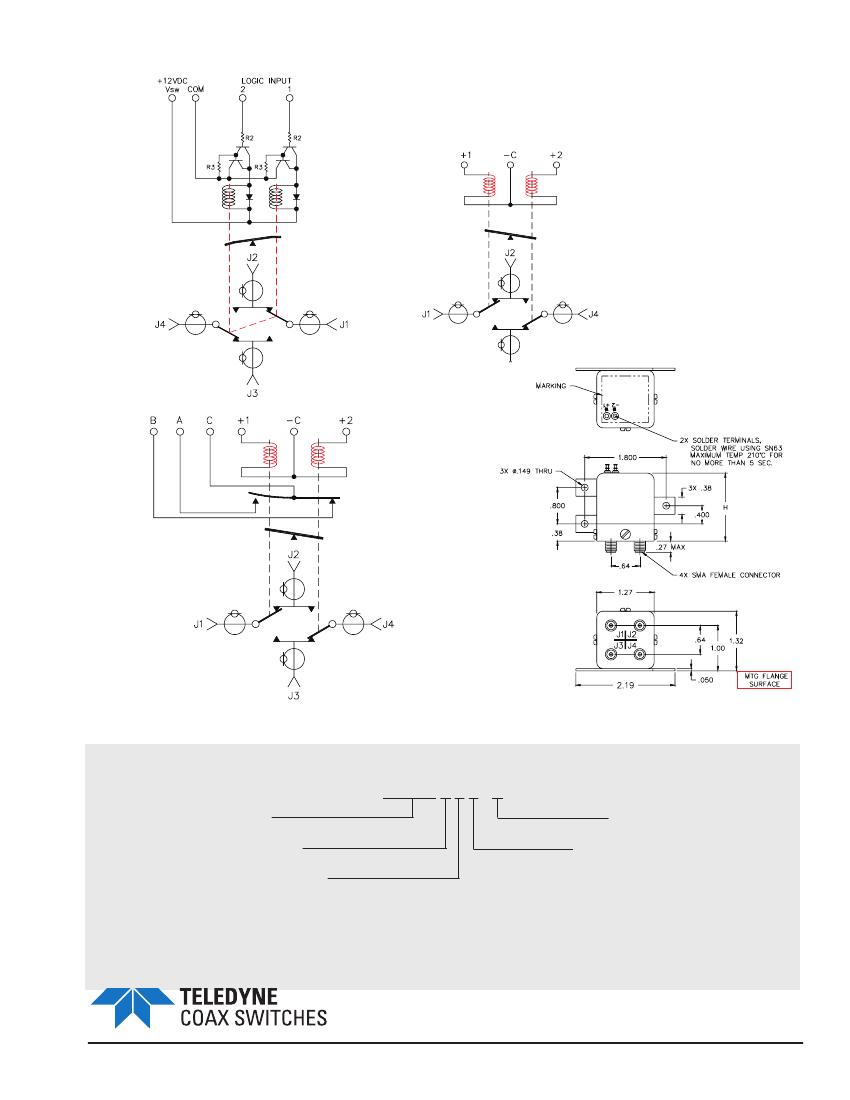

Part Numbering System for CCS-37 (Latching)
CCS-37 S 6 C - T
Series
Connectors
Actuator Voltage
Connector
S: SMA Female #
Actuator Voltage
6: 28Vdc Latching #
7: 15Vdc Latching #
8: 12Vdc Latching #
Actuator Type
O: No Indicator Contacts #
C: Indicator Contacts #
D: Self Cutoff Only
E: Indicators and Self
Cutoff
Options
T: TTL Drivers with Diodes
R: Positive + Common
#: Stock item subject to prior sale
Options
Actuator Type
For other options contact Factory
Specifications subject to change without notice.
www.teledynecoax.com
email: coax@teledyne.com
Tel: (800) 351-7368
10/2007
