BAR43A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> BAR43A

BAR43A: Description0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, 30V, 0.2A, 1V, 0.1A, 0.75A, 0.5uA; CategoryDiscrete semiconductor; File Size212KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

BAR43A Overview

0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, 30V, 0.2A, 1V, 0.1A, 0.75A, 0.5uA

BAR43A Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Reach Compliance Code	unknown
category
VRRM (V) max	30
IF (A) max	0.2
VF (V) max	1
Condition1_IF (A)	0.1
IFSM (A) max	0.75
IR (uA) max	0.5
Condition2_VR (V)	25
trr (ns) max	5
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	1
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOT-23

Preview

Download Datasheet

View All

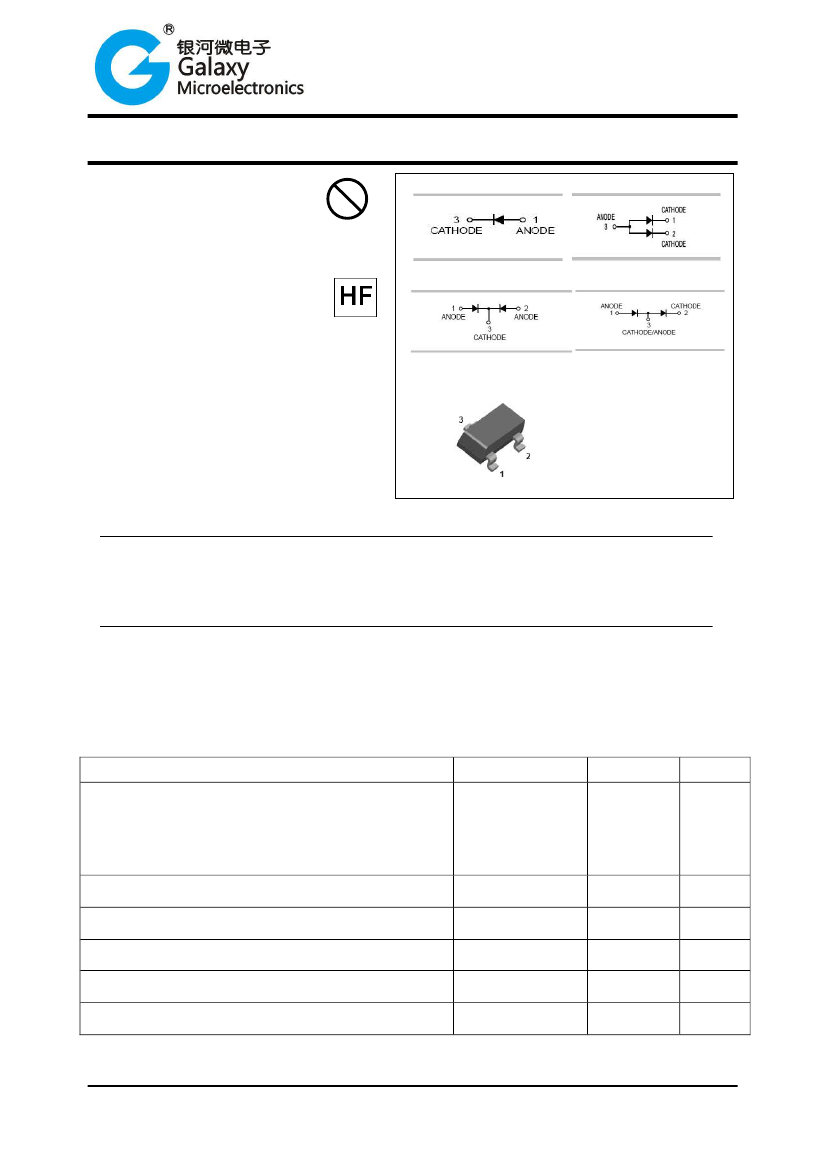

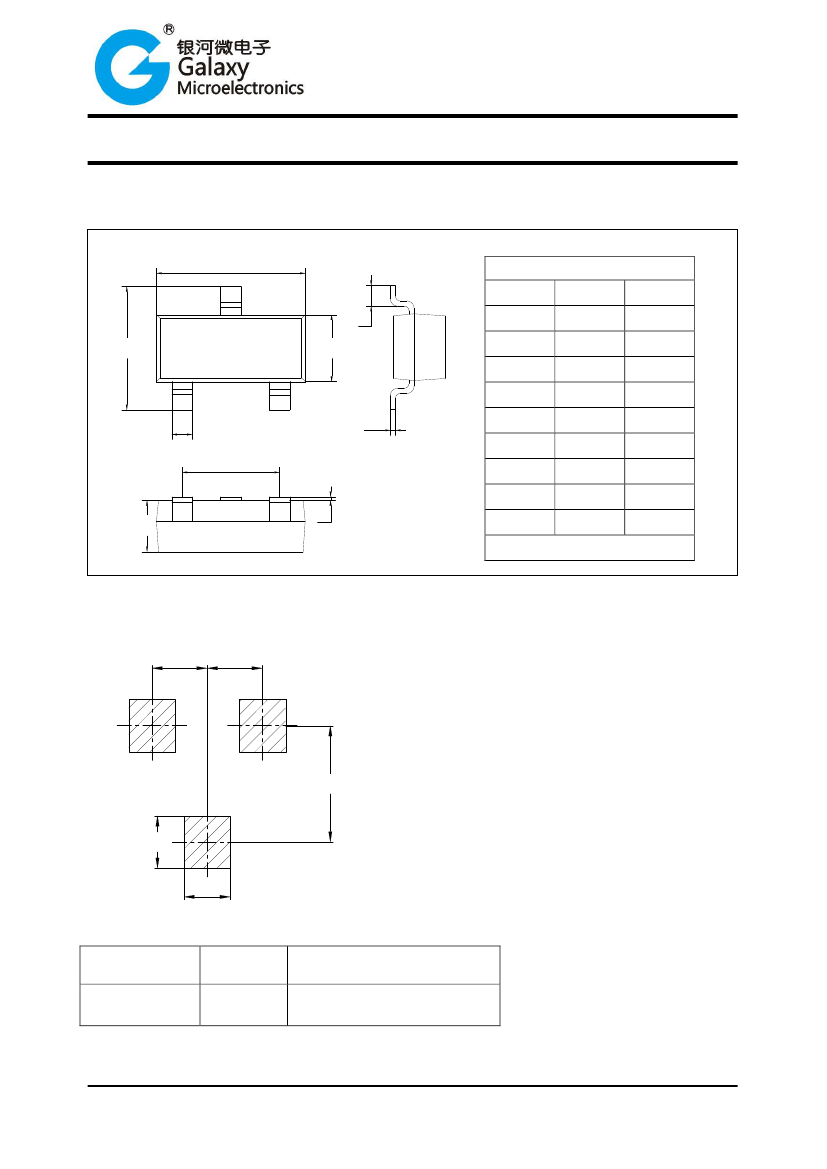

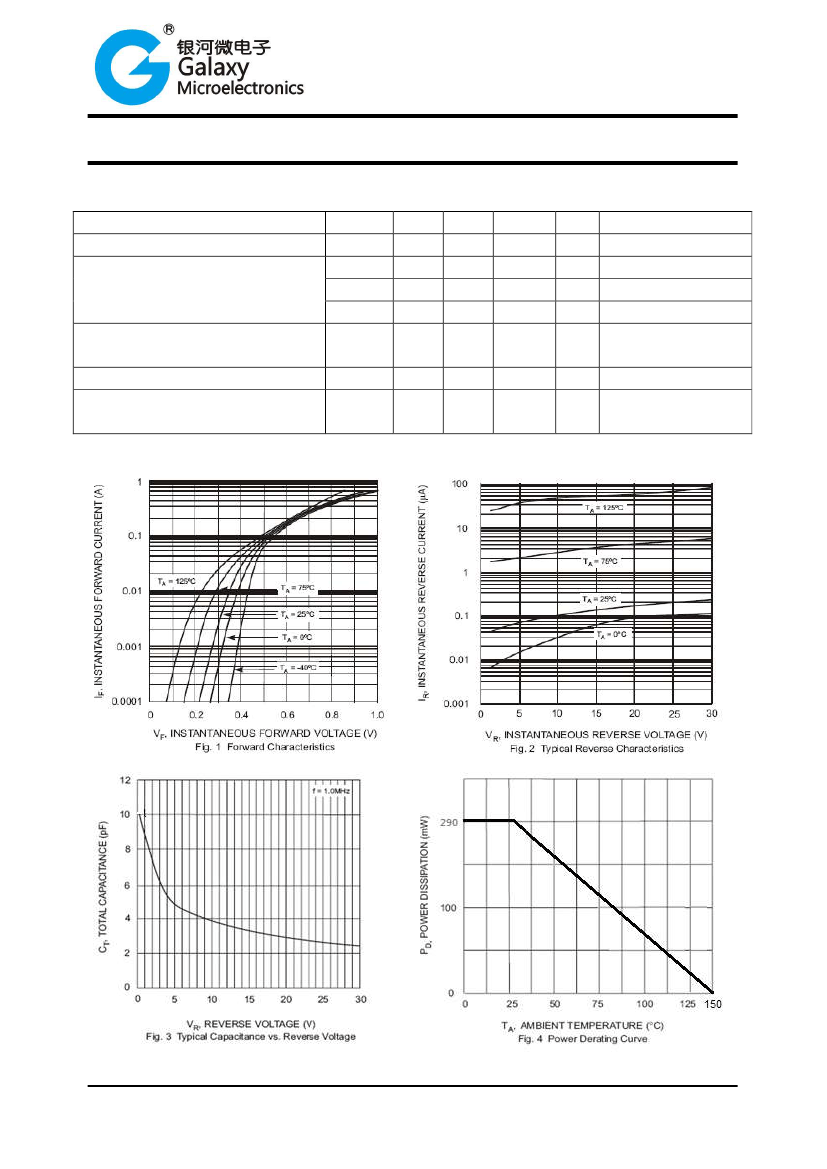

Product specification

Schottky Barrier diode

FEATURES



Extremely Fast switching

speed.



Low forward voltage.

Power dissipation P

=200mW.

Pb-Free package is available.

BAR43/A/C/S

Lead-free

BAR43

BAR43A

APPLICATIONS



Fast switching speed diode

BAR43C

BAR43S

SOT-23

ORDERING INFORMATION

Type No.

BAR43

□

BAR43A

□

BAR43C

□

BAR43S

□

Marking

D95

DB1

DB2

DA5

Package Code

SOT-23

□:

none is for Lead Free package;

“G” is for Halogen Free package.

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Parameter

Peak Repetitive Peak reverse voltage

Working Peak Reverse Voltage

DC Reverse Voltage

Forward Continuous Current

Non-repetitive peak forward surge Current

Power Dissipation

Thermal resistance,Junction to temperature

Storage temperature

t=10ms

Symbol

RRM

RWM

FSM

θJA

STG

200

750

290

430

-55 to +150

℃/W

℃

Limits

Unit

SSM0093A

www.gmesemi.com

BAR43A Related Products

	BAR43A	BAR43	BAR43C	BAR43S
Description	0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, 30V, 0.2A, 1V, 0.1A, 0.75A, 0.5uA	0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, Single, 30V, 0.2A, 1V, 0.1A, 0.75A	0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, 30V, 0.2A, 1V, 0.1A, 0.75A, 0.5uA	0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, 30V, 0.2A, 1V, 0.1A, 0.75A, 0.5uA
Maker	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
Reach Compliance Code	unknown	unknown	unknown	unknown
VRRM (V) max	30	30	30	30
IF (A) max	0.2	0.2	0.2	0.2
VF (V) max	1	1	1	1
Condition1_IF (A)	0.1	0.1	0.1	0.1
IFSM (A) max	0.75	0.75	0.75	0.75
IR (uA) max	0.5	0.5	0.5	0.5
Condition2_VR (V)	25	25	25	25
trr (ns) max	5	5	5	5
AEC Qualified	No	No	No	No
Maximum operating temperature	150	150	150	150
Minimum operating temperature	-55	-55	-55	-55
MSL level	1	1	1	1
Is it lead-free?	Yes	Yes	Yes	Yes
Comply with Reach	Yes	Yes	Yes	Yes
RoHS compliant	Yes	Yes	Yes	Yes
ECCN code	EAR99	EAR99	EAR99	EAR99
Package Outlines	SOT-23	SOT-23	SOT-23	SOT-23
