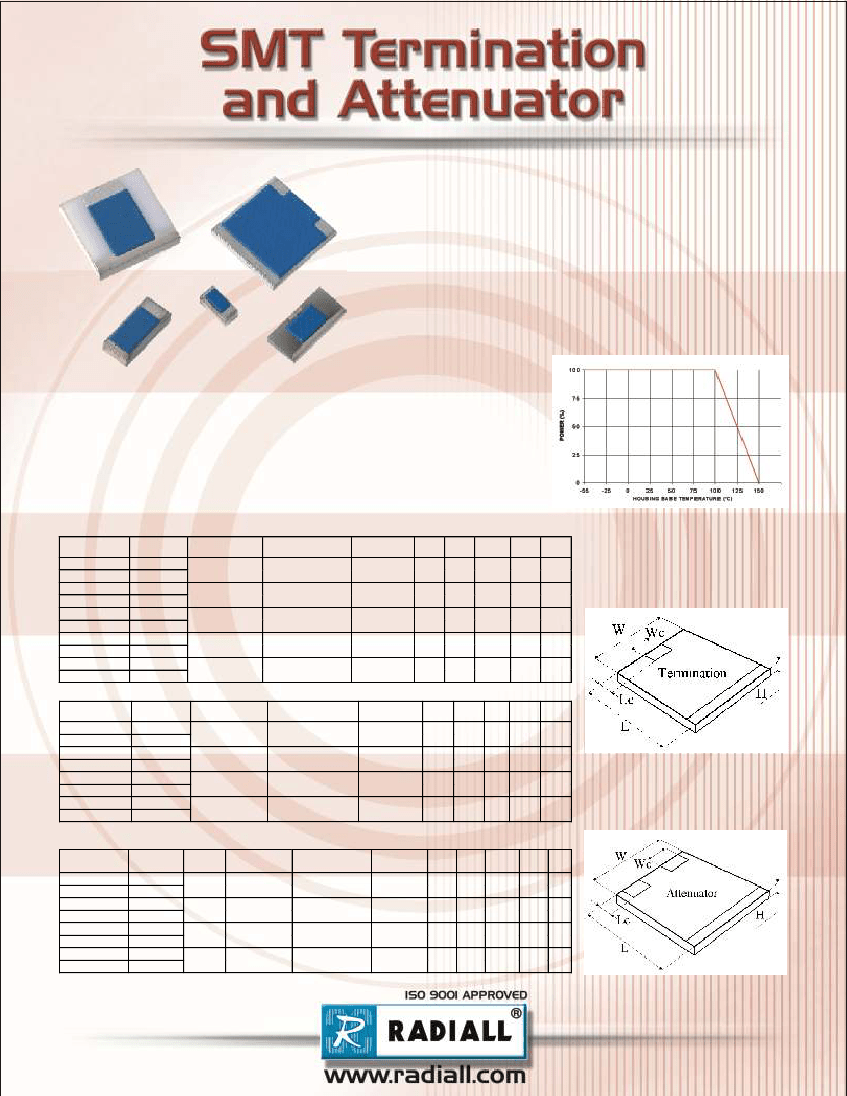

Radiall Microwave product line is pleased to introduce SMT resistive
load and attenuator, suitable for surface mount applications. The small
size and low cost components can be used in many applications such
coupler loads, drop-in isolators or other wireless applications…
The product is designed for 50
Ω
application for wireless band up to 3
GHz and also 18 GHz using Al2O3 or AlN substrate, power range from
10 Watts to 120 Watts. Packaged in reels for easy circuit integration,
thanks to the use of pick and place machines. Soldering operation can
be achieved by reflow ovens. Available in standard dimensions offered
in the industry, such as 2.54 x 5.08mm, 6.35 x 6.35mm or 6.35 x 9.40mm.
Radiall offers a large connectorized termination and attenuator range.
The SMT termination and
attenuators broadens our
offering in the RF components
market.
:
:
:
:
:
:
50Ω ±5%
3, 6, 10 & 20dB
-55°C / +150°C
Al2O3 and AlN
Thick film
Polymer film / contacts Pt
Characteristics
Impedance
Attenuation value
Temperature range
Substrate material
Resistive film
Finish
AIN Termination
Part number
R401220105
R401220102
R401210105
R401210102
R401211105
R401211102
R401410105
R401410102
R401411105
R401411102
Packaging
100pcs
2000pcs
100pcs
2000pcs
100pcs
2000pcs
100pcs
2000pcs
100pcs
2000pcs
Power (Watts)
10
10
20
60
120
Frequency (GHz)
18
3
2.5
2.5
2.5
VSWR Max
1.35
1.20
1.25
1.20
1.20
W
5.08
2.54
6.35
8.89
6.35
L
2.54
5.08
6.35
5.84
9.4
H
0.635
1.2
1.2
1.0
1.0
Wc
1.3
2.54
3.1
3.35
1.8
Lc
0.5
0.5
0.75
0.75
1.0
Al2O3 Termination
Part number
Packaging
Power (Watts)
Frequency (GHz)
4
2.5
2.5
2.5
VSWR Max
1.20
1.25
1.20
1.20
W
1.27
6.35
6.35
9.4
L
2.54
6.35
6.35
6.35
H
1.0
1.0
1.0
1.0
Wc
1.27
3.10
3.17
3.0
Lc
0.75
0.75
0.9
0.75
R401110005
100pcs
2
R401110002
2000pcs
R401210005
100pcs
10
R401210002
2000pcs
R401211005
100pcs
30
R401211002
2000pcs
R401310005
100pcs
50
R401310002
2000pcs
See technical data sheet for more details
Al2O3 Attenuator
Part number
Packaging
Att
(dB)
Power
(Watts)
3
3
3
60
Frequency
(GHz)
2
2
2
2.2
VSWR
Max
1.20
1.20
1.20
1.20
W
1.27
6.35
6.35
9.4
L
2.54
6.35
6.35
6.35
H
0.635
0.635
0.635
0.635
Wc
2.0
2.0
2.0
0.70
Lc
2.1
2.1
2.1
1.8
R421103005
100pcs
3±0.3
R421103002
2000pcs
R421106005
100pcs
6±0.3
R421106002
2000pcs
R421110005
100pcs
10±0.3
R421110002
2000pcs
R421420105*
100pcs
20±0.5
R421420102
2000pcs
*AlN product
See technical data sheet for more details
All dimensions are given in mm
