50-29-1992 datasheet, PDF - EEWORLD Datasheet

50-29-1992: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, 0.156 inch Pitch, IDC Terminal, Locking, Red Insulator, Plug; CategoryThe connector The connector; File Size174KB，12 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

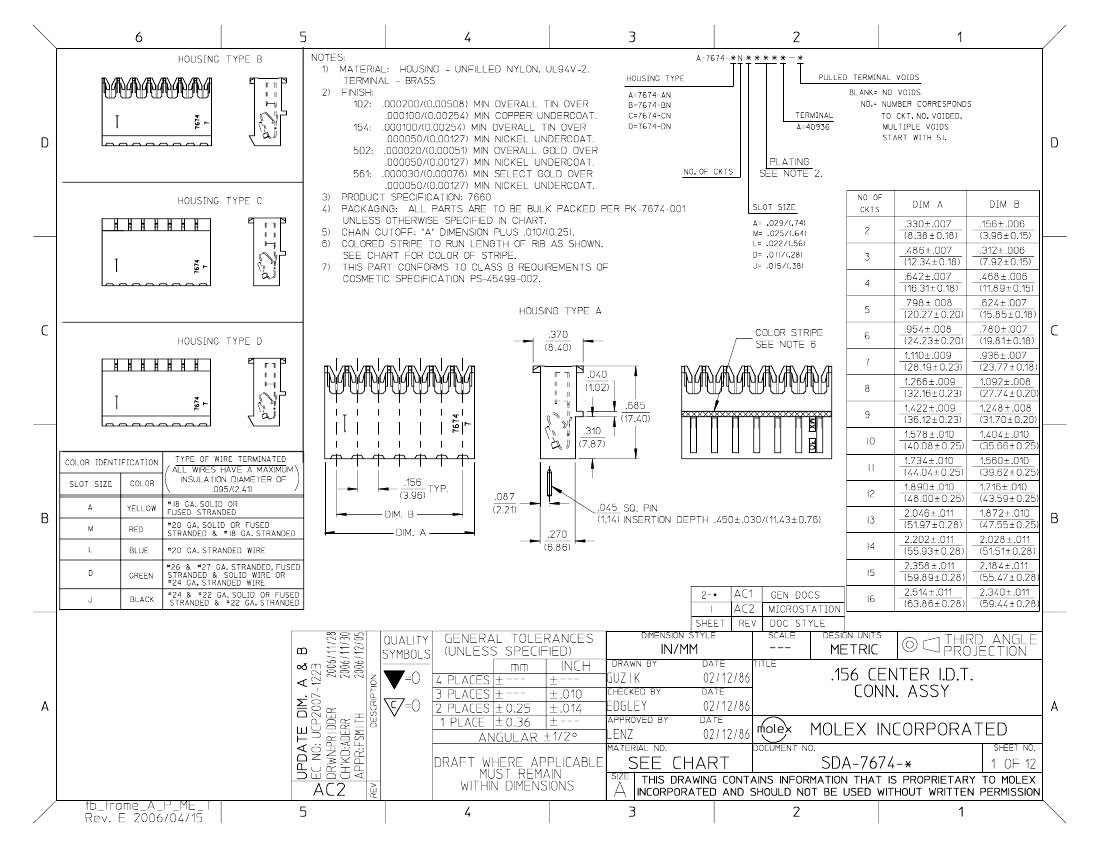

50-29-1992 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, 0.156 inch Pitch, IDC Terminal, Locking, Red Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BAG PACKAGING
body width	0.37 inch
subject depth	0.685 inch
body length	1.11 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	11.12 N
Insulation resistance	200000000000 Ω
Insulator color	RED
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	7674
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature
Options	GENERAL PURPOSE
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	7
UL Flammability Code	94V-2
Maximum wire diameter	18 AWG
Minimum wire diameter	20 AWG
Evacuation force-minimum value	5.3376 N
