Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM158AGC

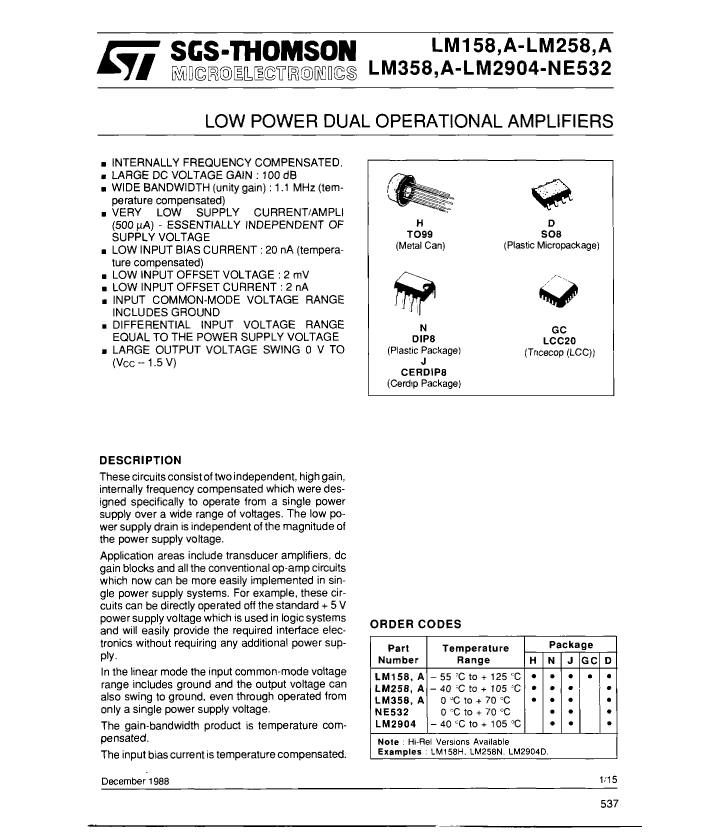

Preview

LM158AGC: DescriptionDUAL OP-AMP, 4000uV OFFSET-MAX, 1.1MHz BAND WIDTH, CQCC20, LCC-20; CategoryAnalog mixed-signal IC Amplifier circuit; File Size292KB，15 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

LM158AGC Overview

DUAL OP-AMP, 4000uV OFFSET-MAX, 1.1MHz BAND WIDTH, CQCC20, LCC-20

LM158AGC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.1 µA
Maximum bias current (IIB) at 25C	0.05 µA
Nominal Common Mode Rejection Ratio	60 dB
frequency compensation	YES
Maximum input offset voltage	4000 µV
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-1.5/+-15/3/30 V
Certification status	Not Qualified
Maximum seat height	1.86 mm
minimum slew rate	0.3 V/us
Nominal slew rate	0.6 V/us
Maximum slew rate	2 mA
Supply voltage upper limit	32 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1100 kHz
Minimum voltage gain	25000
width	8.89 mm

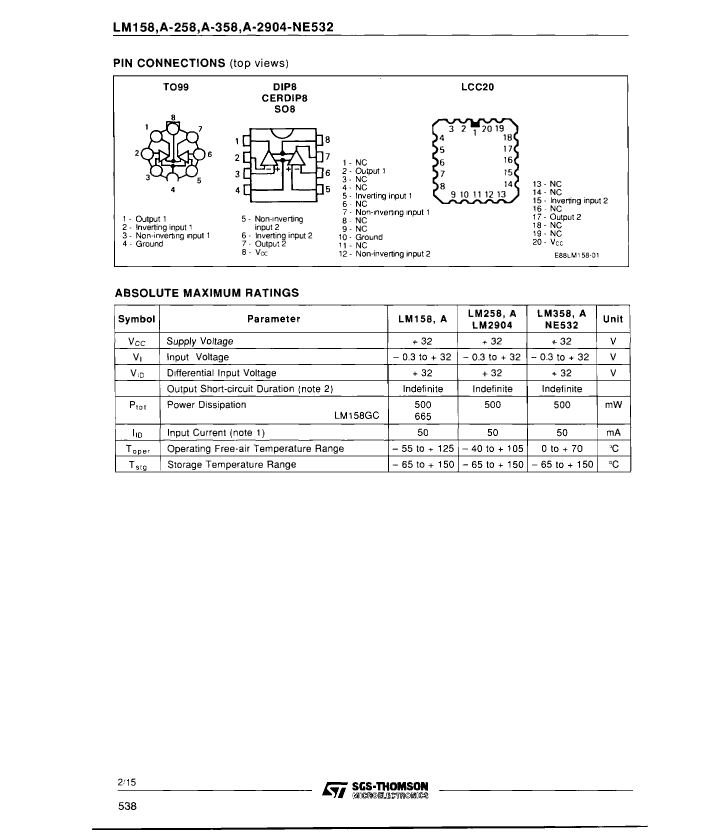

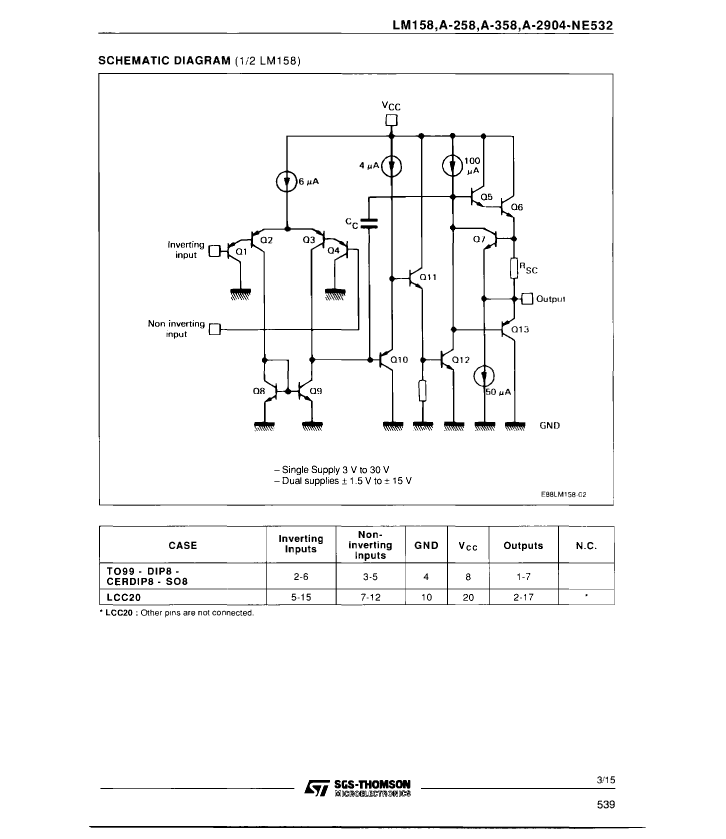

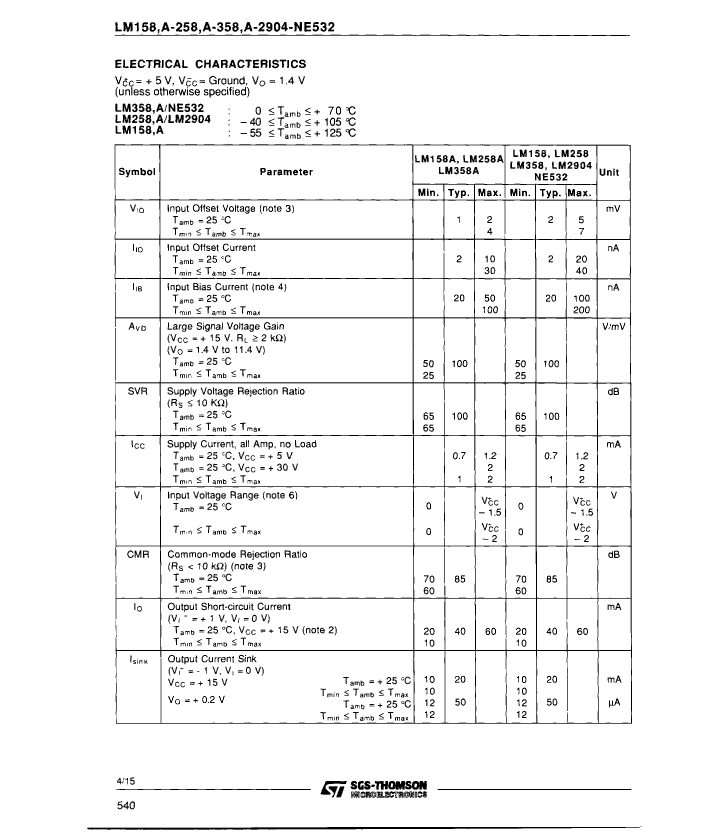

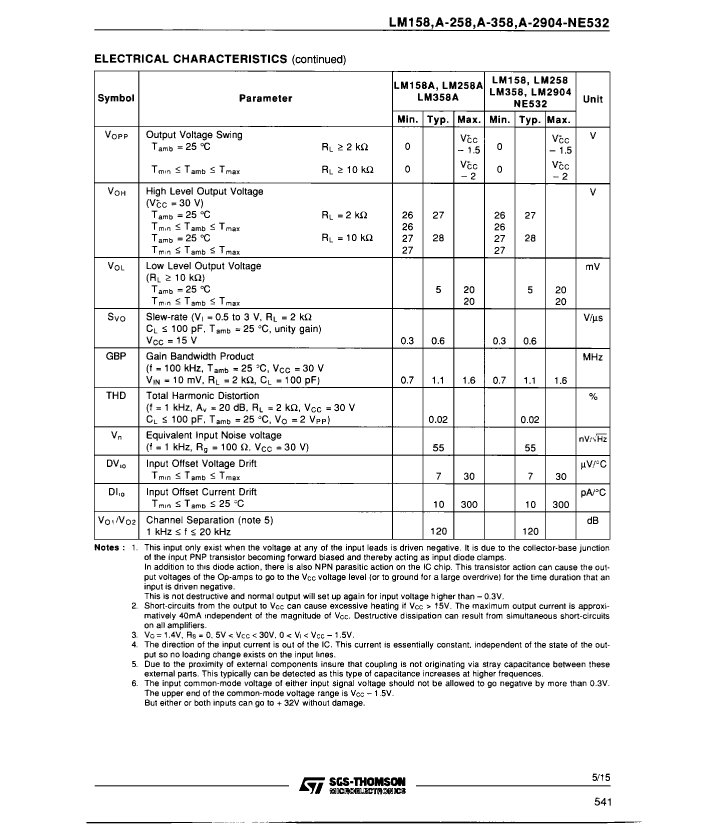

Preview

Download Datasheet

View All

LM158AGC Related Products

	LM158AGC	NE532J	NE532N	NE532D
Description	DUAL OP-AMP, 4000uV OFFSET-MAX, 1.1MHz BAND WIDTH, CQCC20, LCC-20	DUAL OP-AMP, 7000uV OFFSET-MAX, 1.1MHz BAND WIDTH, CDIP8, CERDIP-8	DUAL OP-AMP, 7000uV OFFSET-MAX, 1.1MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8	DUAL OP-AMP, 7000uV OFFSET-MAX, 1.1MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SO-8
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	QLCC	DIP	DIP	SOIC
package instruction	QCCN, LCC20,.35SQ	CERDIP-8	PLASTIC, DIP-8	MICRO, PLASTIC, SO-8
Contacts	20	8	8	8
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.1 µA	0.2 µA	0.2 µA	0.2 µA
Maximum bias current (IIB) at 25C	0.05 µA	0.1 µA	0.15 µA	0.15 µA
Nominal Common Mode Rejection Ratio	60 dB	60 dB	60 dB	60 dB
frequency compensation	YES	YES	YES	YES
Maximum input offset voltage	4000 µV	7000 µV	7000 µV	7000 µV
JESD-30 code	S-CQCC-N20	R-CDIP-T8	R-PDIP-T8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO
Number of functions	2	2	2	2
Number of terminals	20	8	8	8
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	DIP	DIP	SOP
Encapsulate equivalent code	LCC20,.35SQ	DIP8,.3	DIP8,.3	SOP8,.25
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-1.5/+-15/3/30 V	5/30 V	5/30 V	5/30 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.86 mm	5.08 mm	5.08 mm	1.75 mm
minimum slew rate	0.3 V/us	0.3 V/us	0.3 V/us	0.3 V/us
Nominal slew rate	0.6 V/us	0.6 V/us	0.6 V/us	0.6 V/us
Maximum slew rate	2 mA	2 mA	2 mA	2 mA
Supply voltage upper limit	32 V	32 V	32 V	32 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1100 kHz	1100 kHz	1100 kHz	1100 kHz
Minimum voltage gain	25000	25000	25000	25000
width	8.89 mm	7.62 mm	7.62 mm	3.9 mm
