NJM78LR05CU

Description
Fixed Positive Standard Regulator, 5VBIPolar, PDSO5, SOT-89, 5 PIN
CategoryPower/power management    The power supply circuit
File Size215KB，9 Pages
ManufacturerNew Japan Radio Co., Ltd..
Environmental Compliance
Download Datasheet Parametric Compare View All

NJM78LR05CU Overview

Fixed Positive Standard Regulator, 5VBIPolar, PDSO5, SOT-89, 5 PIN

NJM78LR05CU Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNew Japan Radio Co., Ltd..
Parts packaging codeSOT-89
package instructionSOF, TO-243
Contacts5
Reach Compliance Codecompliant
ECCN codeEAR99
AdjustabilityFIXED
Nominal dropback voltage 11.5 V
Maximum absolute input voltage20 V
Maximum input voltage18 V
Minimum input voltage7.5 V
JESD-30 codeR-PDSO-F5
JESD-609 codee6
length4.5 mm
Maximum grid adjustment rate0.065%
Maximum load regulation0.06%
Number of functions1
Output times1
Number of terminals5
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output current 10.1 A
Maximum output voltage 15.2 V
Minimum output voltage 14.8 V
Nominal output voltage 15 V
Package body materialPLASTIC/EPOXY
encapsulated codeSOF
Encapsulate equivalent codeTO-243
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height1.8 mm
surface mountYES
technologyBIPOLAR
Terminal surfaceTin/Bismuth (Sn/Bi)
Terminal formFLAT
Terminal pitch1.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance4%
width2.5 mm

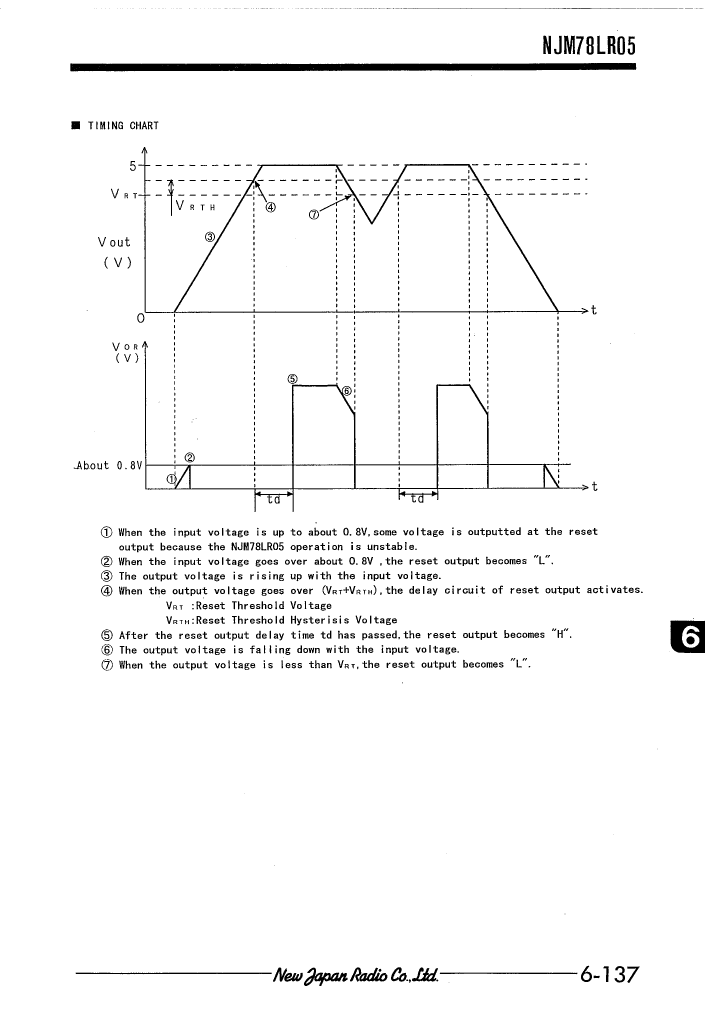

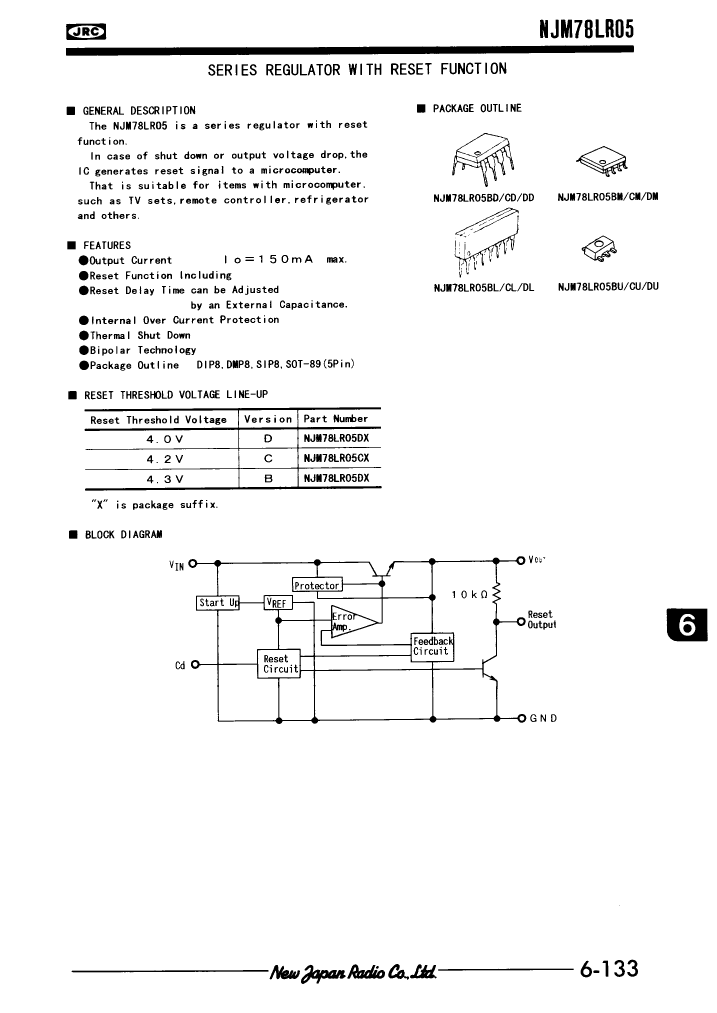

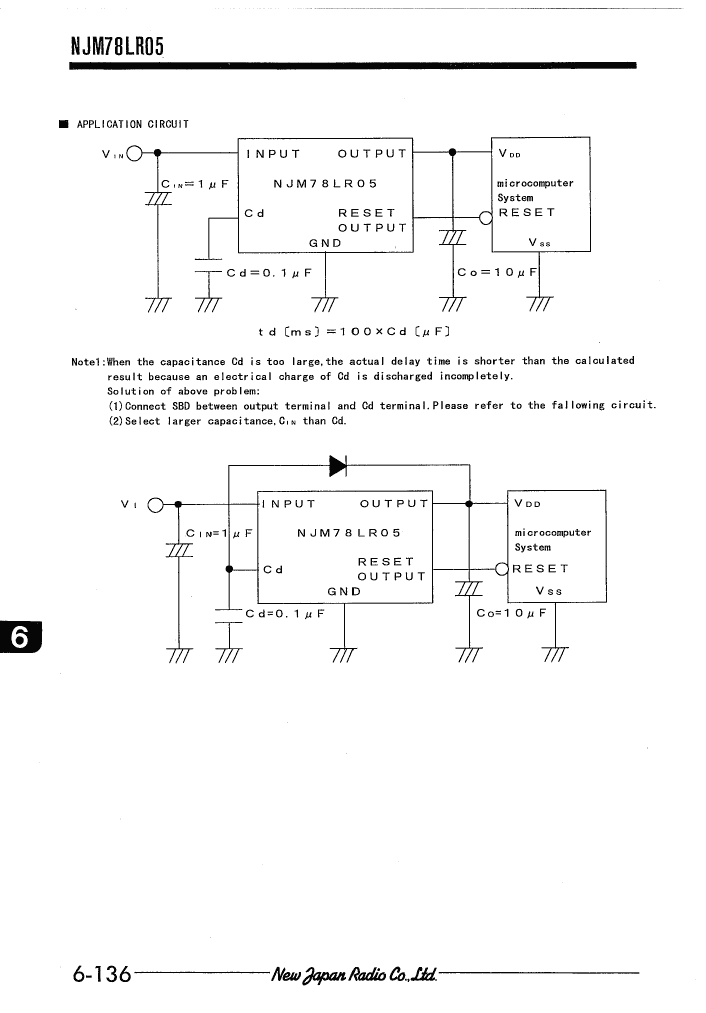

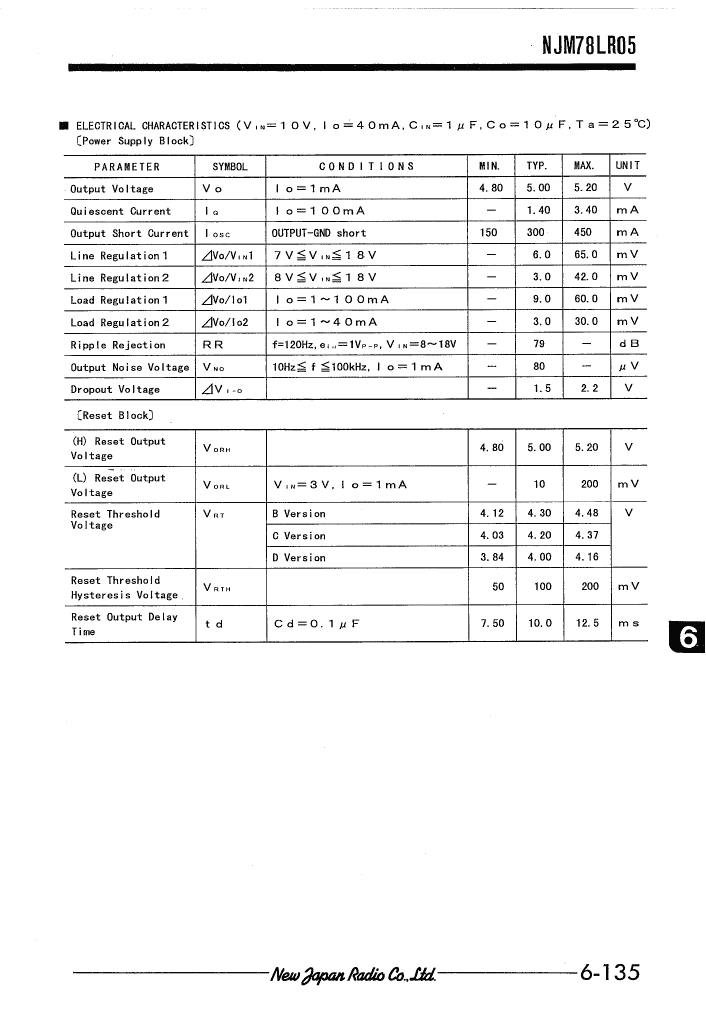

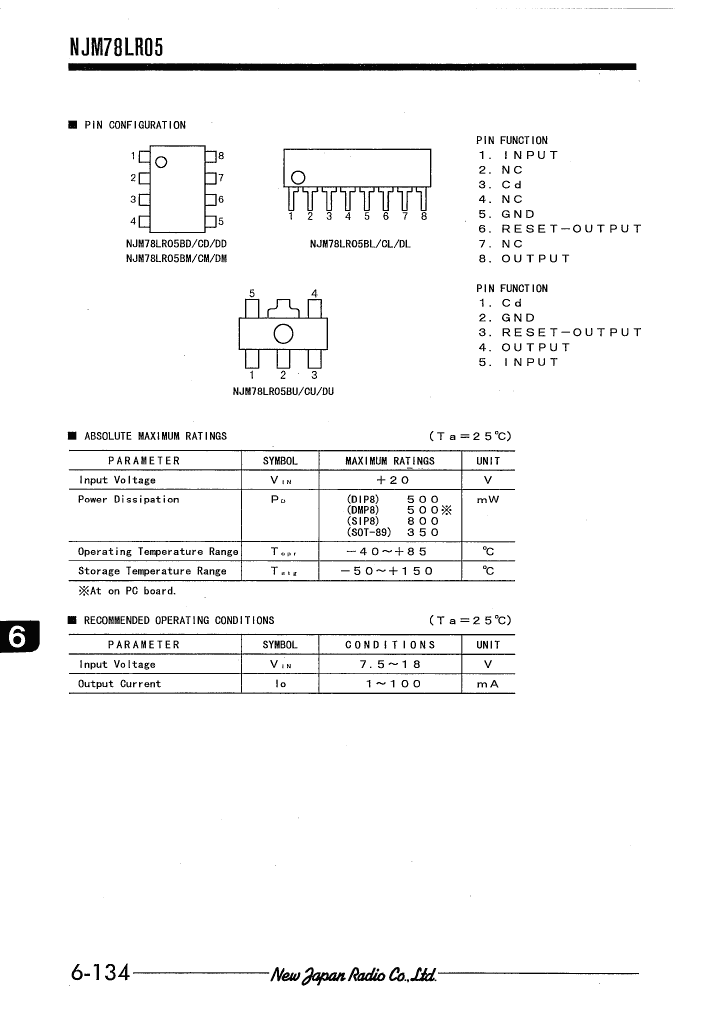

Preview

Download Datasheet

NJM78LR05CU Related Products

NJM78LR05CU NJM78LR05CM NJM78LR05DL NJM78LR05CD NJM78LR05CL NJM78LR05BL NJM78LR05DU NJM78LR05BU
Description Fixed Positive Standard Regulator, 5VBIPolar, PDSO5, SOT-89, 5 PIN Fixed Positive Standard Regulator, 5VBIPolar, PDSO8, DMP-8 Fixed Positive Standard Regulator, 5VBIPolar, PSIP8, SIP-8 Fixed Positive Standard Regulator, 5VBIPolar, PDIP8, DIP-8 Fixed Positive Standard Regulator, 5VBIPolar, PSIP8, SIP-8 Fixed Positive Standard Regulator, 5VBIPolar, PSIP8, SIP-8 Fixed Positive Standard Regulator, 5VBIPolar, PDSO5, SOT-89, 5 PIN Fixed Positive Standard Regulator, 5VBIPolar, PDSO5, SOT-89, 5 PIN
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to
Maker New Japan Radio Co., Ltd.. New Japan Radio Co., Ltd.. New Japan Radio Co., Ltd.. New Japan Radio Co., Ltd.. New Japan Radio Co., Ltd.. New Japan Radio Co., Ltd.. New Japan Radio Co., Ltd.. New Japan Radio Co., Ltd..
Parts packaging code SOT-89 SOIC SIP DIP SIP SIP SOT-89 SOT-89
package instruction SOF, TO-243 SOP, SOP8,.3 SIP-8 DIP, DIP8,.3 SIP, SIP8,.06 SIP, SIP8,.06 SOF, TO-243 SOF, TO-243
Contacts 5 8 8 8 8 8 5 5
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Adjustability FIXED FIXED FIXED FIXED FIXED FIXED FIXED FIXED
Nominal dropback voltage 1 1.5 V 1.5 V 1.5 V 1.5 V 1.5 V 1.5 V 1.5 V 1.5 V
Maximum absolute input voltage 20 V 20 V 20 V 20 V 20 V 20 V 20 V 20 V
Maximum input voltage 18 V 18 V 18 V 18 V 18 V 18 V 18 V 18 V
Minimum input voltage 7.5 V 7.5 V 7.5 V 7.5 V 7.5 V 7.5 V 7.5 V 7.5 V
JESD-30 code R-PDSO-F5 S-PDSO-G8 R-PSIP-T8 R-PDIP-T8 R-PSIP-T8 R-PSIP-T8 R-PDSO-F5 R-PDSO-F5
JESD-609 code e6 e6 e6 e6 e6 e6 e6 e6
length 4.5 mm 5 mm 19 mm 8.8 mm 19 mm 19 mm 4.5 mm 4.5 mm
Maximum grid adjustment rate 0.065% 0.065% 0.065% 0.065% 0.065% 0.065% 0.065% 0.065%
Maximum load regulation 0.06% 0.06% 0.06% 0.06% 0.06% 0.06% 0.06% 0.06%
Number of functions 1 1 1 1 1 1 1 1
Output times 1 1 1 1 1 1 1 1
Number of terminals 5 8 8 8 8 8 5 5
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Maximum output current 1 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A
Maximum output voltage 1 5.2 V 5.2 V 5.2 V 5.2 V 5.2 V 5.2 V 5.2 V 5.2 V
Minimum output voltage 1 4.8 V 4.8 V 4.8 V 4.8 V 4.8 V 4.8 V 4.8 V 4.8 V
Nominal output voltage 1 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOF SOP SIP DIP SIP SIP SOF SOF
Encapsulate equivalent code TO-243 SOP8,.3 SIP8,.06 DIP8,.3 SIP8,.06 SIP8,.06 TO-243 TO-243
Package shape RECTANGULAR SQUARE RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE IN-LINE IN-LINE IN-LINE IN-LINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260 NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED 260 260
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Regulator type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height 1.8 mm 2 mm 8.3 mm 4.7 mm 8.3 mm 8.3 mm 1.8 mm 1.8 mm
surface mount YES YES NO NO NO NO YES YES
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Terminal surface Tin/Bismuth (Sn/Bi) Tin/Bismuth (Sn/Bi) TIN BISMUTH Tin/Bismuth (Sn/Bi) Tin/Bismuth (Sn/Bi) Tin/Bismuth (Sn/Bi) Tin/Bismuth (Sn/Bi) Tin/Bismuth (Sn/Bi)
Terminal form FLAT GULL WING THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE FLAT FLAT
Terminal pitch 1.5 mm 1.27 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 1.5 mm 1.5 mm
Terminal location DUAL DUAL SINGLE DUAL SINGLE SINGLE DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum voltage tolerance 4% 4% 4% 4% 4% 4% 4% 4%
width 2.5 mm 5 mm 3 mm 7.62 mm 3 mm 3 mm 2.5 mm 2.5 mm
