EURO
QUARTZ
Miniature SMD package 7 x 5mm
Frequency range: 9.6MHz to 26MHz
Close tolerance stabilities from ±0.5ppm over 0° to +50°C
±1ppm over -40 to +85°C also available
Very low power consumption
EM57S Series TCXO
Clipped Sinewave 7 x 5 x 2mm SMD

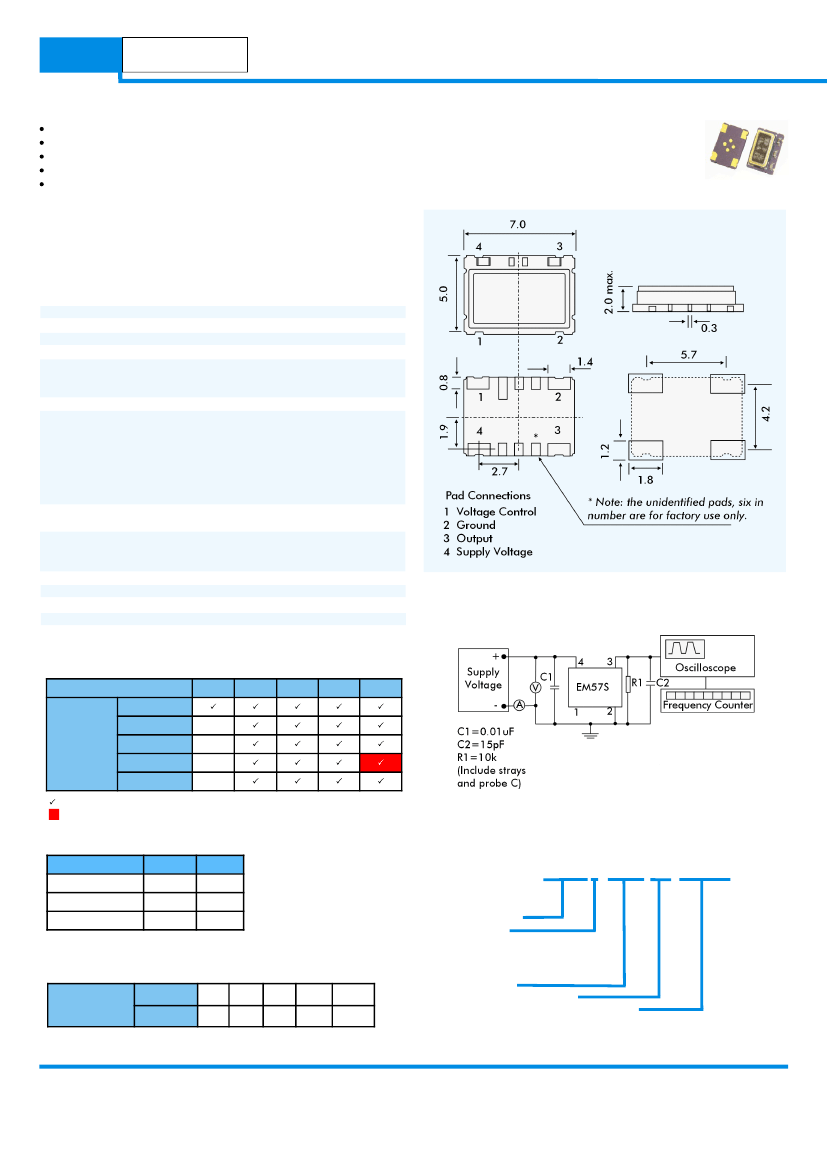

EM57S - OUTLINES AND DIMENSIONS
DESCRIPTION
EM57S series TCXOs are packaged in the industry-standard 7 x 5mm
package. With clipped sinewave output, close tolerances are available
from ±0.5ppm over 0° to 50°C or ±1ppm over -40° to +85°C. The
part has very low power consumption.
SPECIFICATION
Product Series Code:
Frequency Range:
Output Waveform:
Initial Calibration Tolerance*:
Standard Frequencies:
EM57S
9.6MHz to 26.0MHz
Clipped sine wave
±3ppm at 25°C
9.6, 10.0, 12.80, 13.0, 14.40,
15.36, 16.384, 19.2, 19.440,
and 19.680MHz.
See table
See table
±1.0 ppm max. first year
±0.3 ppm max. ±5% change
±0.3 ppm max. ±10% change
±1ppm max. for one reflow
(Measured after 24 hours)
+2.6 VDC to +6.0 VDC
3.0V and 5.0V are standard
0.8V p-p minimum
1.0V p-p minimum
See table
10k Ohms//15pF
-10dB typical, -7dB maximum
DC block, AC coupled
-40°C to +85°C
Operating Temperature Range:
Frequency Stability:
Over Operating Temperature range:
vs. Ageing:
vs. Voltage Change:
vs. Load Change:
vs. Reflow:
Input Voltage Range:
Output Voltage Level
+3.0V supply:
+5.0V supply:
Current Consumption:
Output Load:
Harmonic Distortion:
Output Format:
Storage Temperature:
FREQUENCY STABILITY
Frequency Stability (ppm)
0 ~ +50
-10 ~ +60
Temperature
Range (°C)
-20 ~ +70
-30 ~ +75
-40 ~ +85
ASK
x
x
x
±0.5
EM57S - TEST CIRCUIT
±1.0
±1.5
±2.0
±2.5
= available, x = not available, ASK = call Technical Sales
= standard specification
CURRENT CONSUMPTION
Frequency Range
9.6MHz to 13MHz
13.1MHz to 20MHz
20.1MHz to 26MHz
+3.0 V
1.3mA
1.5mA
2.0mA
+5.0 V
2.0mA
2.2mA
2.5mA
EM57S - PART NUMBERING PROCEDURE
Example:
EM57S3-19.44-2.5/-30+75
TYPICAL PHASE NOISE
SSB Phase Noise
at 25°C
(EM57S 13MHz)
Offset (Hz)
dBc/Hz
10
-72
100
-110
1k
-125
10k
-132
100k
-125
Series Description
Supply Voltage
3 = 3.0 VDC
5 = 5.0 VDC
(specify other)
Frequency MHz
Stability over OTR (ppm)
Operating Temperature Range (OTR) (°C)
