BK1-MDQ-3/10: DescriptionElectric Fuse, Time Lag Blow, 0.3A, 35A (IR),; CategoryCircuit protection Circuit protection; File Size256KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK1-MDQ-3/10 Overview

Electric Fuse, Time Lag Blow, 0.3A, 35A (IR),

BK1-MDQ-3/10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Eaton
Reach Compliance Code	compliant
Fusing characteristics	TIME LAG
body height	31.75 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
physical size	6.35mm x 31.75mm
Rated breaking capacity	35 A
Rated current	0.3 A
Rated voltage	250 V
Guideline	CSA, UL

Preview

Download Datasheet

View All

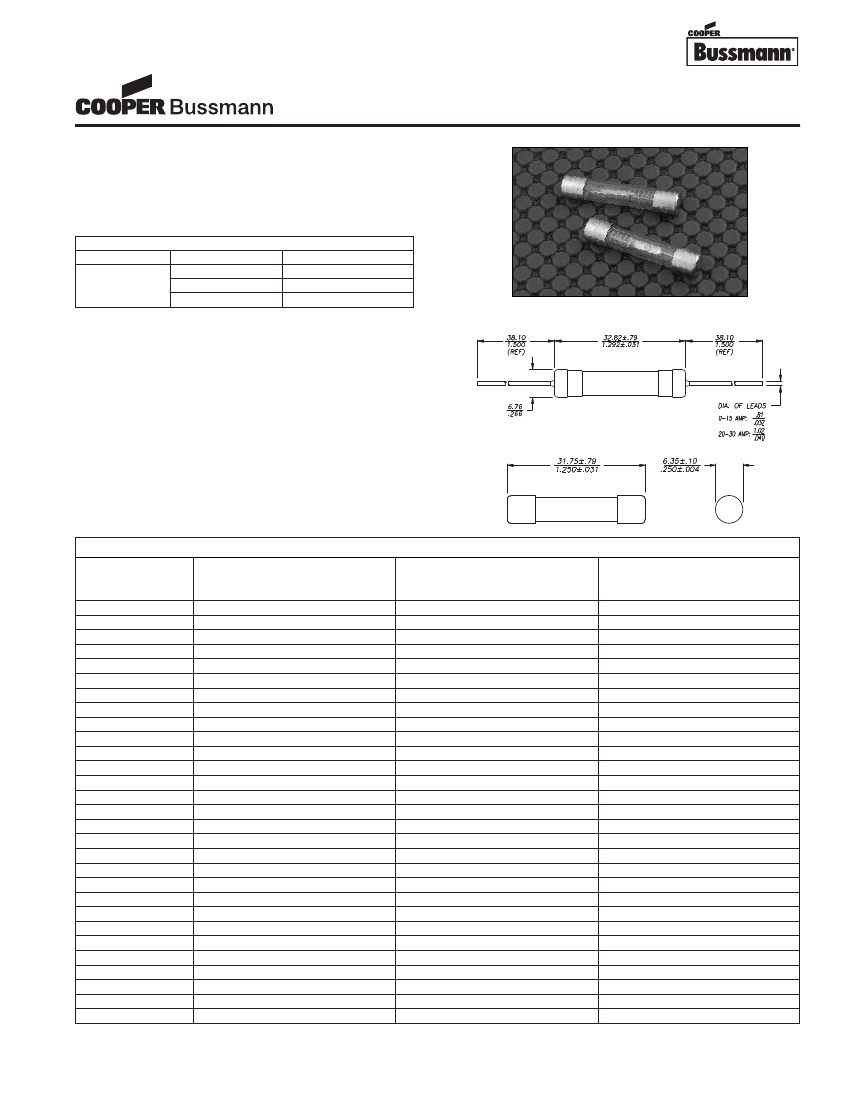

1/4" x 1-1/4" Fuses

MDQ Series Dual Element, Time Delay, Glass Fuse

Description

• Dual element, time delay

• 1/4" x 1-1/4" (6.3mm x 32mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

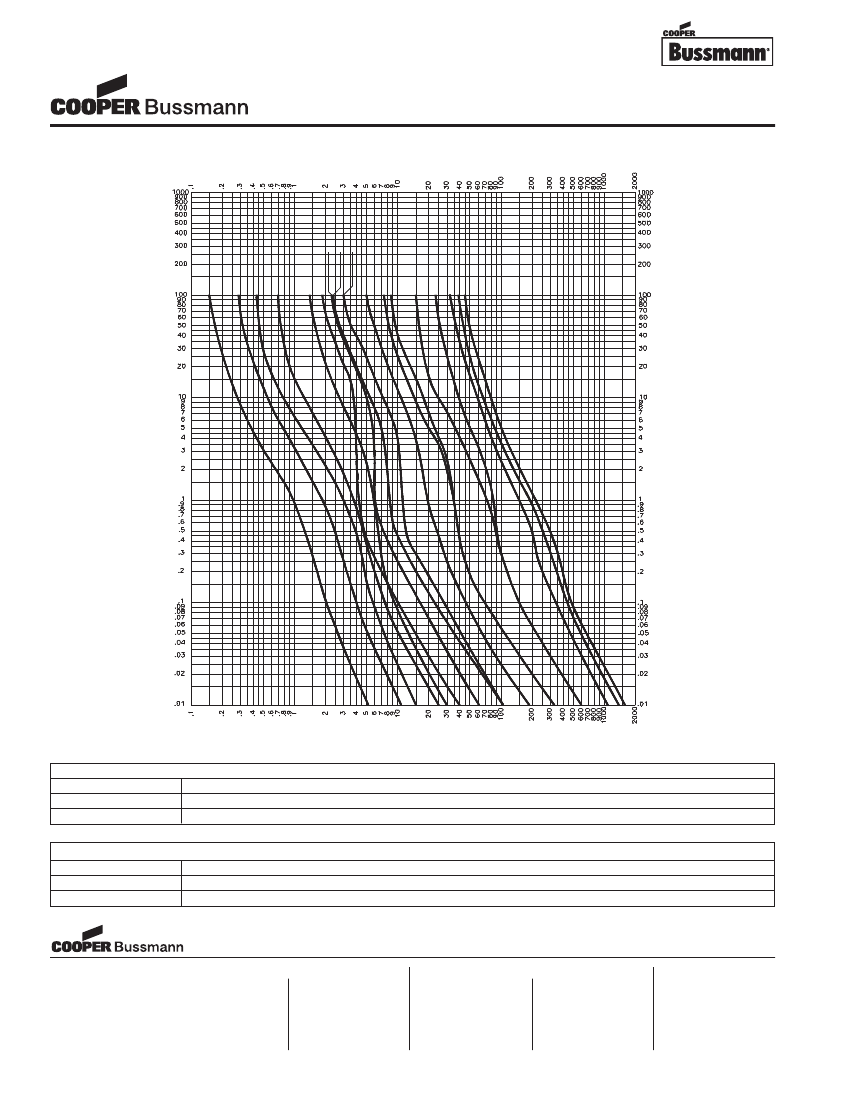

ELECTRICAL CHARACTERISTICS

Rated Current % of Amp Rating

Opening Time

100%

None

1/16A - 30A

135%

60 minutes maximum

200%

120 seconds maximum

Agency Information

• UL Listed Card: MDQ-1/16 - 7A (Guide JDYX,

File E19180)

• UL Recognition Card: MDQ-7.5 - 30A

(Guide JDYX2, File E19180)

• CSA Component Acceptance Card:

MDQ-1/100 - 30 (Class 1422-01)

Ordering

• Specify packaging, product, and option code

Dimensions

mm

⁄

(inches)

SPECIFICATIONS

Product Code

MDQ-1/16

MDQ-1/10

MDQ-1/8

MDQ-3/16

MDQ-2/10

MDQ-1/4

MDQ-3/10

MDQ-3/8

MDQ-1/2

MDQ-3/4

MDQ-1

MDQ-1-1/4

MDQ-1-1/2

MDQ-2

MDQ-2-1/4

MDQ-2-1/2

MDQ-3

MDQ-4

MDQ-5

MDQ-6

MDQ-6-1/4

MDQ-7

MDQ-8

MDQ-9

MDQ-10

MDQ-15

MDQ-20

MDQ-25

MDQ-30

Voltage

Rating

AC

250V

32V

Interrupting

Rating

AC

35A

100A

200A

1,000A

Typical DC Cold

Resistance

(ohms)**

83.30000

35.00000

21.50000

10.00000

8.65000

5.77500

4.20000

2.35000

1.40000

0.39685

0.37400

0.36000

0.27000

0.13250

0.11450

0.10050

0.05715

0.03510

0.02650

0.01715

0.01690

0.01375

0.01200

0.00888

0.00720

0.00410

0.00150

0.00123

0.00105

** DC Cold Resistance (Measured at <10% of rated current)

BK1-MDQ-3/10 Related Products

	BK1-MDQ-3/10	BK1-MDQ-8
Description	Electric Fuse, Time Lag Blow, 0.3A, 35A (IR),	Electric Fuse, Time Lag Blow, 8A, 1000A (IR),
Is it Rohs certified?	incompatible	incompatible
Maker	Eaton	Eaton
Reach Compliance Code	compliant	compliant
Fusing characteristics	TIME LAG	TIME LAG
body height	31.75 mm	31.75 mm
Body length or diameter	6.35 mm	6.35 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE
physical size	6.35mm x 31.75mm	6.35mm x 31.75mm
Rated breaking capacity	35 A	1000 A
Rated current	0.3 A	8 A
Rated voltage	250 V	32 V
Guideline	CSA, UL	CSA, UL
