BS250

Description
Small Signal Field-Effect Transistor, 0.18A I(D), 45V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92-18RM, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size112KB，4 Pages
ManufacturerTEMIC
Websitehttp://www.temic.de/
Download Datasheet Parametric Compare View All

BS250 Online Shopping

Suppliers Part Number Price MOQ In stock
BS250 - - View Buy Now

BS250 Overview

Small Signal Field-Effect Transistor, 0.18A I(D), 45V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92-18RM, 3 PIN

BS250 Parametric

Parameter NameAttribute value
MakerTEMIC
package instructionCYLINDRICAL, O-PBCY-W3
Reach Compliance Codeunknown
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage45 V
Maximum drain current (ID)0.18 A
Maximum drain-source on-resistance14 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeO-PBCY-W3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Polarity/channel typeP-CHANNEL
Certification statusNot Qualified
surface mountNO
Terminal formWIRE
Terminal locationBOTTOM
transistor applicationsSWITCHING
Transistor component materialsSILICON

BS250 Preview

TP0610L/T, VP0610L/T, BS250
P-Channel Enhancement-Mode MOSFET Transistors
TP0610L
TP0610T
Product Summary
Part Number
TP0610L
TP0610T
VP0610L
VP0610T
BS250
VP0610L
VP0610T
BS250
V
(BR)DSS
Min (V)
–60
–60
–60
–60
–45
r
DS(on)
Max (W)
10 @ V
GS
= –10 V
10 @ V
GS
= –10 V
10 @ V
GS
= –10 V
10 @ V
GS
= –10 V
14 @ V
GS
= –10 V
V
GS(th)
(V)
–1 to –2.4
–1 to –2.4
–1 to –3.5
–1 to
-3.5
–1 to –3.5
I
D
(A)
–0.18
–0.12
–0.18
–0.12
–0.18
Features
D
D
D
D
D
High-Side Switching
Low On-Resistance: 8
W
Low Threshold: –1.9 V
Fast Switching Speed: 16 ns
Low Input Capacitance: 15 pF
TO-226AA
(TO-92)
S
G
D
1
Benefits
D
D
D
D
D
Ease in Driving Switches
Low Offset (Error) Voltage
Low-Voltage Operation
High-Speed Switching
Easily Driven Without Buffer
TO-92-18RM
(TO-18 Lead Form)
D
G
S
1
Applications
D
Drivers: Relays, Solenoids, Lamps, Hammers,
Displays, Memories, Transistors, etc.
D
Battery Operated Systems
D
Power Supply, Converter Circuits
D
Motor Control
TO-236
(SOT-23)
G
S
1
3
D
2
2
2
3
Top View
TP0610L
VP0610L
3
Top View
BS250
Top View
TP0610T (T0)*
VP0610T (V0)*
*Marking Code for TO-236
Absolute Maximum Ratings (T
A
= 25_C Unless Otherwise Noted)
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
(T
J
= 150_C)
Pulsed Drain Current
a
Power Dissipation
Maximum Junction-to-Ambient
Operating Junction & Storage Temperature Range
Notes
a. Pulse width limited by maximum junction temperature.
Updates to this data sheet may be obtained via facsimile by calling Siliconix FaxBack, 1-408-970-5600. Please request FaxBack document #70209.
Applications information may also be obtained via FaxBack, request document #70611.
T
A
=
25_C
T
A
=
100_C
T
A
=
25_C
T
A
=
100_C
Symbol
V
DS
V
GS
I
D
I
DM
P
D
R
thJA
T
J
, T
stg
TP0610L
–60
"30
–0.18
–0.11
–0.8
0.8
0.32
156
TP0610T
–60
"30
–0.12
–0.07
–0.4
0.36
0.14
350
VP0610L
–60
"30
–0.18
–0.11
–0.8
0.8
0.32
156
–55 to 150
VP0610T
–60
"30
–0.12
–0.07
–0.4
0.36
0.14
350
BS250
–45
"25
–0.18
Unit
V
A
0.83
150
W
_C/W
_C
Siliconix
S-52426—Rev. E, 14-Apr-97
1
TP0610L/T, VP0610L/T, BS250
Specifications
a
Limits
TP0610L/T
VP0610L/T
BS250
Parameter
Static
Drain-Source
Breakdown V lt
B kd
Voltage
Gate-Threshold Voltage
Symbol
Test Conditions
Typ
b
Min Max Min
Max
Min
Max
Unit
V
(BR)DSS
V
GS(th)
V
GS
= 0 V, I
D
= –10
mA
V
GS
= 0 V, I
D
= –100
mA
V
DS
= V
GS
, I
D
= –1 mA
V
DS
= 0 V, V
GS
=
"20
V
T
J
=
125_C
V
DS
= 0 V, V
GS
=
"15
V
V
DS
= –48 V, V
GS
= 0 V
–70
–60
–60
–45
V
–3.5
–1.9
–1
–2.4
"10
"50
–1
–3.5
"10
–1
Gate-Body Leakage
I
GSS
nA
"20
–1
–200
–1
–200
–0.5
mA
Zero Gate Voltage
Drain Current
I
DSS
T
J
=
125_C
V
DS
= –25 V, V
GS
= 0 V
V
DS
= –10 V, V
GS
= –4.5 V
–180
–750
–50
On-State Drain Current
c
I
D(on)
V
DS
= –10 V
V
GS
= –10 V
10
V
GS
= –4.5 V, I
D
= –25 mA
L
T
–600
–220
mA
11
L
8
15
6.5
125
90
–1.1
80
60
25
10
20
10
80
70
mS
V
10
20
10
14
W
Drain-Source
On-Resistance
c
r
DS(on)
V
GS
= –10 V
I
D
= –0.5 A
05
V
GS
= –10 V
I
D
= –0.2 A
T
J
=
125_C
T
L
T
V
DS
= –10 V, I
D
= –0.5 A
Forward Transconductance
c
Diode Forward Voltage
g
fs
V
SD
V
DS
= –10 V
I
D
= –0.1 A
I
S
= –0.5 A, V
GS
= 0 V
Dynamic
Input Capacitance
Output Capacitance
Reverse Transfer
Capacitance
C
iss
C
oss
C
rss
V
DS
= –25 V, V
GS
= 0 V
f = 1 MHz
15
10
3
60
25
5
60
25
5
pF
Switching
d
t
ON
Turn-On Time
t
d(on)
t
r
t
OFF
Turn-Off Time
t
d(off)
t
f
Notes
a. T
A
= 25_C unless otherwise noted.
b. For DESIGN AID ONLY, not subject to production testing.
c. Pulse test: PW
v300
ms
duty cycle
v2%.
d. Switching time is essentially independent of operating temperature.
V
DD
= –25 V, R
L
= 133
W
I
D
^
–0.18 A, V
GEN
= –10 V
R
G
= 25
W
8
6
10
8
7
8
15
20
15
20
VPDS06
10
15
10
15
10
ns
10
2
Siliconix
S-52426—Rev. E, 14-Apr-97
TP0610L/T, VP0610L/T, BS250

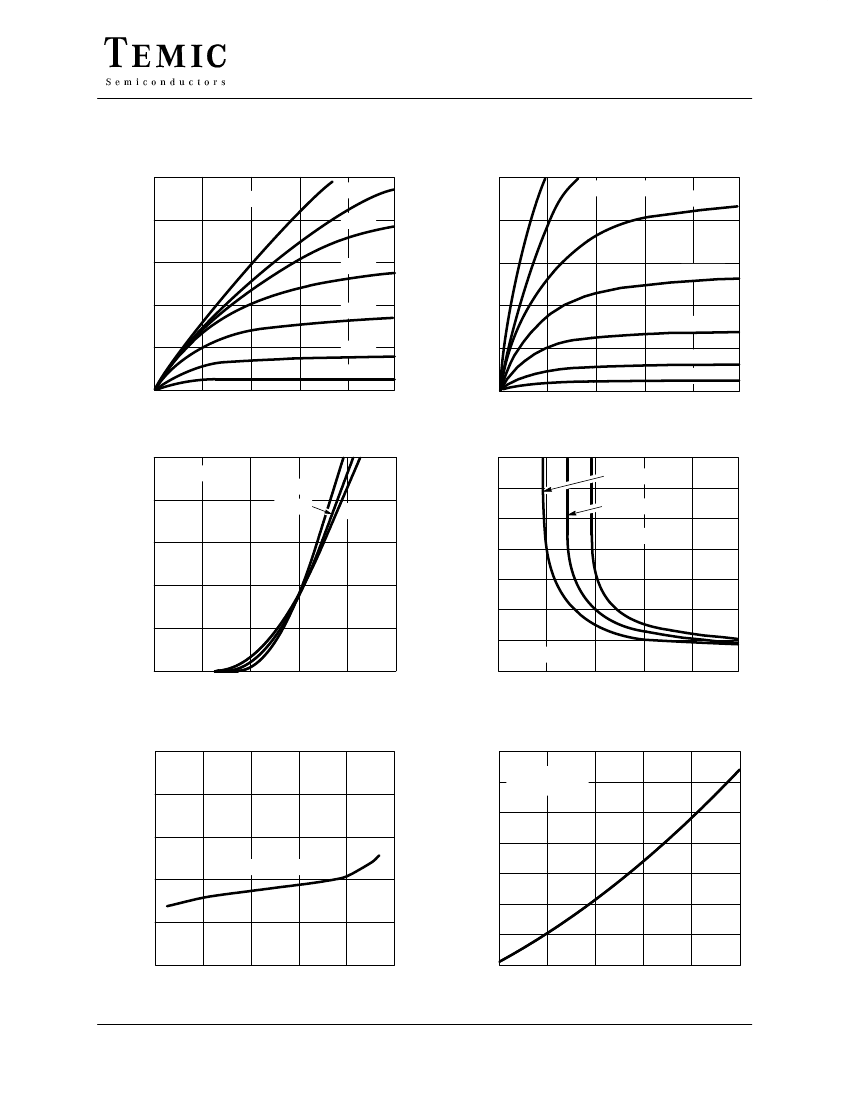

Typical Characteristics (25_C Unless Otherwise Noted)
Ohmic Region Characteristics
–500
V
GS
= –10 V
I
D
– Drain Current (mA)
–400
–8 V
–7 V
I
D
– Drain Current (mA)
–8
–10
Output Characteristics for Low Gate Drive
V
GS
= –3.0, –2.8 V
–2.6 V
–300
–6 V
–6
–2.4 V
–200
–5 V
–4
–2.2 V
–2
–2.0 V
–1.8 V
0
–100
–4 V
–3 V
0
0
–1
–2
–3
–4
–5
V
DS
– Drain-to-Source Voltage (V)
–100
0
–0.4
–0.8
–1.2
–1.6
–2.0
V
DS
– Drain-to-Source Voltage (V)
20.0
17.5
Transfer Characteristics
V
DS
= –15 V
T
C
= –55_C
125_C
r
DS(on)
– On-Resistance (
W
)
On-Resistance vs. Gate-to-Source Voltage
I
D
= –25 mA
–0.2 A
–80
I
D
– Drain Current (mA)
25_C
15.0
–0.5 A
12.5
10.0
7.5
5.0
T
J
= 25_C
–60
–40
–20
0
0
–1
–2
–3
–4
–5
V
GS
– Gate-Source Voltage (V)
2.5
0
–4
–8
–12
–16
–20
V
GS
– Gate-Source Voltage (V)
25
r
DS(on)
– Drain-Source On-Resistance (
W
)
On-Resistance vs. Drain Current
r
DS(on)
– Drain-Source On-Resistance
(Normalized)
2.25
2.00
1.75
1.50
1.25
1.00
0.75
0.50
Normalized On-Resistance
vs. Junction Temperature
V
GS
= –10 V
I
D
= –0.5 A
20
15
V
GS
= –10 V
10
5
0
0
–0.15
–0.30
–0.45
–0.60
–0.75
I
D
– Drain Current (A)
–50
–10
30
70
110
150
T
J
– Junction Temperature (_C)
Siliconix
S-52426—Rev. E, 14-Apr-97
3
TP0610L/T, VP0610L/T, BS250

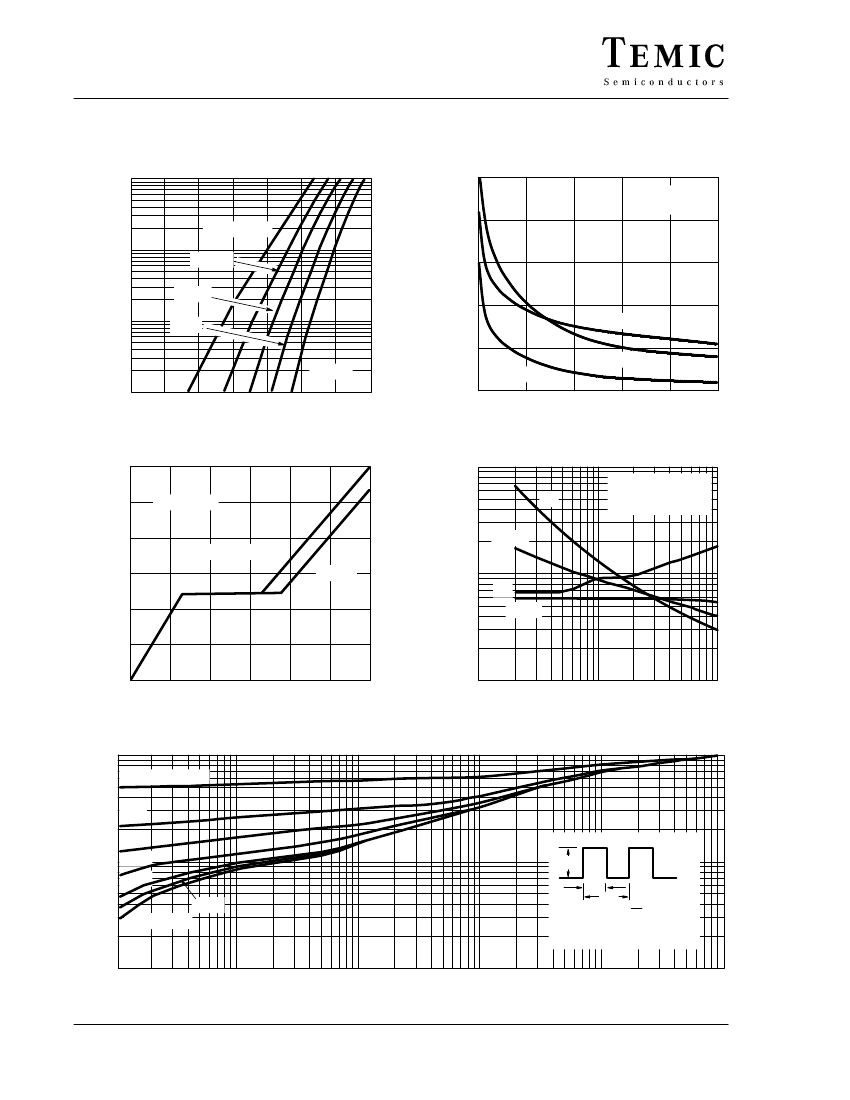

Typical Characteristics (25_C Unless Otherwise Noted) (Cont’d)
–1
Threshold Region
50
Capacitance
V
GS
= 0 V
f = 1 MHz
I
D
– Drain Current (mA)
–0.1
100_C
50_C
C – Capacitance (pF)
T
J
= 150_C
40
30
20
C
iss
10
C
oss
–0.01
0_C
–55_C
–0.001
0
–0.3
–0.6
–0.9
–1.2
–1.5
–1.8
–2.1
V
GS
– Gate-to-Source Voltage (V)
0
0
C
rss
–10
–20
–30
–40
–50
V
DS
– Drain-to-Source Voltage (V)
Gate Charge
–15.0
V
GS
– Gate-to-Source Voltage (V)
–12.5
–10.0
V
DS
= –30 V
–7.5
–5.0
–2.5
0
0
100
200
300
400
500
600
Q
g
– Total Gate Charge (pC)
1
–10
–48 V
I
D
= –0.5 A
t – Switching Time (ns)
100
Load Condition Effects on Switching
V
DD
= –25 V
R
G
= 25
W
V
GS
= 0 to –10 V
t
f
t
d(off)
10
t
r
t
d(on)
–100
I
D
– Drain Current (A)
–1 k
1
Normalized Effective Transient Thermal Impedance, Junction-to-Ambient (TO-226AA)
Duty Cycle = 0.5
Normalized Effective Transient
Thermal Impedance
0.2
0.1
0.1 0.05
0.02
0.01
Single Pulse
Notes:
P
DM
t
1
t
2
1. Duty Cycle, D =
t
1
t
2
2. Per Unit Base = R
thJA
= 156
_
C/W
3. T
JM
– T
A
= P
DM
Z
thJA(t)
0.01
0.1
1
10
100
1K
10 K
t
1
– Square Wave Pulse Duration (sec)
4
Siliconix
S-52426—Rev. E, 14-Apr-97
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BS250 Related Products

BS250 VP0610L VP0610T TP0610L
Description Small Signal Field-Effect Transistor, 0.18A I(D), 45V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92-18RM, 3 PIN Small Signal Field-Effect Transistor, 0.18A I(D), 60V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-226AA, Small Signal Field-Effect Transistor, 0.12A I(D), 60V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-236, Small Signal Field-Effect Transistor, 0.18A I(D), 60V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-226AA, TO-92, 3 PIN
Maker TEMIC TEMIC TEMIC TEMIC
Reach Compliance Code unknown unknown unknown unknown
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 45 V 60 V 60 V 60 V
Maximum drain current (ID) 0.18 A 0.18 A 0.12 A 0.18 A
Maximum drain-source on-resistance 14 Ω 10 Ω 10 Ω 10 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JESD-30 code O-PBCY-W3 O-PBCY-W3 R-PDSO-G3 O-PBCY-W3
Number of components 1 1 1 1
Number of terminals 3 3 3 3
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE ENHANCEMENT MODE ENHANCEMENT MODE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND RECTANGULAR ROUND
Package form CYLINDRICAL CYLINDRICAL SMALL OUTLINE CYLINDRICAL
Polarity/channel type P-CHANNEL P-CHANNEL P-CHANNEL P-CHANNEL
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO YES NO
Terminal form WIRE WIRE GULL WING WIRE
Terminal location BOTTOM BOTTOM DUAL BOTTOM
transistor applications SWITCHING SWITCHING SWITCHING SWITCHING
Transistor component materials SILICON SILICON SILICON SILICON
package instruction CYLINDRICAL, O-PBCY-W3 CYLINDRICAL, O-PBCY-W3 - CYLINDRICAL, O-PBCY-W3
Maximum feedback capacitance (Crss) - 5 pF 5 pF 5 pF
JEDEC-95 code - TO-226AA TO-236 TO-226AA

Recommended Resources

Power phase failure display circuit

Multi-core cable breakage detector circuit

3v to 5v circuit diagram

M50119P (TV) infrared remote control transmitter circuit

Principle of single junction transistor

555 kinds of waveform generator circuits (2)

Help with microcontroller perpetual calendar
[i=s] This post was last edited by paulhyde on 2014-9-15 09:06 [/i] I need help with a microcontroller perpetual calendar. Can any expert give me a reference? :)...
youxiawang Electronics Design Contest
I can't enter the TI church.
I can't enter the TI church. I clicked to enter the study, and this window popped up. See the attachment....
index219 Microcontroller MCU
[Serial] [ALIENTEK Battleship STM32 Development Board] STM32 Development Guide--Chapter 23 Internal Temperature Sensor Experiment
[align=center][b][size=4]Chapter 23[/size][size=4]Internal Temperature Sensor Experiment[/size][/b] [/align][align=left] In this chapter, we will introduce the internal temperature sensor of STM32. In...
正点原子 stm32/stm8
Where can I download the arm-linux-gcc file for de1-soc?
Please help me install arm-linux-gcc on de1-soc. I have downloaded several and set the variables successfully. But arm-linux-gcc -v cannot execute 1. Display cannot execute binary file: exec format er...
JerryHetty ARM Technology
Why can a Zener diode break down with a reverse current of just a few volts, but a rectifier diode cannot break down with a reverse current of more than 200 volts?
[i=s]This post was last edited by Shenzhen Xiaohua on 2021-2-1 21:35[/i]Why can a Zener diode break down at a reverse current of just a few volts, but a rectifier diode cannot break down at a reverse ...
深圳小花 MCU
Hiring embedded software engineer
Headhunting position [Shanghai] Job responsibilities: 1. Debugging of communication module applications; 2. Research and analyze, implement NB-IoT terminal chip application layer (TCP/IP, AT Command, ...
ff318421749 Recruitment
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. E213L3F1AQE
  2. 7P020FLA651C15
  3. DPZ2MX16NY3-12I
  4. RRLA280T3-4R3Y2G
  5. 962-03-68SM50-24(T7)
  6. TB300-24L2QC19
  7. ABL2-3.579545MHZ-DH5Y-L2-T
  8. GUS-QS0BLF-024272-DC
  9. AME8501AEETCA46Y
  10. BZT52-B2V4S-AU_RD_10001
  11. BAV19-35T/B
  12. A2005WR-2x7P

Popular Articles

  1. 【STM8S】 AWU low power mode
  2. Unisem Bhd., an important packaging and testing plant in Malaysia, has stopped production
  3. Socionext to showcase leading SoC design solutions at DesignCon 2021
  4. Morgan Stanley: TV panel prices may continue to fall in September
  5. Achieving a breakthrough in customer experience in the insurance industry through low-code and no-code
  6. OmniVision and Seeing jointly develop world's first integrated ISP and ASIC
  7. Gaohua Technology obtains hundreds of millions of yuan in financing to expand its high-end sensor layout
  8. 6 common problems when using spectrum analyzers
  9. High School Electronic Technology - Transistor Multimeter Polarity Measurement (Pointer Multimeter and Digital Multimeter)
  10. How to use an oscilloscope for the first time (basic experience)

Technical ResourceMore

  1. FP-SNS-ALLMEMS2
  2. motor control
  3. 2021 Internet of Vehicles White Paper
  4. Design of high-precision digital phase measurement method based on STC89C52
  5. Protues simulation example (8051) - 8255 parallel port expansion.rar
  6. Tsinghua University Mathematical Modeling Chapter 2 - Elementary Models
  7. Altium Designer Schematic Library AVR MCU.SchLib
  8. Altium-Common 3D Package Library (Step) [Common Patch] TAJ-E.rar
  9. Altium Designer schematic library electric switch.SchLib
  10. Mathcad Notes

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1173  178  1563  543  1213  24  4  32  11  25
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
