TC232EOE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> TC232EOE

TC232EOE: DescriptionLine Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size137KB，4 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric Compare View All

TC232EOE Overview

Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16

TC232EOE Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EXTERNAL CHARGE PUMP
Differential output	NO
Number of drives	2
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-C
JESD-30 code	R-PDSO-G16
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	TOTEM-POLE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Number of receiver bits	2
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL

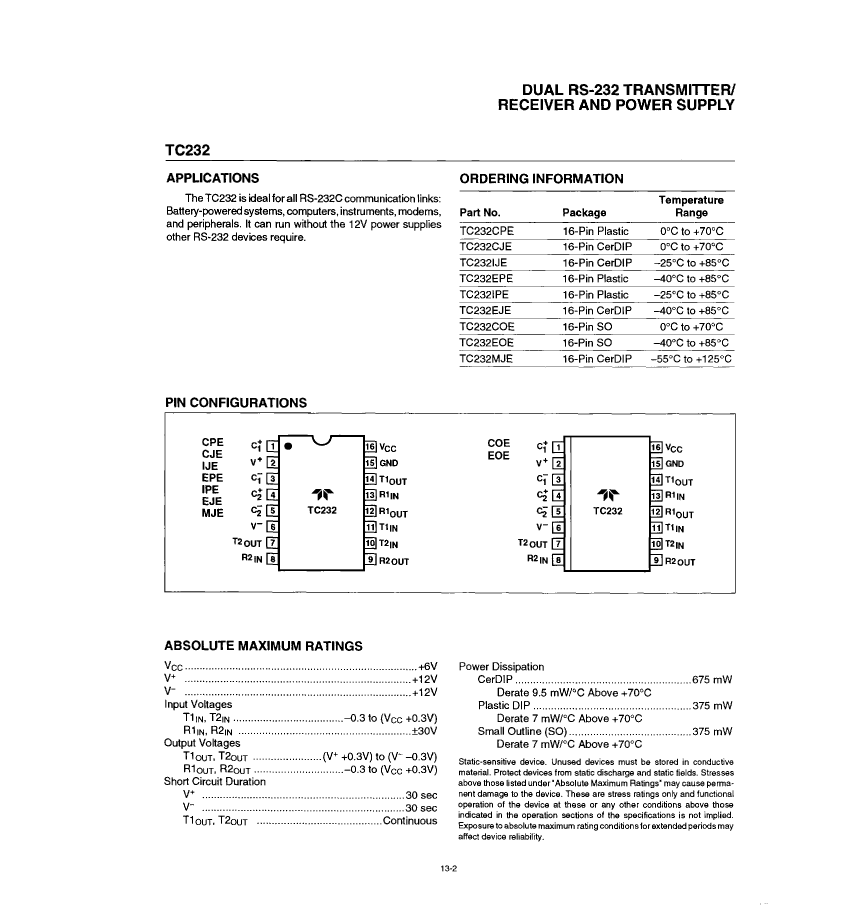

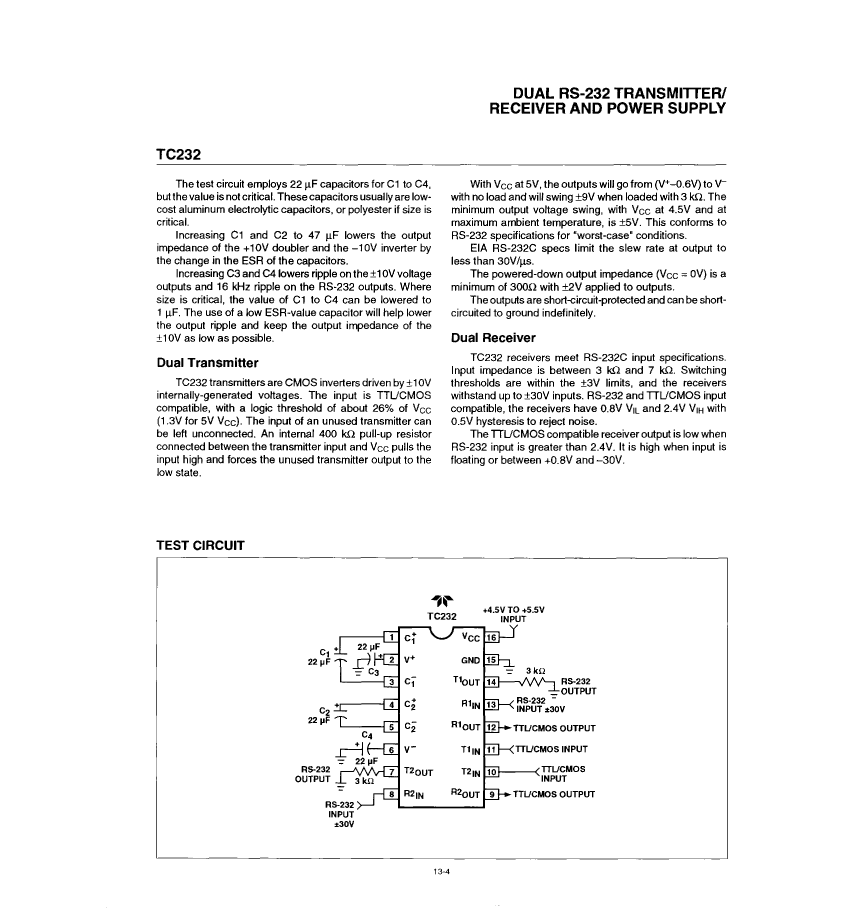

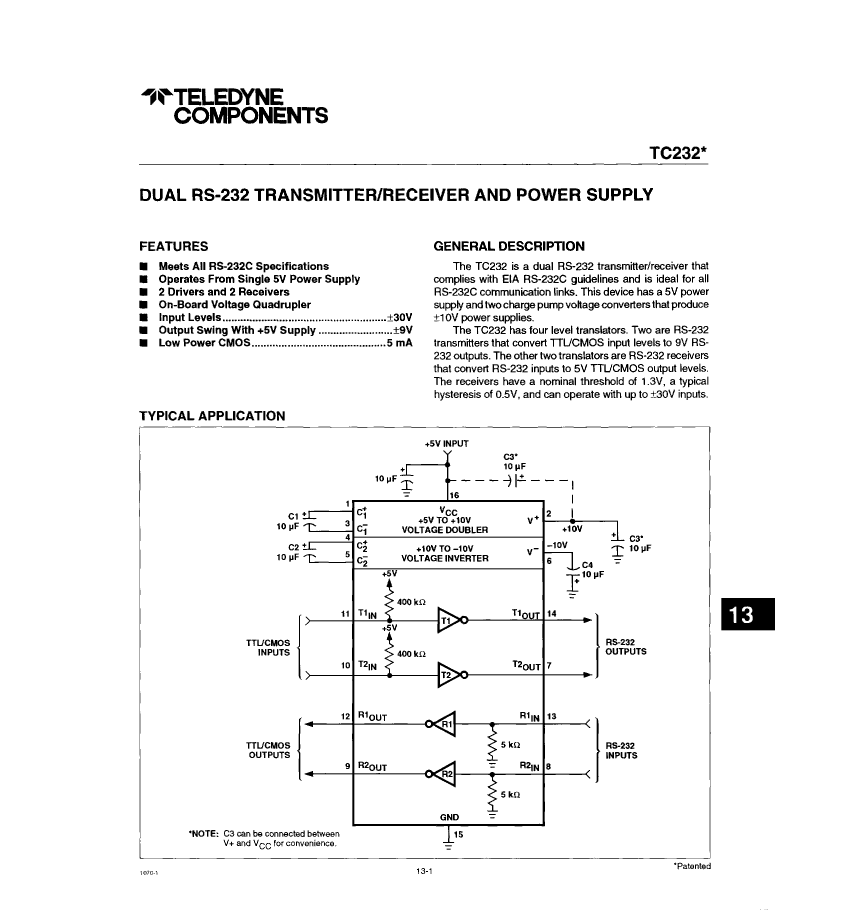

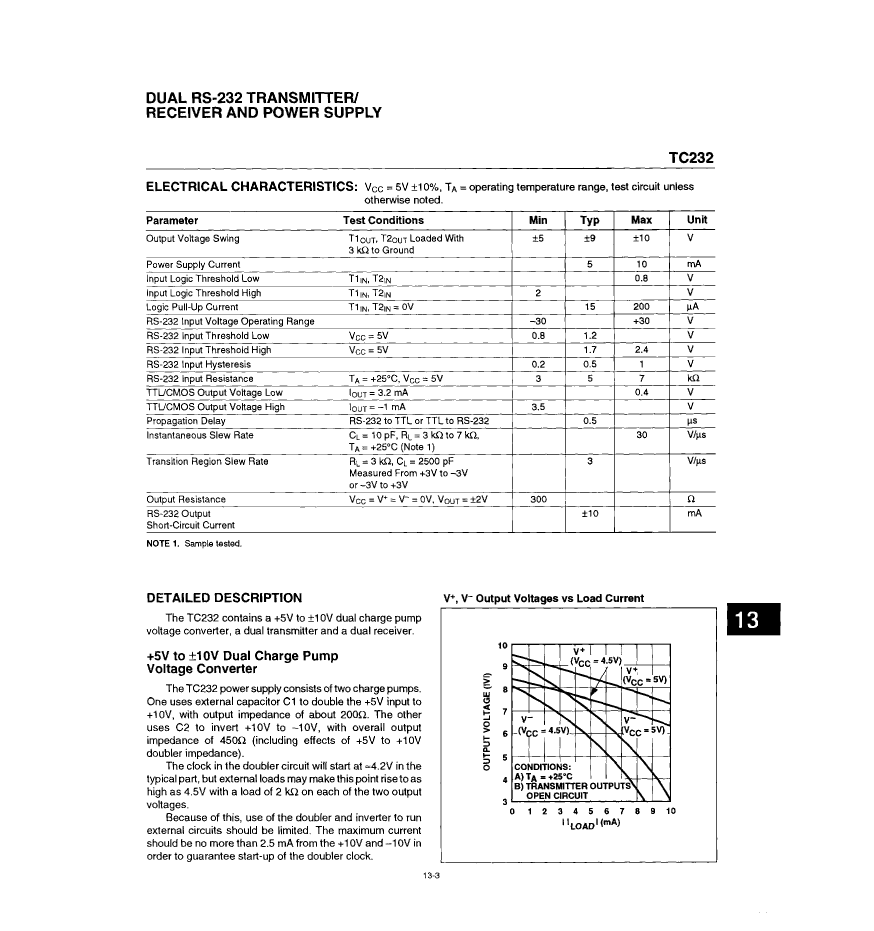

Preview

Download Datasheet

View All

TC232EOE Related Products

	TC232EOE	TC232EPE	TC232CPE	TC232IJE	TC232MJE	TC232EJE	TC232CJE	TC232IPE
Description	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16,	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP16	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP16	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP16,	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP16,	Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16,
Maker	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated	Teledyne Technologies Incorporated
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	EXTERNAL CHARGE PUMP	EXTERNAL CHARGE PUMP	EXTERNAL CHARGE PUMP	EXTERNAL CHARGE PUMP	EXTERNAL CHARGE PUMP	EXTERNAL CHARGE PUMP	EXTERNAL CHARGE PUMP	EXTERNAL CHARGE PUMP
Differential output	NO	NO	NO	NO	NO	NO	NO	NO
Number of drives	2	2	2	2	2	2	2	2
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	EIA-232-C	EIA-232-C	EIA-232-C	EIA-232-C	EIA-232-C	EIA-232-C	EIA-232-C	EIA-232-C
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-PDIP-T16
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	125 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-25 °C	-55 °C	-40 °C	-	-25 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Number of receiver bits	2	2	2	2	2	2	2	2
Maximum slew rate	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	OTHER	MILITARY	INDUSTRIAL	COMMERCIAL	OTHER
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
