SUNNY BOY 2500TL / 3000TL
SINGLE TRACKER
SB 2500TLST-21 / SB 3000TLST-21
Economical
• Maximum DC input voltage
of 750 V
• Cost saving due to fewer
parallel strings
• Shade management with
OptiTrac Global Peak
Flexible
• Compatible with all PV modules
available on the market
• Variable applications due to the
use as main or complementary
device
Simple
• Without fan
• Easier wall mounting
• SUNCLIX DC plug-in system
• Fast connection, no tools
required
Communicative
• Simple country configuration
•
Bluetooth
®
technology
SUNNY BOY 2500TL / 3000TL
SINGLE TRACKER
Now also available as an economical specialist for small, simple plants
Just like before. But new. The Sunny Boy TL is now available with only one MPP tracker and in principle offers all the benefits
of its multistring brothers 3000TL, 3600TL, 4000TL and 5000TL: with economical operation, advanced technology and conve-
nient operation, the special strengths of the Sunny Boy Single Tracker make it a standout. Not only is it a cost-efficient specialist
for small, simple rooftop installations, but thanks to its reactive power capability, it's also the perfect addition to existing systems.
Accessories
RS485 interface
DM-485CB-10
Webconnect interface
incl. Speedwire function
WEBCONDM-10
SB3000TLST-21-DEN122913 SMA and Sunny Boy are registered trademarks of SMA Solar Technology AG.
Bluetooth®
is a registered trademark of Bluetooth SIG, Inc. SUNCLIX is a registered trademark of PHOENIX CONTACT GmbH & Co. KG. Text and illustrations reflect the current state of the technology at the time of publication. Subject to technical changes. No liability for printing errors. Printed on chlorine-free paper.
Interface to
Speedwire fieldbus
SPWDM-10
2
Additional Fan Kit
FANKIT01-10
Multi-function relay
MFR01-10
Power Control Module
PWCMOD-10
1
2
Does not apply to all national appendices of EN 50438
In planing
Sunny Boy 3000TL
Single Tracker
3200 W
750 V
213 – 500 V / 400 V
125 V / 150 V
15 A
15 A
1/2
3000 W
3000 VA
220 V / 230 V / 240 V
180 V – 280 V
50 Hz, 60 Hz / –5 Hz, +5 Hz
50 Hz / 230 V
13.1 A
1
0.8 overexcited ... 0.8 underexcited
1/1
97% / 96.1%
○
●/●
●/●/—
●
I / III
490 / 519 / 185 mm
(19.3 / 20.4 / 7.3 inch)
23 kg / 50.6 lb
–25 °C ... +60 °C / –13 °F ... 140 °F
25 dB(A)
1W
Transformerless / convection
IP65
4K4H
100%
Provisional technical data
Input (DC)
Max. DC power (@ cos ϕ = 1)
Max. input voltage
MPP voltage range / rated input voltage
Min. input voltage / start input voltage
Max. input current
Max. input current per string
Number of independent MPP inputs / strings per MPP input
Output (AC)
Rated power (@ 230 V, 50 Hz)
Max. apparent AC power
Nominal AC voltage
Nominal AC voltage range
AC power frequency / range
Rated power frequency / rated grid voltage
Max. output current
Power factor at rated power
Displacement power factor, adjustable
Feed-in phases / connection phases
Efficiency
Max. efficiency / European weighted efficiency
Protective devices
DC-side disconnection device
Ground fault monitoring / grid monitoring
DC reverse polarity protection / AC short-circuit current capability /
galvanically isolated
All-pole-sensitive residual-current monitoring unit
Protection class (as per IEC 62103) / overvoltage category (as per IEC 60664-1)
General data
Dimensions (W / H / D)
Weight
Operating temperature range
Noise emission (typical)
Self-consumption (at night)
Topology / cooling concept
Degree of protection: electronics (per IEC 60529)
Climatic category (as per IEC 60721-3-4)
Maximum permissible value for relative humidity (non-condensing)
Features
DC connection / AC connection
display
Interfaces: RS485 /
Bluetooth
®
/
Webconnect / Speedwire
2
Multi-function relay / Power Control Module
Warranty: 5 / 10 / 15 / 20 / 25 years
Certificates and approvals (more upon request)
Certificates and approvals (planned)
Sunny Boy 2500TL
Single Tracker
2650 W
750 V
180 – 500 V / 400 V
125 V / 150 V
15 A
15 A
1/2
2500 W
2500 VA
220 V / 230 V / 240 V
180 V – 280 V
50 Hz, 60 Hz / –5 Hz, +5 Hz
50 Hz / 230 V
10.9 A
1
0.8 overexcited ... 0.8 underexcited
1/1
97% / 96.0%
○
●/●
●/●/—
●
I / III
490 / 519 / 185 mm
(19.3 / 20.4 / 7.3 inch)
23 kg / 50.6 lb
–25 °C ... +60 °C / –13 °F ... 140 °F
25 dB(A)
1W
Transformerless / convection
IP65
4K4H
100%
SUNCLIX / spring clamp terminal
SUNCLIX / spring clamp terminal

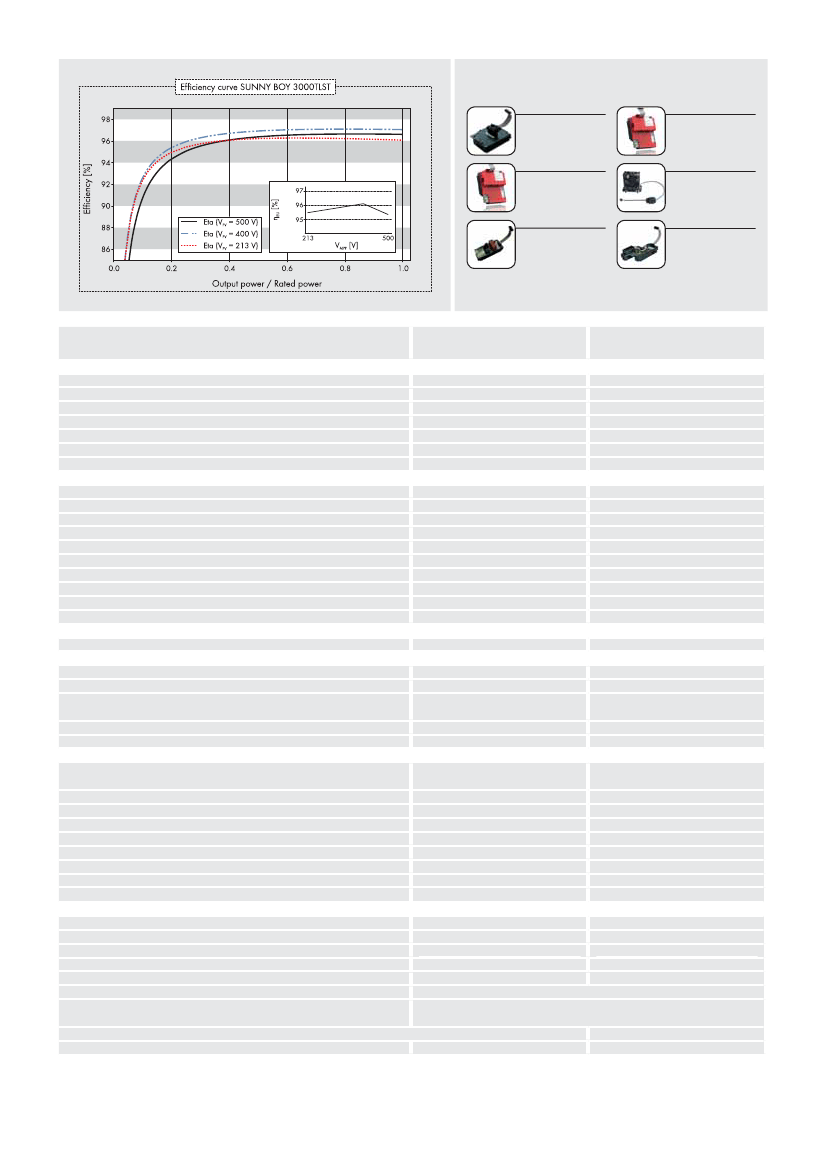

chart
chart
○/●/○/○
○/●/○/○
○/○
○/○
● / ○ / ○ / ○ /○
● / ○ / ○ / ○ /○
CE, VDE 0126-1-1, VDE-AR-N 4105, C10/11, G83/1-1, G59/2
RD 1699/2011, PPC, RD 661/2007, AS 4777, EN 50438
1
, PPDS, IEC61727,
SI4777, UTE C15-712-1, CEI 0-21
Version: July 2012 / ● Standard features ○ Optional features — Not available, Data at nominal conditions
Type designation
SB 2500TLST-21
SB 3000TLST-21
