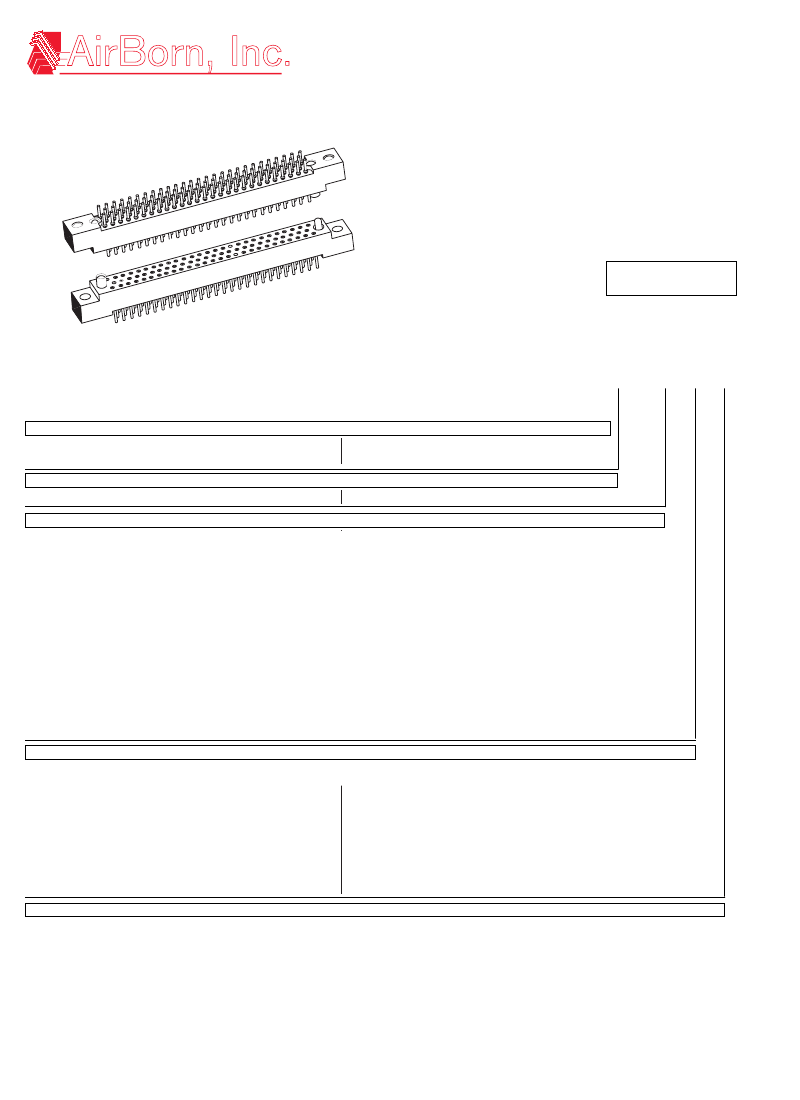

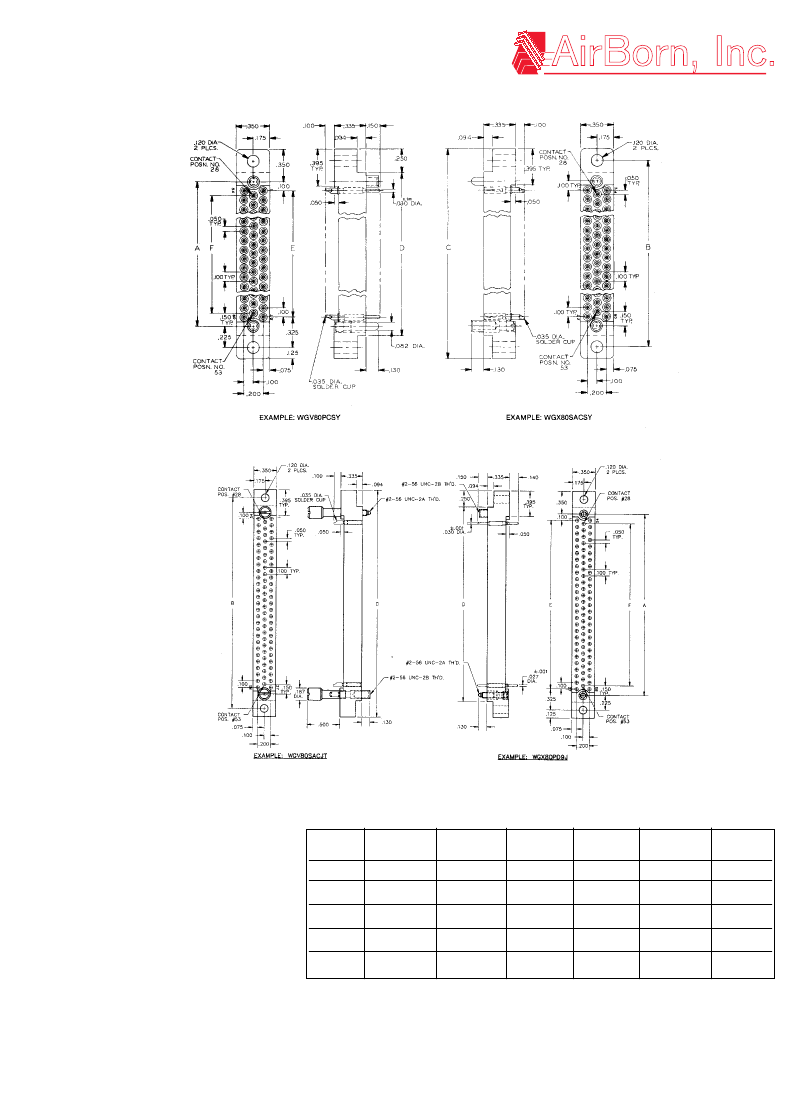

WGV80PD9SY
•
ROW
Connectors
Sandwich
Boards or to
PC Card
3
WGV-WGX
WGX80SAD11SY
Examples:
RECEPTACLE:
PLUG:
WTBT
WGV
WGX
80
80
PD9
SY
SAD11 SY
PLUG
WGV
= 3-row, straight, plug, mounting ears
RECEPTACLE
SERIES
WGX
WGX
= 3-row, straight, receptacle, mounting ears
= 3-row, right-angle, receptacle, mounting ears
NUMBER OF CONTACTS
50, 62, 80, 92, 104
50, 62, 80, 92, 104
TYPE OF CONTACTS
• Pin or socket contacts can be used in either receptacle.
• When pin contacts are used, standard hardware orientation places the female hardware next to the #1 position.
• When socket contacts are used, standard hardware orientation places the male hardware next to the #1 socket position.
PC
PD7
PD9
PD11
PD13
PF3
PF6
PF8
PW34
PW40
= Pin, straight, solder cup
= Pin, straight, dip solder, .109
= Pin, straight, dip solder, .140
= Pin, straight, dip solder, .172
= Pin, straight, dip solder, .203
= Pin, straight, flex-circuit, .050
= Pin, straight, flex-circuit, .093
= Pin, straight, flex-circuit, .125
= Pin, straight, wire wrap, .531
= Pin, straight, wire wrap, .625
SAC
SAD7
SAD9
SAD11
SAF3
SAF6
SAF9
SAP
SAW24
SAW40
SOR7
SOR9
SOR11
= Socket, straight, solder cup
= Socket, straight, dip solder, .109
= Socket, straight, dip solder, .140
= Socket, straight, dip solder, .172
= Socket, straight, flex-circuit, .050
= Socket, straight, flex-circuit, .093
= Socket, straight, flex-circuit, .140
= Socket, straight, pin termination, .150, connector saver
= Socket, straight, wire wrap, .375
= Socket, straight, wire wrap, .625
= Socket, right-angle, dip solder, .109, see page W-39.
= Socket, right-angle, dip solder, .140, see page W-39.
= Socket, right-angle, dip solder, .172, see page W-39.
TYPE OF HARDWARE
• Plug facial seal gaskets and hoods; order separately or add “Q” in part number. Example: WTA10PD9QJ. See “Gaskets” and
“Hoods” under next tab for instructions.
SY
= Guide Set
SY
= Guide Set
SY-#
= Guide Set, polarized
SY-#
= Guide Set, polarized
SYL
= Guide Set, long
SYL
= Guide Set, long
JT
= Turning jackset, .500
J
= Fixed jackset
JTA
= Turning jackset, .200
JL
= Fixed jackset, long
JTB
= Hex turning jackset, .200
JTC
= Turning jackset, .500
JTL
= Long turning jackset, .700
OPTIONS
• OPTION CODES: Add to the end of the part number. Example: WGV80PD9SY342. Call factory for additional codes.
-342: Remove .250 mounting ears.
-D01: Pre-tin contact terminations. (Solder cup, wire wrap and flex circuit contacts are excluded.)
-G69: Solder cups are fixed in an outward orientation, otherwise contacts can rotate.
“W” Series Connectors
W-40
Airborn, Inc. • 4321 Airborn Drive • Addison, TX 75001-0519
Ph: (972)931-3200 Fax: (972)931-9305 E-mail: info@airborn.com
0018
The Interconnect Solution Source

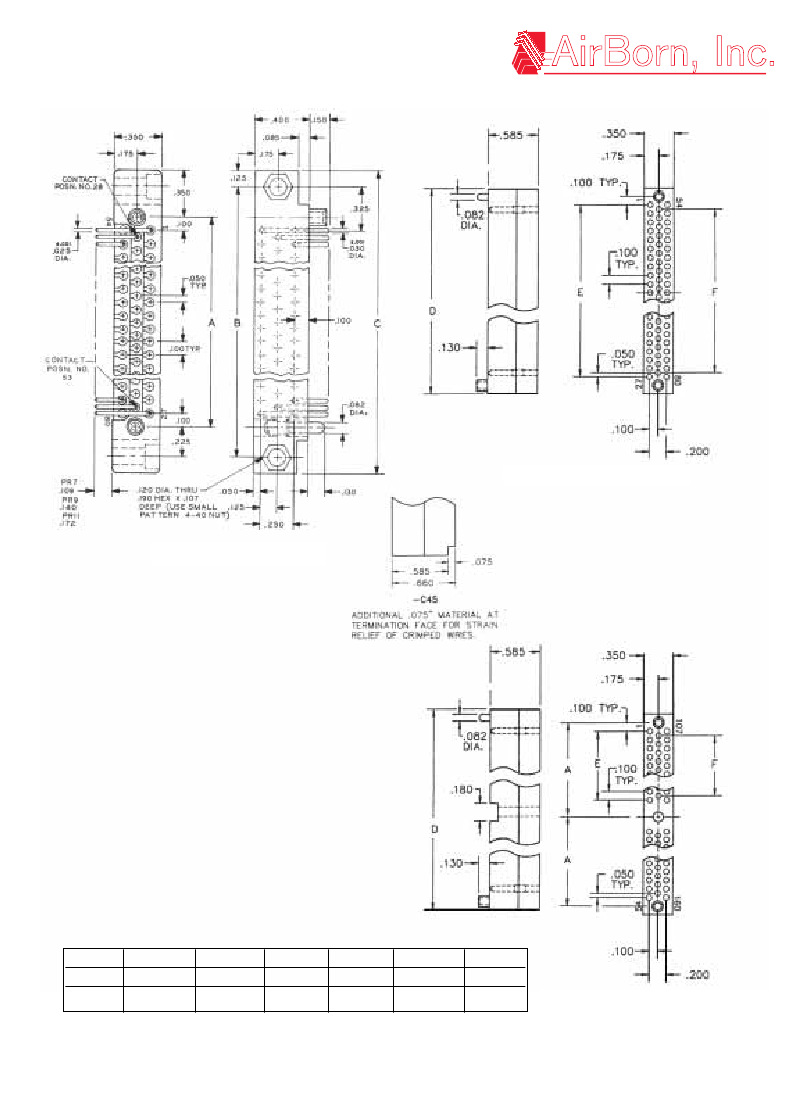

WG80PR9SY
•
ROW
Connectors
PC Card to
Chassis
3
WG-WGDXA
WGDX80SSY
Examples:
PLUG:
RECEPTACLE:
WG
WGDXA
80
80
PR
S
SY
SY
PLUG
RECEPTACLE
SERIES
• WGKA or WGDXA mates with the WGV connector. “A” means contacts are included.
WG
= 3-row, right-angle, plug, mounting ears
WGDXA = 3-row, straight, receptacle,
crimp removable, w/o mounting ears
NUMBER OF CONTACTS
80, 160
80, 160
TYPE OF CONTACTS
• The use of gaskets is not recommended with crimp socket contacts.
• The contact type determines image of connector. Pin right-angle contacts are always plug image, all other contacts, straight pin or
sockets are receptacle image.
• When using crimp contacts with 20 gage barrel, barrel must be cut off prior to removing contact from body.
PR7
PR9
PR11
PRW40
= Pin, right-angle, dip solder, .109
= Pin, right-angle, dip solder, .140
= Pin, right-angle, dip solder, .172
= Pin, right-angle, wire wrap, .625
S
SA
P
= Socket, straight, crimp removable, 22 gage barrel
= Socket, straight, crimp removable, 22 gage barrel
= Pin, straight, crimp removable, 22 gage barrel
TYPE OF HARDWARE
• Plug facial seal gaskets and hoods; order separately or add “Q” in part number. Example: WTA10PD9QJ. See “Gaskets” and
“Hoods” under next tab for instructions.
SY
= Guide Set
SY
= Guide Set
SY-#
= Guide Set, polarized
SY-#
= Guide Set, polarized
OPTIONS
• OPTION CODES: Add to the end of the part number. Example: WGDXA80SSY-C45. Call factory for additional codes.
-657: Socket, crimp removable, 20 gage barrel. When using crimp contacts with 20 gage barrel, barrel must be cut off prior to removal.
-C45: Additional .075" material at termination face for strain relief of crimped wires (22 gage contacts only).
“W” Series Connectors
W-46
9916
Airborn, Inc. • 4321 Airborn Drive • Addison, TX 75001-0519
Ph: (972)931-3200 Fax: (972)931-9305 E-mail: info@airborn.com
