DRTX24D06X: Description6 Amp AC and DC Rated output; File Size1MB，7 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml

Download Datasheet Compare View All

DRTX24D06X Overview

6 Amp AC and DC Rated output

Preview

Download Datasheet

View All

SeriesOneDR Timer

• 6 Amp AC and DC Rated output

• Compact Size (11mm wide)

• Dual SCR or MOSFET output

• AC/DC control

• Zero-crossing (resistive loads) or random-fire (inductive loads) AC output

• Timer Status LED Indicator

• UL Listed, HP rated

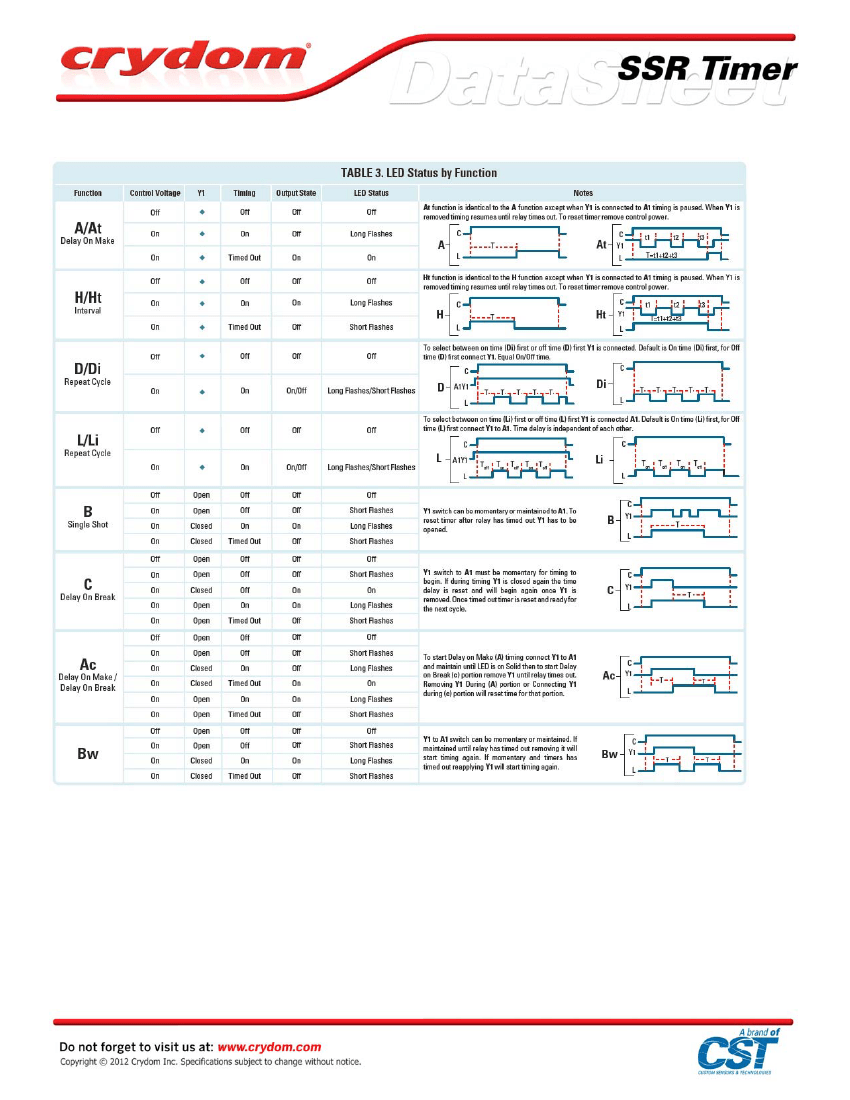

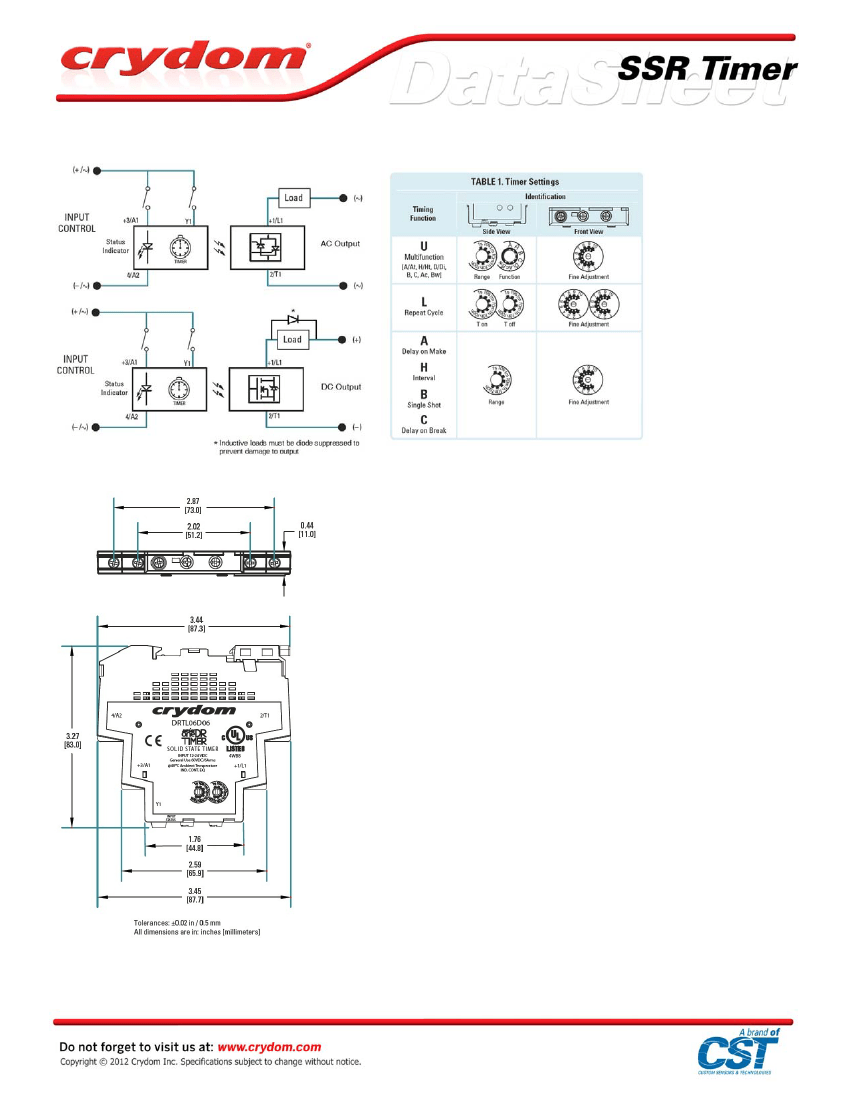

• 8 Industry standard functions (A/At, B, C, D/Di, H/Ht, L/Li, Ac and Bw)

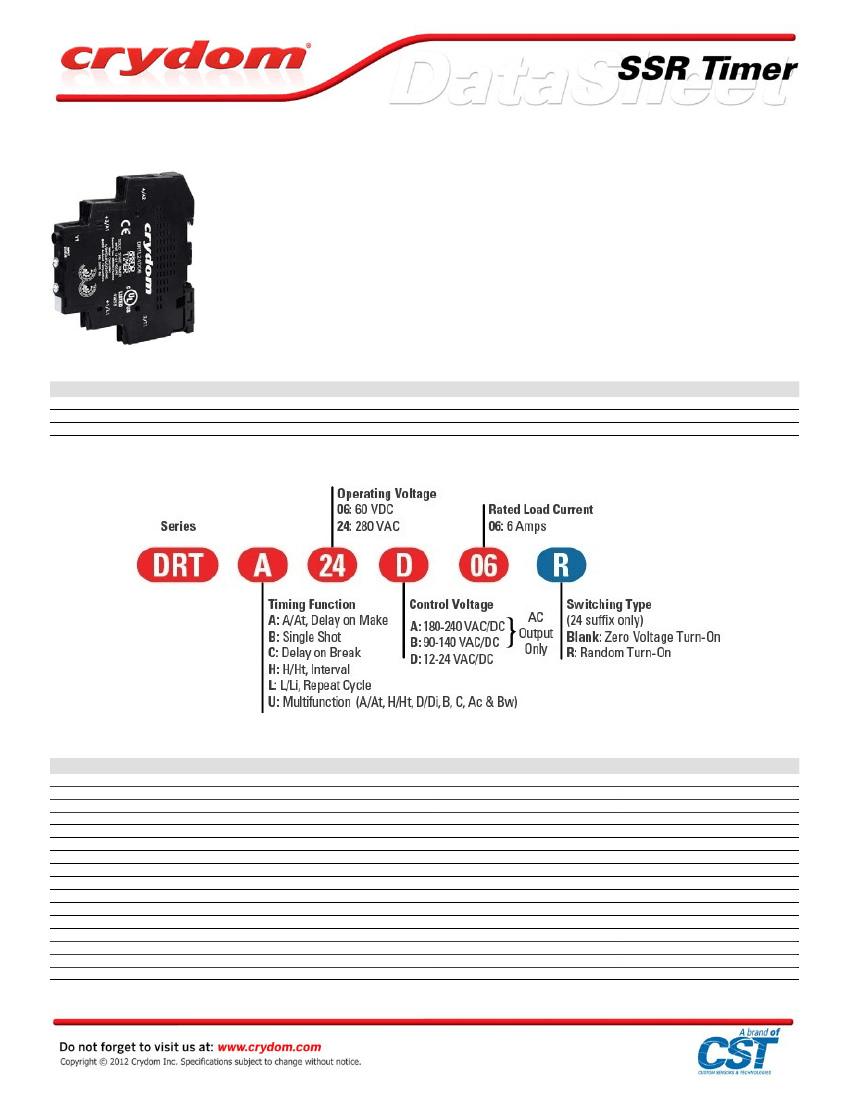

PRODUCT SELECTION

Control Voltage

12-24 VAC/DC

90-140 VAC/DC

180-280 VAC/DC

AC output

DRTx24D06x

DRTx24B06x

DRTx24A06x

DC Output

DRTx06D06

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage

Transient Overvoltage [Vpk] @ 25°C

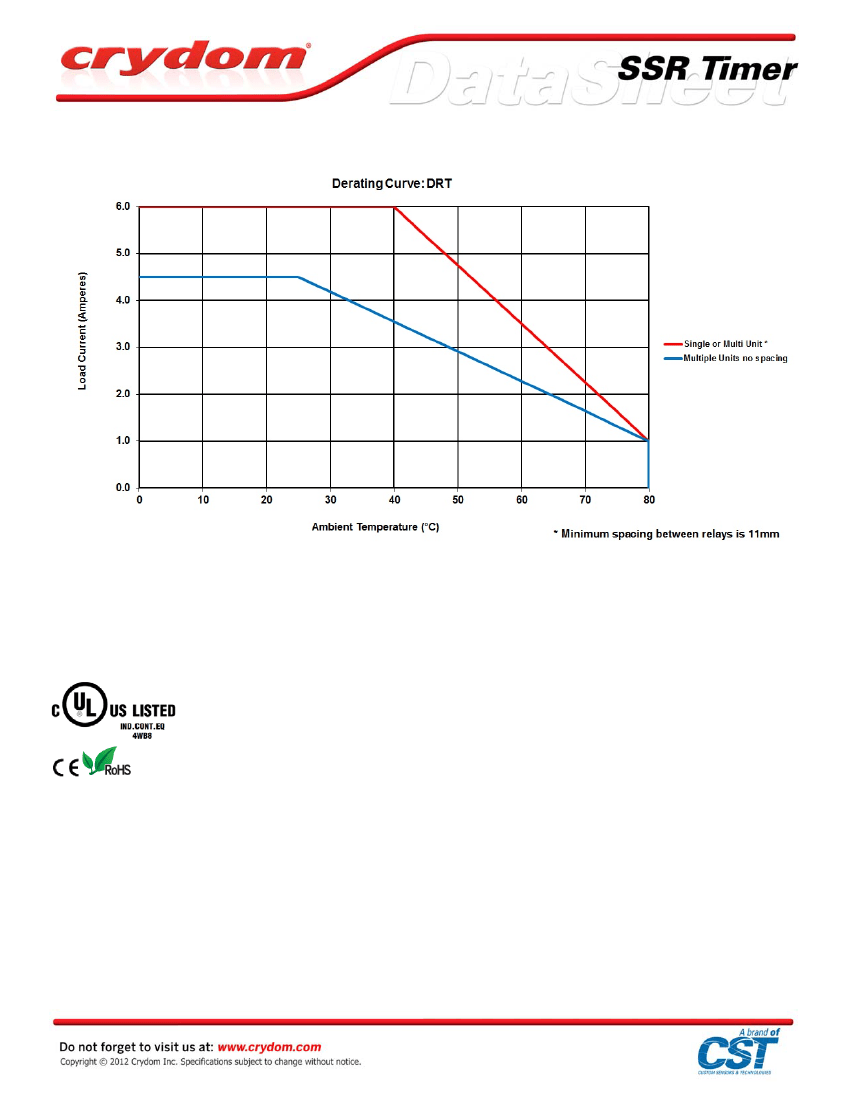

Rated Load Current (2)

Rated Load Current {UL508 Motor Controller} (2) [Arms]

Minimum Load Current

Maximum Off-State Leakage Current @ Rated Voltage

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (3)

Maximum Surge Current (AC output 1 cycle. DC output 10ms)

Maximum I²t for Fusing [A² sec]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Maximum On-State Resistance (RDS-ON) [Ohms]

HP rating UL 508/IEC60947[HP (KW)]: 240 VAC

IEC 62314 LC-A [FLA]

IEC 62314 LC-B [Kw]

Wire Size min/max (solid/stranded) [AWG/ IEC mm²] (4)

Output Terminal Screw Torque [in lb (Nm)]

DRTx24

24-280 VAC (47-440Hz)

600

6 Arms

3.6 Arms

150 mArms

0.1 mArms

500

285/300 Apk (50/60Hz)

410/375 (50/60Hz)

1.3

1/3 (0.24)

1.44

22/12 [0.33/3.31]

7.0 (0.8)

DRTx06

1-48 Vdc

60 Vdc

100 mA

20 µA

60 A

0.3 Vdc

0.034

22/12 [0.33/3.31]

7.0 (0.8)
