BCM8711
PRODUCT
Brief
O F
B E N E F I T S
10GE 1:16 DEMULTIPLEXER WITH CLOCK AND DATA RECOVERY
B C M 8 7 1 1
F E AT U R E S
S U M M A R Y
•
IEEE 802.3ae 10.3125-Gbps Ethernet deserializer with
clock and data recovery (CDR) and demultiplexer
(DEMUX)
outputs
Compliant with
•
(OIF), Telcordia,the Optical Internetworking Forum
ITU-T and IEEE 802.3ae industry
standards.
Low
consumption eliminates external heat
•
sinks,powerfor system airflow, and expensive high-
fans
current power supplies.
•
1:16 demultiplexer with LVDS 644.55-Mbps data
•
•
Lock detect
•
Core power supply: 1.8V
•
I/O power supplies: CML, LVDS and LVPECL at 1.8V,
Loss-of-signal detect
CMOS at 1.8 or 3.3V
•
Reduces design cycle and time to market.
CMOS-based device
•
economy of scale. uses the most effective silicon
•
Target applications:
• Transmission equipment
• Optical modules
• Hubs and repeaters
• Network Interface Cards (NICs)
• Test equipment
• ADD/DROP multiplexers
• Digital cross-connects
• ATM switch backbones
• Terabit routers
• Edge routers
•
Power consumption: 900 mW typical @ 1.8V
•
Standard CMOS fabrication process
•
15 x 15 mm, 120-pin BGA package

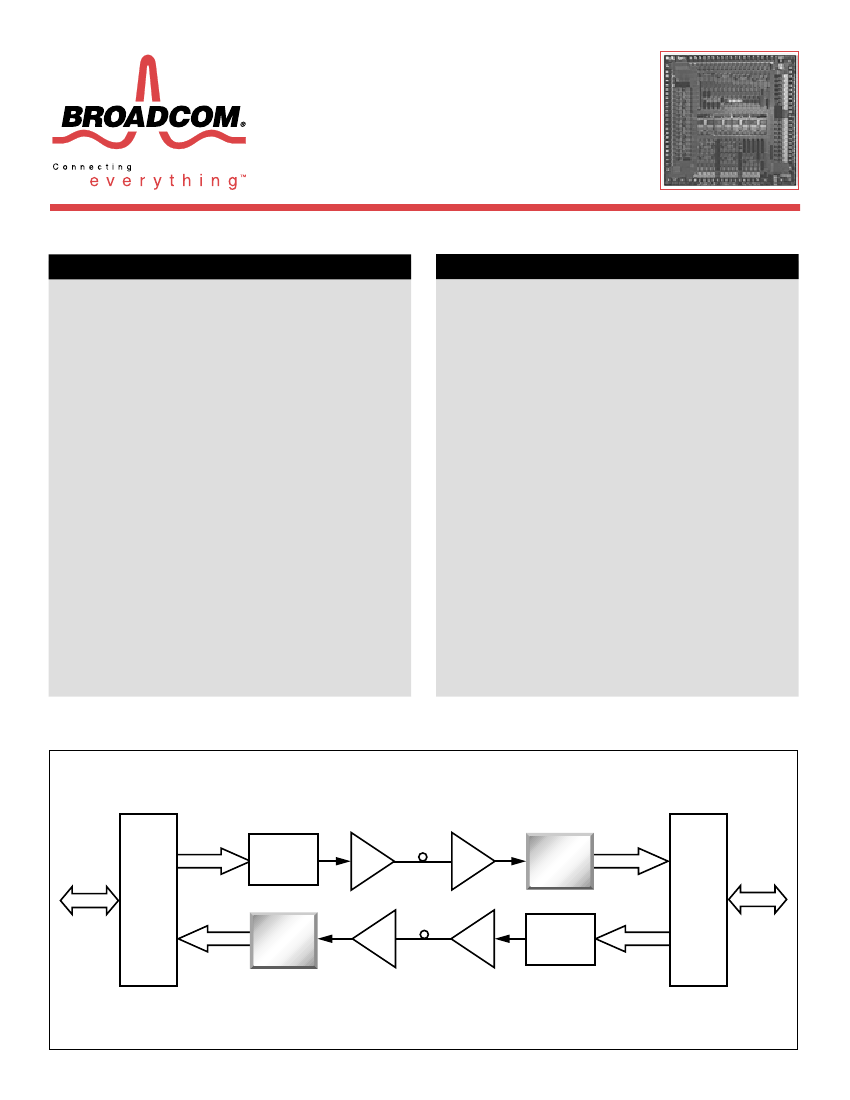

Application Block Diagram
10-Gbps MAC
XSBI
BCM8711
ORX
OTX
BCM8710
10-Gbps MAC
XSBI
BCM8710
OTX
ORX
BCM8711
B C M 8 7 1 1
O V E R V I E W
Block Diagram
RB_LD
LOS
DETECT
LOSB
DO0P
CML Serial Input
RDINP
OUTPUT REGISTERS
1:16 DEMUX
DO0N
RDINN
LVDS
Parallel
Outputs
DO15P
REF155EN
LVPECL
Reference Clock
Input
REFCLKP
DO15N
CLK16OP
10.3 GHz
CDR
CLK16ON
REFCLKN
DIVIDE-BY-16
VCP
VCN
LCKDET
The
BCM8711
is a fully integrated 10GE receiver operating at
10.3125 Gbps with deserializer, CDR, and loss-of-signal (LOS)
detection circuitry.
The
BCM8711
provides high-jitter tolerance and low-jitter
generation to comply with the Optical Internetworking Forum
(OIF), IEEE 802.3ae, Telcordia, ANSI, and ITU-T standards.
The
BCM8711
reference clock frequency is user-selectable to
either the line rate divided by 16 or 64.
Major receiver functions are:
• 10.3125-Gbps CML input receive serial data
• 10.3125-Gbps Clock and Data Recovery
• Serial-to-parallel conversion
• 16-bit parallel LVDS output
• Selectable reference clock frequencies
• Lock detect
• Loss of signal
Broadcom
®
, the pulse logo
®
and
Connecting Everything
TM
are trademarks of
Broadcom Corporation and/or its subsidiaries in the United States and certain other countries.
All other trademarks are the property of their respective owners.
BROADCOM CORPORATION
16215 Alton Parkway, P.O. Box 57013
Irvine, California 92619-7013
© 2002 by BROADCOM CORPORATION. All rights reserved.
8711-PB02-R-4.1.02
Phone: 949-450-8700
FAX: 949-450-8710
