SM250: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 50V V(RRM), Silicon, DO-213AB, PLASTIC, SM-1, 2 PIN; CategoryDiscrete semiconductor diode; File Size208KB，4 Pages; ManufacturerHitano Enterprise Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

SM250 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SM250	-	-	View	Buy Now

SM250 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 50V V(RRM), Silicon, DO-213AB, PLASTIC, SM-1, 2 PIN

SM250 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hitano Enterprise Corp
Parts packaging code	DO-213AB
package instruction	O-PELF-R2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW LEAKAGE CURRENT
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-213AB
JESD-30 code	O-PELF-R2
Maximum non-repetitive peak forward current	40 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	50 V
surface mount	YES
technology	SCHOTTKY
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

HITANO ENTERPRISE CORP.

RECTIFIER SPECIALSTS

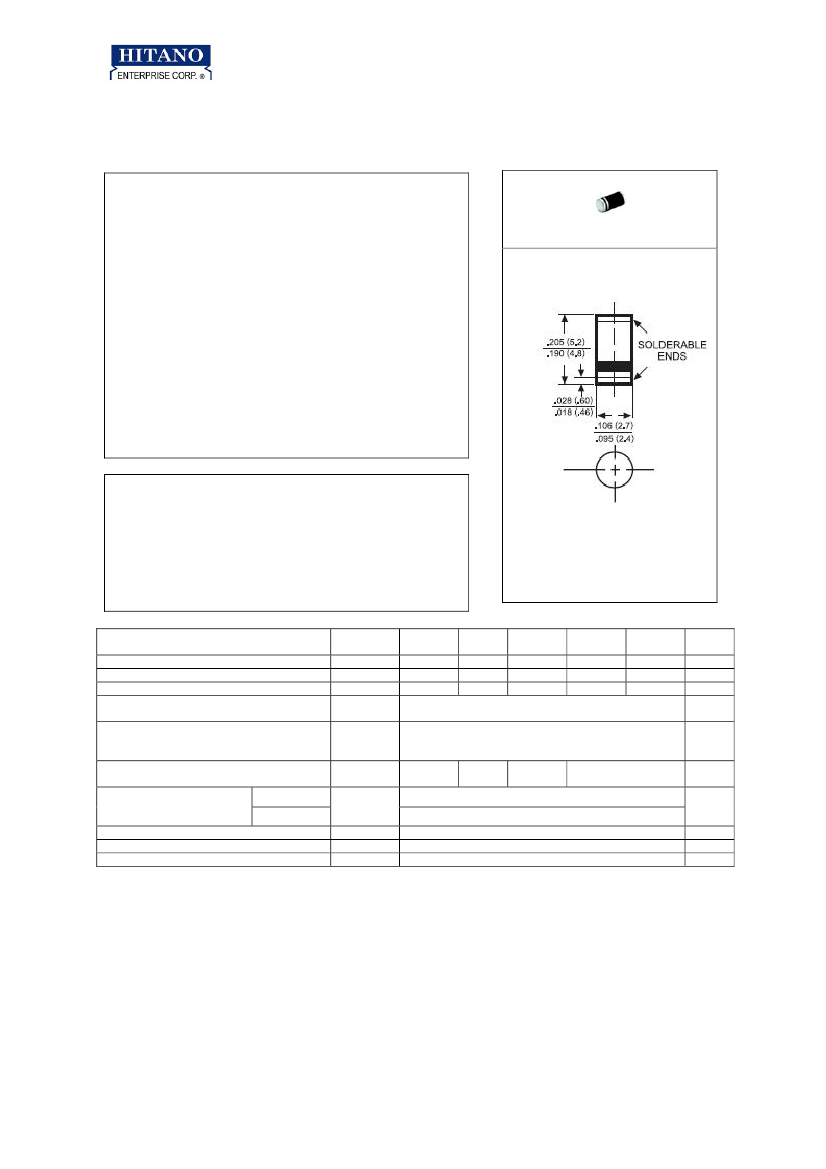

TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

VOLTAGE RANGE - 20 to 60 Volts

CURRENT -2.0 Amperes

FEATURES

* High current capability

* Ideal for surface mounted applications

* Low leakage current for high efficiency

MECHANICAL DATA

*Case: Molded Plastic

*Epoxy: UL 94V-0 rate flame retardant

*Terminals : Solder plated, solderable per

MIL-STD-202E, Method 208 guaranteed

*Polarity: Color band denotes cathode end

*Mounting position: Any

*Weight: 0.12 gram

MAXIMUM RATINGS AND ELECTRICAL

CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise

specified.

Single phase, half wave, 60 Hz , resistive or inductive

load.

For capacitive load , derate current by 20%.

SYMBOL

SM220

SM23

0

30

21

30

SM-1(DO-213AB)

Dimensions in inches and (millimeters)

SM240

SM250

SM260

UNITS

Volts

Amps

Maximum Recurrent Peak Reverse Voltage

V

RRM

20

40

50

60

Maximum RMS Voltage

V

RRS

14

28

35

42

Maximum DC Blocking Voltage

V

DC

20

40

50

60

Maximum Average Forward Rectified

Io

2.0

Current

Peak Forward Surge Current 8.3 ms single

40

I

FSM

half sine-wave superimposed on rated load

(JEDEC Method)

Maximum instantaneous Forward Voltage at

.45

.55

.60

.75

V

F

2.0A DC

Maximum DC Reverse

@T

A

=25℃

20

I

R

Current at Rated DC

40

@T

A

=100℃

Blocking Voltage

Typical Thermal Resistance (Note1)

R

ΘJA

200

Typical Junction Capacitance (Note2)

C

J

110

Storage and Operating Temperature Range

T

J ,

T

STG

-60 to +125

NOTES: 1. Thermal Resistance (Junction to Ambient): Vertical PC Board Mounting , 0.375”(9.5mm) Lead Length

2. Measured at 1MHz and applied reverse voltage of 4.0 volts.

mAmp

s

℃

/w

pF

℃

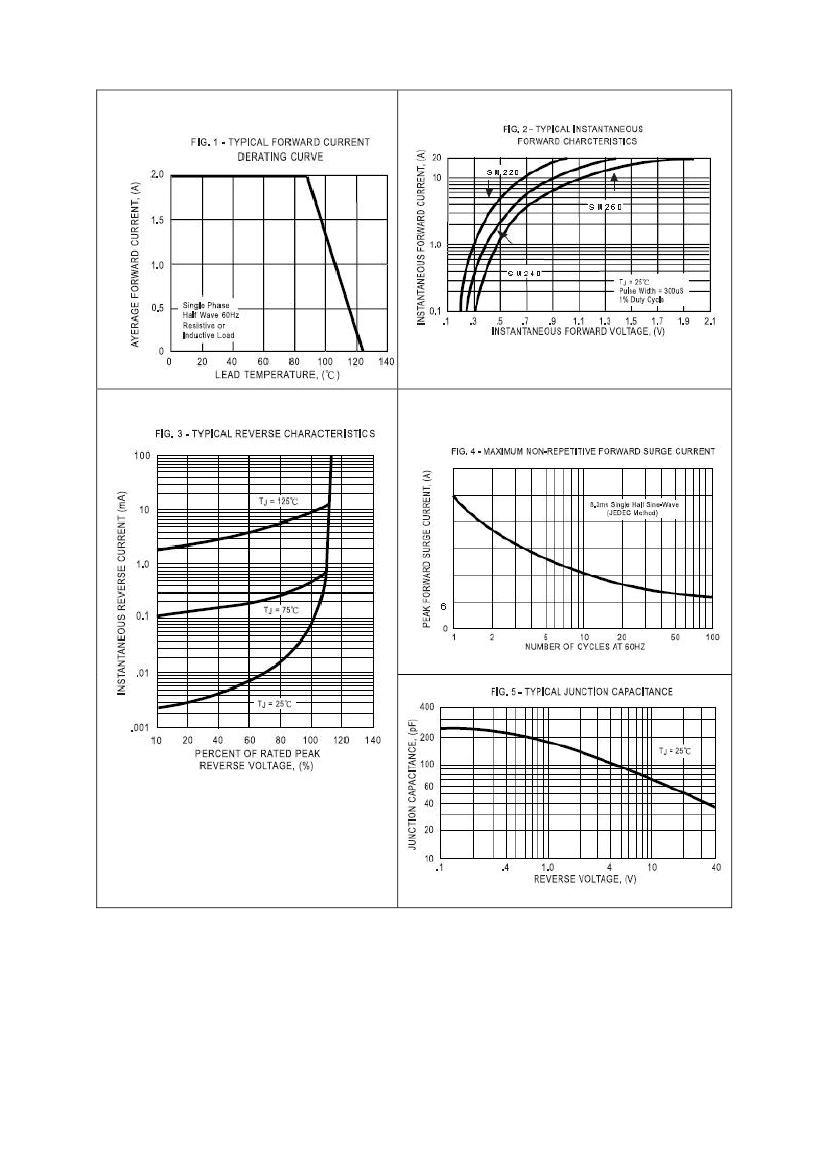

SM250 Related Products

	SM250	SM220	SM230	SM260
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 50V V(RRM), Silicon, DO-213AB, PLASTIC, SM-1, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 20V V(RRM), Silicon, DO-213AB, PLASTIC, SM-1, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 30V V(RRM), Silicon, DO-213AB, PLASTIC, SM-1, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 60V V(RRM), Silicon, DO-213AB, PLASTIC, SM-1, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Hitano Enterprise Corp	Hitano Enterprise Corp	Hitano Enterprise Corp	Hitano Enterprise Corp
Parts packaging code	DO-213AB	DO-213AB	DO-213AB	DO-213AB
package instruction	O-PELF-R2	O-PELF-R2	O-PELF-R2	PLASTIC, SM-1, 2 PIN
Contacts	2	2	2	2
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-213AB	DO-213AB	DO-213AB	DO-213AB
JESD-30 code	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2
Maximum non-repetitive peak forward current	40 A	40 A	40 A	40 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	50 V	20 V	30 V	60 V
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
