CDRH8D58/LDNP-150NC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH8D58/LDNP-150NC

CDRH8D58/LDNP-150NC: Description1 ELEMENT, 15 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size147KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance; Related ProductsFound1parts with similar functions to CDRH8D58/LDNP-150NC

Download Datasheet Parametric Compare View All

CDRH8D58/LDNP-150NC Overview

1 ELEMENT, 15 uH, GENERAL PURPOSE INDUCTOR, SMD

CDRH8D58/LDNP-150NC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	3232
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	3232
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.0363 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	5.8 mm
Package length	8 mm
Package form	SMT
Package width	8 mm
method of packing	TR
Maximum rated current	3.6 A
series	CDRH8D58/LD
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

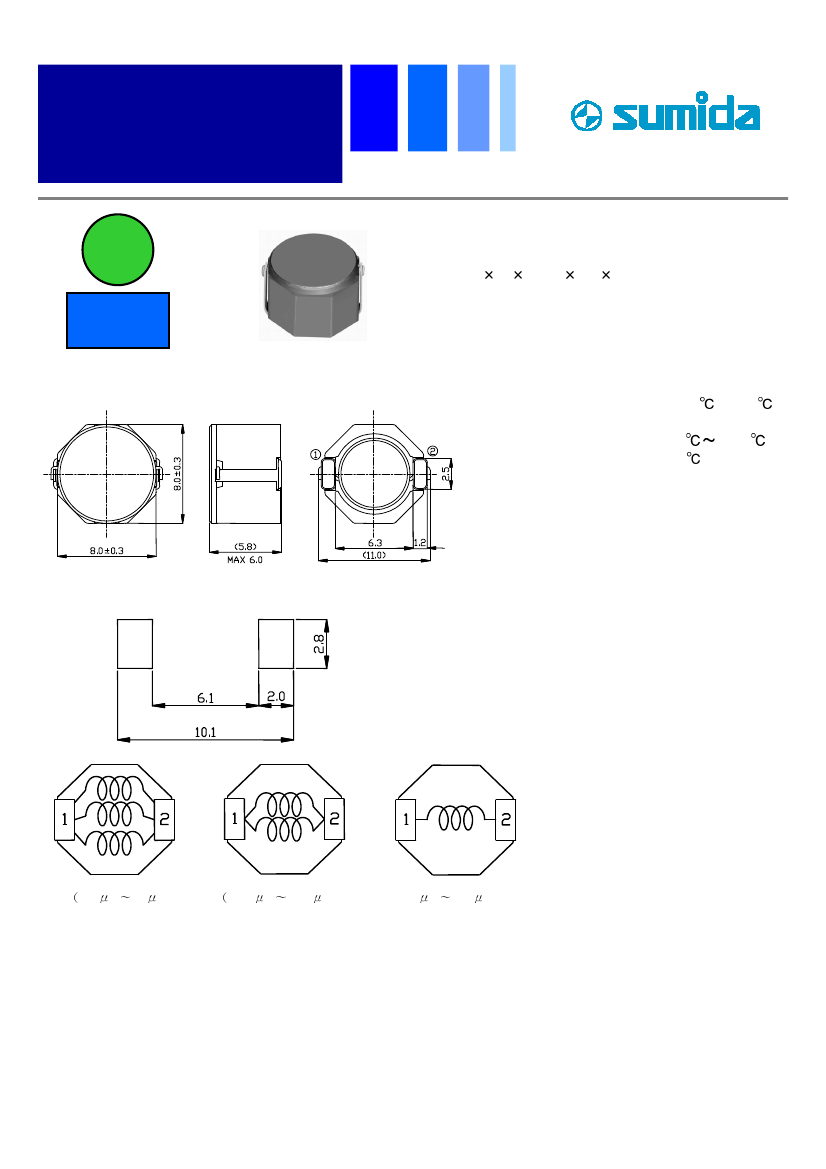

SMD Power Inductor

CDRH8D58/LD

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L W H:8.3 8.3 6.0 mm Max.

• Product weight: 1.3g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40 ~+105

(including coil’s self temperature rise)

+105

• Storage temperature range: -40

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging

• 12.9”diameter reel

• 500pcs per reel

Land pattern and Schematics - [mm]

RoHS

Halogen

Free

Dimension - [mm]

Applications

• Ideally used in Notebook PC, Game machine,

DVD, LCD TV ,STB etc as DC-DC converter

inductors.

Page 1 of 4

μ ½μ

μ ½μ （

2.8

H 10

15.0

H 47.0

(68

H 100

Revised: 7-Jan-14

℃

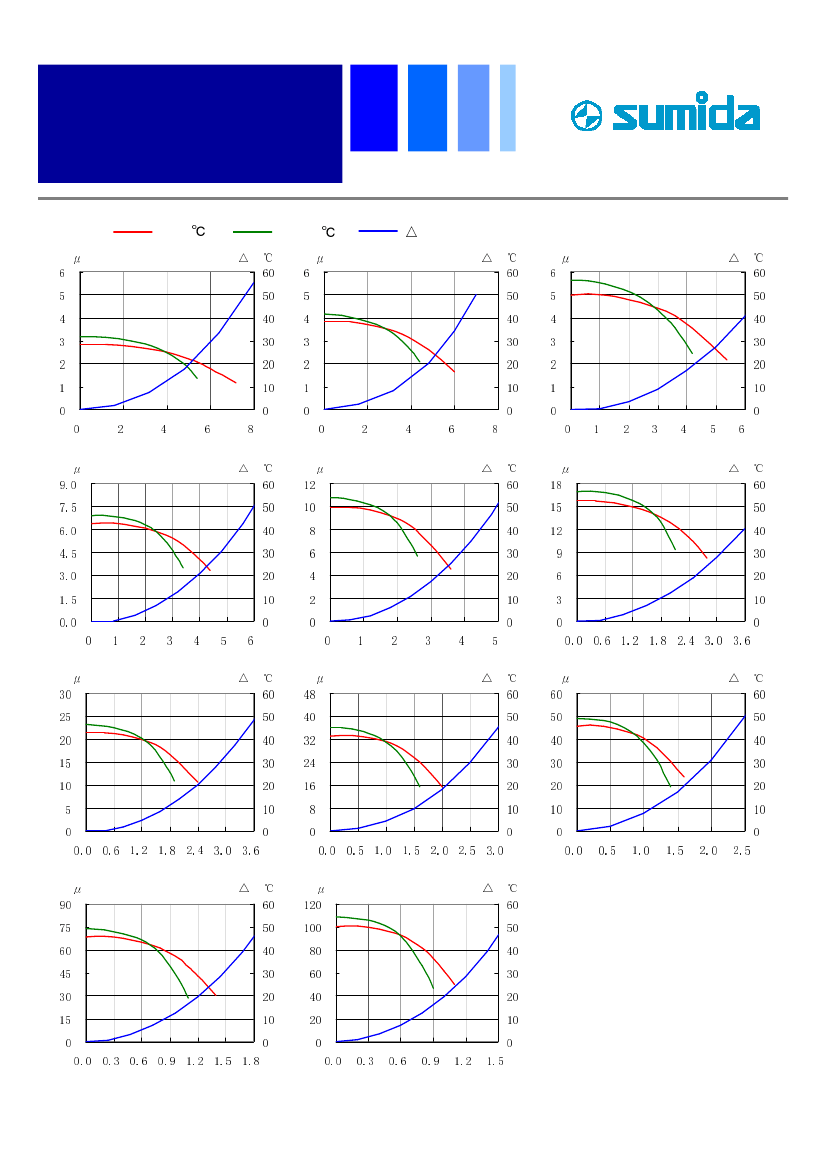

½℃

℃

× ×

CDRH8D58/LDNP-150NC Related Products

	CDRH8D58/LDNP-150NC	CDRH8D58/LDNP-101NC	CDRH8D58/LDNP-330NC	CDRH8D58/LDNP-3R9NC	CDRH8D58/LDNP-470NC	CDRH8D58/LDNP-6R2NC	CDRH8D58_12
Description	1 ELEMENT, 15 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 100 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 33 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 3.9 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 47 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 6.2 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-
Maker	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	-
package instruction	3232	3232	3232	3232	3232	3232	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
uppercase and lowercase codes	3232	3232	3232	3232	3232	3232	-
structure	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	-
core material	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	-
DC Resistance	0.0363 Ω	0.175 Ω	0.0653 Ω	0.0163 Ω	0.0905 Ω	0.02 Ω	-
Nominal inductance(L)	15 µH	100 µH	33 µH	3.9 µH	47 µH	6.2 µH	-
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-
Number of functions	1	1	1	1	1	1	-
Number of terminals	2	2	2	2	2	2	-
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Package height	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	-
Package length	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	-
Package form	SMT	SMT	SMT	SMT	SMT	SMT	-
Package width	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	-
method of packing	TR	TR	TR	TR	TR	TR	-
Maximum rated current	3.6 A	1.4 A	2.7 A	6.3 A	2.2 A	5.5 A	-
series	CDRH8D58/LD	CDRH8D58/LD	CDRH8D58/LD	CDRH8D58/LD	CDRH8D58/LD	CDRH8D58/LD	-
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-
shield	YES	YES	YES	YES	YES	YES	-
surface mount	YES	YES	YES	YES	YES	YES	-
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	-
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	-
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	-
Tolerance	30%	30%	30%	30%	30%	30%	-
