Turn-Key Chassis Solutions (EmBOX)

TKS-G30-5315B

Fanless Embedded Box for GENE-5315 Rev.B

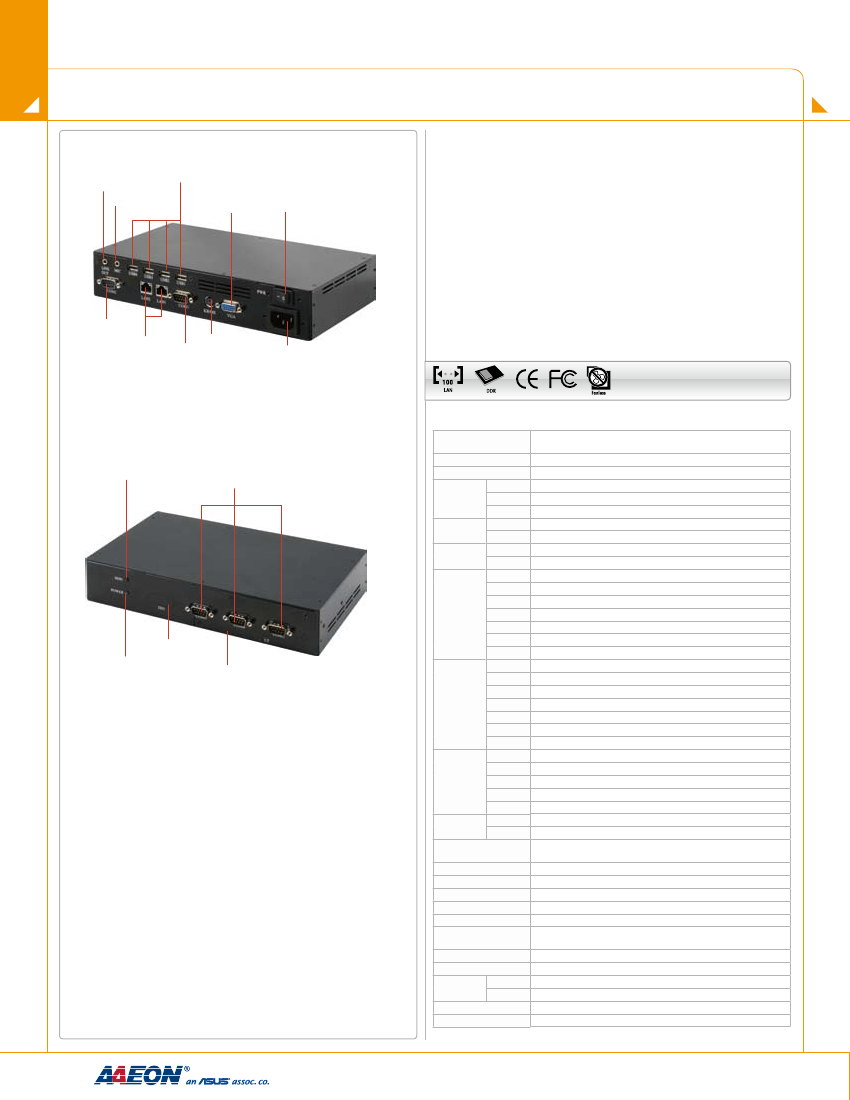

Features

Line-out

Mic-in

USB x 4

VGA

Power Switch

■

Fanless Design

■

2.5” Hard Disk Drive And

■

802.11b/g WiFi (Optional)

■

COM x 5, USB

CompactFlash™

x 4, 8-bit Digital I/O (Optional)

■

Built-in AC-in Or DC-in Power Supply

■

Desktop Or Wallmount (Optional)

COM

Ethernet x 2

COM

Keyboard + Mouse

Power Input

Specifications

CPU

Chipset

Hard Disk Drive LED

COM Ports

System Memory

Display

Interface

Storage

Device

Network

VGA

DVI

Others

SSD

HDD

LAN

Wireless

USB Host

LAN

Serial Port

Front I/O

DIO

Power LED

CompactFlash™

DIO

Audio

KB/MS

Others

USB Host

LAN

Serial Port

Rear I/O

DIO

Audio

KB/MS

Others

PCIe

PCI

Expansion

Mini Card

Mini PCI

Others

Indicator

Front

Rear

Intel® Celeron® M (65nm) Processors 1.86 GHz;

Core™ 2 Duo/ Core™ Duo (Optional)

AMD Geode™ LX + AMD CS5536

200 pin DDR SODIMM x 1, Max 1 GB for DDR333 and 512 MB for DDR400

D-SUB 15 x 1

—

Type 2 CompactFlash™ Slot x 1

2.5" Hard Disk Drive Bayx1

10/100 Base-TX Ethernet

802.11b/g WiFi (Optional)

—

9-pin D-Sub x 3

8-bit Programmable x 1 (Optional)

—

USB Type A x 4

RJ-45 x 2

9-pin D-Sub x 2

—

Line-out, Mic-in

PS/2 x 1

—

Mini-PCI x 1 (Internal)

—

Power LED x 1, HDD LED x 1

—

For DC Type: +9V ~ +30V Input

For AC Type: 100V ~ 240V Input

—

Fanless

Desktop or Wallmount (optional)

32°F ~ 104°F (0°C ~ 40°C)

-40°F ~ 176°F (-40°C ~ 80°C)

0.5g rms/ 5 ~ 502Hz/ random operation (Internal Hard Disk Drive active

Module)

10g peak acceleration (11 msec. duration) (Hard Disk Drive Module)

90,000

EMC

Safety

CE/FCC Class A

—

10" x 5.75" x 2” (254mm x 146mm x 49mm)

Heavy duty steel (1.7 kg/ 3.74 lb)

Power Requirement

Power Consumption

System Cooling

Mounting

Operating temperature

Storage Temperature

Anti-Vibration

Anti-Shock

MTBF (Hours)

Certification

Dimension (W x H x D)

Gross Weight

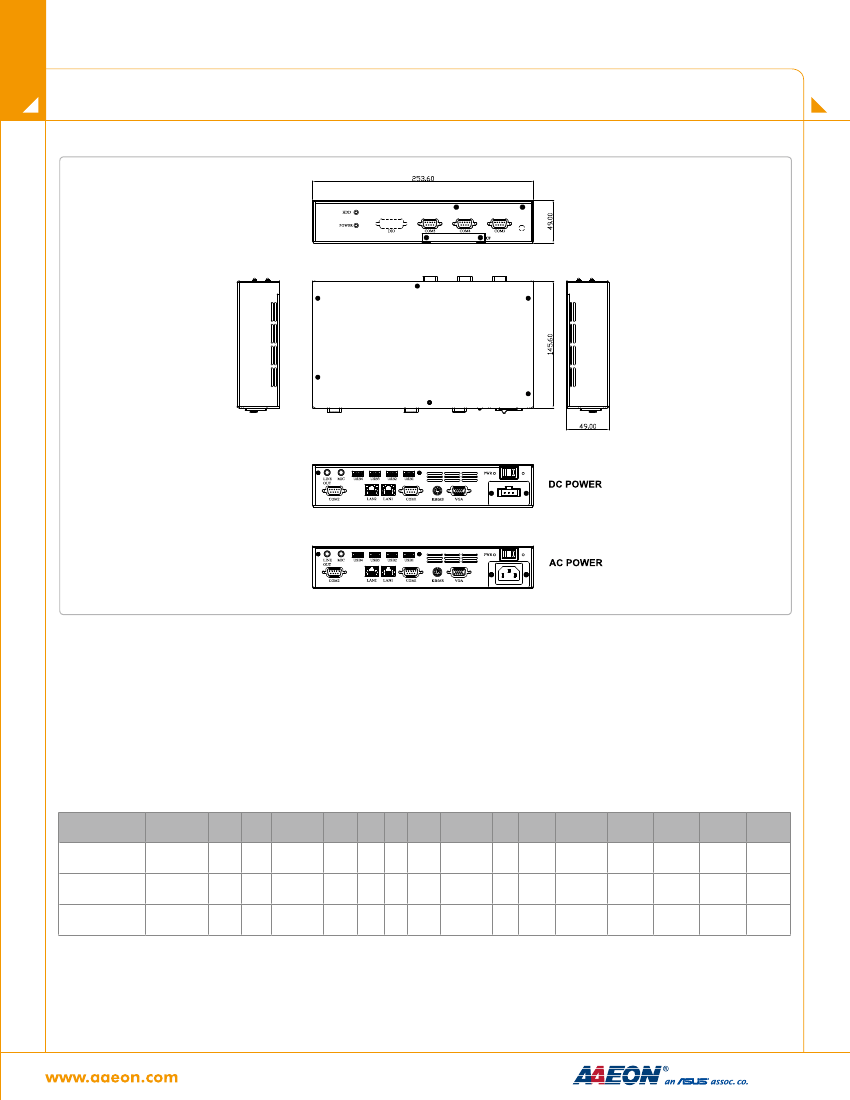

12-9

Note: All specifications are subject to change without notice.
