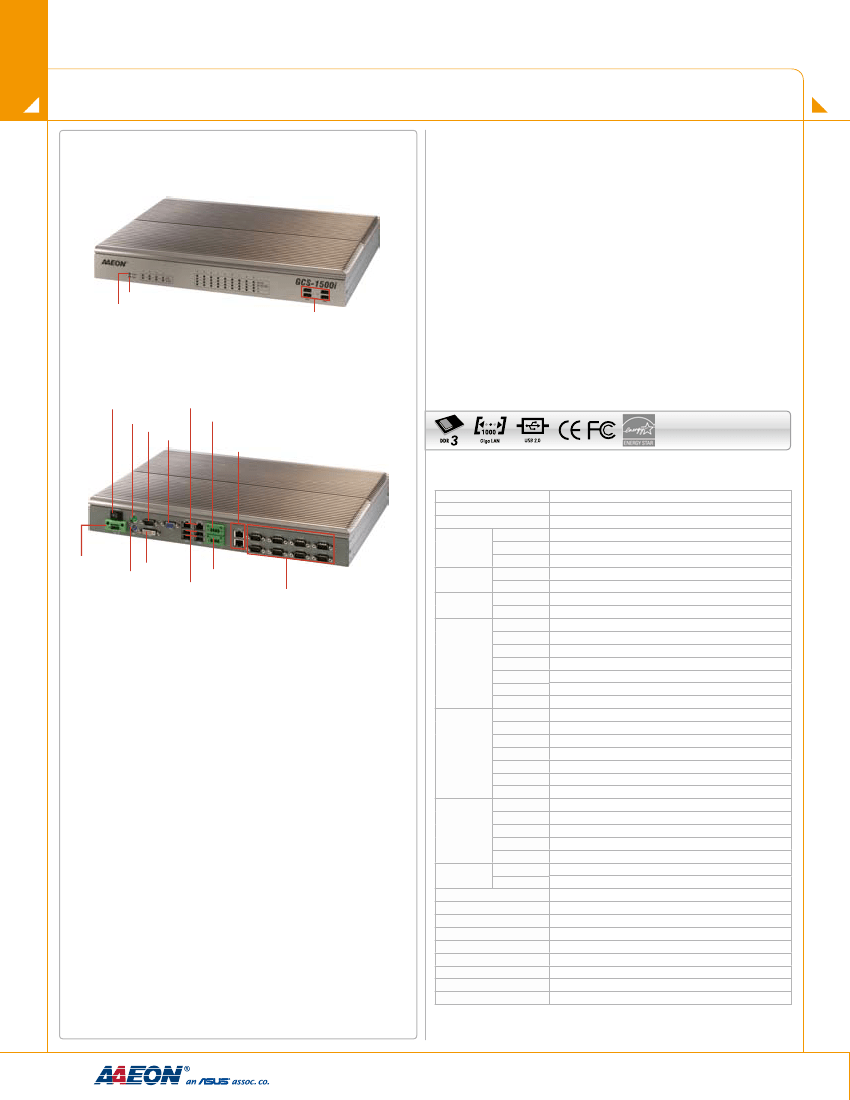

Green Communication Systems

GCS-1500i

Green Communication System with Intel® Core™ i7/i5 rPGA988 Processor, 9 COM, 4 GbE, 8 USB2.0

Features

Design

■

Intel® Core™ i7/i5 rPGA988, TDP 35W Max.

■

Intel® QM57

■

Dual-Channel DDR3 800/1066 Memory (Up to 8 GB)

■

10/100/1000Base-TX x 4

■

VGA x 1, DVI-I x 1

■

Serial Port With Isolation x 8, USB2.0 x 8, 8-Bit Digital I/O

■

Internal 2.5” Disk Drive Bay x 1

■

Wide Range 10~30V DC-In

■

1.5U 19” Rackmount, Fanless

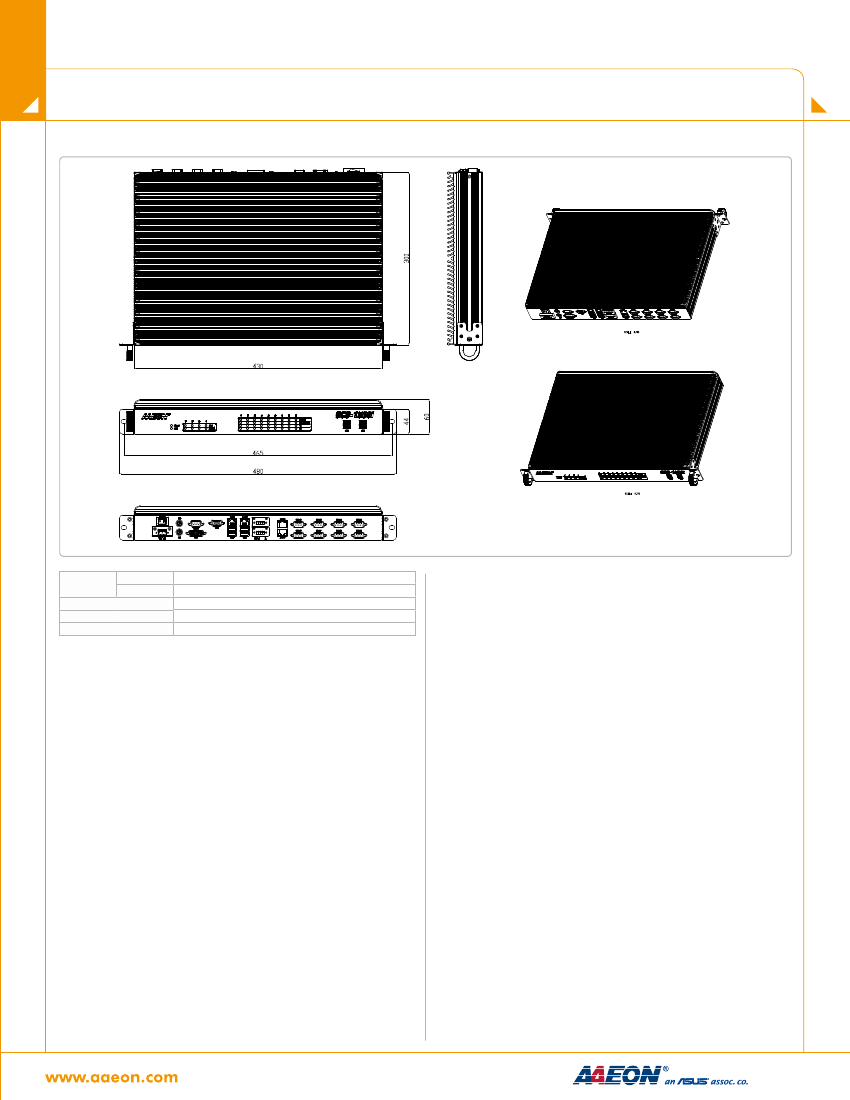

HDD LED

Power LED

USB x 4

Power Switch

Mouse

COM

GbE LAN x 2

DIO

VGA

GbE LAN x 2

Specifications

CPU

Chipset

System Memory

Display

Interface

DVI-I

Keyboard

DIO

USB x 4

COM x 8 (RS-232/422/485)

Network

Storage Device

VGA

DVI

Others

SSD

HDD

LAN

Wireless

USB Host

LAN

Serial Port

Front I/O

DIO

Audio

KB/MS

Others

USB Host

LAN

Serial Port

Rear I/O

DIO

Audio

KB/MS

Others

PCIe

PCI

Expansion

Mini card

Mini PCI

Others

Indicator

Front

Rear

Intel® Core™ i7/i5 rPGA988, max. TDP 35W

Intel® QM57

Up to 8 GB (DDR3 800/1066 MHz, SODIMM x 2 )

1

—

Optional

2.5" HDD x 1

10/100/1000Base-TX x 4

—

USB2.0 x 4

—

USB2.0 x 4

RJ-45 x 4

COM x 9 (with isolation x 8)(RS-232/422/485)

8-bit (4-in/4-out )

—

1

—

HDD x 1, PWR x 1, LAN x 6, COM x 9

—

10~30V DC-In

Intel® Core™ i7-620M, 35W

Passive Cooling

1.5U 19" Rackmount

32°F ~ 113°F (0°C ~ 45°C)

-4°F ~ 140°F (-20°C ~ 60°C)

1 g rms/ 5~500 Hz/ Operation

30 G with 11 m/sec, Operation

30,500

DC-in

Power Requirement

Power Consumption

System Cooling

Mounting

Operating Temperature

Storage Temperature

Anti-Vibration

Anti-Shock

MTBF

13-3

Note: All specifications are subject to change without notice.
