Industrial Chassis - Rackmount
ARC-625

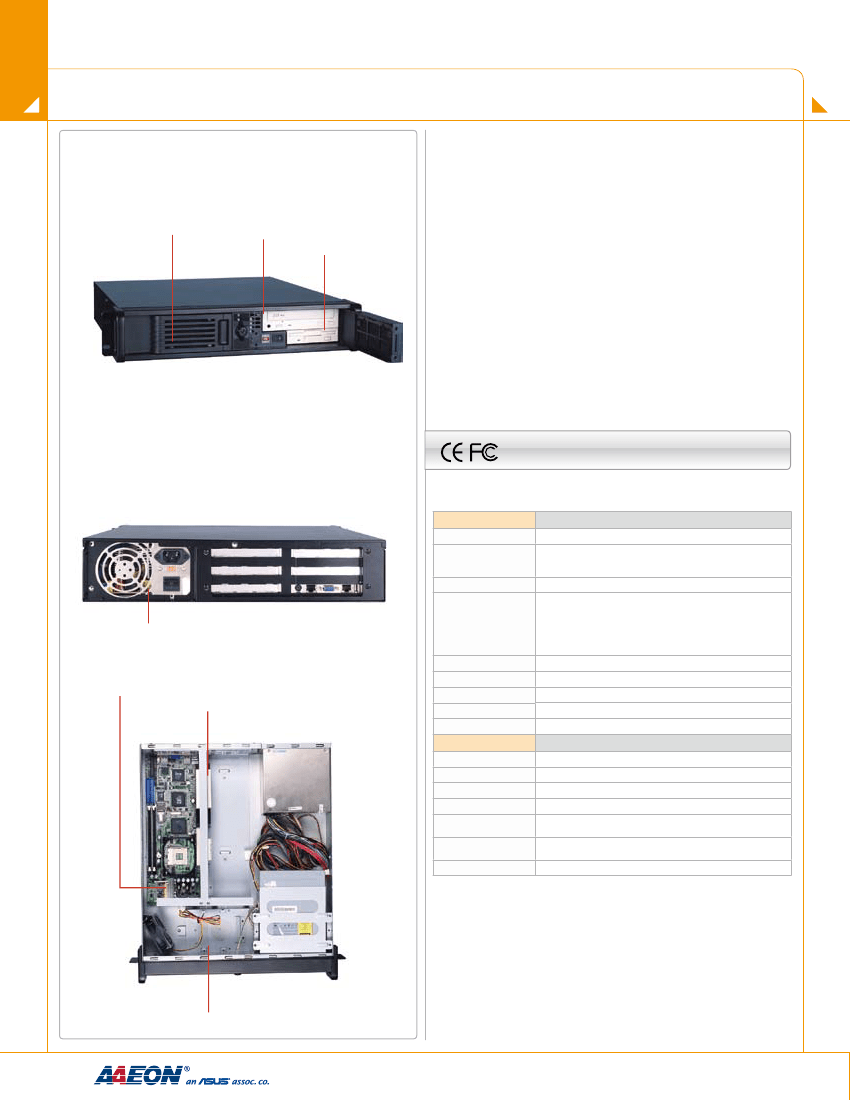

2U 6-Slot Rackmount Chassis, Full-Size CPU Cards Support
Features
■
■
2U Height 19”
Air Filter
One 5.25” Drive Bay
One 3.5” or 2.5” Drive Bay
Rackmount Chassis
■
■
6-Slot ISA/PICMG Bus Passive Backplanes
■
■
Standard PS2 AT/ATX Power Up To 400W
■
■
5.25” x 1 And 3.5”/2.5” Front Access Drive Bay
■
■
3.5” x 2 Internal Drive Bays
■
■
Keyboard Connector x 1 On Front Panel
■
■
Dual Lockable Front Doors Added Protection
Specifications
System
Construction
Storage
Internal:
System Fan
1.2mm SECC Zinc-Coated Steel
External:
3.5” Disk Drive x 1
5.25” CD-ROM or Removable Hard Disk Drive x 1
3.5” Hard Disk Drive Bay x 1
8cm Ball Bearing Fan with Removable Filter x 1
Power ON/OFF Switch x 1
Reset Button x 1
Power ON LED x 1
Hard Disk Drive Active LED x 1
LAN LED x1
Keyboard x 1
Black
19” (W) x 20.8” (D) x 3.5” (H) (482mm x 528mm x 85mm)
21.6” (W) x 27” (D) x 8.8” (H) (548mm x 685mm x 224mm)
22 lb (10 kg)
26.4 lb (12 kg)
PS/2 Or Mini Redundant Supply
Front Panel
Color
Dimensions
Support 6-Slot Full-Size CPU Cards
Butterfly Backplane Design
Carton Size
Net Weight
Gross Weight
Environmental
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Vibration
Shock
EMC
32°F ~ 122°F (0°C ~ 50°C)
-4°F ~ 176°F (-20°C ~ 80°C)
10 ~ 90%
10 ~ 90% @ 40°C, non-condensing
0.5 g rms/ 5 ~ 500 Hz/ operation (2.5” Hard Disk Drive)
1.5 g rms/ 5~ 500 Hz/ non operation
15 G peak acceleration (11 m sec. duration), operation
30 G peak acceleration (11 m sec. duration), non operation
CE/FCC Class A
Two Internal 3.5” Drive Bays Design
16-9
Note: All specifications are subject to change without notice.
ARC-625

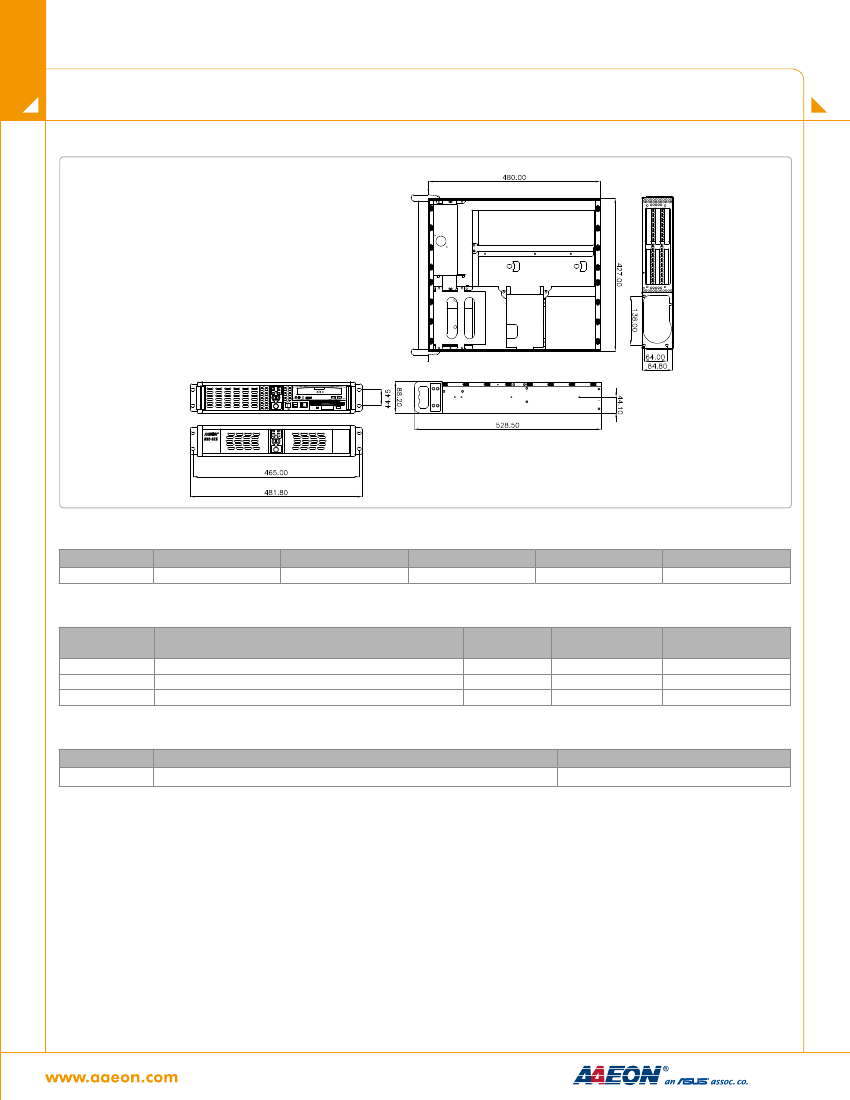

Dimension
Unit: mm
Power Supply Options
P/N
1757940014
ATX
TYPE
PFC Support
Active PFC
Input Voltage
Auto 100-240V
400W
Watt
PS2
Size
Passive Backplane Options
P/N
TF-BP-206VH-E4
TF-BP-206VH-P4
TF-BP-206VG-P2-A10
Description
Rackmount, PICMG 1.3, 6-Slot Backplane, 4 PCI-E, Single Segment, ATX
Rackmount, PICMG 1.3, 6-Slot Backplane, 4 PCI, Single Segment, ATX
Rackmount, PICMG, 6-Slot Backplane, 2 PCI, 3 ISA, Single Segment, ATX
Master Interface
PICMG 1.3
PICMG 1.3
PICMG
Slots
4/1 (PCI-E/ PICMG 1.3)
4/1 (PCI/ PICMG 1.3)
2/3/1 (PCI/ ISA/ PICMG)
ATX
ATX
ATX
Power Connector,
ATX Extend Function
Ordering Information
Model/Name
TF-ARC-625-B
Description
Rackmount 2U Chassis, Bare for 6-Slot backplane & Power PS2, PS_SW (ATX), Black
