6800-0-15-15-34-27-10-0 datasheet, PDF

Datasheet> All Categories > The connector> 6800-0-15-15-34-27-10-0

6800-0-15-15-34-27-10-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector; File Size89KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

6800-0-15-15-34-27-10-0 Overview

PCB Terminal, ROHS COMPLIANT

6800-0-15-15-34-27-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	6800
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

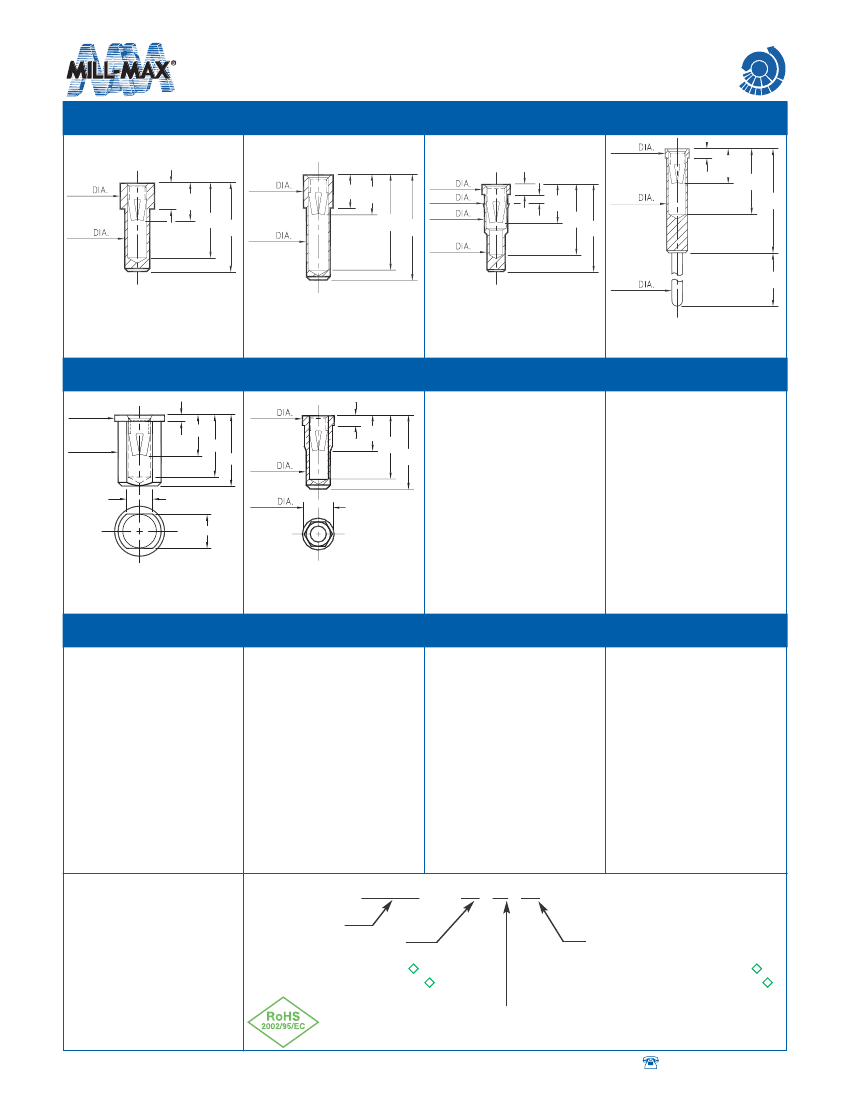

PIN RECEPTACLES

for 0,81 - 1,17 diameter pins (#34 contact)

CHI

PINS

8838

2,92

2,18 3,2

6,35

2,13

7,52

3100

2,29

2,51 3,2

8,2 8,97

8853

2,16

1,85

1,78

1,4

0,76

0,71 3,2

5,33

6,6

6800

2,29

0,76

3,3

7,62

1,98

12,7

1,83

1,02

7,62

8838-0-15-XX-34-XX-10-0

Solder mount in 2,18 min.

mounting hole

3100-0-15-XX-34-XX-10-0

Solder mount in 1,88 min.

mounting hole

8853-0-15-XX-34-XX-10-0

Press-fit in 1,8 mounting hole

6800-0-15-XX-34-XX-04-0

Solder mount in 2,03 min.

mounting hole

8206

3,68 DIA.

3,18 DIA.

0,46

3,23

4,57

5,23

0739

2,29

0,76

3,05

4,57

1,78

5,23

1,91

2,54

2,08

8206-0-15-XX-34-XX-10-0

Surface mount

0739-0-15-XX-34-XX-10-0

Hex press-fit in 1,98±0,05

plated thru hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

PART MANUFACTURED IN

INCHES, METRIC FOR REF ONLY

TOLERANCES ON:

LENGTHS:

± 0,13

DIAMETERS: ± 0,05

ANGLES:

± 2°

ORDER CODE: XXXX - 0 - 15 - XX - 34 - XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

5,08µm TIN/LEAD OVER NICKEL

5,08µm TIN OVER NICKEL



0,25µm GOLD OVER NICKEL



SPECIFY CONTACT FINISH:

5,08µm TIN/LEAD OVER NICKEL

5,08µm TIN OVER NICKEL



0,76µm GOLD OVER NICKEL



CONTACT

#34

CONTACT (DATA ON PAGE 212)

w w w. m i l l - m a x . c o m

153



516-922-6000

6800-0-15-15-34-27-10-0 Related Products

	6800-0-15-15-34-27-10-0	6800-0-15-80-34-27-10-0	6800-0-15-15-34-80-10-0	8206-0-15-01-34-01-10-0	RCWP120635K7DNEB1C	RCWP120635K7DNS21C	RCWP1206360KJKEA	RCWP1206360KJKEB	RCWP1206360KJKED	6800-0-15-01-34-27-10-0
Description	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal	Fixed Resistor, Thick Film, 0.25W, 35700ohm, 100V, 0.5% +/-Tol, -200,200ppm/Cel, Surface Mount, 1206, CHIP	Fixed Resistor, Thick Film, 0.25W, 35700ohm, 100V, 0.5% +/-Tol, -200,200ppm/Cel, Surface Mount, 1206, CHIP	RESISTOR, METAL GLAZE/THICK FILM, 0.25 W, 5 %, 100 ppm, 360000 ohm, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 360000ohm, 100V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 360000ohm, 100V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP	PCB Terminal
Is it Rohs certified?	conform to	conform to	conform to	incompatible	conform to	incompatible	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	compli	compli	compli	unknown	unknown	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is it lead-free?	Lead free	Lead free	Lead free	Contains lead	-	-	Lead free	-	-	Contains lead
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	CHIP	CHIP	SMT, 1206	CHIP	CHIP	-
