TGC4610-SM
K-Band Downconverter
Applications
Point-to-Point Radio
VSAT
Test Equipment & Sensors
4610
1232
6425
28-pin 5x5 mm QFN package
Product Features
RF Frequency Range: 17 – 27 GHz
IF Frequency: DC – 4 GHz
LO Frequency: 6.5 – 15.5 GHz
LO Input Power: 2 to 9 dBm
Conversion Gain: 15 dB
Noise Figure: ≤ 2.5 dB
Package Dimensions: 5.0 x 5.0 x 1.3 mm

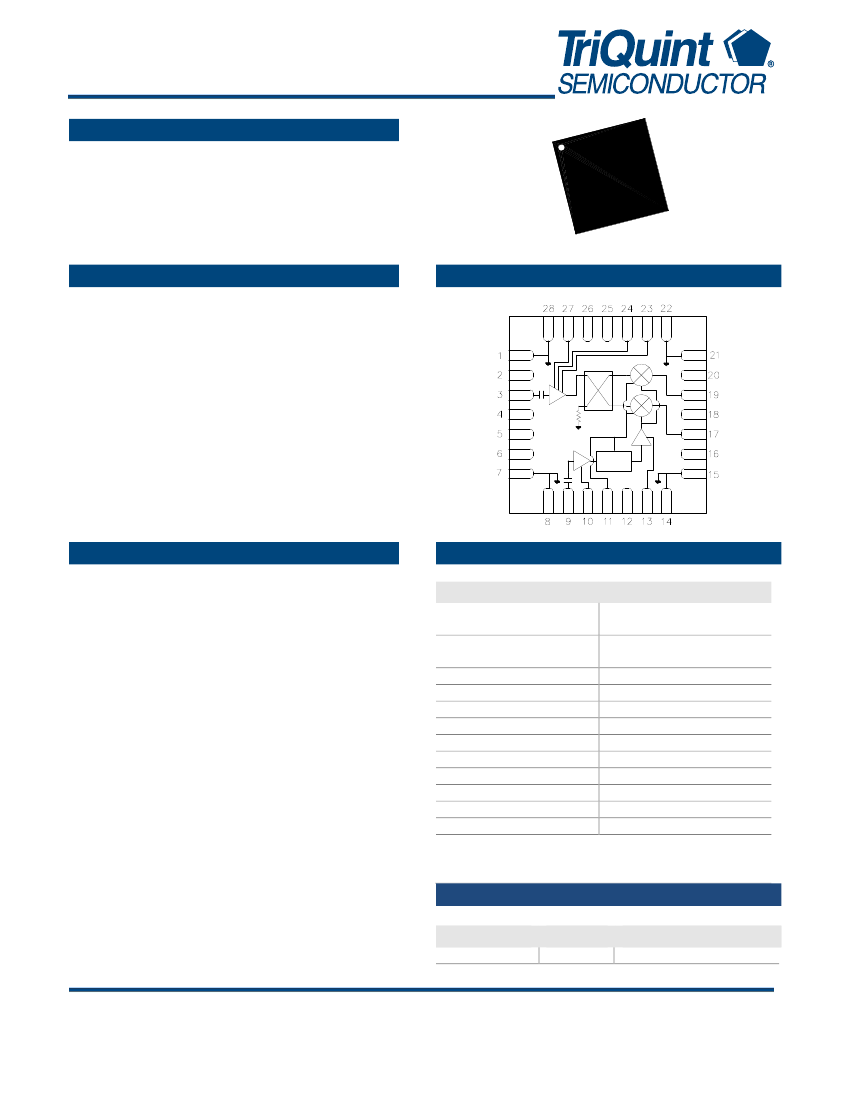

Functional Block Diagram
X2
General Description
The TriQuint TGC4610-SM is a K-Band Image
Reject Downconverter.
The TGC4610-SM
operates over an RF frequency range of 17 to 27
GHz and LO from 6.5 to 15.5 GHz with IF outputs
from DC to 4 GHz. This part is designed using
TriQuint’s pHEMT production process.
The TGC4610-SM integrates an LNA, and image
reject mixer driven by a multiplier. It typically
provides an Input IP3 of 3 dBm at –25 dBm input
power per tone and has a conversion gain of 15 dB
and noise figure of 2.5 dB or less.
The TGC4610-SM is available in a low-cost,
surface mount 28 lead 5x5 mm QFN package and
is ideally suited for Point-to-Point Radio, and K-
Band VSAT Ground Terminal applications.
Lead-free and RoHS compliant.
Evaluation Boards are available upon request.
Pin Configuration
Pin #
1, 7, 8, 14, 15, 21, 22,
28
2, 4, 5, 6, 12, 16, 18,
20, 25, 26
3
9
10
11
13
17
19
23
24
27
Function Label
GND
NC
RF IN
LO IN
VDLO1
VGX
VDLO23
IF1
IF2
VDRF4V
VDRF
VGRF
Ordering Information
Part No.
ECCN
Description
TGC4610-SM
EAR99
K-band Downconverter
Standard T/R size = 500 pieces on a 7” reel.
Data Sheet: Rev F 8-13-14
© 2014 TriQuint Semiconductor, Inc.
-
1 of 26
-
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
®
TGC4610-SM
K-Band Downconverter
Specifications
Absolute Maximum Ratings
Parameter
VDRF
VDLO
IDRF
IDLO
VGX, VGRF
Power Dissipation
RF Input Power, 50Ω, T = 25C
Channel Temperature, Tch
Storage Temperature
Recommended Operating Conditions
Parameter
Min
Typ
+25
3
68
3
160
-0.65
-1.1
2
9
Rating
6V
6V
150 mA
375 mA
-3 to 0 V
1.6 W
16.7 dBm
200
C
-65 to 125
C
Max Units
+85
C
V
mA
V
mA
V
V
dBm
Operating Temp. Range -40
VDRF
IDRF
VDLO
IDLO
VGRF
VGX
LO Input Power
Operation of this device outside the parameter ranges
given above may cause permanent damage.
Electrical specifications are measured at specified test
conditions. Specifications are not guaranteed over all
recommended operating conditions.
Electrical Specifications
Test conditions unless otherwise noted: IF Input Power = -25 dBm, LO Input Power = 5.5 dBm, VGX = -1.1 V, VDLO = 3 V,
IDLO = 160 mA, VDRF = 3 V, IDRF = 68 mA, VGRF = -0.65 V.
Parameter
RF Frequency Range
LO Frequency Range
IF Frequency Range
LO Input Power
Drain Current, LO (IDLO)
Drain Current, RF (IDRF)
Conversion Gain
Input Third Order Intercept
Point (IIP3)
18 to 24 GHz
24 to 28 GHz
Image Rejection (IMR)
Noise Figure
Conditions
Min
17
6.5
DC
2
Typ
Max
27
15.5
4
9
Units
GHz
GHz
GHz
dBm
mA
mA
dB
dBm
dB
dB
11.5
160
68
15
18.5
0
-2
3
2
20
2.5
Data Sheet: Rev F 8-13-14
© 2014 TriQuint Semiconductor, Inc.
-
2 of 26
-
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
®
TGC4610-SM
K-Band Downconverter
Specifications
Thermal and Reliability Information
Parameter
Thermal Resistance, θ
JC
, measured to back of package

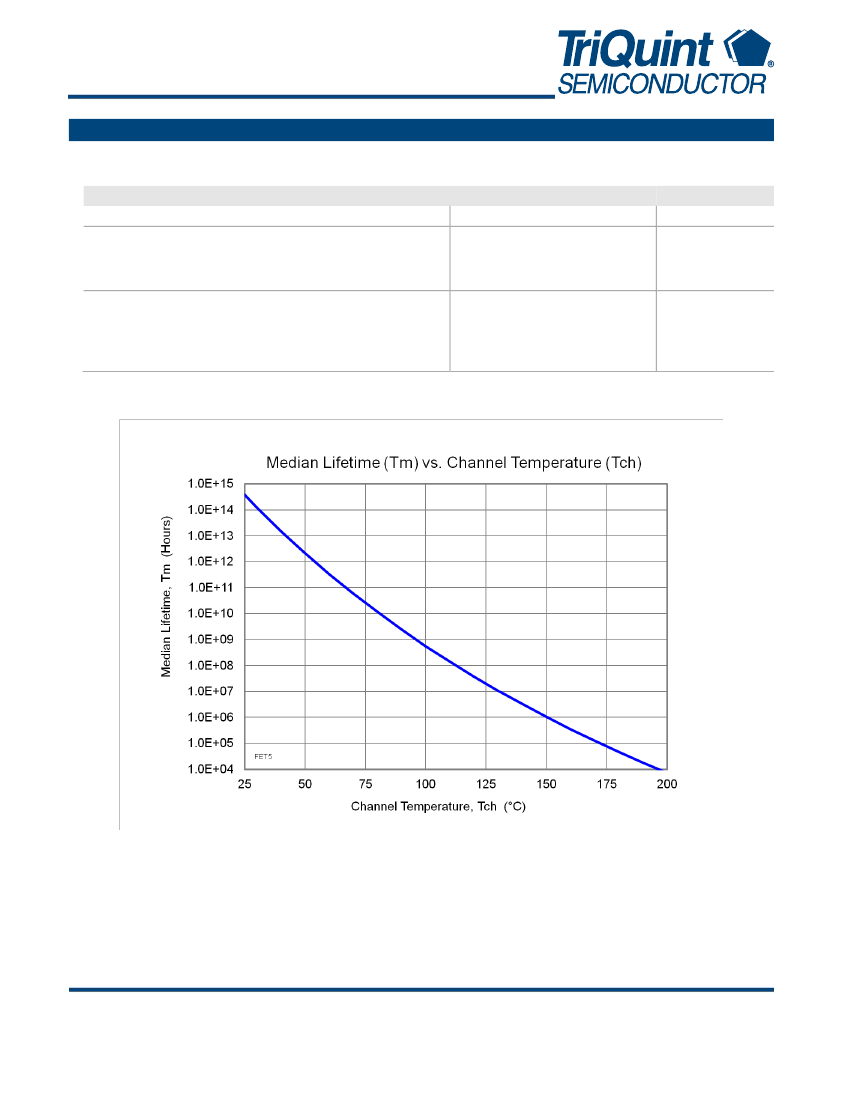

Channel Temperature (Tch), and Median Lifetime (Tm)
Condition
Tbase = 85 °C
Tbase = 85 °C,
VDRF = 3 V, IDRF = 68 mA
VDLO = 3 V, IDLO = 160 mA
Pdiss = 0.68 W
Tbase = 85 °C
VDRF = 3 V, IDRF = 68 mA
VDLO = 3 V, IDLO = 220 mA
Pin = -25 dBm
Pdiss = 0.86 W
Rating
θ
JC
= 73.5 °C/W
Tch = 135 °C
Tm = 5.8 E+6
Hours
Tch = 148 °C
Tm = 1.3 E+6
Hours
Channel Temperature (Tch), and Median Lifetime (Tm)
Under RF Drive
Data Sheet: Rev F 8-13-14
© 2014 TriQuint Semiconductor, Inc.
-
3 of 26
-
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
®
TGC4610-SM
K-Band Downconverter

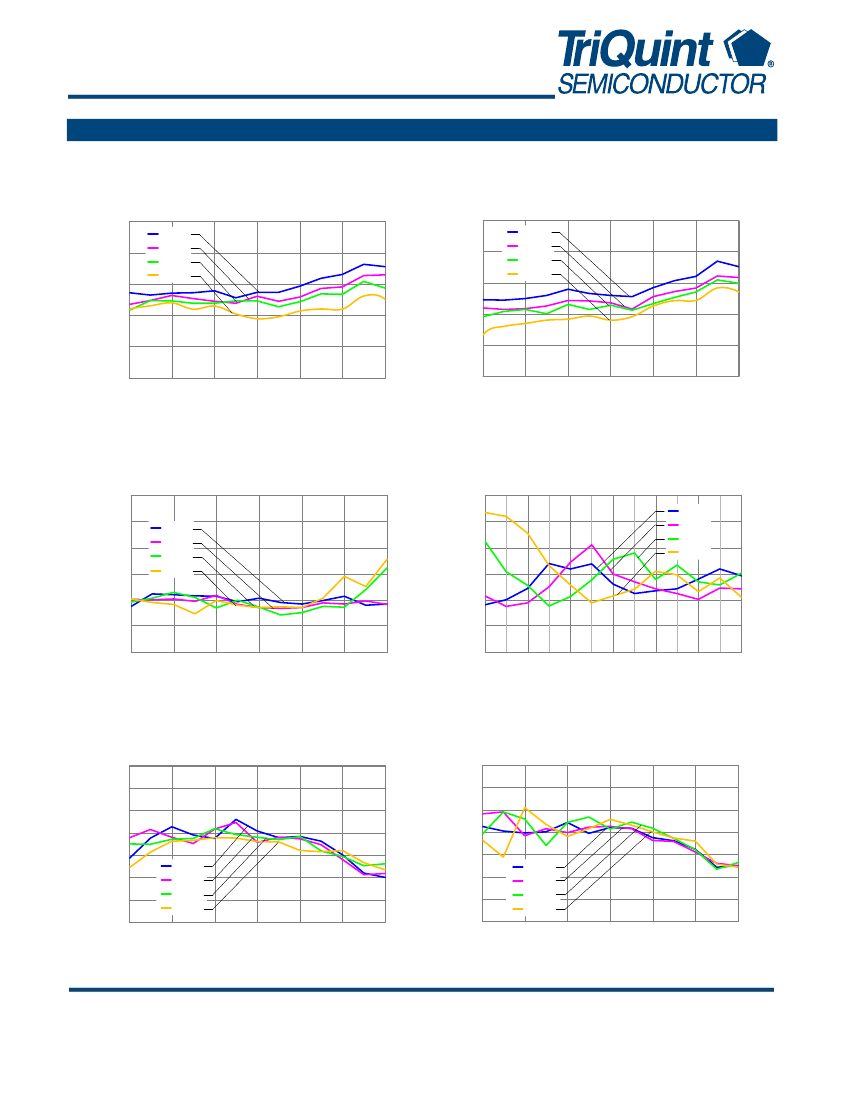

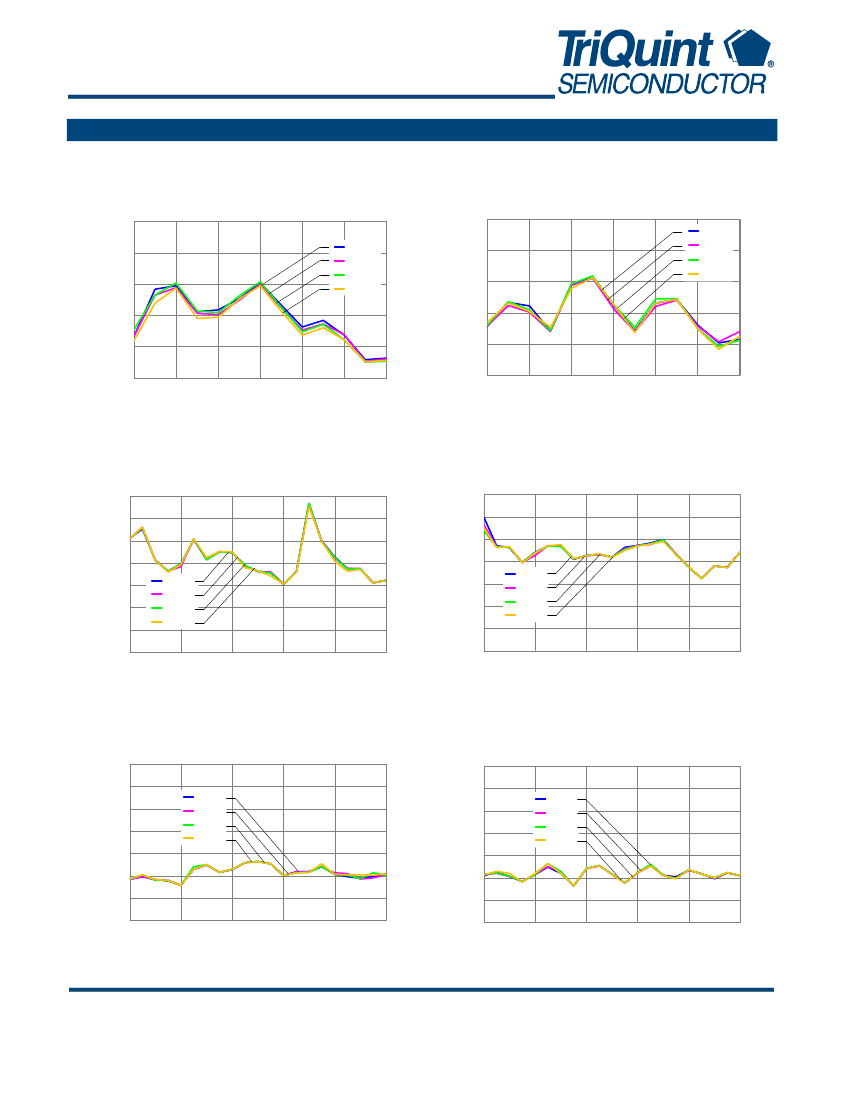

Typical Performance
IF Input Power = -25 dBm, VDLO = 3 V, IDLO = 160 mA, VDRF = 3 V, IDRF = 68 mA, VGRF = -0.65 V.
Data taken with external IF hybrid.
Conversion Gain vs. RF vs. IF
LO = 5.5 dBm, VGX = -1.1 V, LSB, 25 C
Conversion Gain vs. RF vs. IF
LO = 5.5 dBm, VGX = -1.1 V, USB, 25 C
20
Conversion Gain (dB)
Conversion Gain (dB)
20
1 GHz
2 GHz
3 GHz
4 GHz
18
16
14
12
18
16
14
12
1 GHz
2 GHz
3 GHz
4 GHz
10
16
18
20
22
24
RF Frequency (GHz)
26
28
10
16
18
20
22
24
RF Frequency (GHz)
26
28
Image Rejection vs. RF vs. IF
LO = 5.5 dBm, VGX = -1.1 V, LSB, 25 C
Image Rejection vs. RF vs. IF
LO = 5.5 dBm, VGX = -1.1 V, USB, 25 C
60
1 GHz
2 GHz
3 GHz
4 GHz
60
Image Rejection (dB)
Image rejection (dB)
50
40
30
50
40
30
1 GHz
2 GHz
3 GHz
4 GHz
20
10
20
10
0
16
18
20
22
24
RF Frequency (GHz)
26
28
0
16
18
20
22
24
RF Frequency (GHz)
26
28
Input IP3 vs. RF vs. IF
LO = 5.5 dBm, VGX = -1.1 V, LSB, 25 C
Input IP3 vs. RF vs. IF
LO = 5.5 dBm, VGX = -1.1 V, USB, 25 C
10
10
8
Input IP3 (dBm)
Input IP3 (dBm)
8
6
4
2
0
1 GHz
2 GHz
3 GHz
4 GHz
6
4
2
0
1 GHz
2 GHz
3 GHz
4 GHz
-2
-4
16
-2
-4
20
22
24
RF Frequency (GHz)
26
28
16
18
18
20
22
24
RF Frequency (GHz)
26
28
Data Sheet: Rev F 8-13-14
© 2014 TriQuint Semiconductor, Inc.
-
4 of 26
-
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
®
TGC4610-SM
K-Band Downconverter
Typical Performance
IF Input Power = -25 dBm, VDLO = 3 V, IDLO = 160 mA, VDRF = 3 V, IDRF = 68 mA, VGRF = -0.65 V.
Data taken with external IF hybrid.
RF Isolation vs. RF vs. IF
LO = 5.5 dBm, VGX = -1.1 V, LSB, 25 C
RF Isolation vs. RF vs. IF
LO = 5.5 dBm, VGX = -1.1 V, USB, 25 C
15
RF Isolation (dB)
15
1 GHz
2 GHz
3 GHz
4 GHz
RF Isolation (dB)
10
5
0
-5
10
5
0
-5
1 GHz
2 GHz
3 GHz
4 GHz
-10
16
18
20
22
24
RF Frequency (GHz)
26
28
-10
16
18
20
22
24
RF Frequency (GHz)
26
28
LO Isolation vs. LO vs. IF
LO = 5.5 dBm, VGX = -1.1 V, LSB, 25 C
LO Isolation vs. LO vs. IF
LO = 5.5 dBm, VGX = -1.1 V, USB, 25 C
70
70
60
60
LO Isolation (dB)
LO Isolation (dB)
50
40
30
20
1 GHz
2 GHz
3 GHz
4 GHz
50
40
30
20
1 GHz
2 GHz
3 GHz
4 GHz
10
0
6
10
0
10
12
LO Frequency (GHz)
14
16
8
6
8
10
12
LO Frequency (GHz)
14
16
2 x LO Isolation vs. LO vs. IF
LO = 5.5 dBm, VGX = -1.1 V, LSB, 25 C
2 x
vs. RF Output and
vs. IF
IMR
LO Isolation vs. LO
IF Input
LO = 5.5 dBm, VGX
=
=
6
-1.1 V,
USB, 25 °C
Vcontrol = 0 V, LO
dBm,
USB, 25 C
70
2 x LO Isolation (dB)
70
50
1 GHz
2 GHz
3 GHz
4 GHz
60
50
40
30
20
2 x LO Isolation (dB)
Image Rejection Ratio (dB)
60
40
50
30
40
1 GHz
2 GHz
3 GHz
4 GHz
10
0
6
8
10
12
LO Frequency (GHz)
14
16
30
20
20
10
10
0
0
6
10
8
11
1.0 GHz
2.0 GHz
3.0 GHz
3.5 GHz
12
10
13
12
14
LO Frequency (GHz)
RF Frequency (GHz)
14
15
16
16
Data Sheet: Rev F 8-13-14
© 2014 TriQuint Semiconductor, Inc.
-
5 of 26
-
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
®
