SaRonix
PrO
Programmable Clock Oscillator
TM
5V, HCMOS, TTL, SMD
Technical Data
Frequency Range:
Frequency Stability:
1MHz to 125MHz
PrO
TM
S8002 Ceramic Series
±25*, ±50 or ±100 ppm over all conditions: calibration
tolerance, operating temperature, input voltage change, load
change, 30 day aging, shock and vibration.
Temperature Range:
Operating:
Storage:
Supply Voltage:
Recommended Operating:
Supply Current:
5TTL +15pF Load:
30pF/15pF Load:
Standby Current:
Output Drive:
Symmetry:
-20 to +70°C:
-40 to +85°C:
Rise & Fall Times:
Logic 0:
Logic 1:
Load:
Period Jitter RMS:
-20 to +70°C or -40 to +85°C
-55 to +125°C
5V ±10%
ACTUAL SIZE
40mA from 1 to 40MHz, 50mA from 40+ to 125MHz
40mA from 1 to 50MHz, 50mA from 50+ to 125MHz
50µA max (see part number builder, use option S)
@ 50% V
DD
@ 50% V
DD
@ 1.5V
@ 1.5V
HCMOS
HCMOS
TTL
TTL
1 to 50MHz
50+ to 125MHz
1 to 27MHz
27+ to 125MHz
45/55%
40/60%
45/55%
40/60%
40/60%
40/60%
40/60%
40/60%
5ns max 20% to 80% V
DD
, 0.8 to 2V (TTL)
10% V
DD
max, 0.5V max (TTL)
90% V
DD
min, 2.5V min (TTL)
30pF max 1 to 50MHz, 15pF max 50+ to 125MHz or
5TTL +15pF 1 to 125MHz
17ps typ, 42ps max 33+ to 125MHz
33ps typ, 100ps max 1 to 33MHz
Description
A crystal controlled, HCMOS/TTL com-
patible oscillator with an internal pro-
gramming feature that allows SaRonix to
supply any frequency in the 1 to 125MHz
range. This technology significantly re-
duces lead-times from weeks to days.
The parts exhibit the same low power,
precise rise and fall times, tight symme-
try and HCMOS/TTL compatible drive
capability as conventional SaRonix SMD
oscillators. The parts feature tri-state en-
able or standby control on pad 1. The
packages are miniature ceramic SMD,
measuring 5 x 7 x 1.8 mm.
Applications & Features
• Quick delivery of any frequency be-
tween 1 and 125MHz.
• Suited for use with new HCMOS MPUs
and DSPs.
• Tri-State Output or Standby Mode
• High Drive HCMOS capability
• Stabilities of ±25, ±50, ±100ppm
• 3.0 & 3.3V versions are available,
see separate data sheet
• Available on tape & reel; 16mm tape,
500pcs per reel
Mechanical:
Shock:
Solderability:
Terminal Strength:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Environmental:
Thermal Shock:
Moisture Resistance:
Part Numbering Guide
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-202,
MIL-STD-202,
Method 2002, Condition B
Method 2003
Method 2004, Conditions D
Method 2007, Condition A
Method 215
Method 210, Condition I or J
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
S8002
Series
SaRonix Programmable Oscillator
Package
C = Ceramic SMD
P = Output Enable
S = Standby
C S H B – 106.2500 (T)
Tape & Reel
full reel increments only (500pcs)
Frequency
Stability Tolerance
*
A = ±25ppm, -20 to +70°C
B = ±50ppm, -20 to +70°C
C= ±100ppm, -20 to +70°C
E = ±50ppm, -40 to +85°C
F = ±100ppm, -40 to +85°C
Type
H = 5V, CMOS
T = 5V, TTL
*
Please contact SaRonix for available frequencies @ ±25ppm.
DS-214
REV A
SaRonix
141 Jefferson Drive • Menlo Park CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
SaRonix
PrO
Programmable Clock Oscillator
TM
5V, HCMOS, TTL, SMD
Technical Data

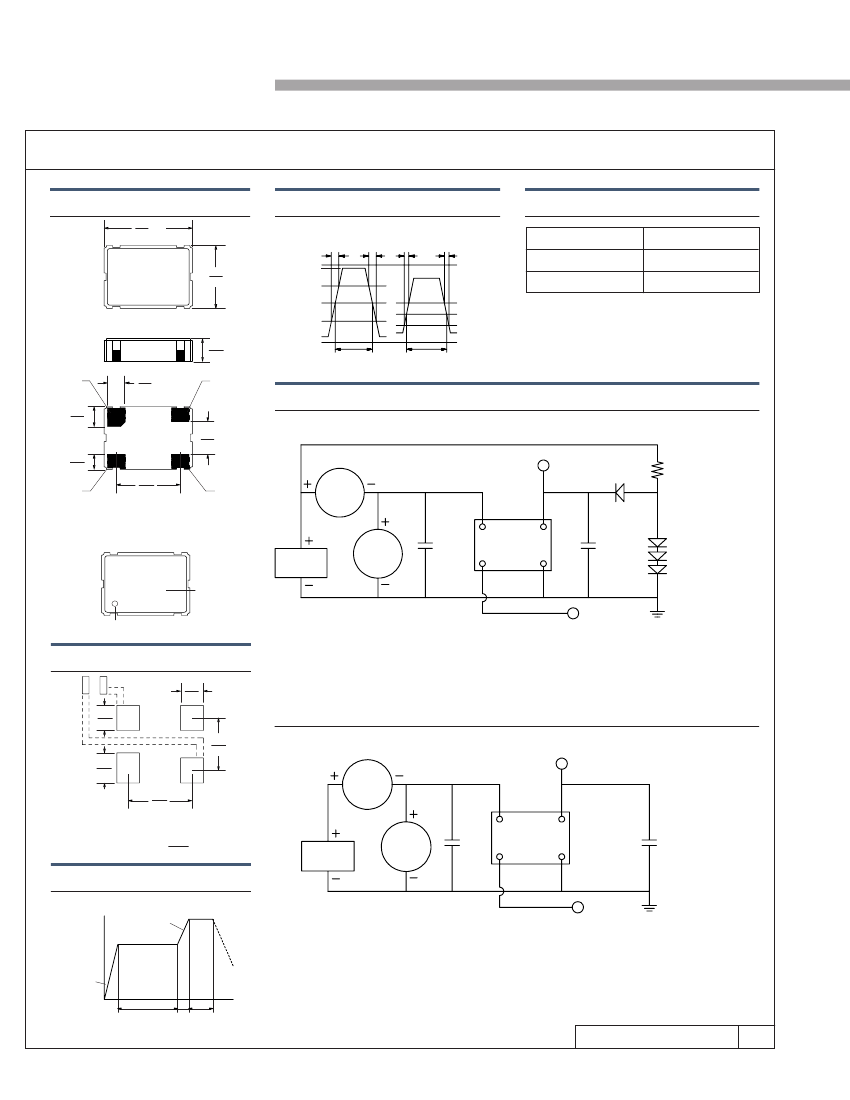

Package Details
7.2
max
.284
T
r
5.2 max
.205
LOGIC 1
80% V
DD
50% V
DD
20% V
DD
LOGIC 0
1.8 max
.071
Pad 1
Tri-State
Control
1.6
.063
2.8
.110
1.2
.047
Pad 4
V
DD
5.08
.200
Pad 3
OUTPUT
1.4
.055
Pad 2
GND
SYMMETRY
SYMMETRY
2.5 VDC
1.5 VDC
0.5 VDC
GND
PrO
TM
S8002 Ceramic Series
Output Waveform
CMOS
T
f
T
r
TTL
T
f
V
DD
Tri-State or Standby Logic Table
Pin 1 Input
Logic 1 or NC
Logic 0 or GND
Pin 3 Output
Oscillation
High Impedance/Standby
Required Input Levels on Pin 1:
Logic 1 = 2.0V min
Logic 0 = 0.8V max
Control Input: Disable Output Delay: 100ns max
Test Circuits
TEST
POINT
mA
M
Pin 4
Pin 3
OUT
V
CC
OSCILLATOR
GND
Pin 2
C
L
= 15pF
( Note A )
R
L
= 780Ω
Marking Format
(Exact location of items may vary)
POWER
SUPPLY
Date Code
VM
.01µF
( Note B )
Pin 1
MMBD7000 or Equiv
S8002C
YYWW
denotes pad 1
Recommended Land Pattern
TRI-STATE INPUT
NOTE: A. C
L
includes probe and fixture capacitance.
NOTE: B. An external .01µF bypass capacitor close to
package ground and V
CC
pin is required
TTL (Used at SaRonix)
*
2.0
.079
4
3
1.8
.071
4.4
.173
2.4
.094
1
5.08
.200
2
mA
M
Pin 4
V
CC
POWER
SUPPLY
VM
.01µF
( Note B )
Pin 1
TEST
POINT
Pin 3
OUT
GND
Pin 2
C
L
= 30pF, 1 to 50MHz
C
L
= 15pF, 50+ to 125 MHz
( Note A )
*
External high frequency power supply decoupling required.
Scale: None ( Dimensions in
mm
)
inches
OSCILLATOR
Solder Reflow Guide
Temperature – °C
250
200
150
Reflow 240 max
4°C/sec max
Preheat 183 ±10°C
Cooling
TRI-STATE INPUT
NOTE: A. C
L
includes probe and fixture capacitance.
NOTE: B. An external .01µF bypass capacitor close to
package ground and V
CC
pin is required
HCMOS (Used at SaRonix)
All specifications are subject to change without notice.
4°C/sec max
Time
1 – 2 minutes
10 sec max
DS-214
REV A
SaRonix
