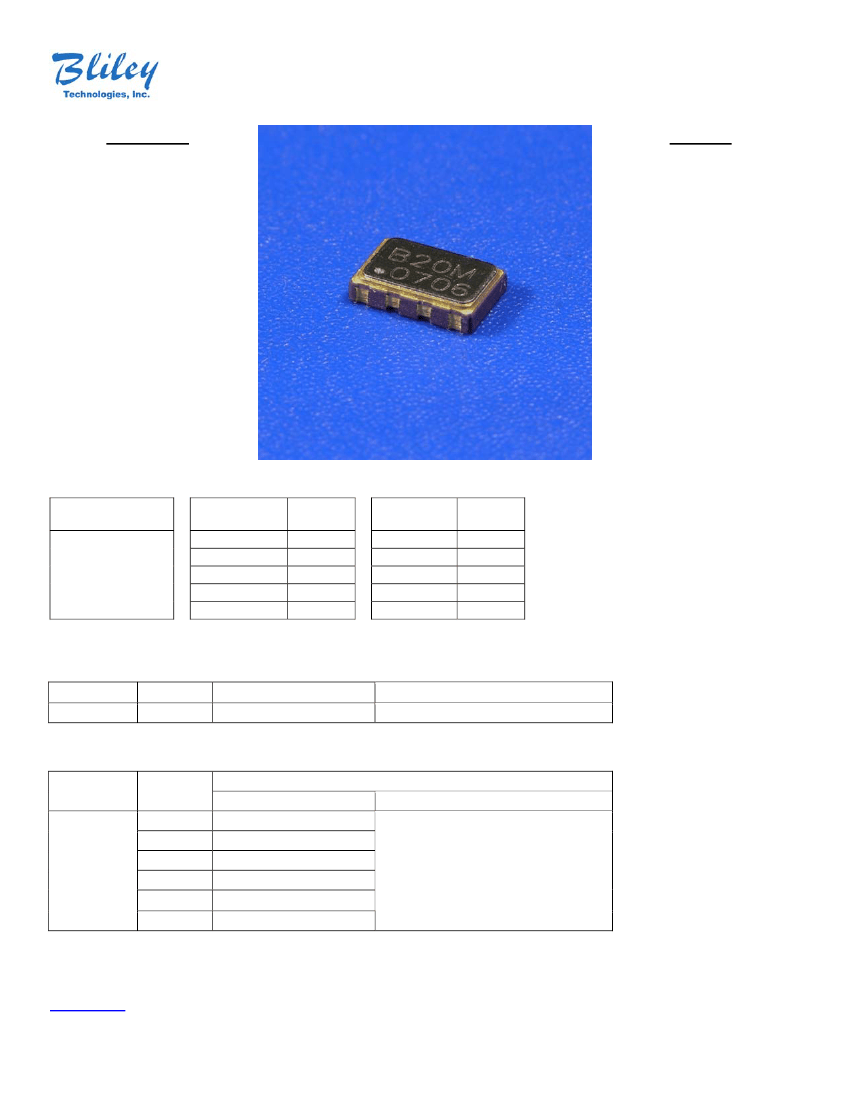

3 x 5 mm TCVCXO
Description:
The TV105A
Temperature
Compensated Voltage
Controllable Crystal
Oscillator (TCVCXO)
Series products provide a
wide range of options in
temperature stability,
operating frequency
range, and electronic
frequency adjustment in
a miniature 3 x 5 mm
ceramic SMD package.
TV105A Series
•
Features:
Available in frequencies from
10 to 40 MHz with 13 MHz,
14.4 MHz, 20 MHz, and other
frequencies as standards
+/-5 to +/- 20 ppm pull range
Clipped Sine Wave output
Standard 3 x 5 mm ceramic
SMD package
RoHS-6 Lead-free compliant
•
•
•
•
Frequency Range, Operating Temperature, and Frequency Stability:
Frequency
Range
10 to 26 MHz
3.3 and 5 volt
26 to 40 MHz
3.3 volt only
Operating
Temperature
-20 to +70° C
-40 to +85° C
0 to +55° C
-10 to +60° C
-30 to +85° C
Product
Code
C
D
E
F
G
Frequency
Stability
+/- 0.5 ppm
+/- 1.0 ppm
+/- 1.5 ppm
+/- 2.0 ppm
+/- 2.5 ppm
Product
Code
A
B
C
D
E
**For different frequency stabilities and other temperature ranges, consult Bliley Sales
+/- 0.5 ppm available only with option C,E,F for operating temp. range.
Aging:
(typical at 10 MHz after 30 days continuous operation)
Frequency
10 MHz
Timeframe
1st Year
Aging
+/- 1.0 ppm
Product Code
N/A
Phase Noise:
Frequency
Offset
1 Hz
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
Phase Noise (Typ.)
- 60 dBc/Hz
- 85 dBc/Hz
-115 dBc/Hz
-135 dBc/Hz
-148 dBc/Hz
-150 dBc/Hz
Product Code
10.0 MHz
N/A
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 4
Tel
(814) 838-3571
Rev 1.2
3 x 5 mm TCVCXO
Supply Voltage (Vs):
Power Supply (Vs)
Product Code
+3.3 Vdc +/-10%
C
+5.0 Vdc +/-10%
D
TV105A Series
Current Consumption:
Clipped Sine Wave
Supply Current
2.5 mA
Environmental:
Storage Temperature
-55 to +125° C
Output Waveform:
Clipped Sine Wave
Product
Code
N/A
Output Level 0.8 V p-p min.
Load
10K // 10 pF
Pulling Range:
Tuning
None(TCXO) +/-5 ppm +/-8 ppm +/-10 ppm +/-12 ppm +/-15 ppm +/-20 ppm
Range
Product
T
A
B
C
D
E
F
Code
**Note: Maximum pull available dependent upon required temperature stability
Ordering Options:
Operating
Frequency Supply
Temperature Stability
Voltage
C
A
C
D
B
D
E
C
F
D
G
E
Pulling
Range
T
A
B
C
D
E
F
Operating
Frequency
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
xx.xxxx MHz
TV105A C A C A 10.0000 MHz
Product Selection Code (refer to the above example):
This part is RoHs compliant, -20 to +70C, +/- 0.50pm, 3.3 volt clipped sine wave
with +/- 5 ppm pull, 10MHz operating frequency.
** Not all combinations available in this product
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 4
Tel
(814) 838-3571
Rev 1.2

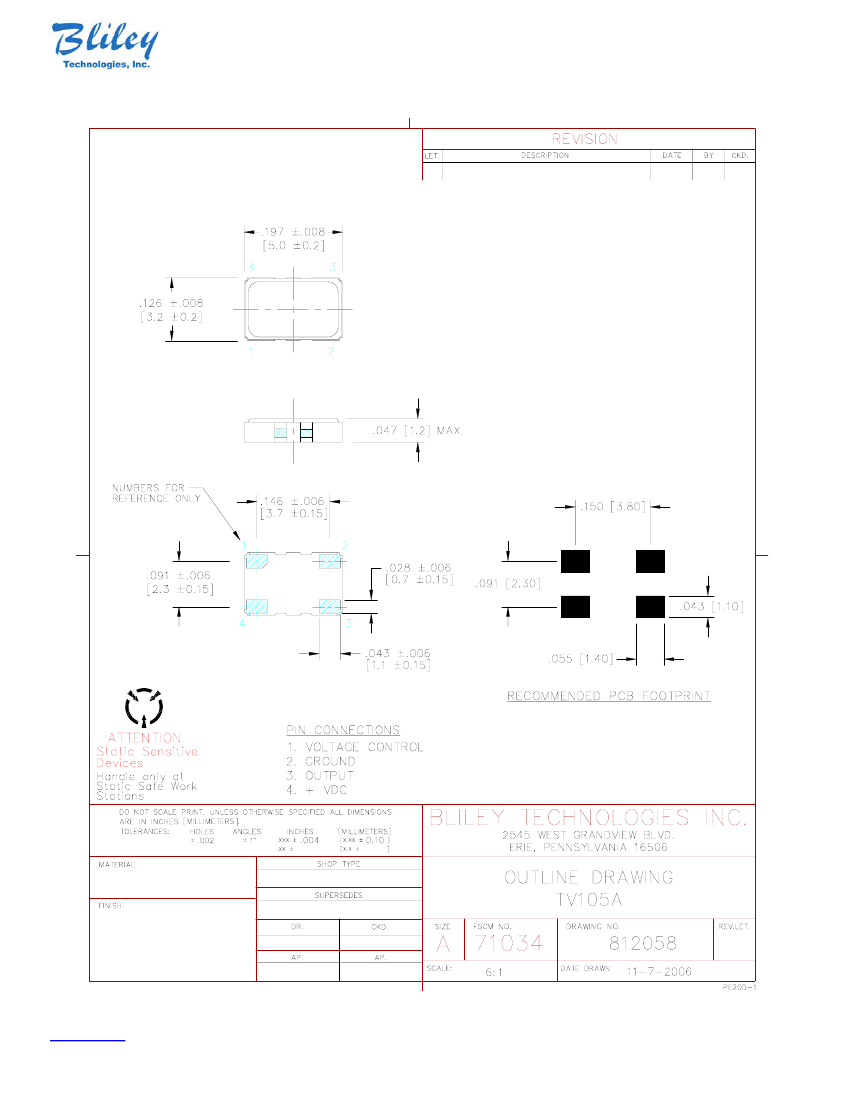

3 x 5 mm TCVCXO
TV105A Series
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 3 of 4
Tel
(814) 838-3571
Rev 1.2
3 x 5 mm TCVCXO
TV105A Series
How to Order This Product:
Contact Bliley Technologies with Product Selection Code from Ordering Options Section above.
Attn:
Sales @ Bliley
Fax:
814-833-2712
Phone: 814-838-3571
Email:
info@bliley.com
Web:
www.bliley.com
Date: ____________
From:
Name: ____________________ Company: ___________________
Fax: ______________________ Phone: _____________________
Email: _________________________________________________
Quantities to Quote: ______________ Target Price: $___________
Application / Reference #: _________________________________
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 4 of 4
Tel
(814) 838-3571
Rev 1.2
