DMY0418M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DMY0418M

Preview

DMY0418M: Description4000 MHz - 18000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9 dB CONVERSION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size43KB，2 Pages; ManufacturerMITEQ Inc

Download Datasheet Parametric Compare View All

DMY0418M Overview

4000 MHz - 18000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9 dB CONVERSION LOSS-MAX

DMY0418M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	MITEQ Inc
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY, HIGH ISOLATION
structure	MODULE
Maximum frequency conversion loss	9 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	4000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

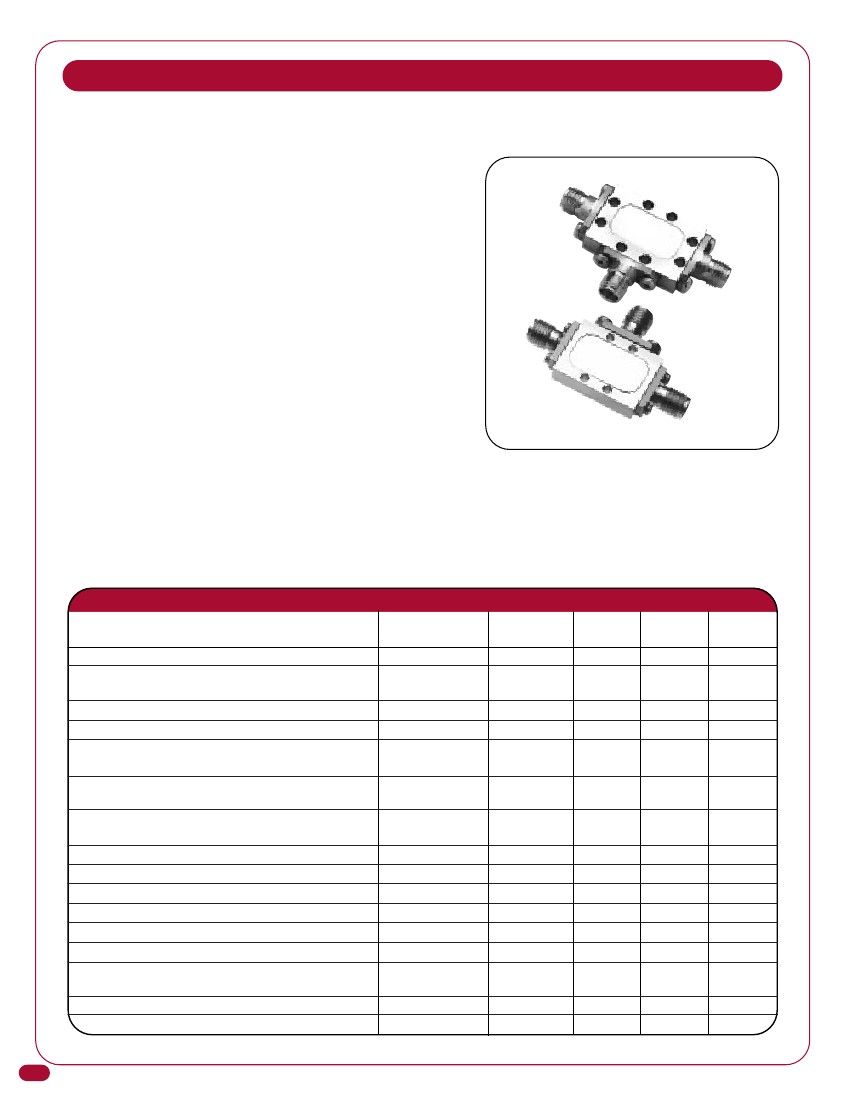

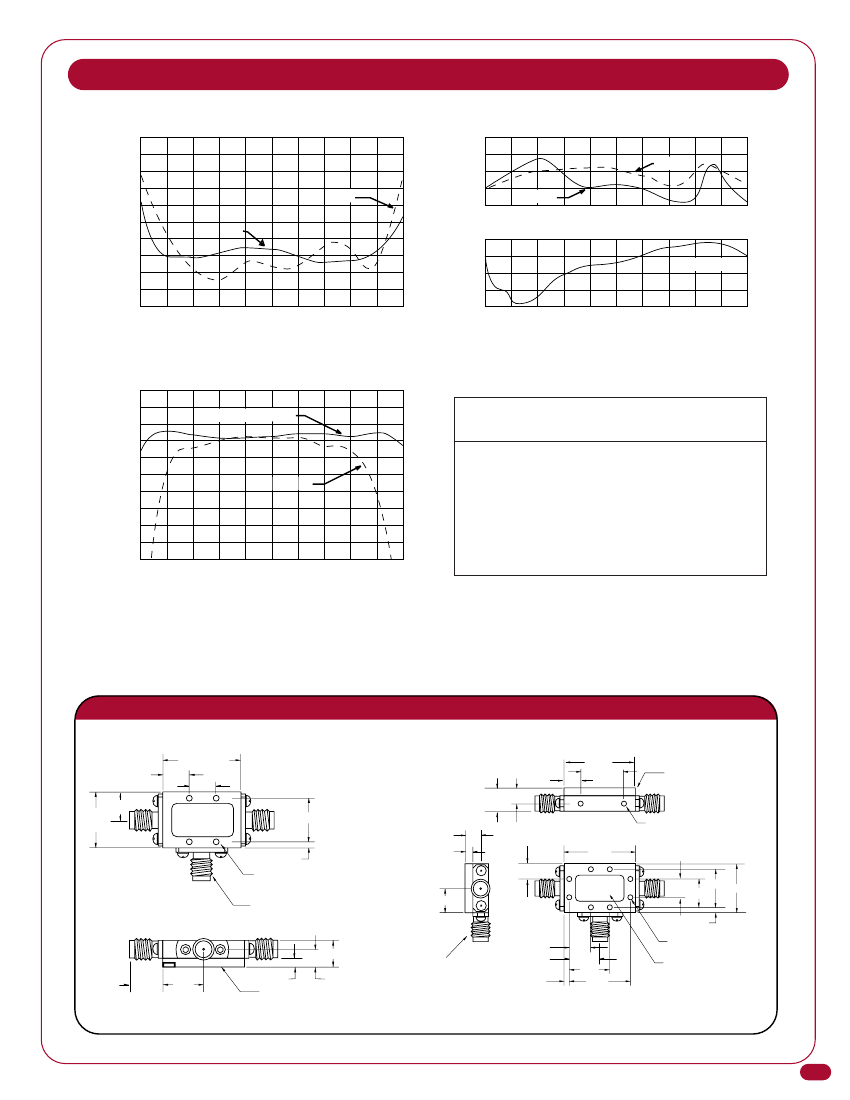

4 TO 18 GHz DOUBLE-BALANCED MIXER

MODELS: DMX0418L, DMY0418L, DMX0716L, DMY0716L

FEATURES

• RF/LO coverage ......... 4 to 18 GHz

• IF operation ............... DC to 4 GHz

• LO power range ......... +7 to +13 dBm

• Conversion loss .......... 5 dB typical

• LO-to-RF isolation ....... 35 dB typical

• Packaging.................. Hermetically sealed

• Soft substrate

MITEQ’s DMX, DMY series of mixers are constructed using double-tuned microstrip RF and LO baluns with a

DC-coupled IF structure. The construction, coupled with the hermetic packaging, provides for high inherent

reliability and isolation over an extremely broad frequency range. This device performs as an up- or downcon-

verter covering most EW bands and communication applications. This mixer is also available with medium or

high forward voltage diodes (M, H) yielding proportional changes in LO power and spurious performance.

ELECTRICAL SPECIFICATIONS

INPUT PARAMETERS

RF frequency range

RF VSWR (RF = -10 dBm, LO = +10 dBm)

LO frequency range

LO power range

LO VSWR (LO = +10 dBm)

7 to 16 GHz

4 to 18 GHz

CONDITION

7 to 16 GHz

4 to 18 GHz

DC to 4 GHz

LO = +10 dBm

LO = +13 dBm

CONDITION

2 dB bandwidth

7 to 16 GHz

4 to 18 GHz

CONDITION

UNITS

GHz

Ratio

GHz

dBm

Ratio

UNITS

dB

dBm

UNITS

GHz

Ratio

20

0

+10

MIN.

DC

2:1

35

+3

+13

TYP.

MAX.

4

MIN.

4

+7

2:1

2.5:1

TYP.

5

6

MAX.

8

9

9.5

MIN.

4

2:1

3:1

18

+13

TYP.

MAX.

18

TRANSFER CHARACTERISTICS

Conversion loss (IF = 100 MHz, LO = +10 dBm)

Single-sideband noise figure

Isolation – LO to RF

Isolation – LO to IF

Isolation – IF to RF

Input power at 1 dB compression

Input two-tone third-order intercept point

OUTPUT PARAMETERS

IF frequency range

IF VSWR (RF = -10 dBm, LO = +10 dBm)

47

DMY0418M Related Products

	DMY0418M	DMY0716H	DMY0716M	DMX0418M	DMX0418H	DMY0418H
Description	4000 MHz - 18000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9 dB CONVERSION LOSS-MAX	4000 MHz - 18000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9 dB CONVERSION LOSS-MAX	4000 MHz - 18000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9 dB CONVERSION LOSS-MAX	4000 MHz - 18000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 9 dB CONVERSION LOSS-MAX	Double Balanced Mixer, 4000MHz Min, 18000MHz Max, 9dB Conversion Loss-Max,	Double Balanced Mixer, 4000MHz Min, 18000MHz Max, 9dB Conversion Loss-Max,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	HIGH RELIABILITY, HIGH ISOLATION	HIGH RELIABILITY, HIGH ISOLATION, HIGH DYNAMIC RANGE	HIGH RELIABILITY, HIGH ISOLATION	HIGH RELIABILITY, HIGH ISOLATION	HIGH RELIABILITY, HIGH ISOLATION, HIGH DYNAMIC RANGE	HIGH RELIABILITY, HIGH ISOLATION, HIGH DYNAMIC RANGE
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum frequency conversion loss	9 dB	9 dB	9 dB	9 dB	9 dB	9 dB
Maximum operating frequency	18000 MHz	18000 MHz	18000 MHz	18000 MHz	18000 MHz	18000 MHz
Minimum operating frequency	4000 MHz	4000 MHz	4000 MHz	4000 MHz	4000 MHz	4000 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-54 °C	-54 °C	-54 °C	-54 °C	-54 °C	-54 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
Maximum voltage standing wave ratio	2	2	2	2	2	2
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	-
Base Number Matches	-	1	1	1	1	-

Recommended Resources

Insulation Basics: Choosing the Right Insulation Solution for Your Application

Electronic stable speed motor application circuit

Switch noise cut off circuit

Telephone frequency scrambler circuit diagram

Squirrel cage motor energy consumption braking

555 water full indicator circuit
