D-0715-6 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> D-0715-6

Preview

D-0715-6: DescriptionSplitter, 750MHz Min, 1500MHz Max, 0.55dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size260KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

D-0715-6 Overview

Splitter, 750MHz Min, 1500MHz Max, 0.55dB Insertion Loss-Max,

D-0715-6 Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
Other features	SMA-F, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	23.01 dBm
Maximum insertion loss	0.55 dB
Maximum operating frequency	1500 MHz
Minimum operating frequency	750 MHz
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

Isolated Power

Dividers 3, 6, 9 & 12 Way

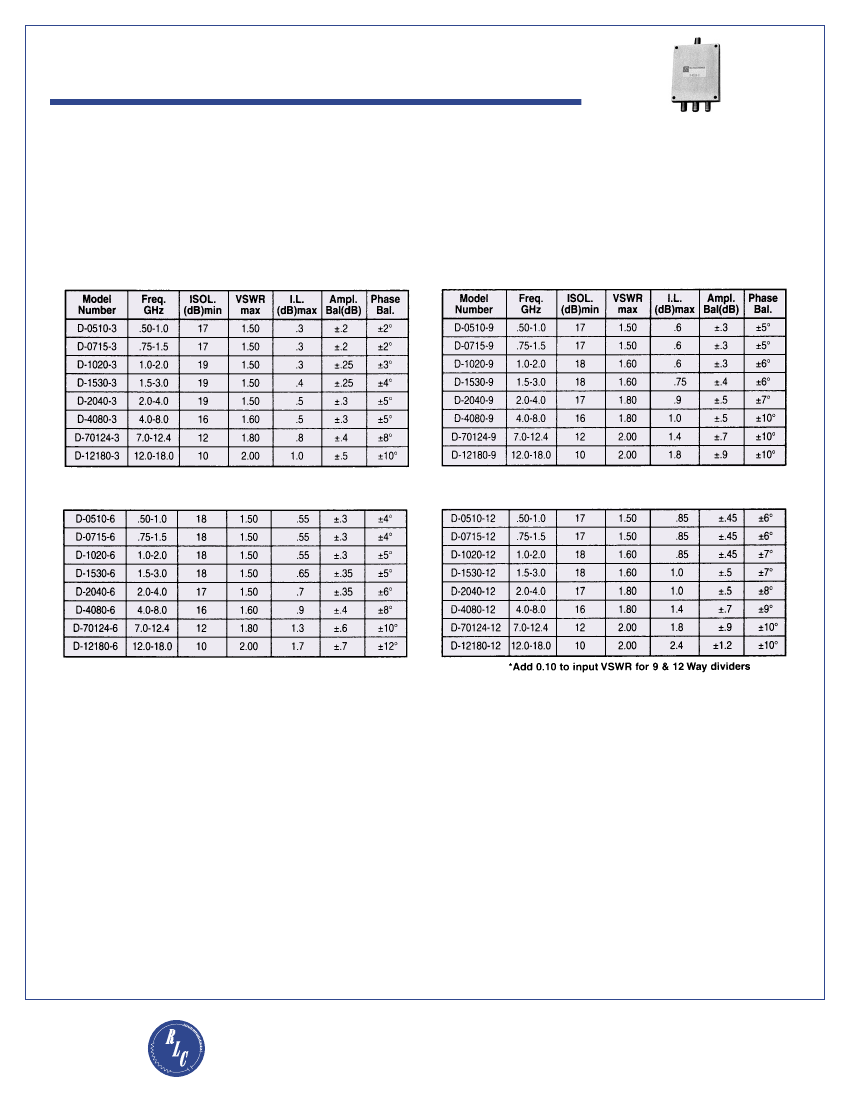

RLC Electronics' Power Dividers are compact microstrip units

with wide bandwidth and multiple outputs. These units provide

low VSWR at all ports and high isolation between all the output

ports. Phase and amplitude tracking of all outputs are excellent

due to the symmetrical designs. Combinations of two-way

and three-way power dividers in one package forms the basic

building blocks in a variety of custom or standard "N" way

output ports.

Specifications

3-Way

9-Way

6-Way

12-Way

Power:

10 watts avg. (outputs terminated with a VSWR

less that 1.35) 200mW avg. (outputs terminated with

any VSWR and phase)

Connectors:

SMA female

Impedance:

50 ohms

Environment:

MIL-E-5400, Class 1A

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com

97
